Automatic hot water boiler ROJEK TKA BIO 80
Automatic hot water boiler ROJEK TKA BIO 80 allows to burn automatically wood pellets with diameter 6 - 24 mm, quality white, but also with bark admixture. Thanks to the fuel tank, electronic regulation and the burner with screw feeder, the boiler can work in automatic mode for several days. The boiler is available with hopper on the right or left side. The ST 480 zPID control unit is standard on the boiler.
Product code: 1082004
Technical parameters
| Nominal power | 23 - 80 kW |
| Efficiency | 90% |
| Boiler class according to EN 303-5 | 4 |
| Energy efficiency class | A+ |
| Flue gas temperature range | 88-127 °C |
| Prescribed chimney draft | 28 - 30 Pa |
| Dimensions (w x h x d) | 1605x1772x1552 mm |
| Chimney height | 1669 mm |
| Chimney diam. (chimney extension diam.) | 210 (219) mm |
| Volume of standard fuel tank (right standard / left standard) | 800 l |
| Volume of fuel tank larger than standard | 1200 l |
| Boiler water volume | 300 l |
| Boiler connections - inlet and outlet water diameter | G 2" |
| Electrical connection voltage | 230 V / 50 Hz |
| Maximum electrical input | 110 W |
| Boiler weight | 1240 kg |
Boiler description
The automatic hot water boiler TKA BIO 80 allows you to automatically burn wood pellets with a diameter of 6 - 10 mm, quality white, but also with a mixture of bark. A retort burner is installed in the boiler, which is designed on the principle of lower fuel supply to the combustion section and the combustion itself resembles burning in a forge. From the feed chamber, the fuel is fed by a feeder into the cast-iron retort tube. Here it is pushed upwards onto a circular grate. The retort is placed in a stirrer into which air is blown by a fan. The burnt fuel - ash and slag - falls over the edges of the grate into the ash tray.
The ROJEK TKA BIO 80 boiler is supplied with a 800 l fuel storage on the right or left side.
The boiler is equipped with a modulation unit ST 480 zPID.
This unit controls:
-
This unit controls:
- the burner fan (continuously controls the fan speed)
- the fuel feeder (controls the dosage according to the required output)
- the central heating circulating water pump (DHW)
- the hot water pump
- the boiler circuit pump
- the circulation pump
The controller includes a module for controlling a four-way or three-way mixing vent in the base. Furthermore, the ST 480 zPID controller can work with an equithermal sensor, with other four-way or three-way vents, with a room thermostat, with a GSM module, with a Wifi module and with an Ethernet module (via the Internet).
These hot water boilers meet the requirements of EN 303 - 5, Boiler Class 4 for pellet boilers.
You will definitely appreciate this product

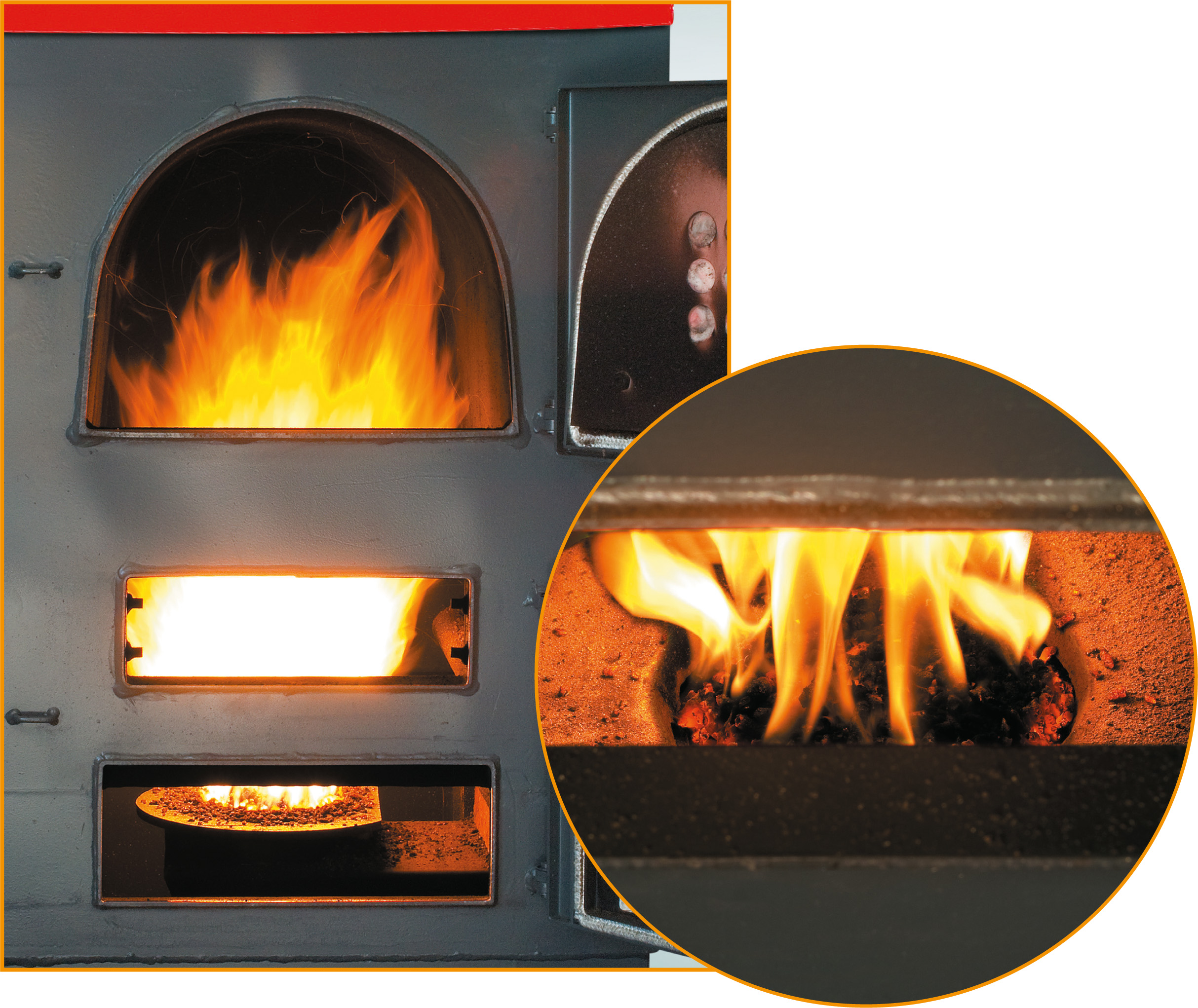

Burner flame

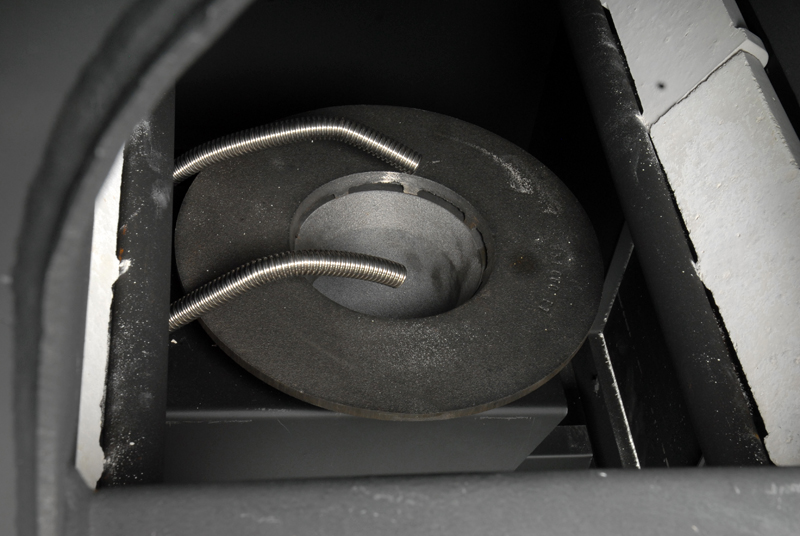

Burner grate

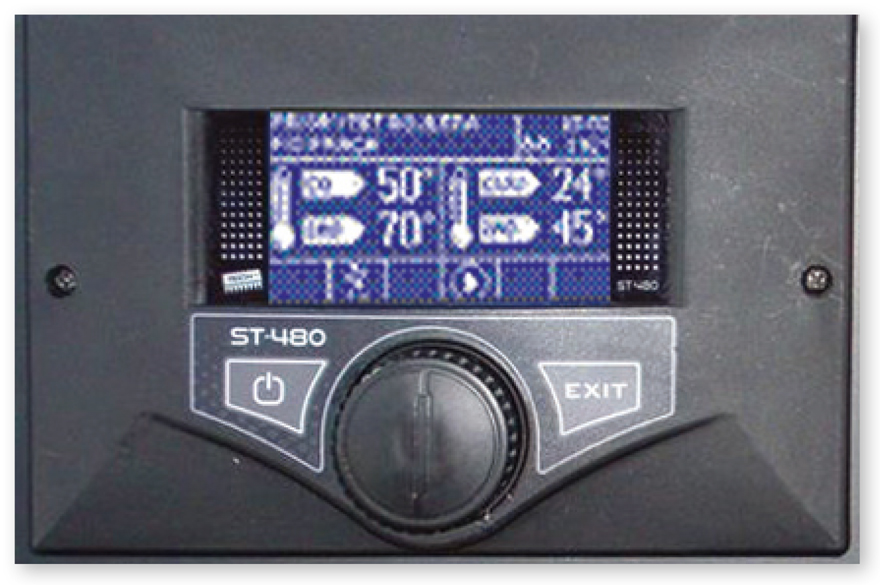

Control unit
