Combined 5-operation machine KPSN400A

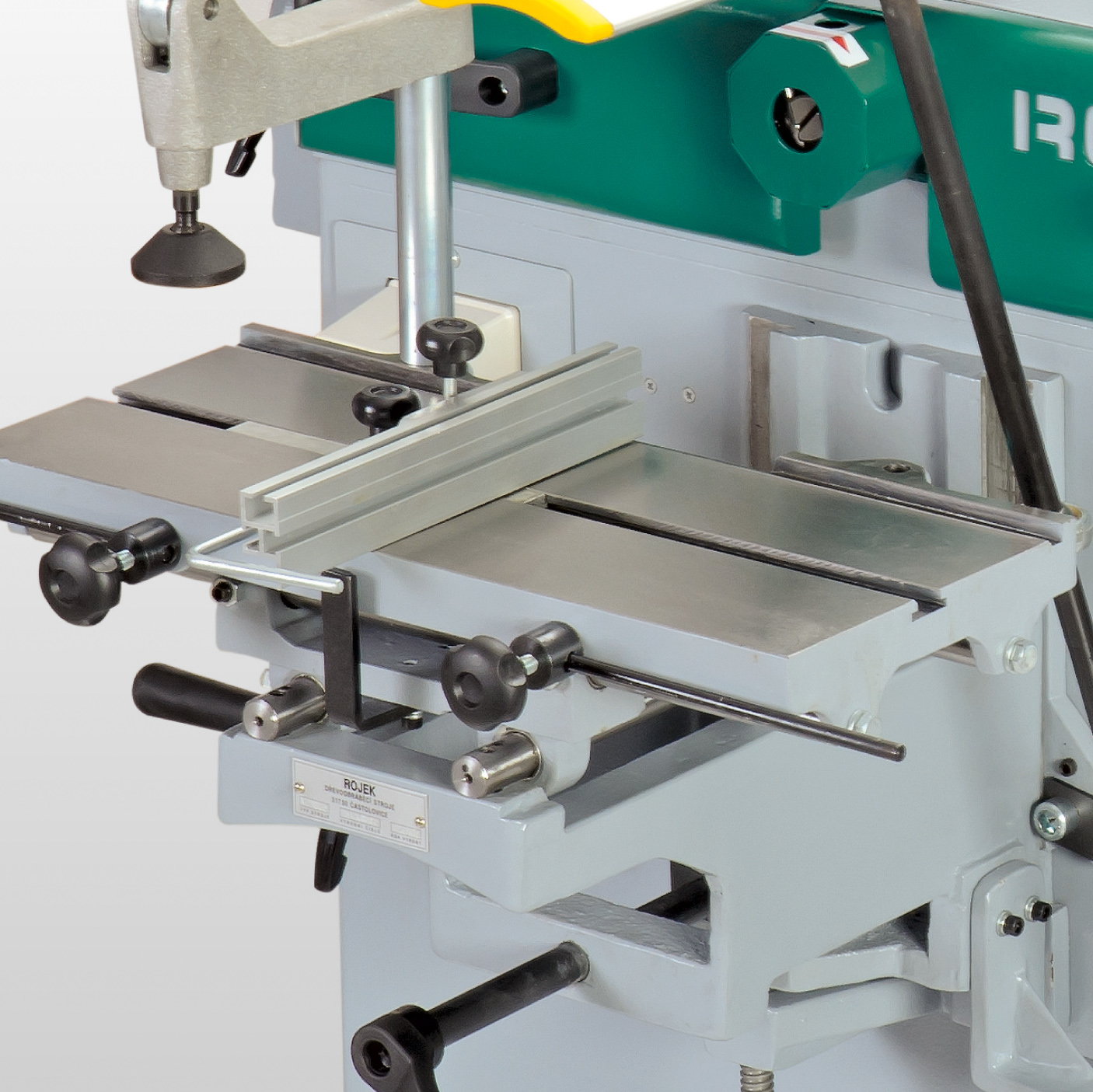

The design of the machine has gone through a number of technical innovations that increase the useful features of this machine. High-quality processing ranks this combined machine among the best in its class. Already as standard, it is equipped with a sliding table of proven construction with minimal maintenance costs and very precise solid mounting on hardened CV 360T bars. The guarantee of accuracy and reliability is the mounting of the saw mechanism in a robust cast-iron body with a scoring unit driven by a separate motor with the possibility of switching off. The spindle moulder machine is already equipped with a tilting spindle as standard. It is possible to add VDA 315L mortiser to this machine.
Product code: 1937001
Technical parameters
| Engine power | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Max. disc with pre-cutting | Ø 315 mm |
| Spindle diameter | 30 mm (5/8″ | 1″) |
| Saw speed | 3 755/min. |
| Max. cutting height with pre-cut | 100 mm (70 mm [45°]) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 800 mm |
| Pre-cutting motor power | 0,75 kW |
| Disc diameter | Ø 120 mm |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed (driven by separate electric motor) | 8,530/min (10,236/min [60Hz]) |
| Engine power | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Spindle diameter | Ø 30 (32 | 35 | 40 | 50) mm (1″; 5/4″; (5/4″& 3/4″) |
| Spindle speed | 2 500; 3 500; 6 000; 8 000; 10 000/min. |
| Max. spindle stroke | 140 mm |
| Spindle length | 130 (110) mm |
| Max. table hole diameter | Ø 220 mm |
| Max. tool diameter under the table | Ø 175 mm |
| Max. tool diameter above the table | Ø 200 / 250 mm |
| Spindle tilting | -45° ÷ +5° |
| Engine power | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Knife shaft diameter | 95 mm |
| Diameter of feed rollers | 40 mm |
| Number of knives | 4 |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Speed of knife shaft | 4 200/min. |
| Max. levelling width | 410 mm |
| Max. thicknessing width | 400 mm |
| Max. thicknessing height | 230 mm |
| Max. chip thickness | 5 mm |
| Max. levelling chip | 4 mm |
| Thickening feed speed | 8 m/min. |
| Length (at CV360 - 2,000 mm) | 2 520 mm |
| Length (at CV360 - 2 800 mm) | 2 970 mm |
| Length (at CV360 - 2 800 mm) | 3 020 mm |
| Length (at CV360 - 3 200 mm) | 3 390 mm |
| Width | 3 155 mm |
| Table height | 892 mm |
| Max. machine height | 1 300 mm |
| Dimensions of saw and milling machine table | 1 314 x 479 mm |
| Dimensions of the comparative milling machine table | 1 500 x 420 mm |
| Dimensions of the thicknessing milling machine table | 750 x 408 mm |
| Suction diameter | 100 mm |
| Gross weight | 770 kg |
| Net weight | 740 kg |
| Table dimensions | 2 000 (2 800 | 3 200) x 360 mm |
| Support frame dimensions | 1 240 x 650 mm |
| Cutting length of the saw | 2 000 (2 800 | 3 200) mm |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Workplace noise (without technology) | 84.8 dB(A) |
| Workplace noise (with technology) | 88.3 dB(A) |
| Acoustic performance (without technology) | 81.5 dB(A) |
| Acoustic performance (with technology) | 103.4 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

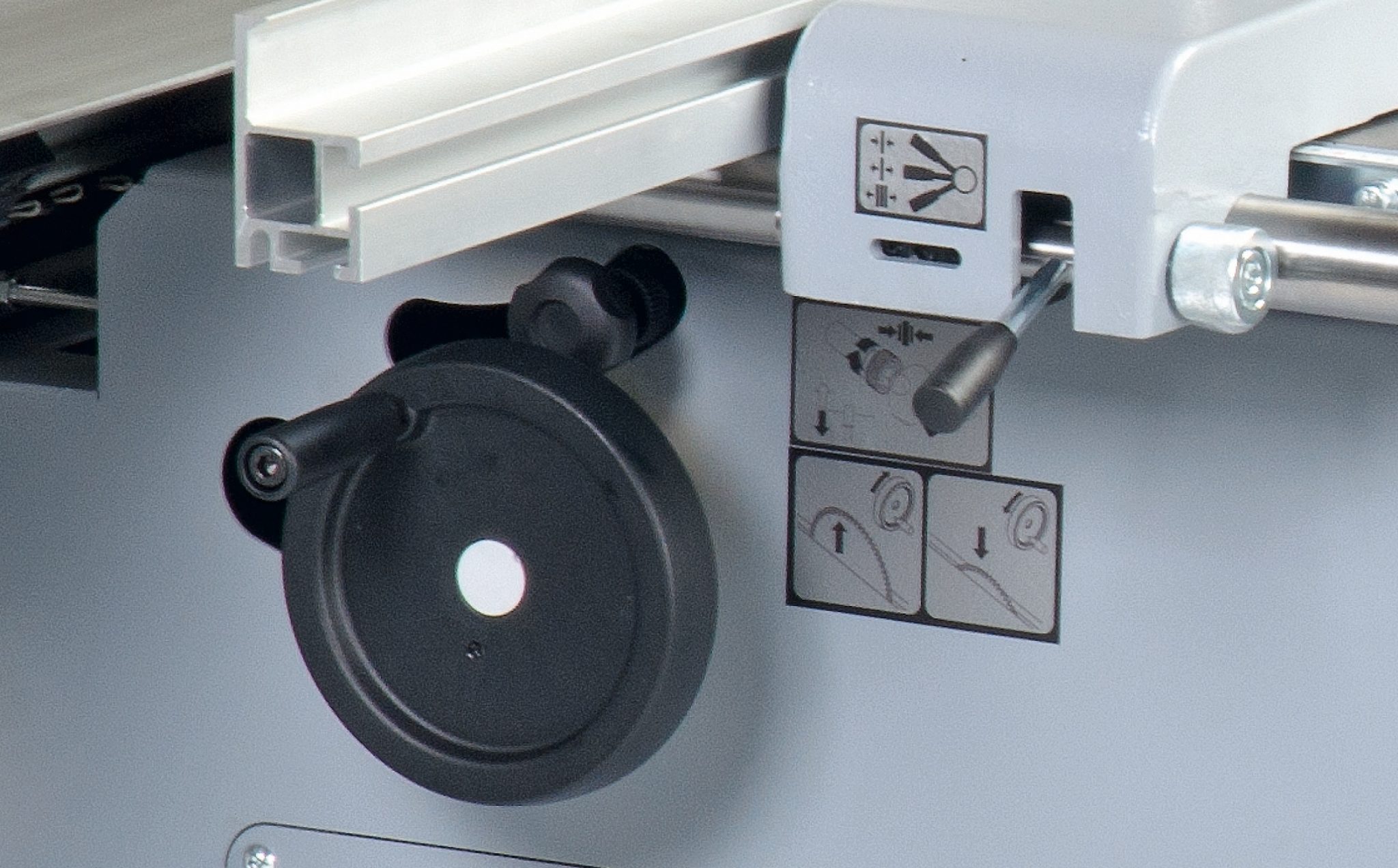

Pre-cut + external pre-cut adjustment

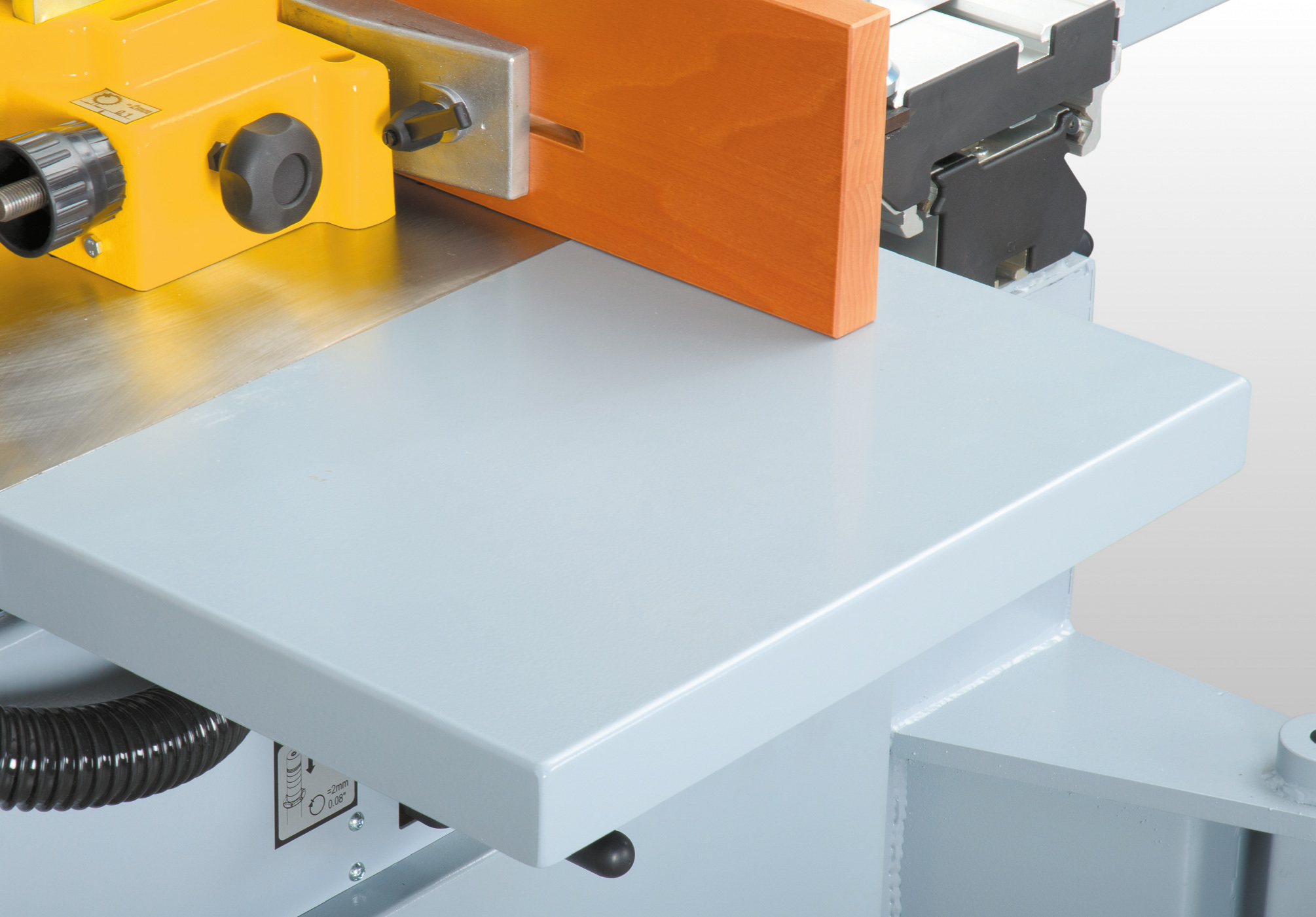

Table extension

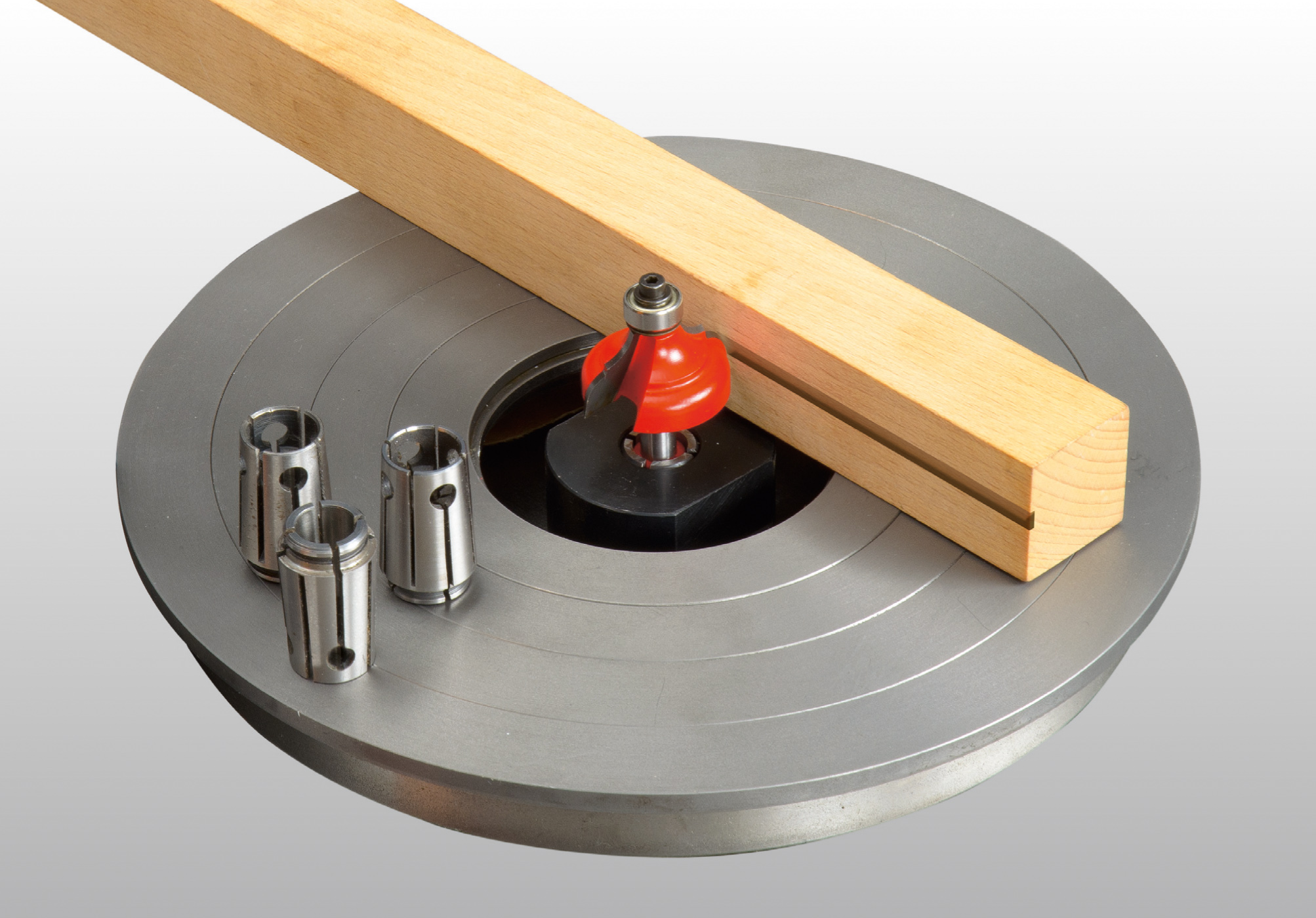

Clamp for shank tools

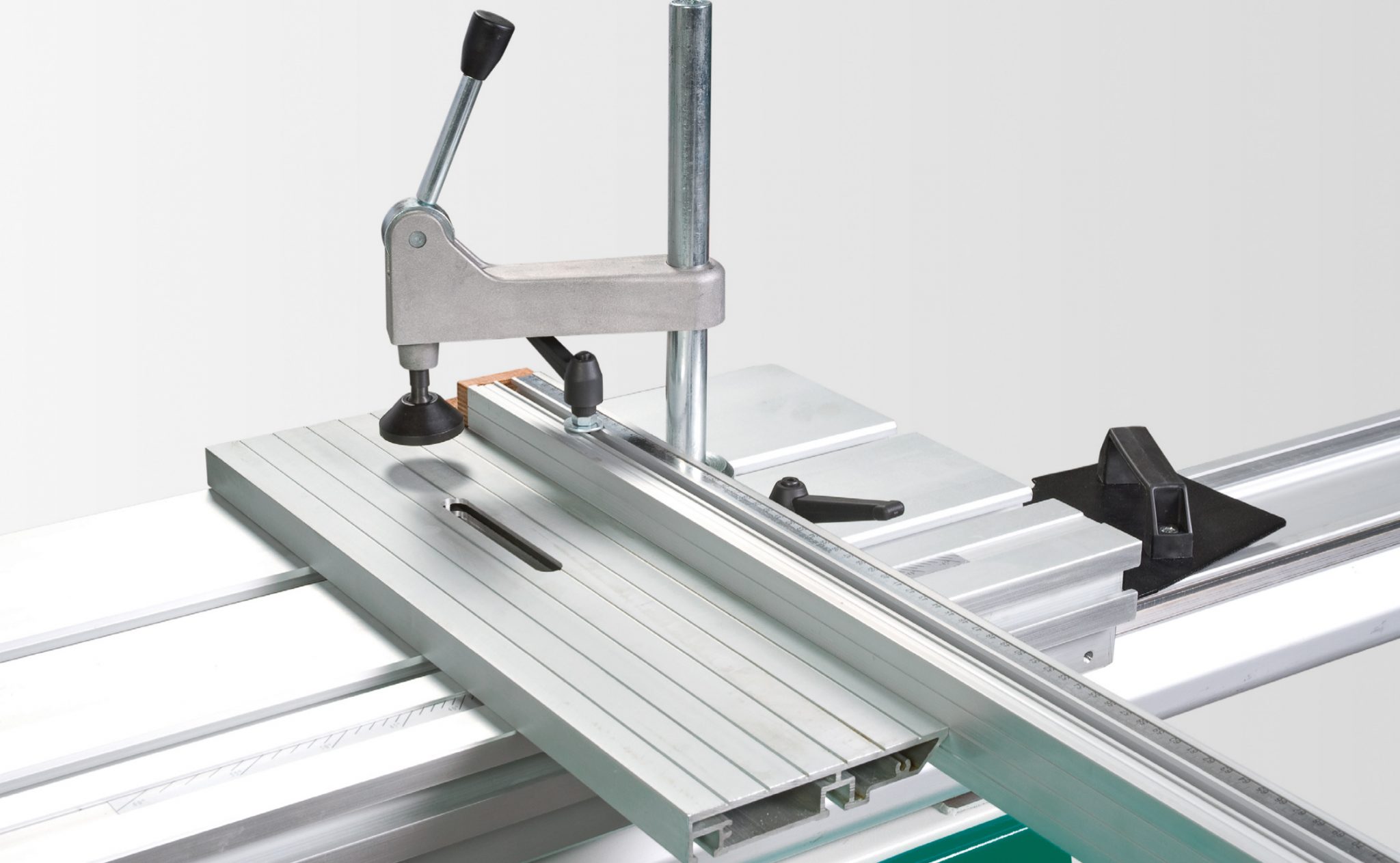

Equipment for tapping short pieces

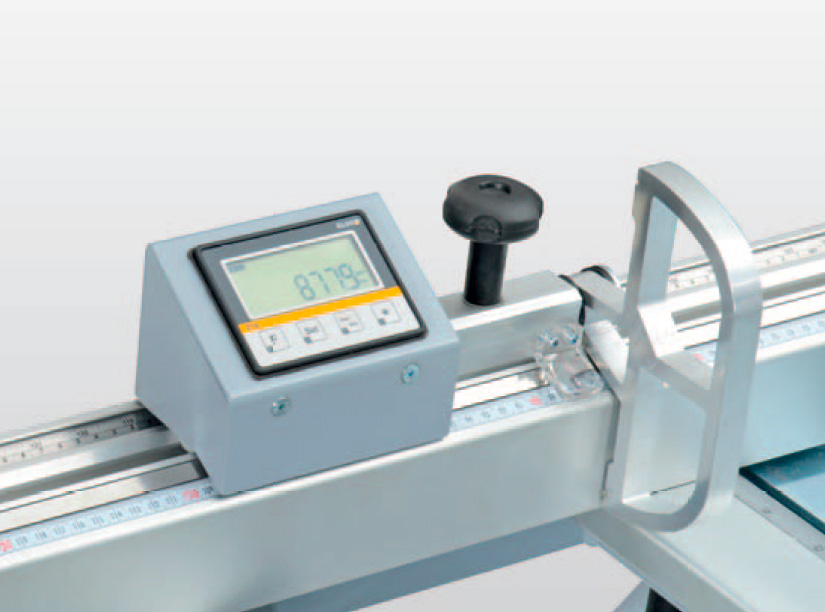

Stop with digital readout
Support frame roller
Fan for precise angles of 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°

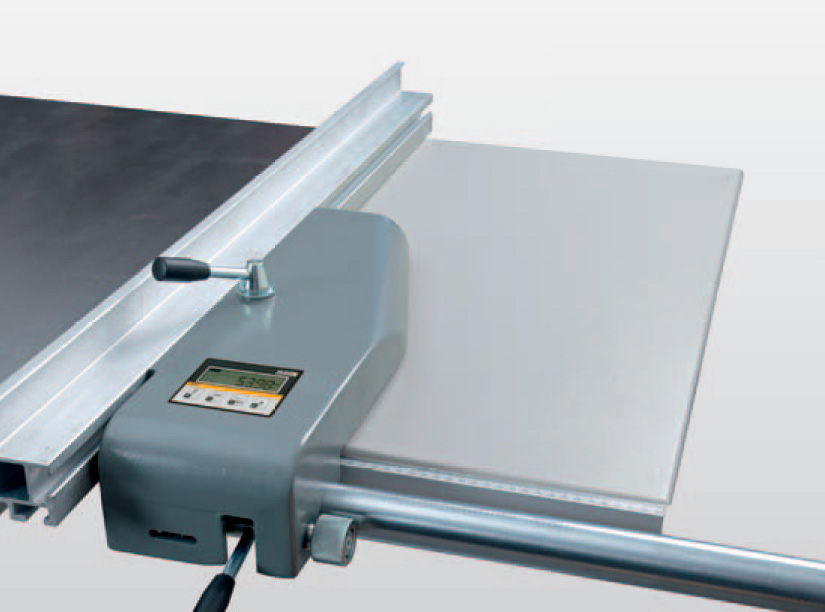

Longitudinal ruler with digital readout

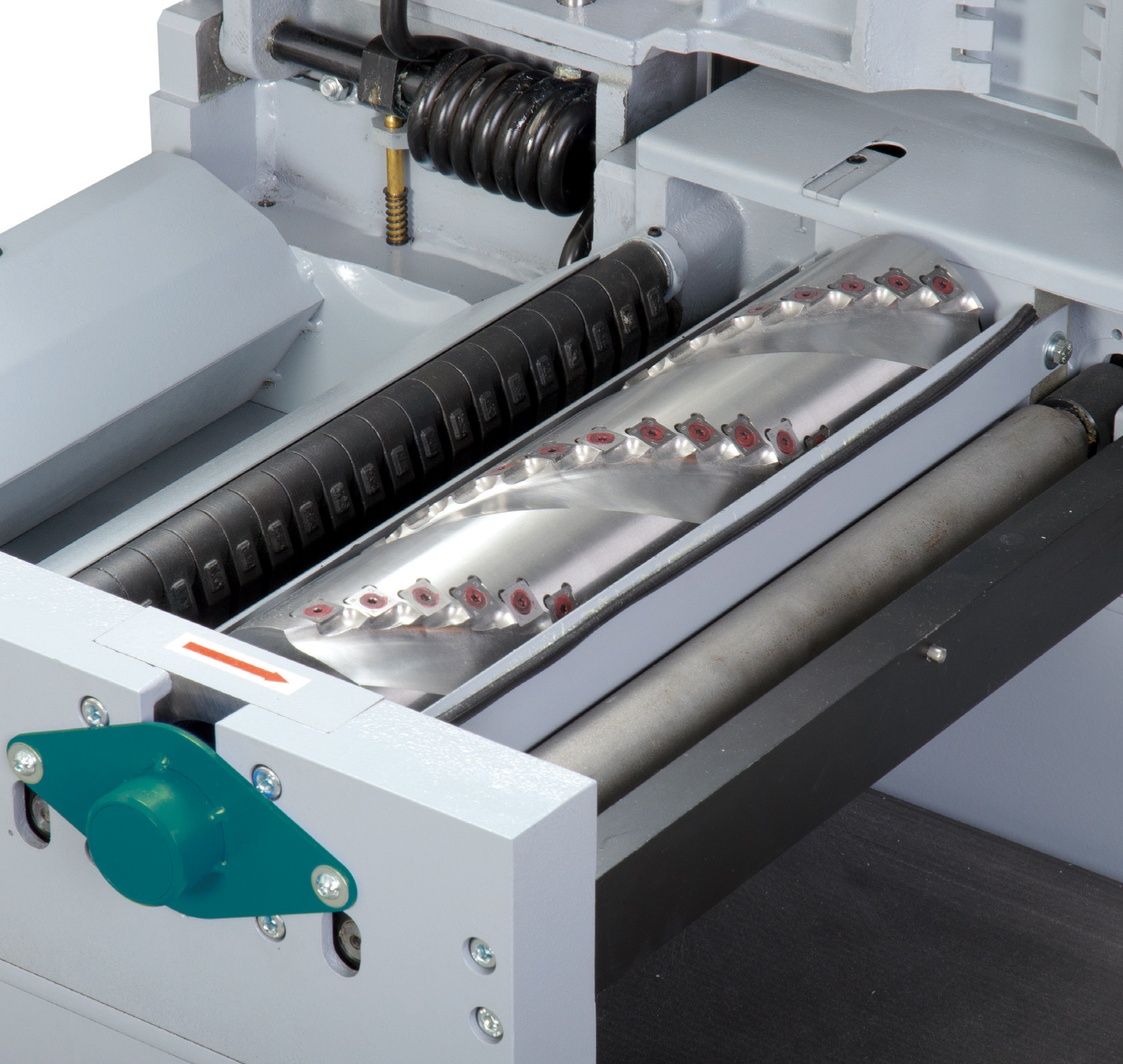

Spiral roller with feed rollers

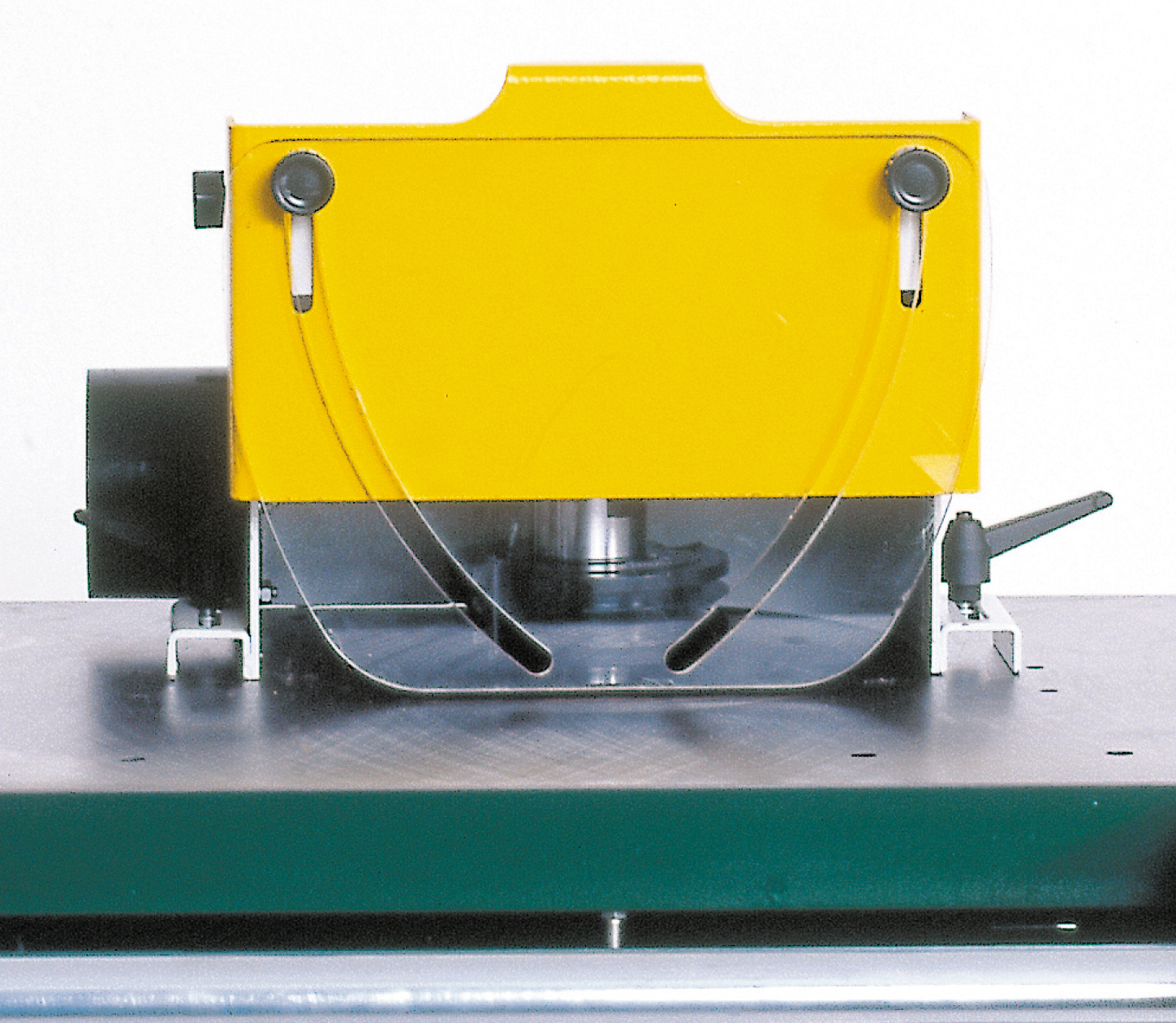

Capping cover

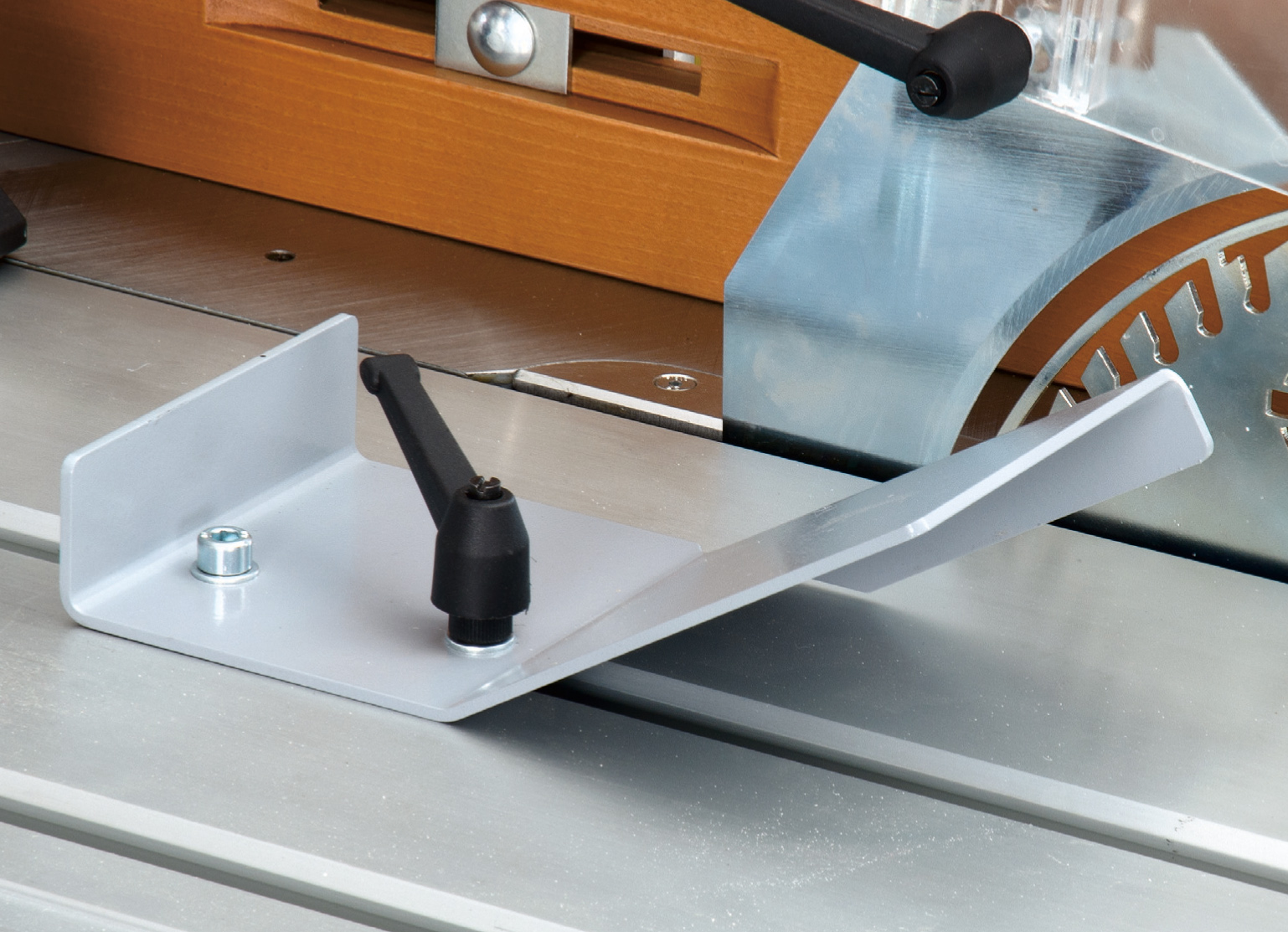

Locking foot

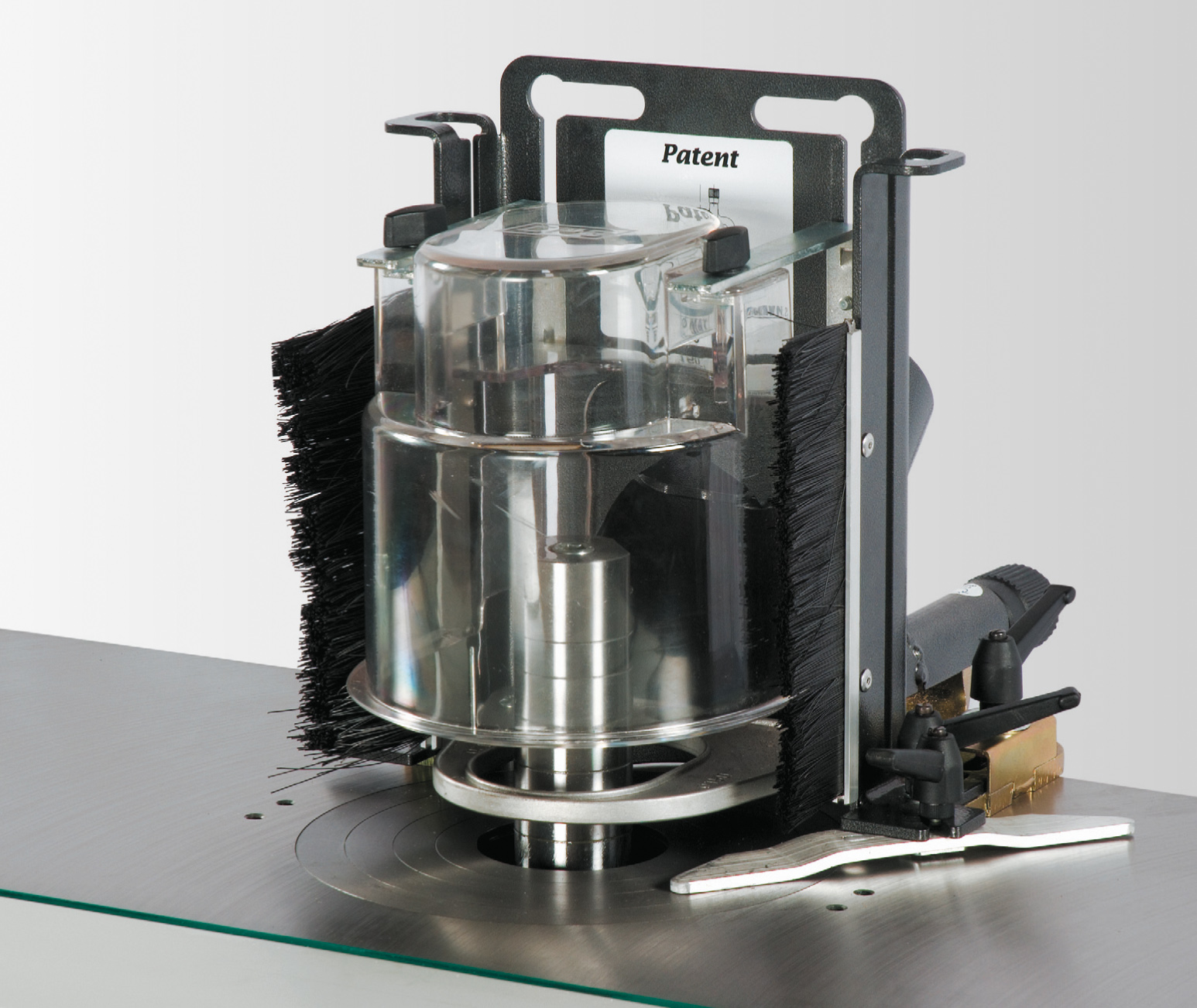

Profiling cover for shape milling

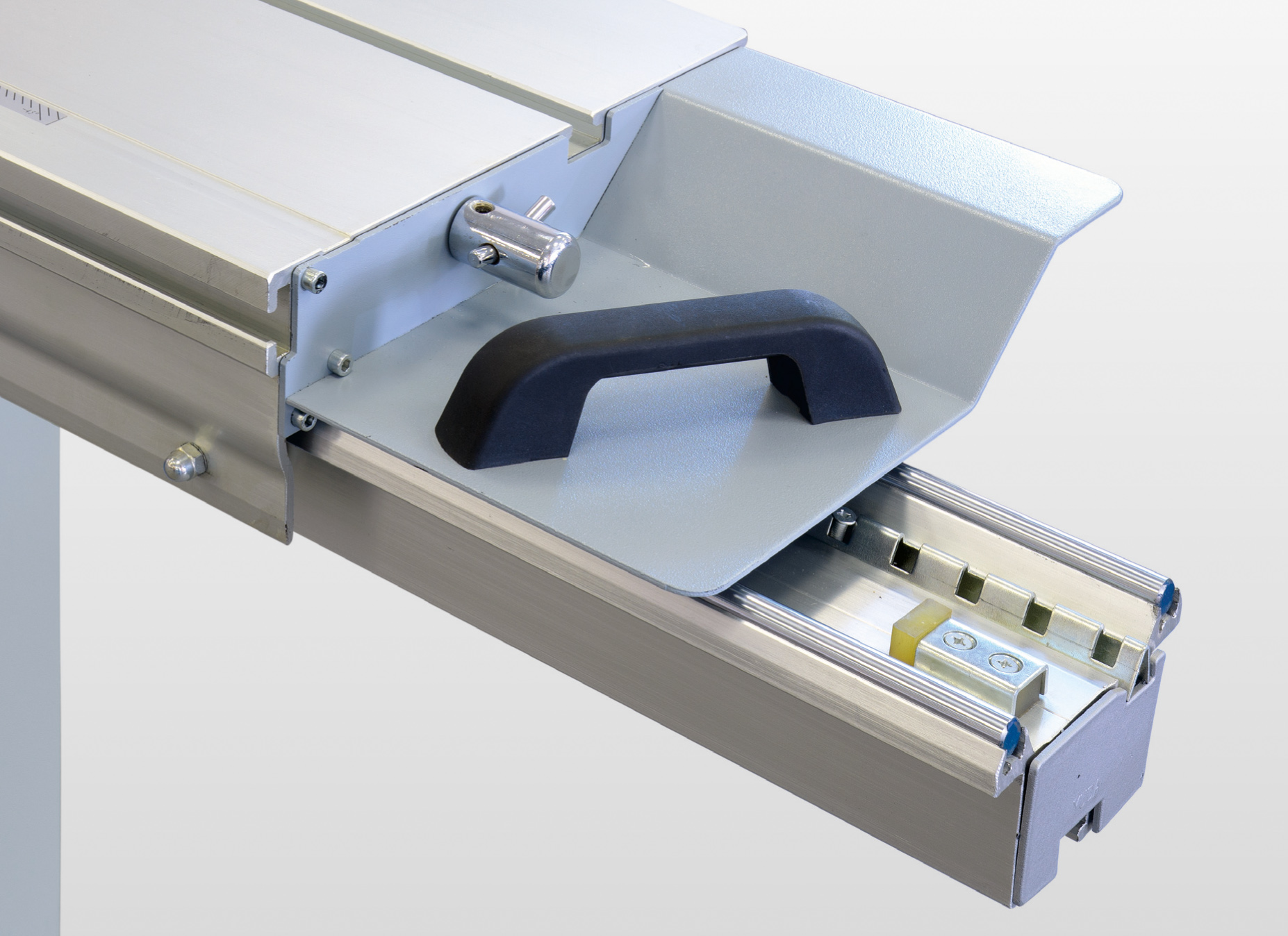

Storage of the CV360T formatting table on bars
Massive mounting of saw mechanics
Longitudinal ruler with fine tuning

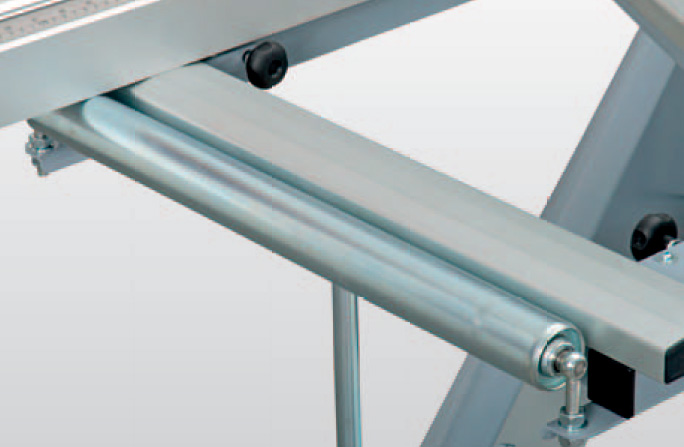

Stretching table relief rollers

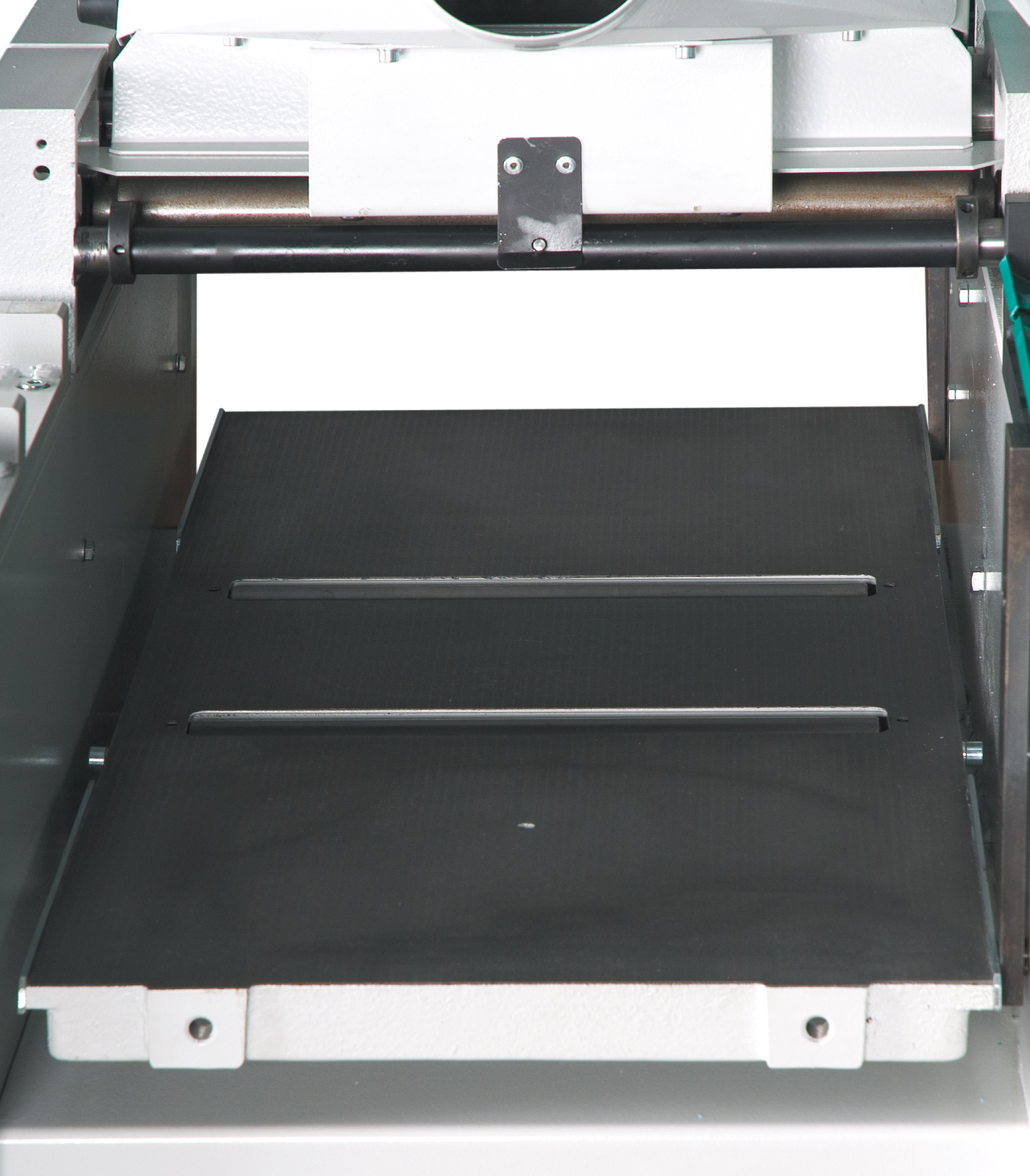

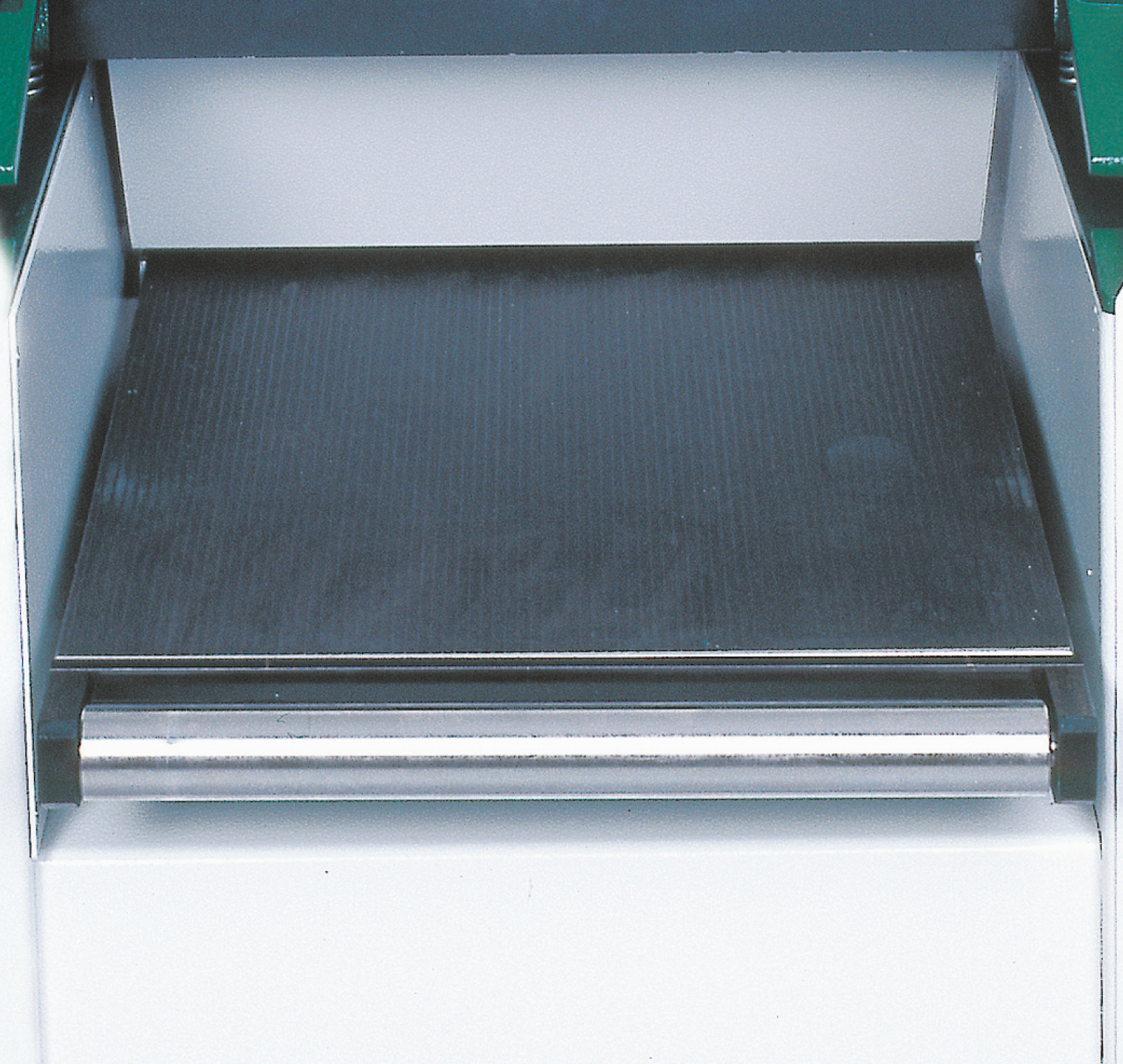

Rollers in the stretching table

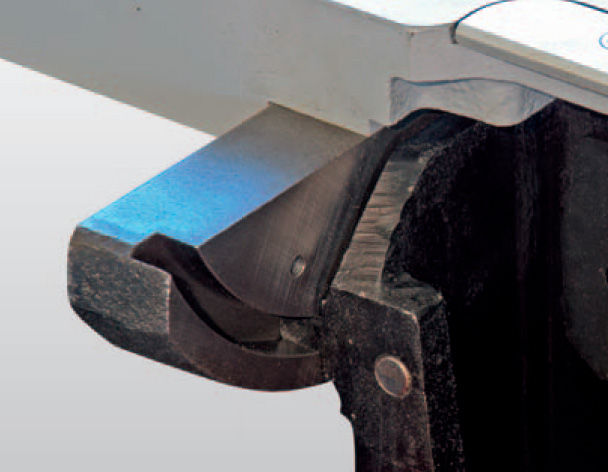

Splinter

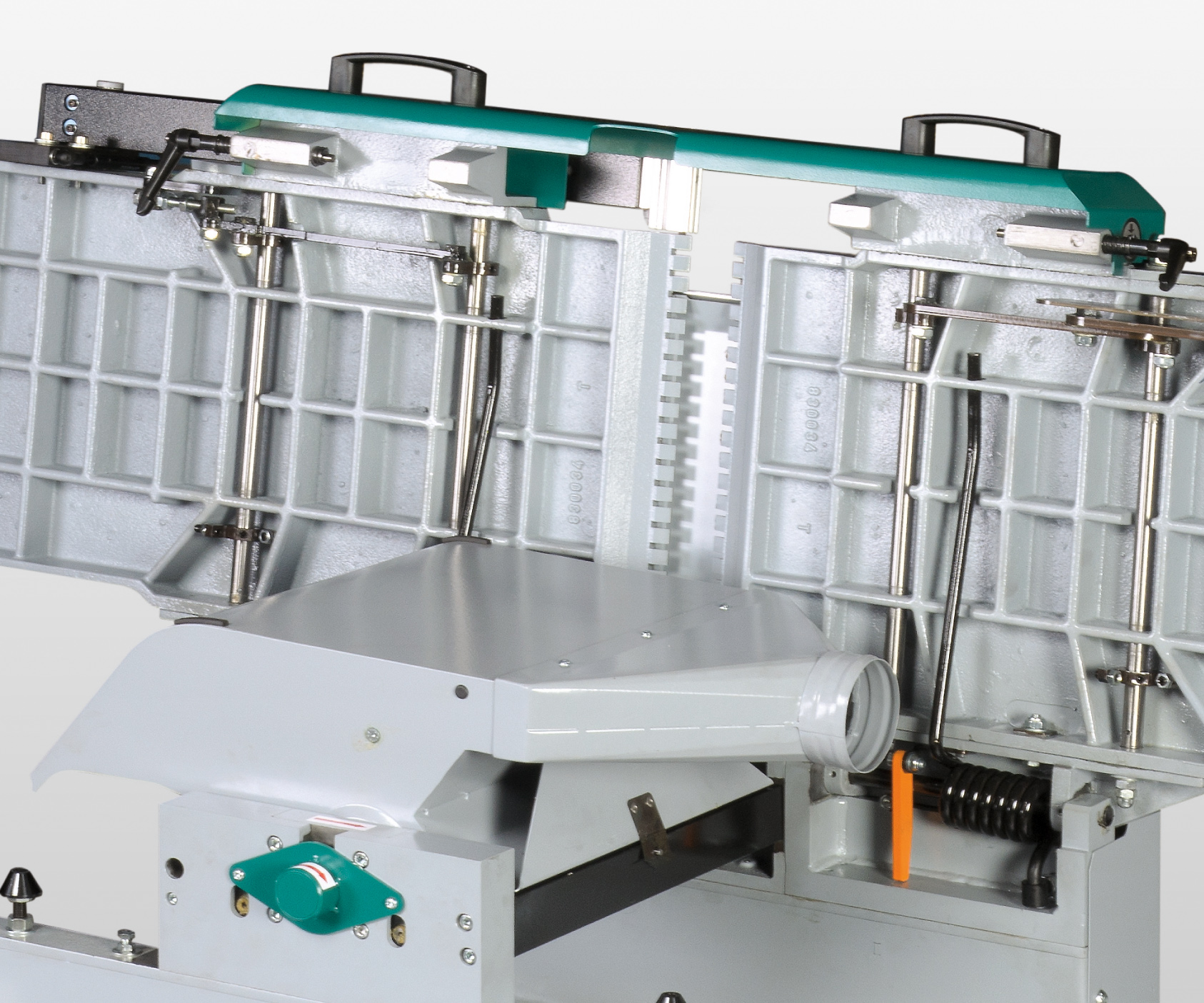

Folding comparison tables

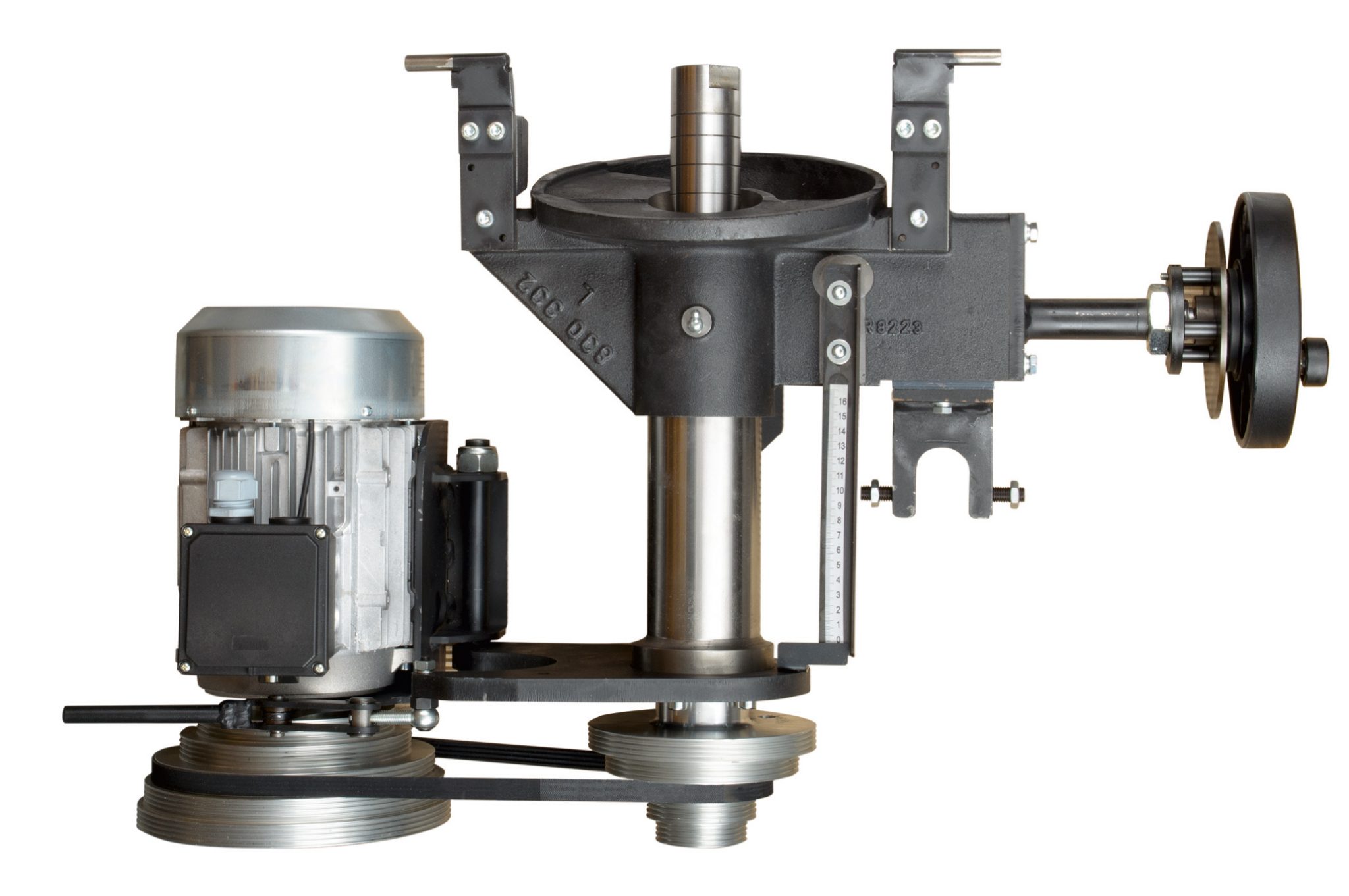

Complete mechanics part

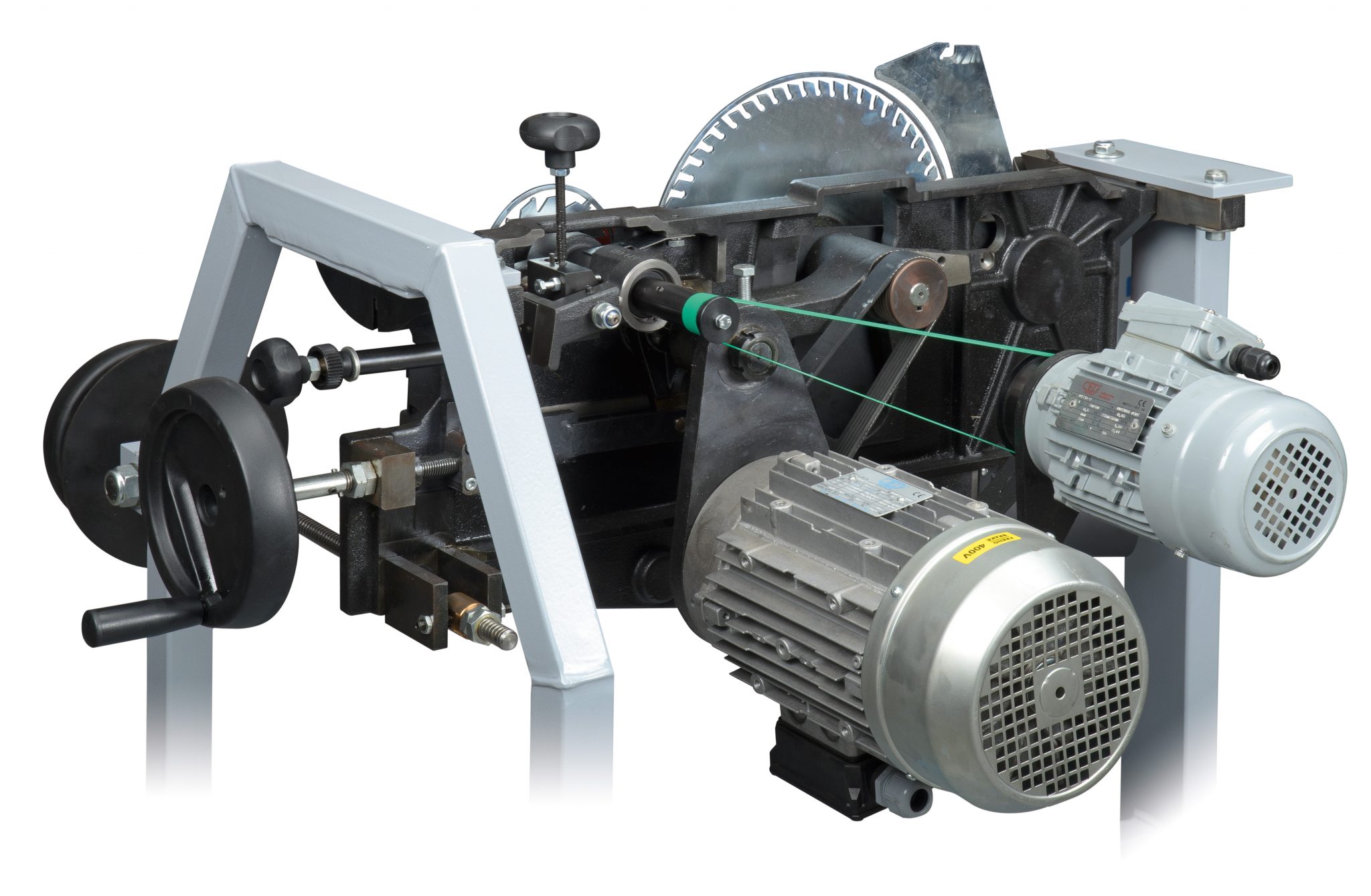

Saw mechanics
Features and standard equipment
SAW:
- Tilting wheel with angle indication
- cast iron table extension rear
- formatting table CV 360
- short angle ruler 900 mm with stop
- formatting table clamp - single column eccentric

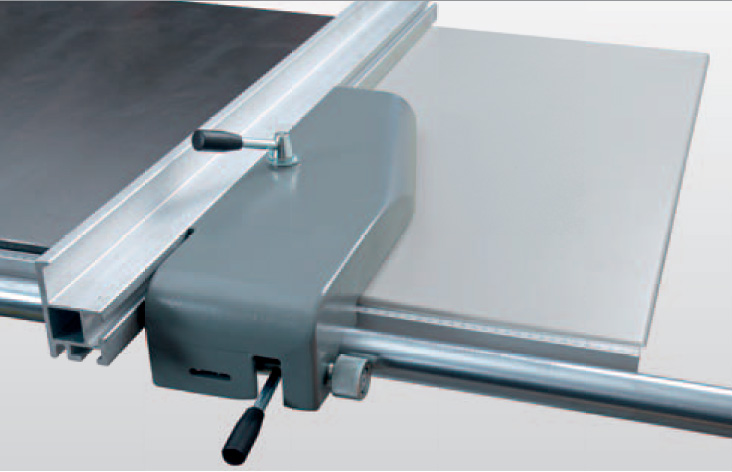

- cast iron holder for longitudinal aluminium ruler with micro-slide
- extension of the cutting width 800 mm with extraction and its connection
- frame with support arm and transverse ruler with tilted scale and two stops
SPINDLE MOULDER:
- solid cast iron body with tilting spindle -45° ÷ +5°
- milling cover with 100 mm diameter suction nozzle, including rulers and pressures
PLANER WITH THICKNESSER:
- 4-knives cutter block ROJEK, parallel hinged tables
Equipment on request
- CV 360T/ 2,8 m formatting trolley on hardened bars
- CV 360T/ 2 m formatting trolley on hardened bars
- spindle for 30mm diameter shank tools + 8 and 12mm collet, clamping height 80mm
- interchangeable spindle including mandrel diameter 30mm, clamping height 95mm
- ELGO electronic measuring ruler for cutting width
- ELGO electronic measuring cross ruler
- two-speed feed motor 5.5 / 10 m/min.
- 2-speed feed motor 7 / 15 m/min.
