Combined Saw / Spindle moulder KPFN300A
The design of the machine has gone through a number of technical innovations that increase the useful features of this machine. High-quality processing ranks this combined machine among the best in its class. Already as standard, it is equipped with a sliding table of proven construction with minimal maintenance costs and very precise solid mounting on hardened CV 360T bars. The guarantee of accuracy and reliability is the mounting of the saw mechanism in a robust cast-iron body with a scoring unit driven by a separate motor with the possibility of switching off. The spindle moulder machine is already equipped with a tilting spindle as standard.
Product code: 1907001
Technical parameters
| S6 engine performance 40% | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Max. disc with pre-cut | Ø 315 mm |
| Spindle diameter | 30 mm (5/8″ | 1″) |
| Saw speed | 3,755/min (4,506/min [60Hz]) |
| Max. cutting height with pre-cut | 100 mm (70 mm [45°]) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 800 mm (1 050; 1 500 mm) |
| Scoring unit motor power | 0,75 kW |
| Disc diameter | Ø 120 mm |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed (driven by separate electric motor) | 8,530/min (10,236/min [60Hz]) |
| Engine power | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Spindle diameter | Ø 30 (32 | 35 | 40 | 50) mm 1″ | 5/4″(5/4″& 3/4″) |
| Spindle speed | 2,500; 3,500; 6,000; 8,000; 10,000/min. |
| Max. spindle stroke | 140 mm |
| Spindle length | 130 (110) mm |
| Max. table hole diameter | Ø 220 mm |
| Max. tool diameter under the table | Ø 175 mm |
| Max. tool diameter above the table | Ø 200 / 250 mm |
| Spindle tilting | -5° ÷ +45° |
| Length (at CV360 - 2,000 mm) | 2 520 mm |
| Length (at CV360 - 2 800 mm) | 3 020 mm |
| Length (at CV360 - 3 200 mm) | 3 390 mm |
| Width | 3 135 - 3 835 mm |
| Table height | 892 mm |
| Max. machine height | 1 300 mm |
| Table dimensions | 1 355 x 500 mm |
| Suction diameter | 100 mm |
| Gross weight | 570 kg |
| Net weight | 550 kg |
| Table dimensions | 2 000 (2 800 | 3 200) x 360 mm |
| Support frame dimensions | 1 240 x 650 mm |
| Cutting length of the saw | 2 000 (2 800 | 3 200) mm |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Workplace noise (without technology) | 81.4 dB(A) |
| Workplace noise (with technology) | 87.3 dB(A) |
| Acoustic performance (without technology) | 89.3 dB(A) |
| Acoustic performance (with technology) | 93.0 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

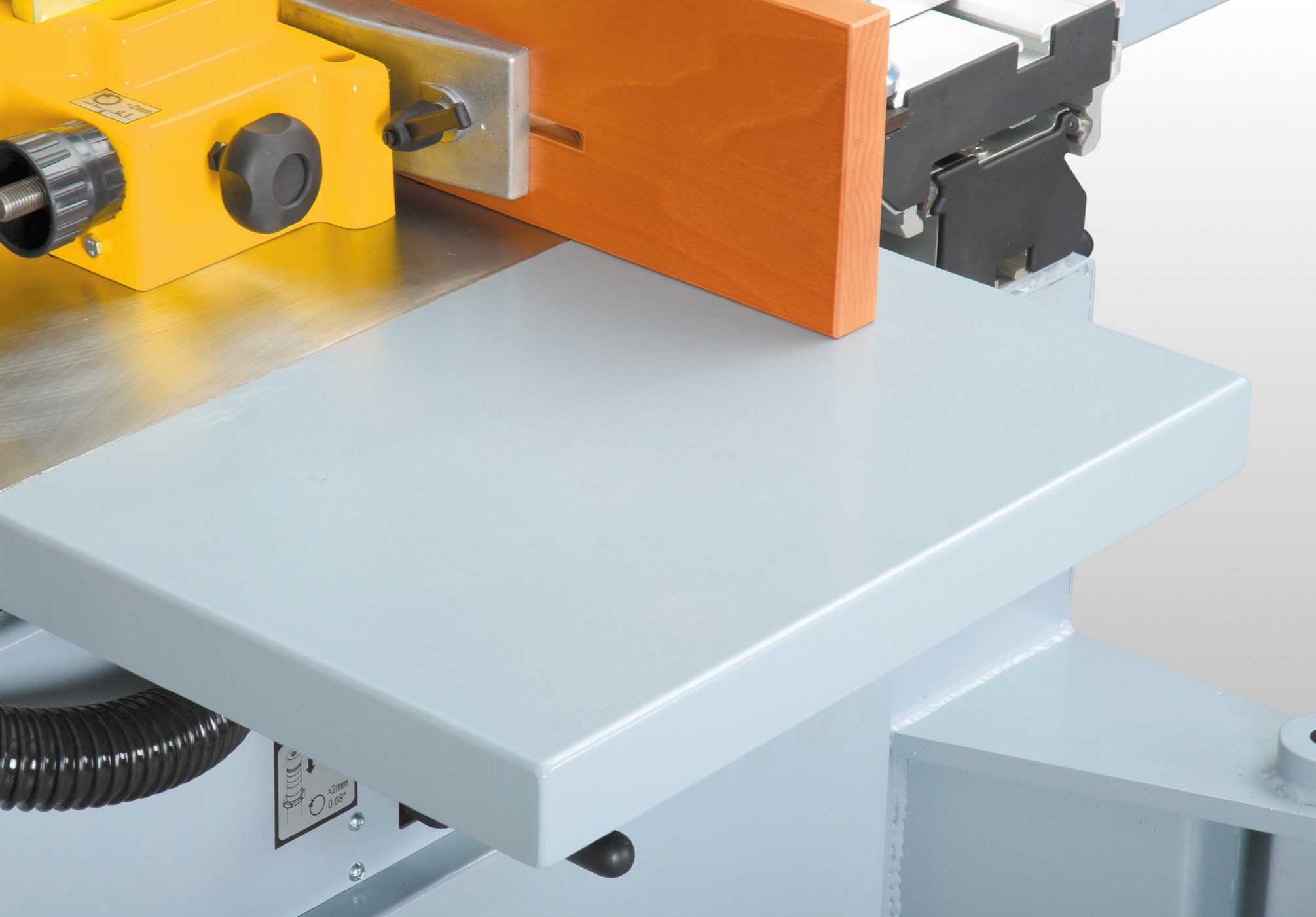

Table extension

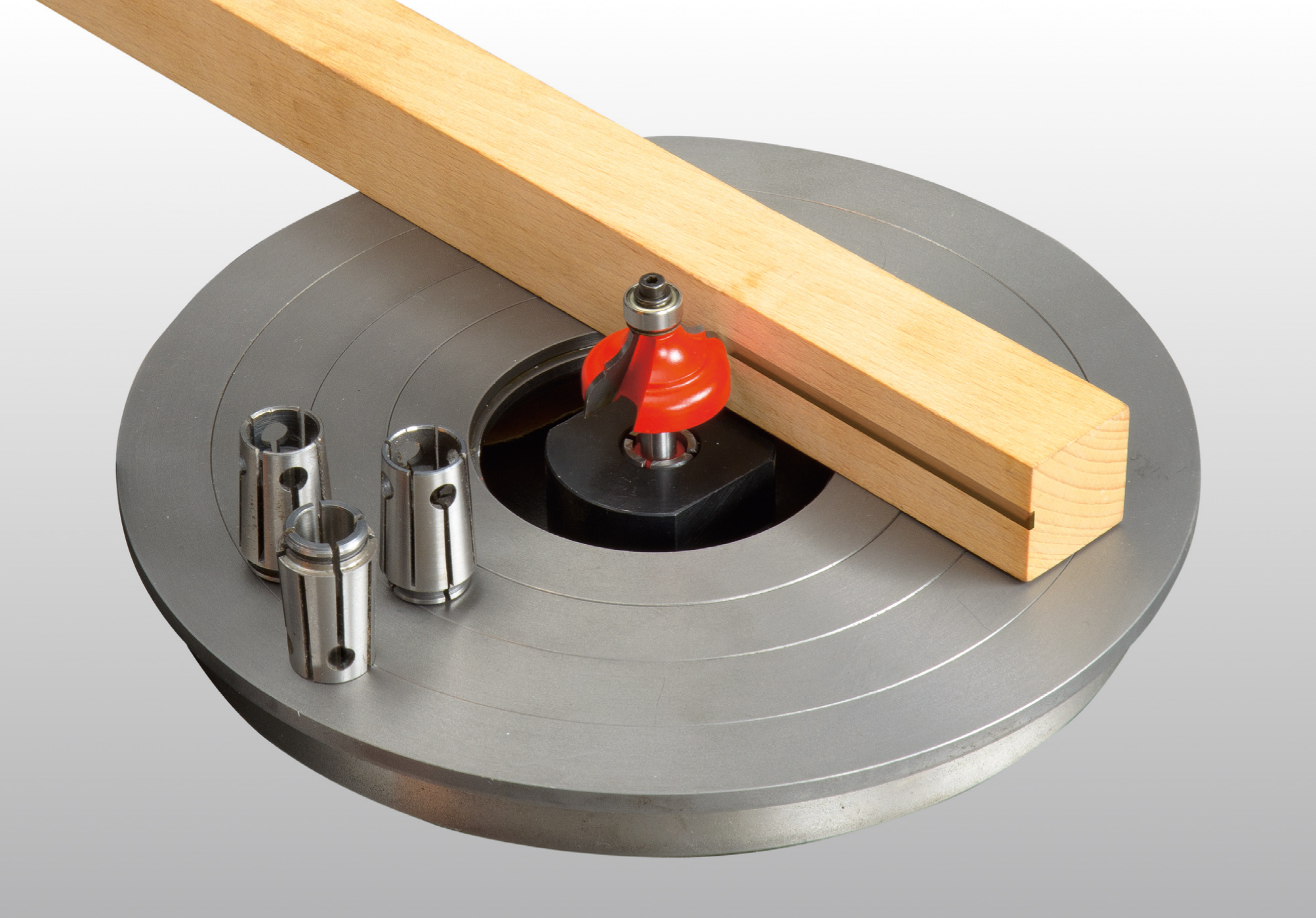

Clamp for shank tools

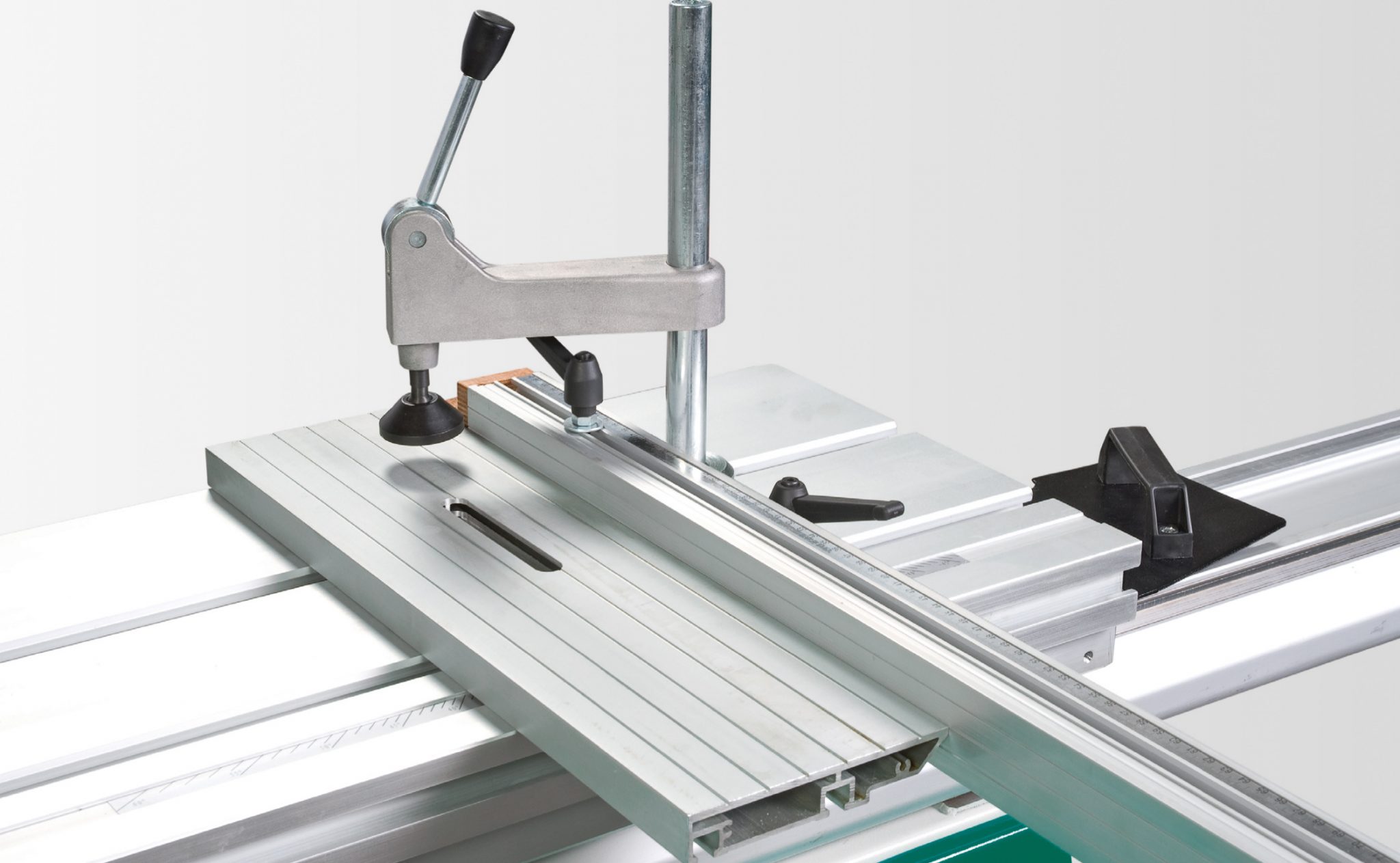

Equipment for tapping short pieces
Stop with digital readout

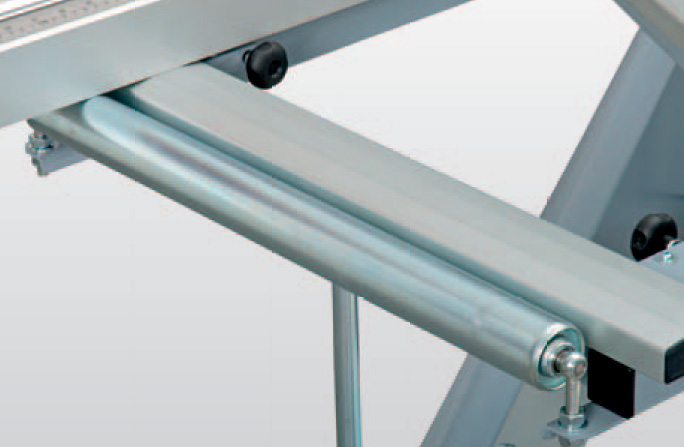

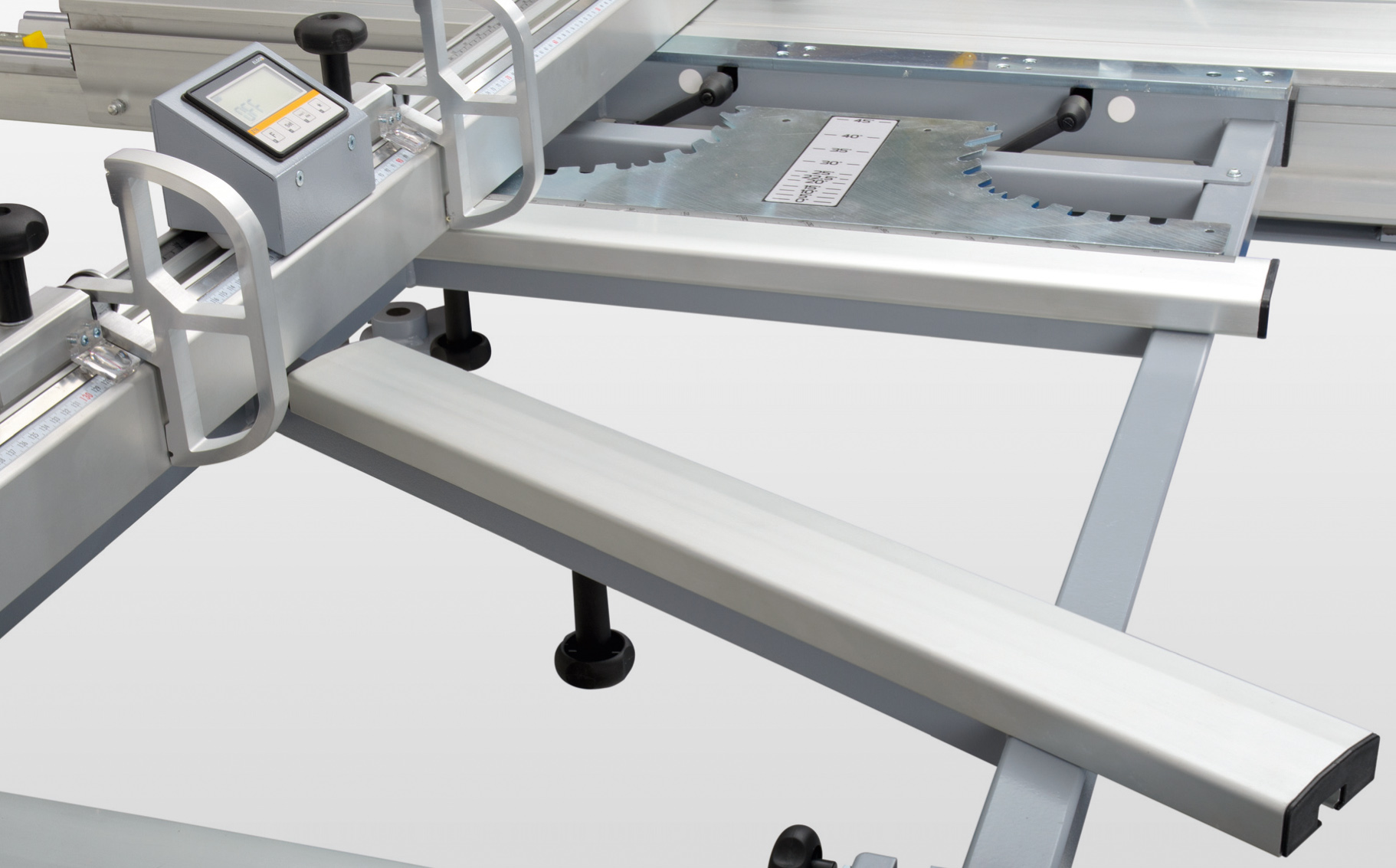

Support frame roller
Fan for precise angles of 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°

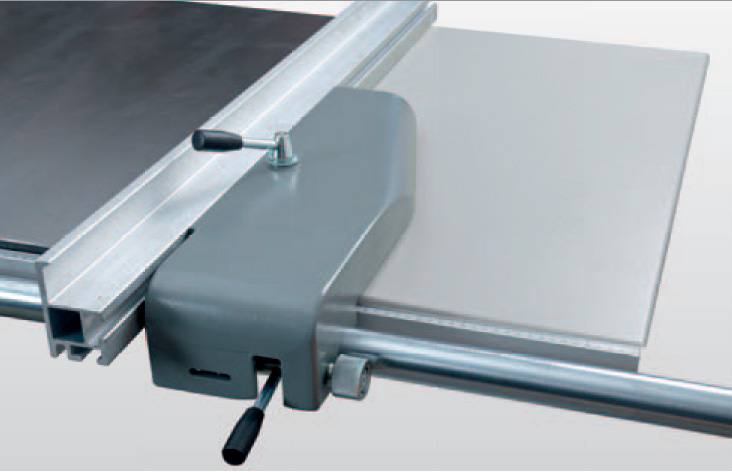

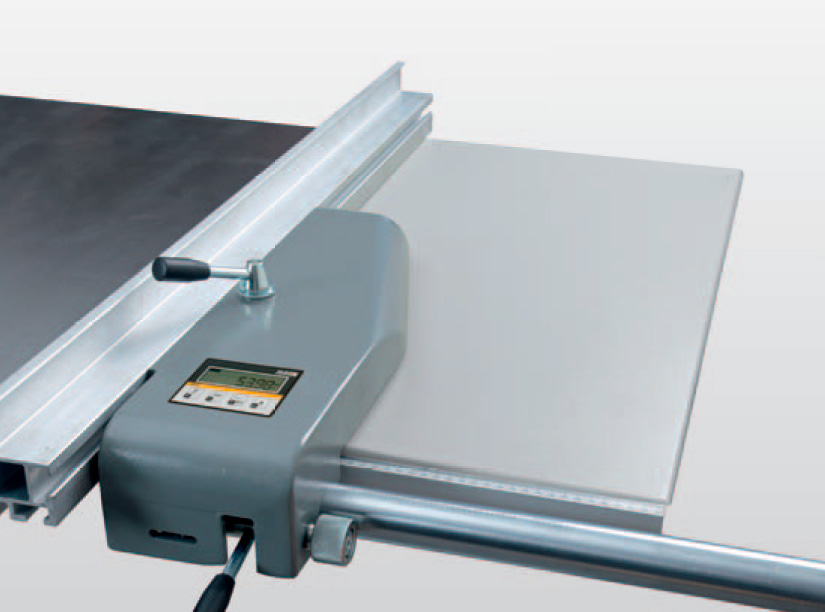

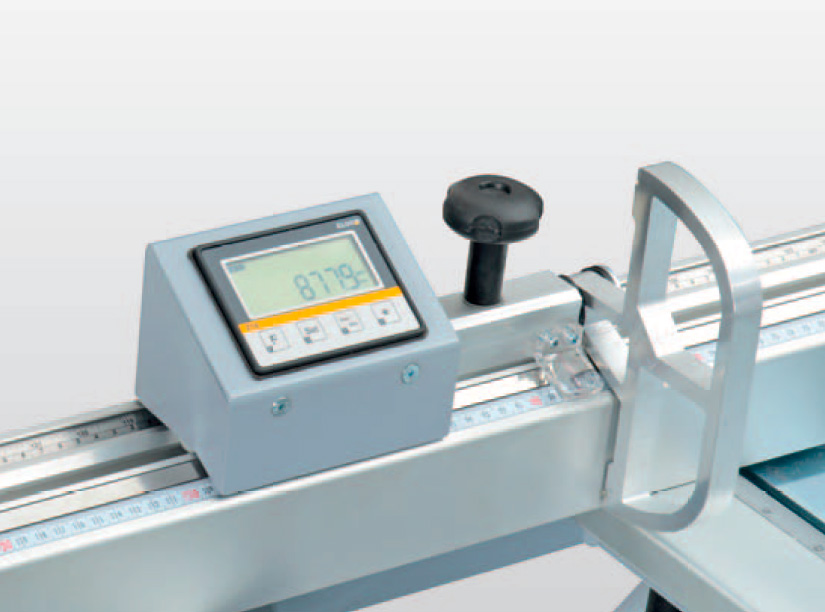

Longitudinal ruler with digital readout
Capping cover

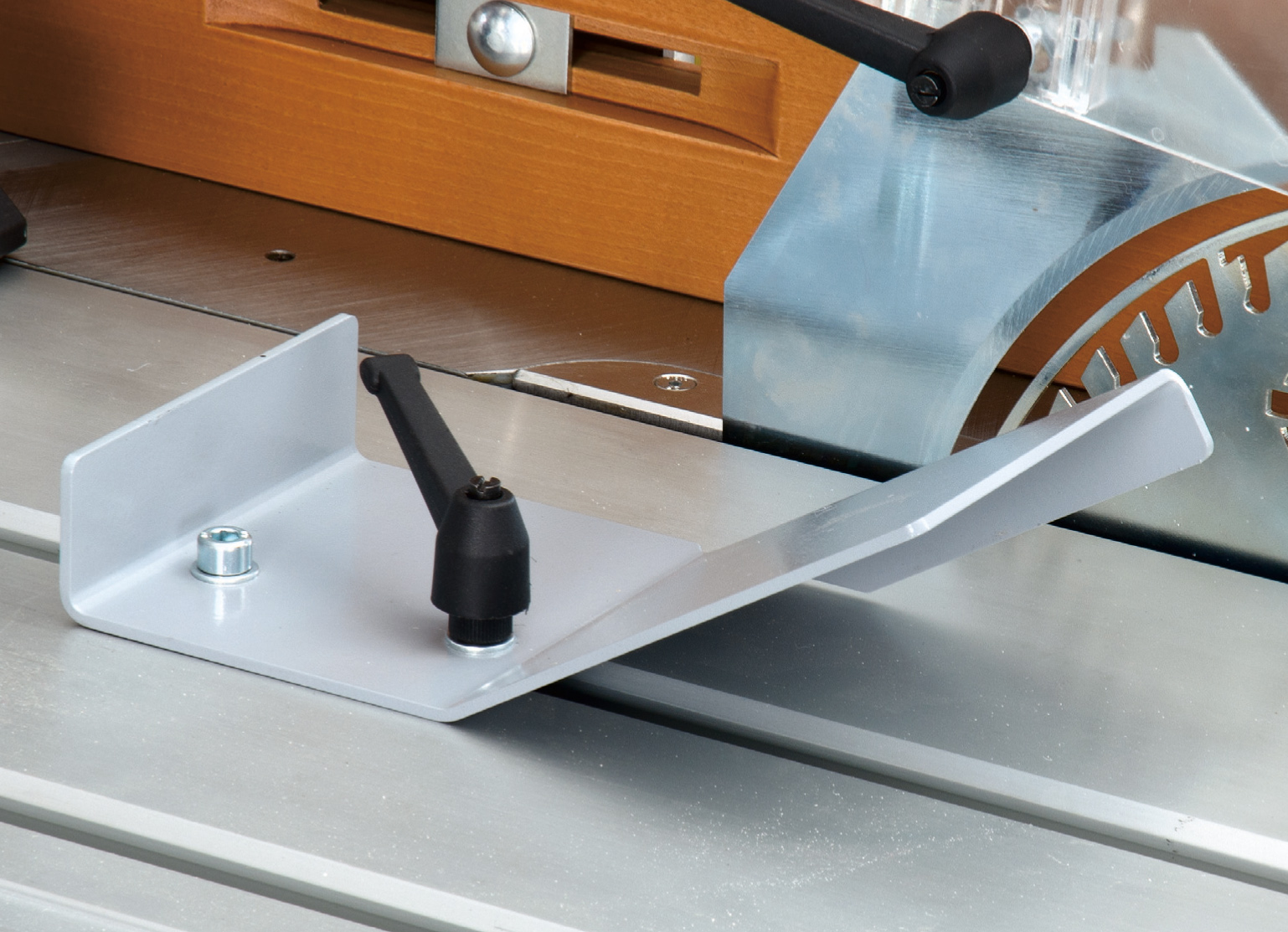

Locking foot

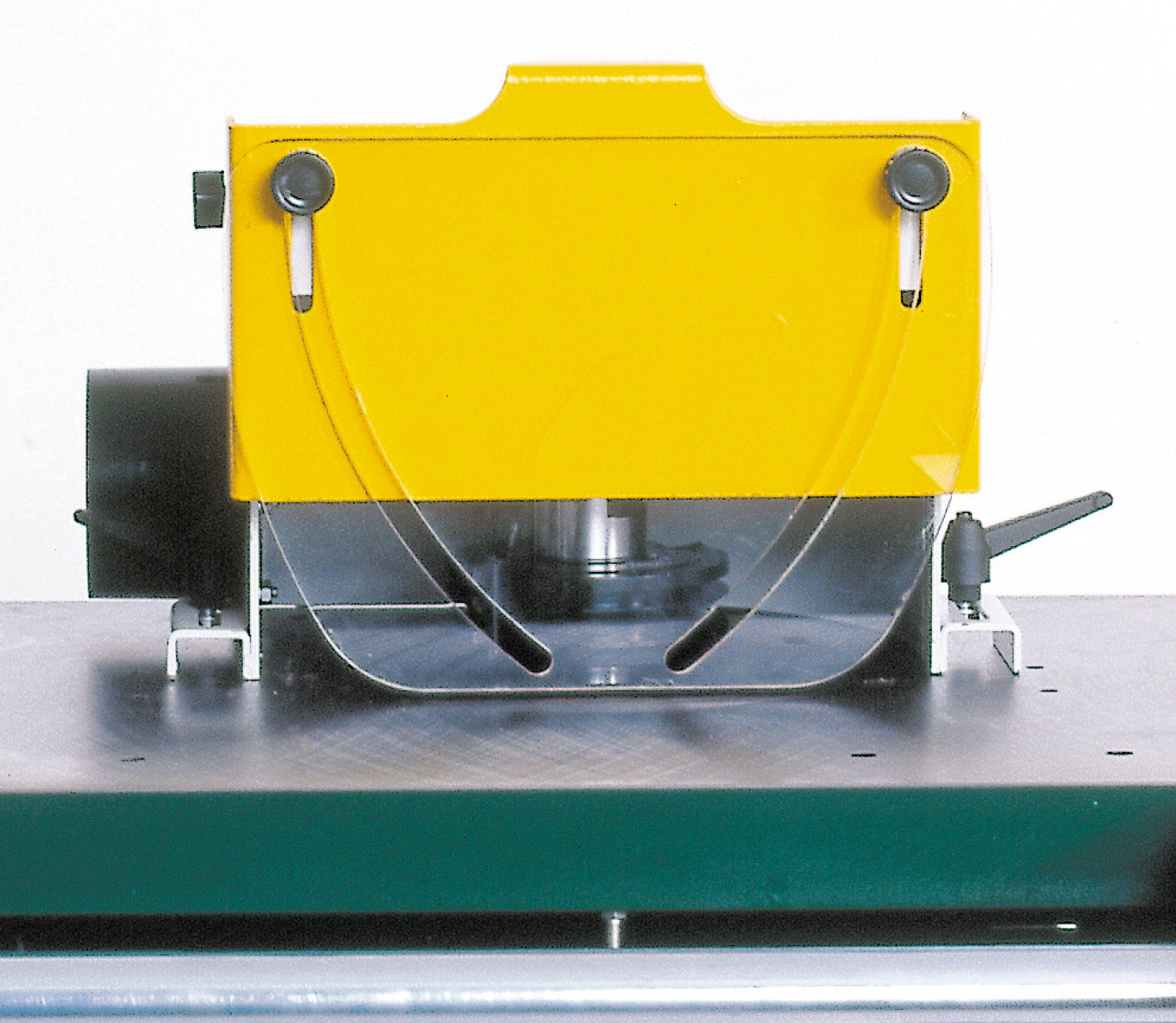

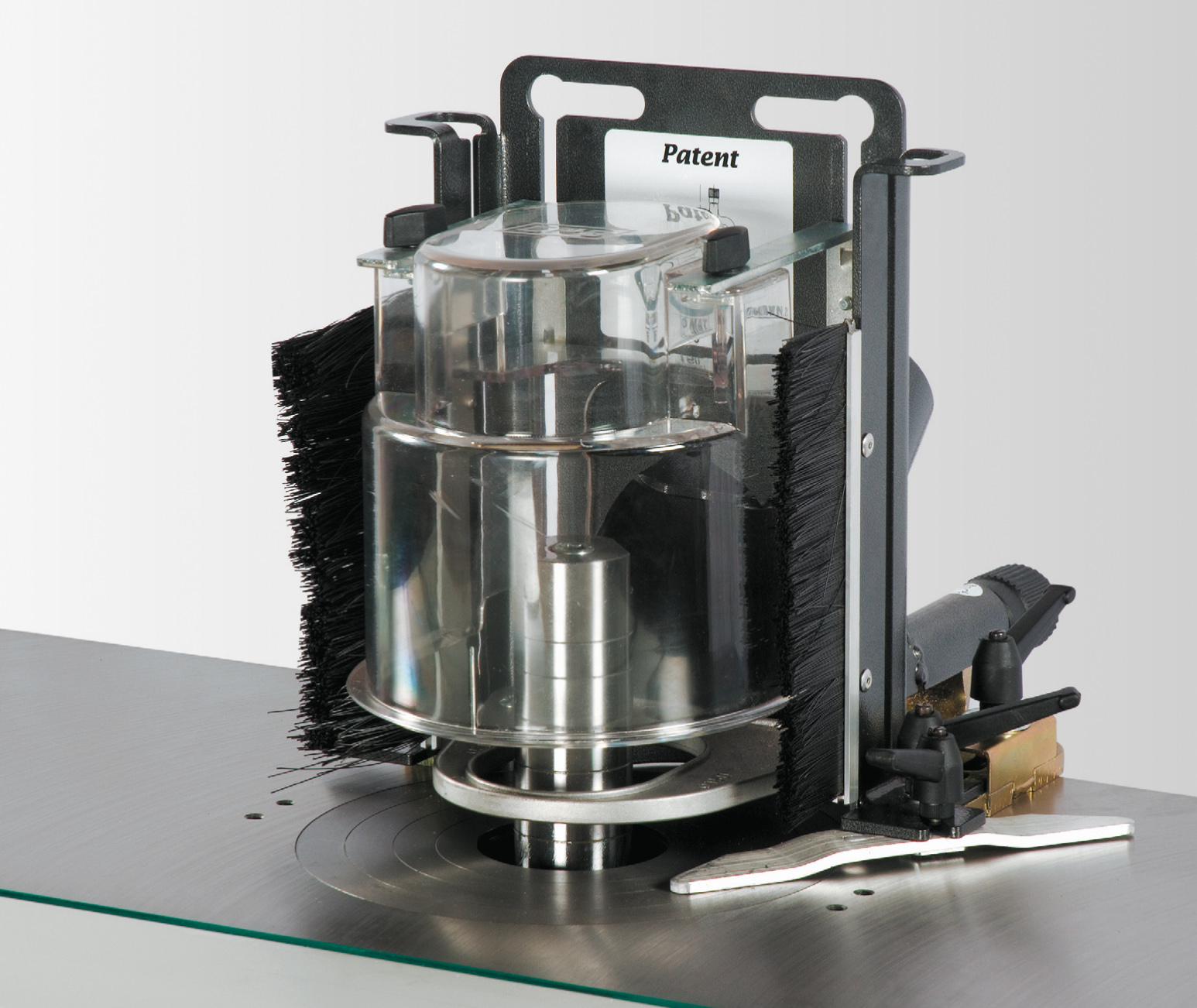

Profiling cover for shape milling

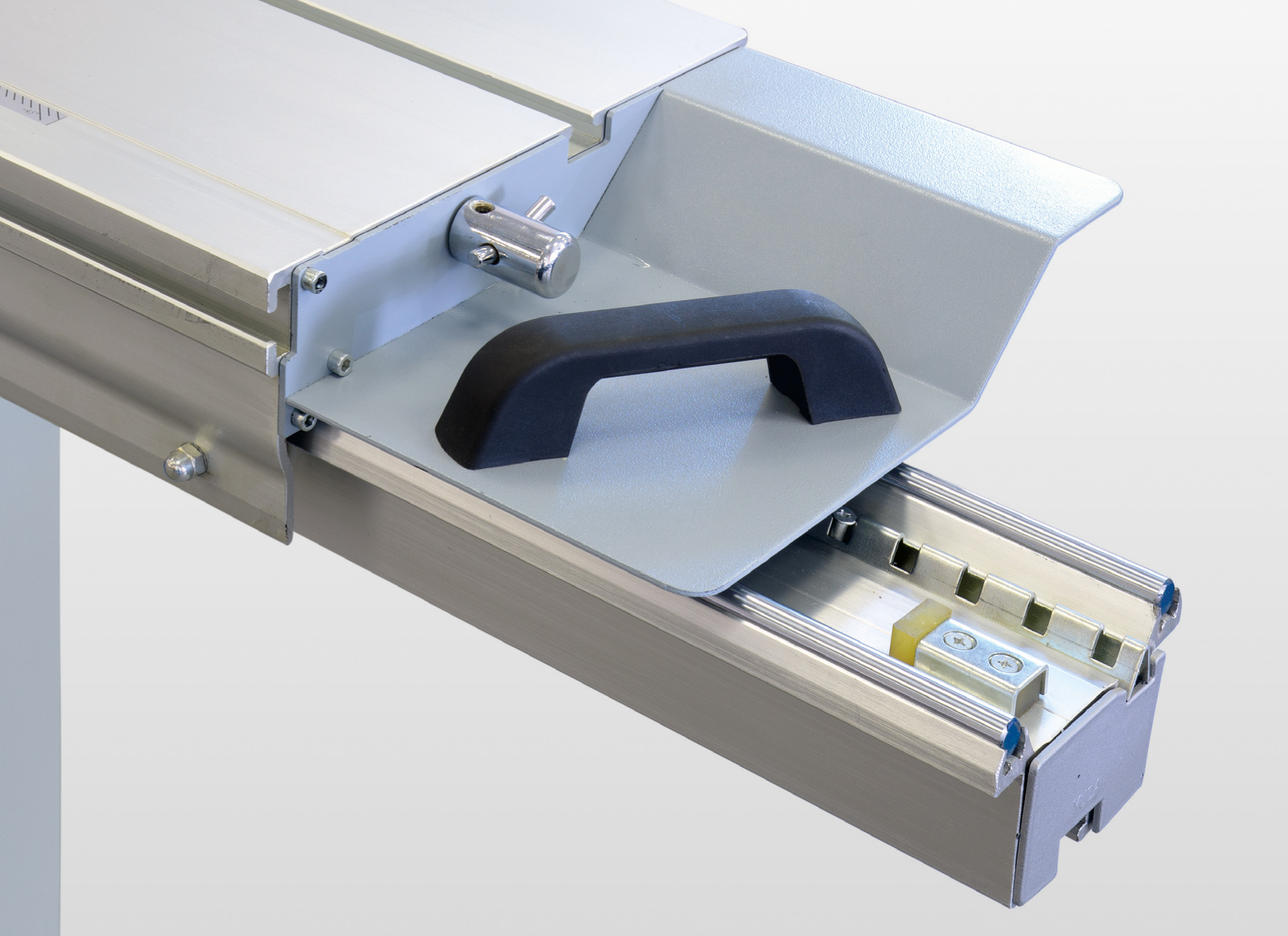

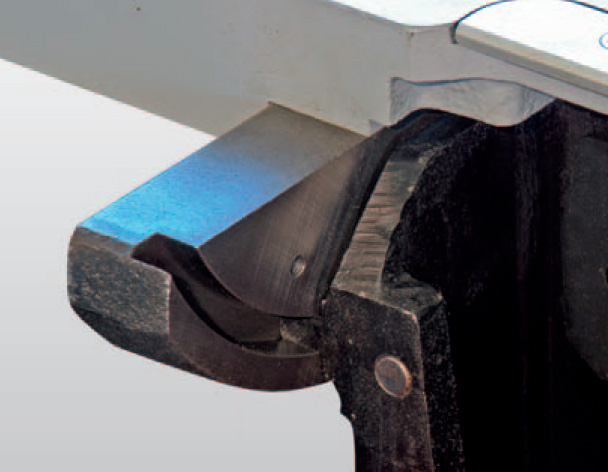

Storage of the CV360T formatting table on bars
Massive piy drive fit
Longitudinal ruler with fine tuning
Complete mechanics part
Saw mechanics

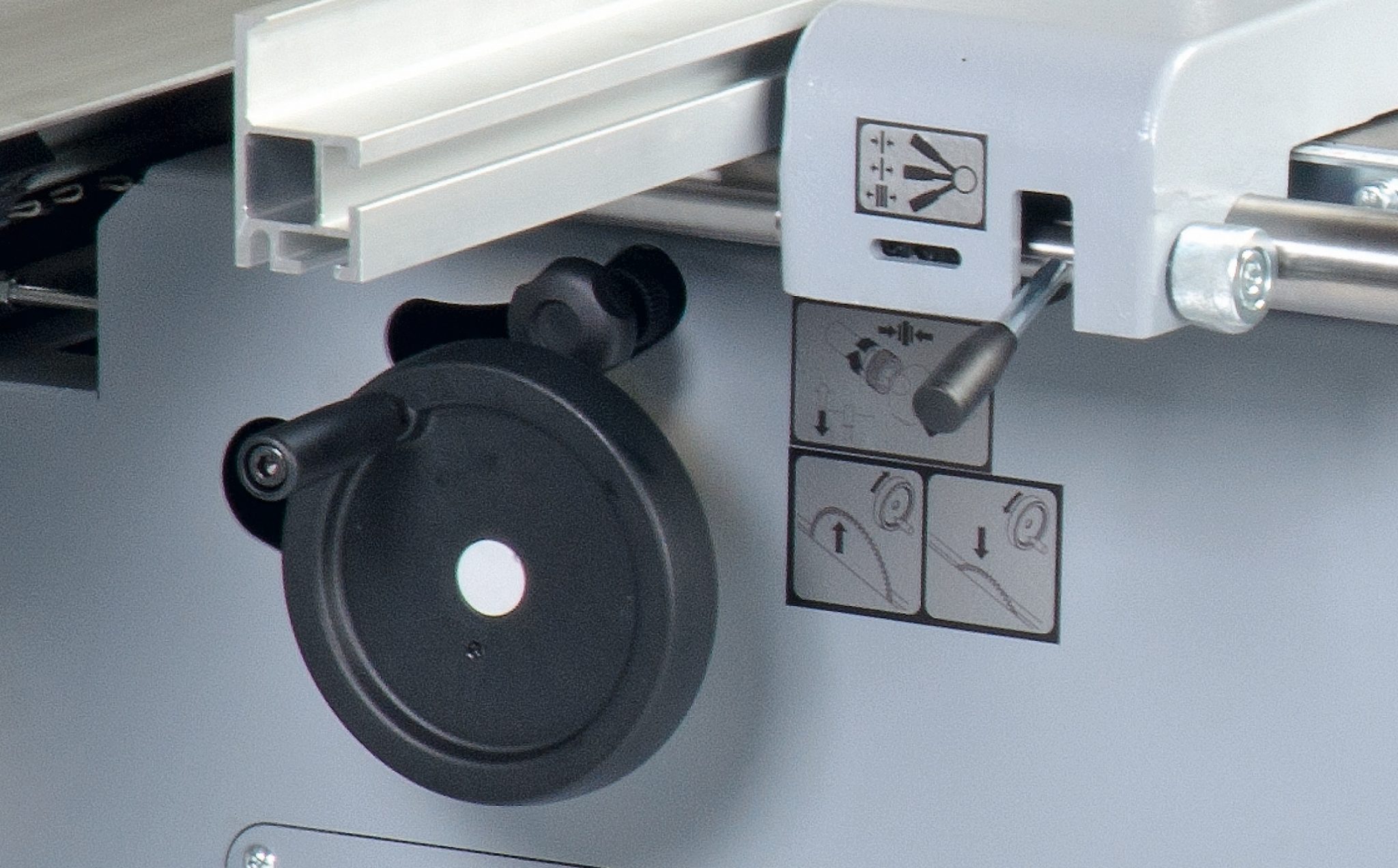

Pre-cut + external pre-cut adjustment
Features and standard equipment
SAW:
- Tilting wheel with angle indication
- cast iron table extension rear
- formatting table CV 360
- short angle ruler 900 mm with stop
- formatting table clamp - single column eccentric
- cast iron holder for longitudinal aluminium ruler with micro-slide
- extension of the cutting width 800 mm with extraction and its connection
- frame with support arm and transverse ruler with tilted scale and two stops
SPINDLE MOULDER:
- solid cast iron body with tilting spindle -45° ÷ +5°
- milling cover with 100 mm diameter suction nozzle, including rulers and pressures
Equipment on request
- CV 360T/ 2,8 m formatting trolley on hardened bars
- CV 360T/ 2 m formatting trolley on hardened bars
- spindle for 30mm diameter shank tools + 8 and 12mm collet, clamping height 80mm
- interchangeable spindle including mandrel diameter 30mm, clamping height 95mm
- cutting width 1050 mm
- Cutting width 1500 mm
- ELGO electronic measuring ruler cutting width
- ELGO electronic measuring cross ruler
Downloads
 Katalog
(KPFN-KPSN_E9.pdf)
|
