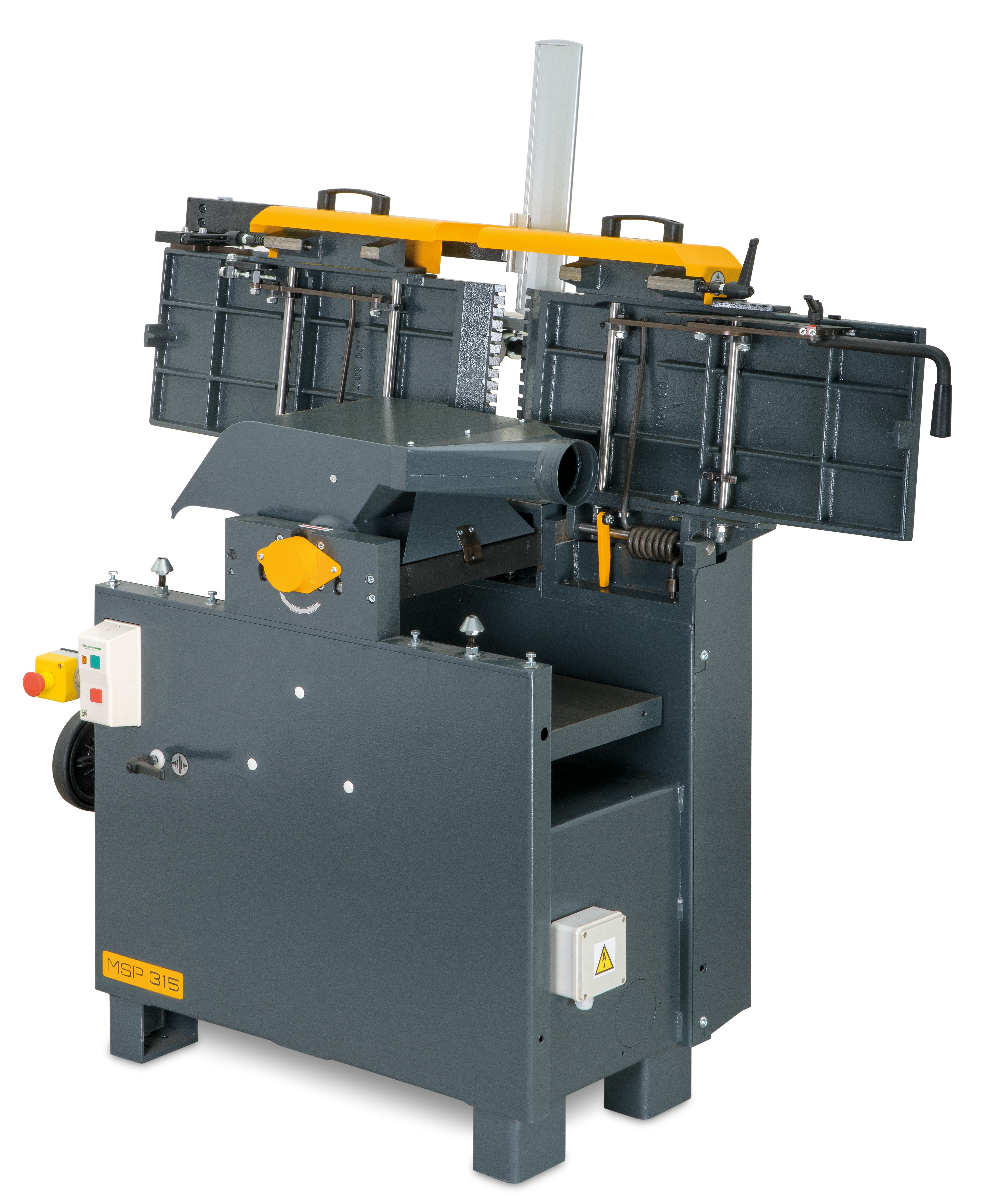

Planer / Thicknesser MSP315
The combined planing and thicknessing machine MSP 315 EURO 9 features convenient guidance of the workpiece on solid cast iron tables with high robustness and precision. A significant design change compared to the previous model is especially the comfortable parallel tilting of thetables on massive hinges. Two torque springs simplify the manipulation of the tables. The machine is equipped with a spiral cutter MBM. Optional accessory is an additional mortising device VDA 315L.
Product code: 1157001
Technical parameters
| S6 engine performance 40% | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,840/min (3,410/min [60Hz]) |
| Knife shaft diameter | 95 mm |
| Diameter of feed rollers | 40 mm |
| Number of knives | 4 |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Speed of knife shaft | 4 200/min. |
| Max. levelling width | 310 mm |
| Max. thicknessing width | 300 mm |
| Max. thicknessing height | 230 mm |
| Max. chip thickness | 5 mm |
| Max. levelling chip | 4 mm |
| Thickening feed speed | 8 m/min. (7.5/15 ÷ 5.5/10 m/min.) |
| Length | 1500 mm |
| Width | 640 mm |
| Table height | 890 mm |
| Max. machine height | 1 080 mm |
| Dimensions of the levelling milling machine table | 1 500 x 320 mm |
| Table dimensions of the thicknessing milling machine | 750 x 308 mm |
| Suction diameter | 100 mm |
| Dimensions with packaging | 1 620 x 700 x 1 100 mm |
| Gross weight | 330 kg |
| Net weight | 305 kg |
| Voltage/frequency | 3x400V (1x230V) / 50(60)Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | 81.5 dB(A) |
| Workplace noise (with technology) | 88.4 dB(A) |
| Acoustic performance (without technology) | 89.9 dB(A) |
| Acoustic performance (with technology) | 95.1 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

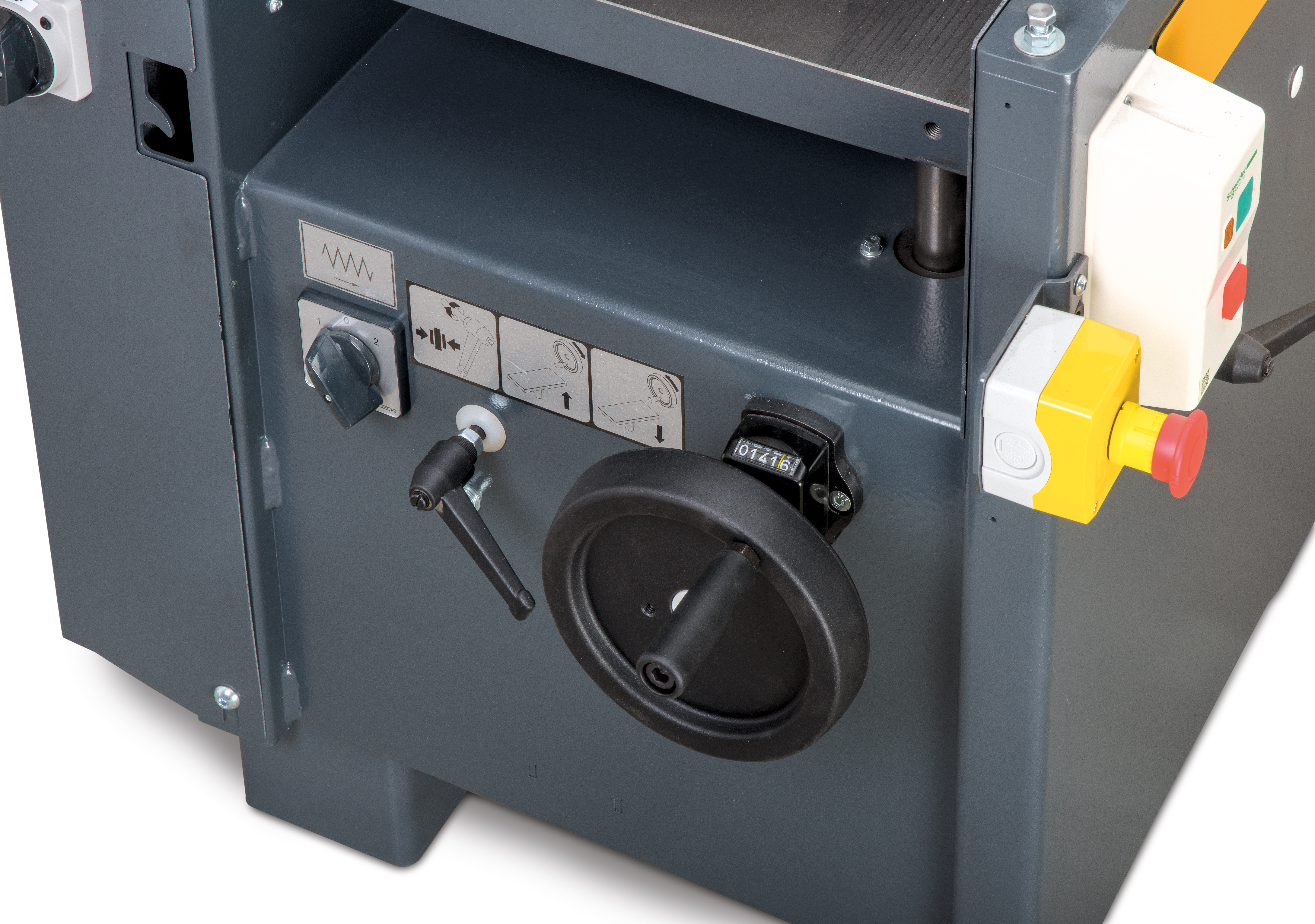

Stretching table lift with scale

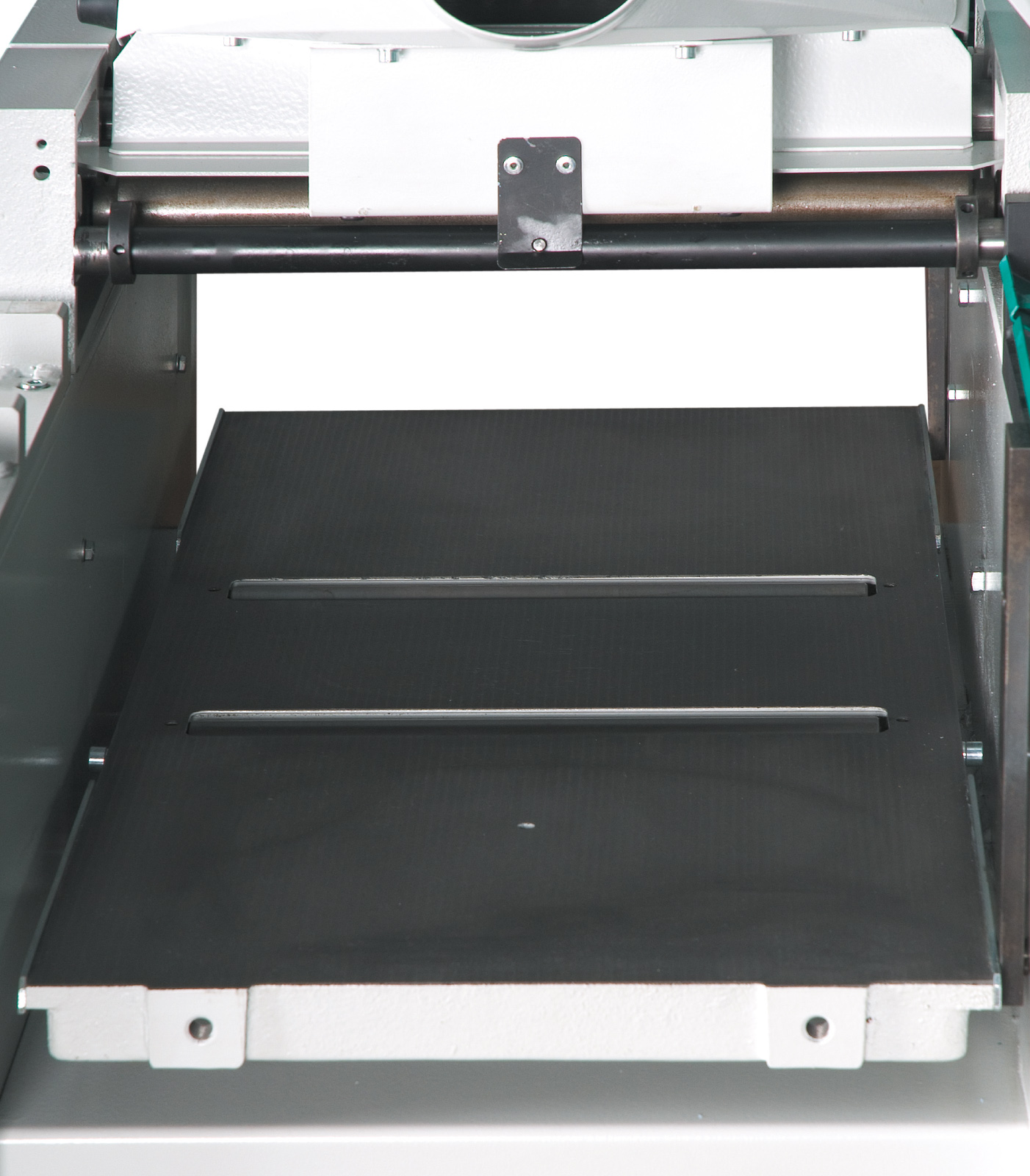

Rollers in the stretching table

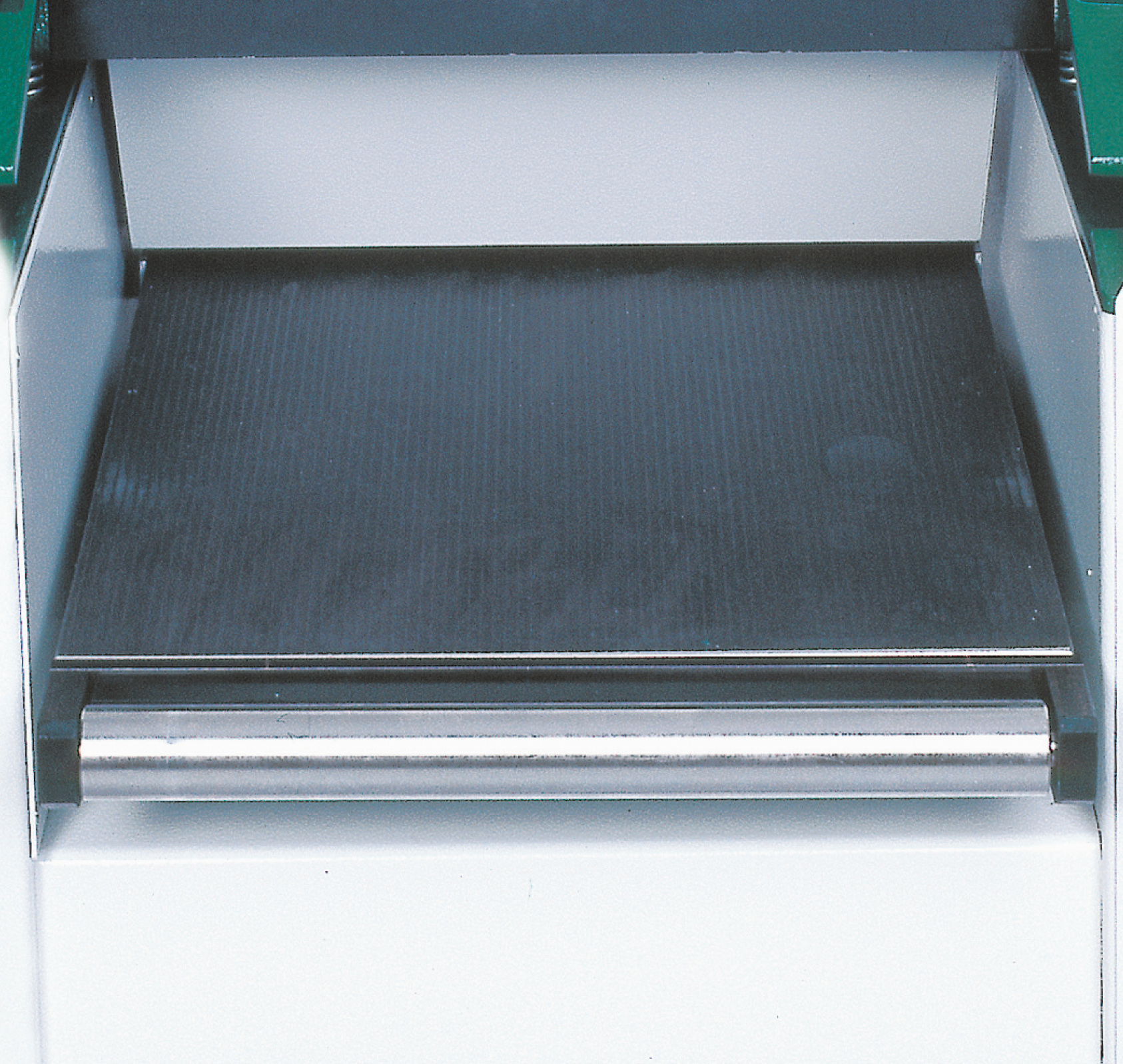

Stretching table relief rollers

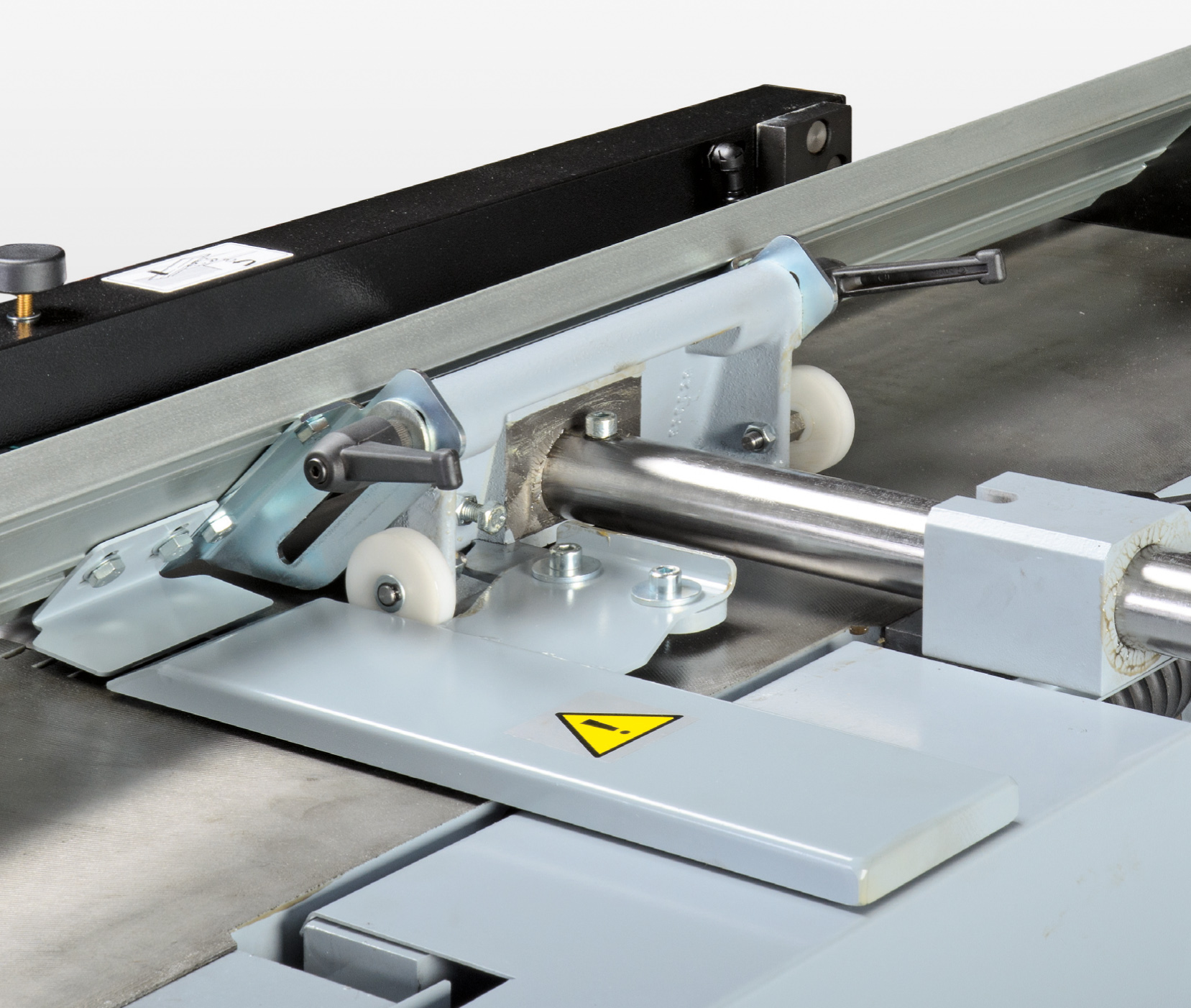

Angle ruler 90°- 45°

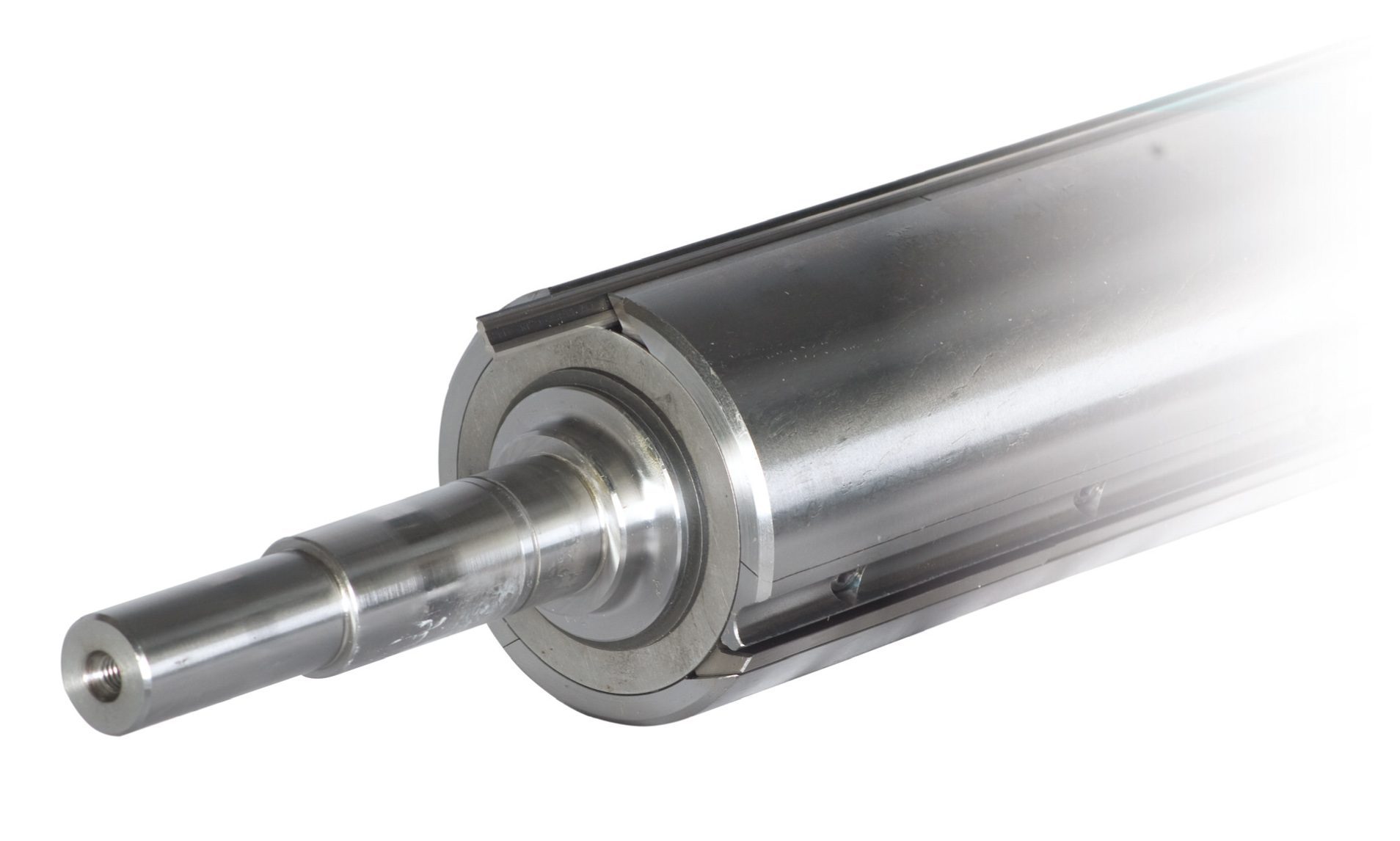

Three-legged planing roller with TERSA knives

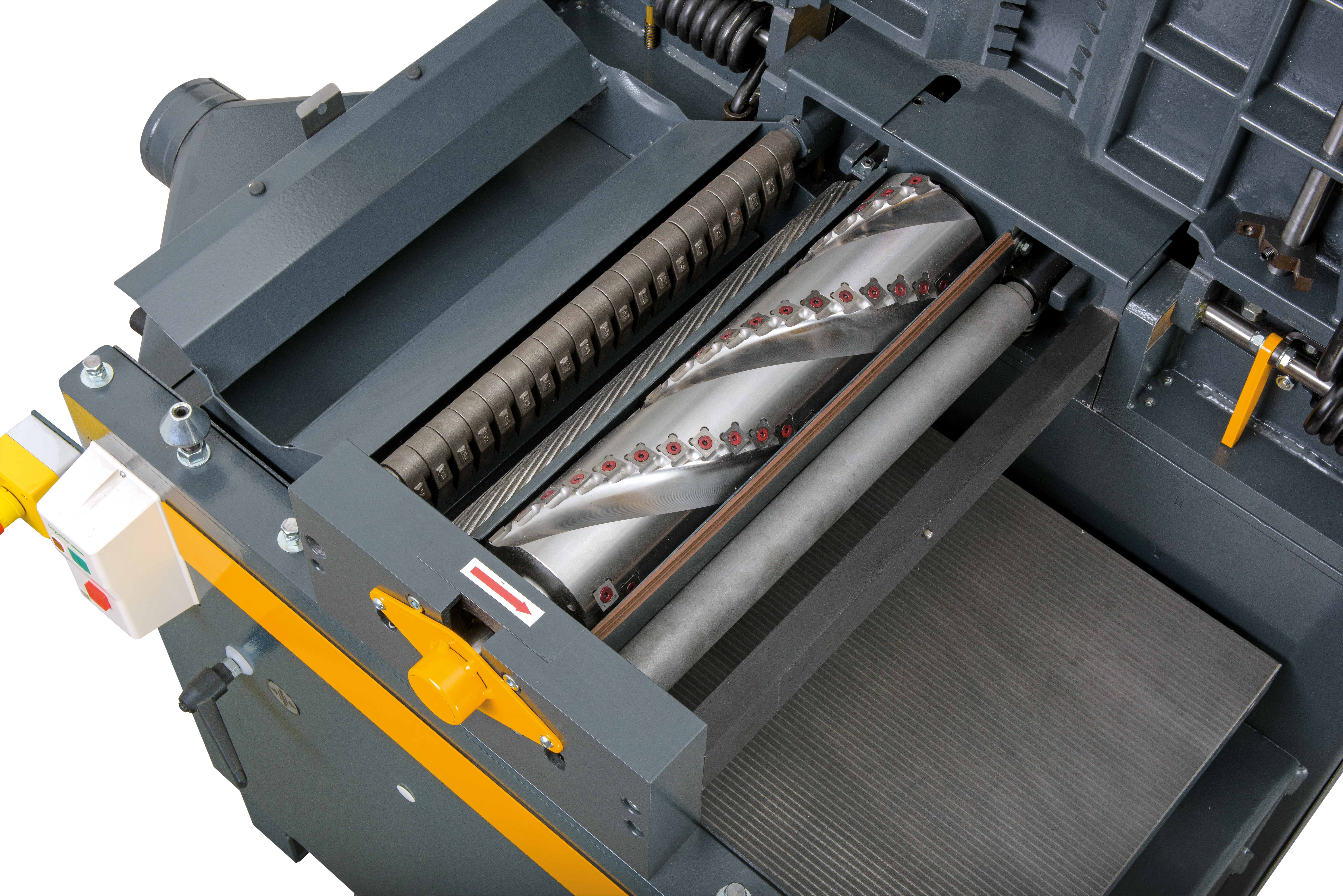

Spiral roller with feed rollers
Folding comparison tables
Splinter
Four-legged planing roller ROJEK
Features and standard equipment
- parallel hinged tables
- possibility of switching off the extension feed
- 4-legged planer roller system ROJEK with braking
Equipment on request
- Knife stopper

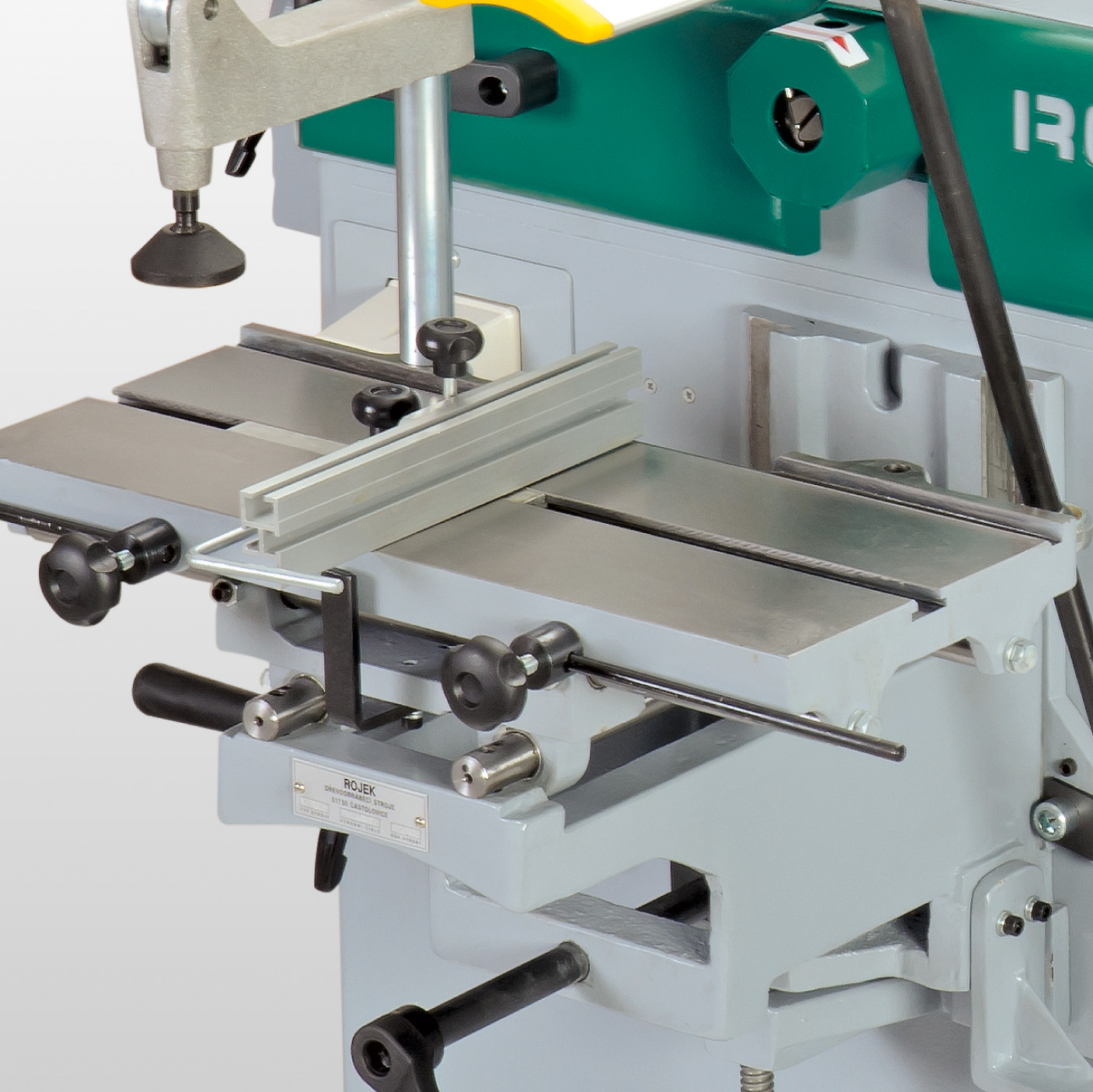

- additional paving device VDA 315L
- Extension rollers for levelling table
- Extension rollers for stretching table
- two-speed feed design 5.5-10m/min
- two-speed feed version 7.5-15m/min
- planer roller system MBM SPIRAL
