Planer / Thicknesser MSP415
The combined planing and thicknessing machine MSP 415 EURO 9 features comfortable workpiece guidance on solid cast iron tables with high robustness and precision. A significant design change compared to the previous model is especially the comfortable parallel tilting of the tables on massive hinges. Two torque springs facilitate the manipulation of the tables. The machine is equipped with a spiral cutter system MBM. Optional accessory is an additional mortising device VDA 315L.
Product code: 1177001
Technical parameters
| S6 spindle motor power 40% | 4,4 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,840/min (3,410/min [60Hz]) |
| Power of feed motor | 0.35/0.45 kW |
| Knife shaft diameter | 95 mm |
| Diameter of feed rollers | 40 mm |
| Number of knives | 4 |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Speed of knife shaft | 4 200/min. |
| Max. levelling width | 410 mm |
| Max. thicknessing width | 400 mm |
| Max. thicknessing height | 230 mm |
| Max. chip thickness | 5 mm |
| Max. levelling chip | 4 mm |
| Thickening feed speed | 8 m/min. (7.5/15 ÷ 5.5/10 m/min.) |
| Length | 1 870 mm |
| Width | 750 mm |
| Table height | 890 mm |
| Max. machine height | 1 080 mm |
| Dimensions of the levelling milling machine table | 1 870 x 420 mm |
| Dimensions of the thicknessing milling machine table | 750 x 408 mm |
| Suction diameter | 100 mm |
| Dimensions with packaging | 1 890 x 810 x 1 100 mm |
| Gross weight | 390 kg |
| Net weight | 360 kg |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | 89.5 dB(A) |
| Workplace noise (with technology) | 91.6 dB(A) |
| Acoustic performance (without technology) | 95.9 dB(A) |
| Acoustic performance (with technology) | 98.2 db(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

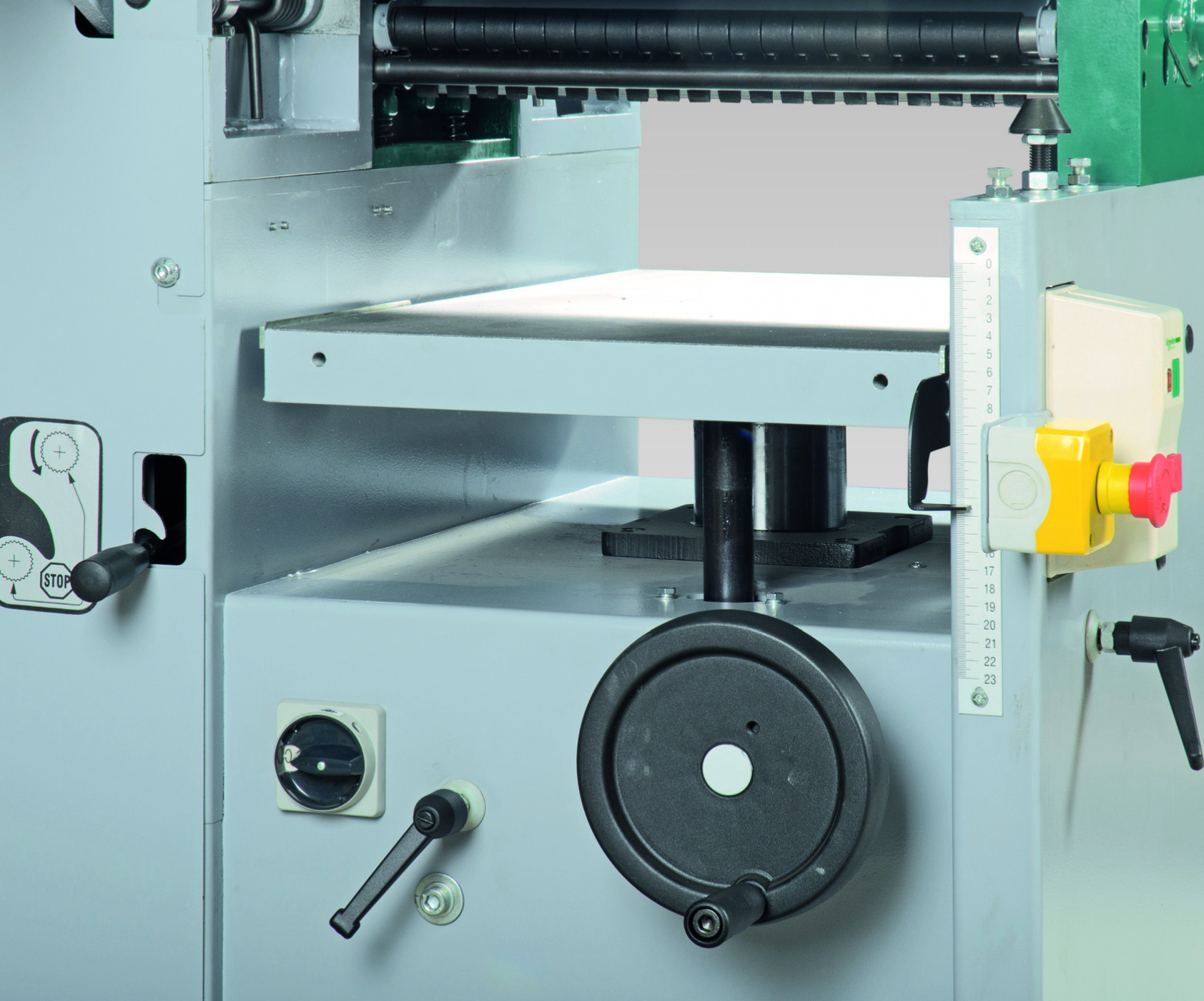

Stretching table lift with scale
Rollers in the stretching table

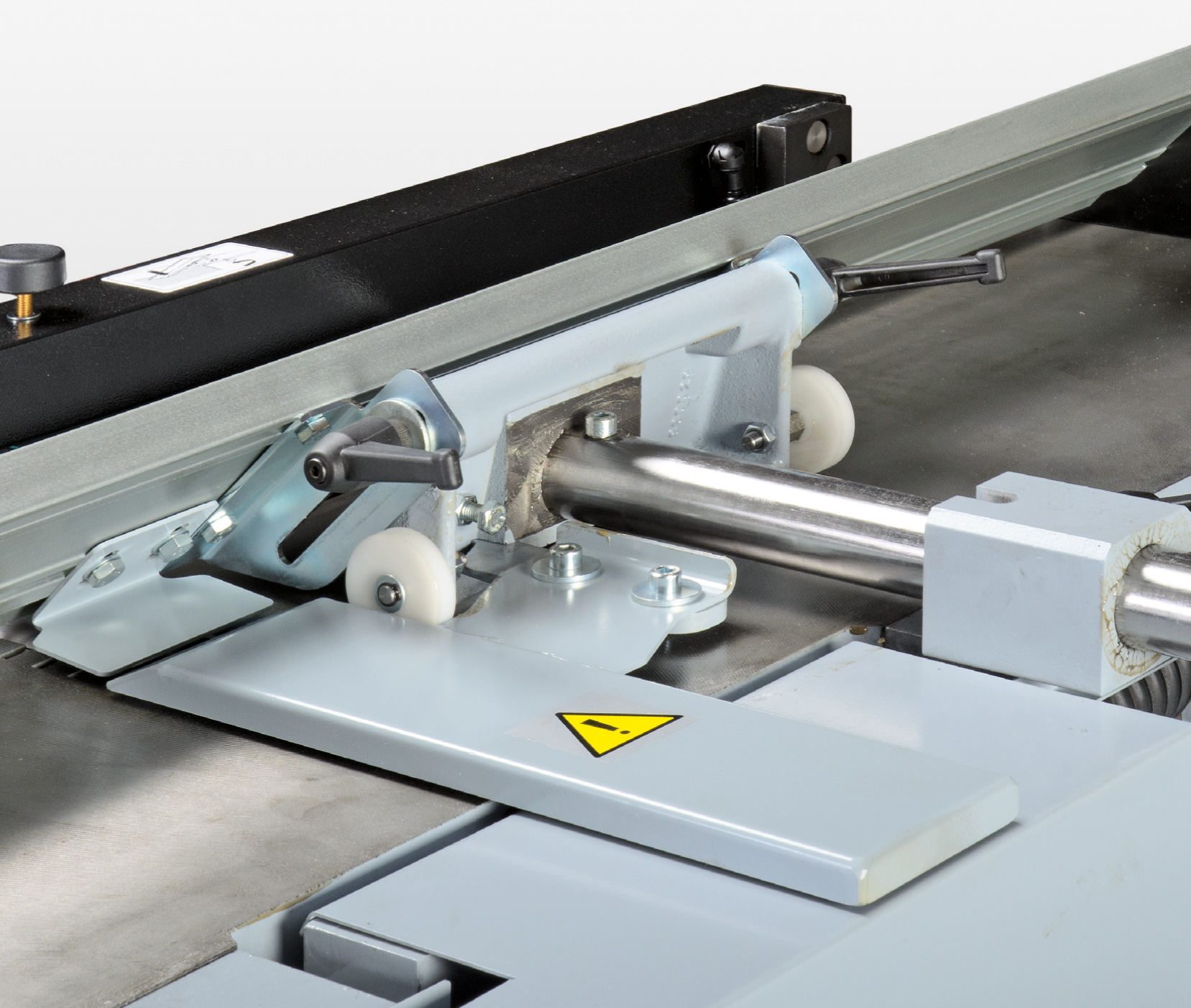

Angle ruler 90°- 45°

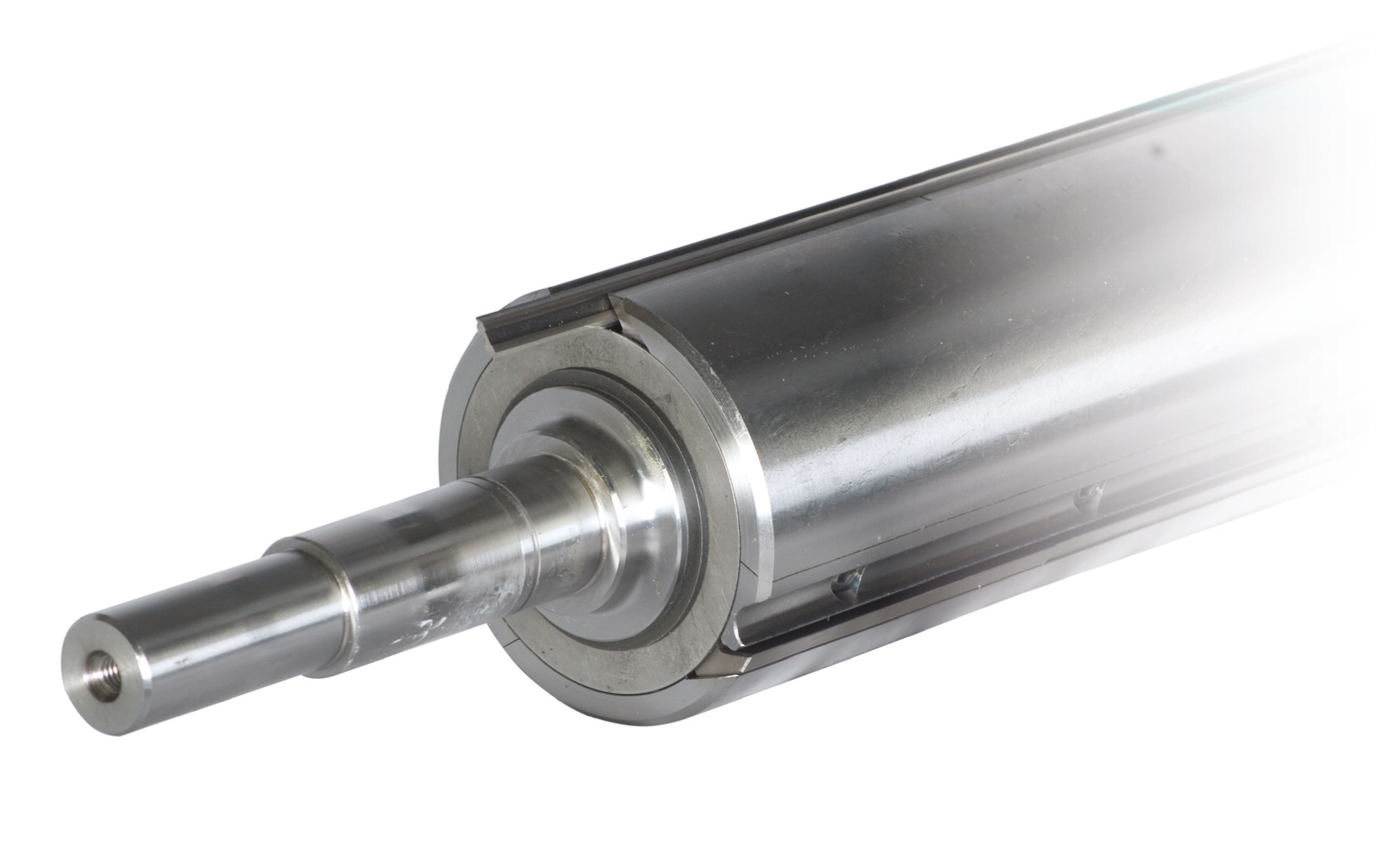

Three-legged planing roller with TERSA knives

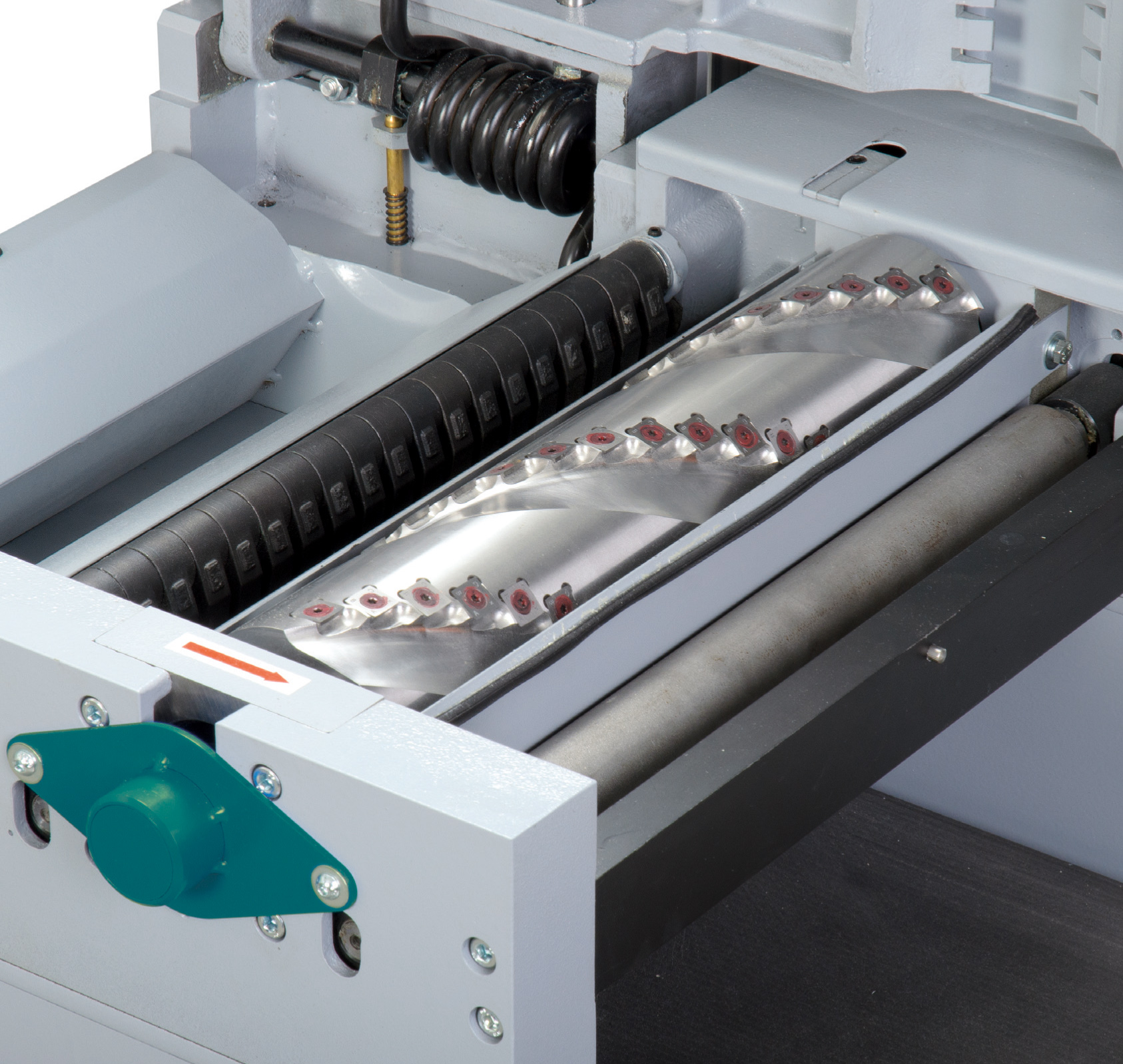

Spiral roller with feed rollers

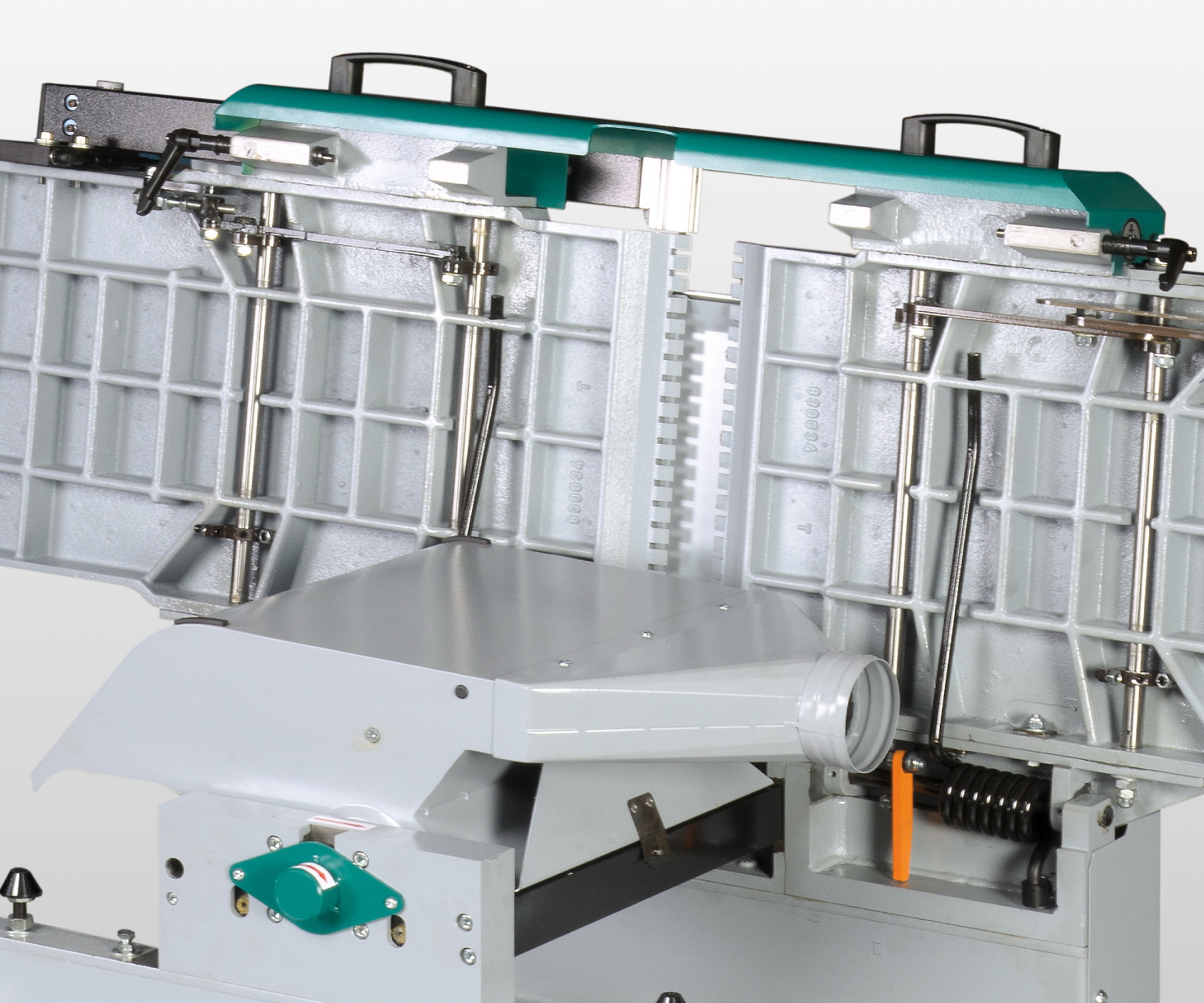

Folding comparison tables
Splinter

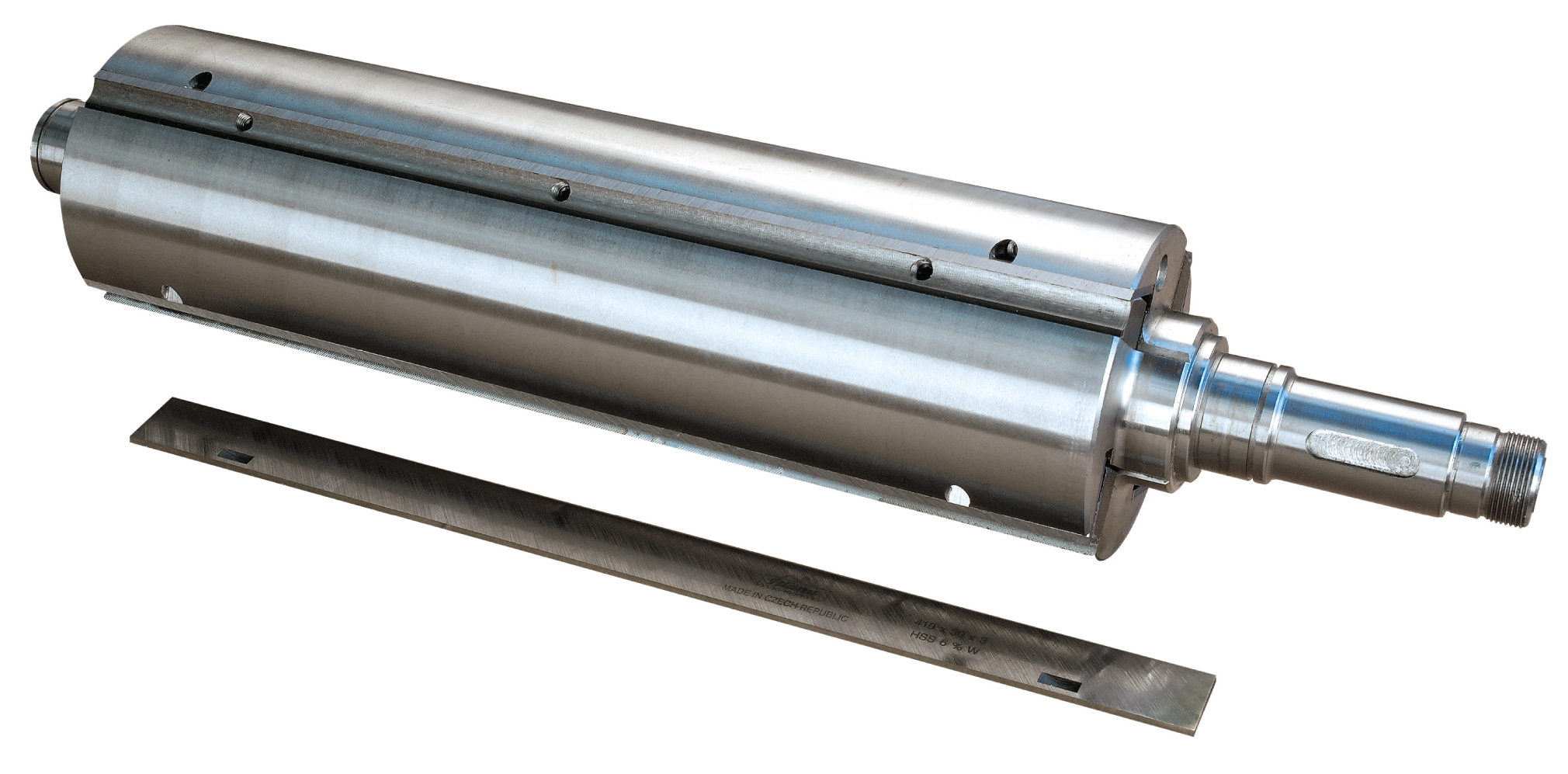

Four-legged planing roller ROJEK
Features and standard equipment
- parallel hinged tables
- possibility of switching off the extension feed
- 4-legged planer roller system ROJEK with braking
Equipment on request
- Knife stopper
- additional paving device VDA 315L
- Extension rollers for levelling table
- Extension rollers for stretching table
- two-speed feed design 5.5-10m/min
- two-speed feed version 7.5-15m/min
- planer roller system MBM SPIRAL
