Planer RFS410
A new design solution which provides high precision and machine performance at low production costs.
Long cast iron tables and a four-knife cutterblock guarantee the quality of material processing.
The machine is equipped with a suction dust hood, cast iron fence with a special tilting mechanism.
Product code: 14850001
Technical parameters
| S6 engine performance 40% | 5,3 kW |
| Engine speed | 2 860/min.(3 432/min.[60Hz]) |
| Knife shaft diameter | 116 mm |
| Number of blades | 4 |
| Knife shaft speed | 5 000/min. |
| Max. levelling width | 400 mm |
| Max. levelling chip | 8 mm |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Length | 2 600 mm |
| Width | 1 120 mm |
| Max. machine height | 1 070 mm |
| Table dimensions | 2 600 x 410 mm |
| Table height | 890 mm |
| Suction diameter | 150 mm |
| Gross weight | 560 kg |
| Net weight | 550 kg |
| Voltage/frequency | 3x400V (3x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Noise level without LAeq technology | 78.4 dB(A) |
| Noise level with LpAeq technology | 86.9 dB(A) |
| Acoustic performance (without technology) | 86.8 dB(A) |
| Acoustic performance (with technology) | 92.2 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

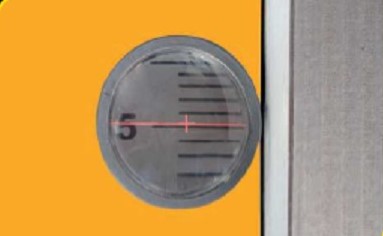

Display of splinters

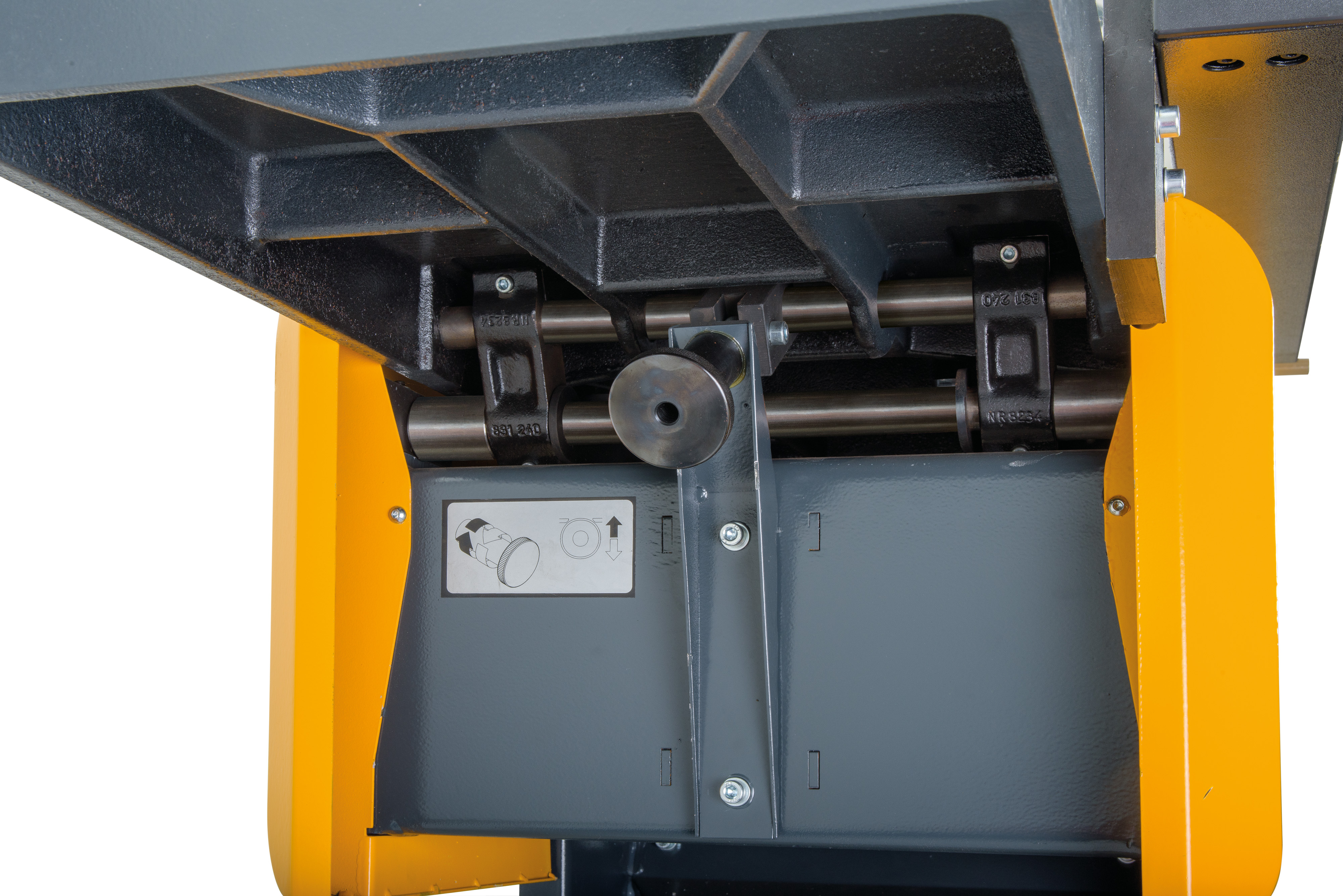

Table stowage (fine adjustment)

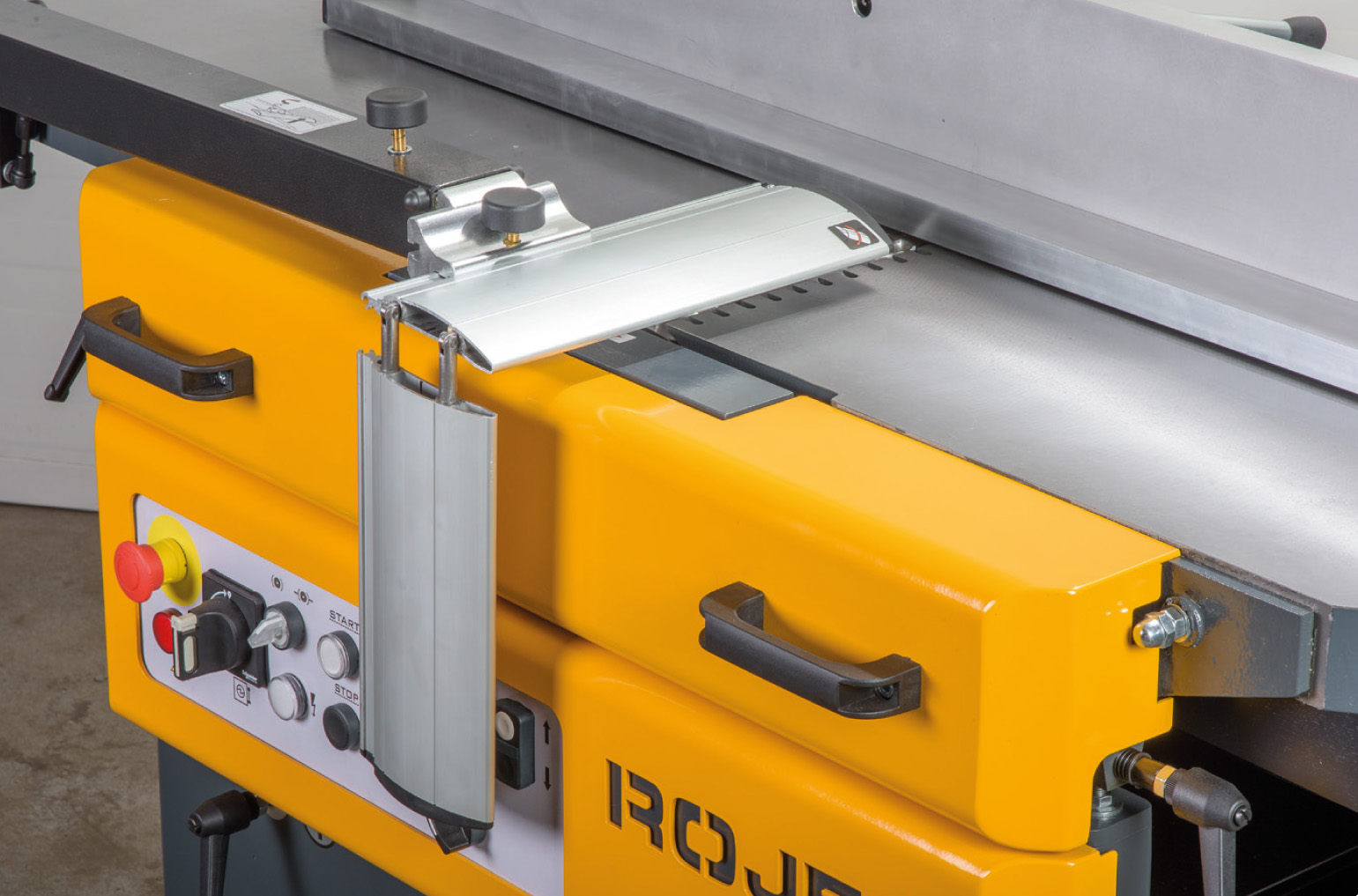

Cylinder cover profile foldable

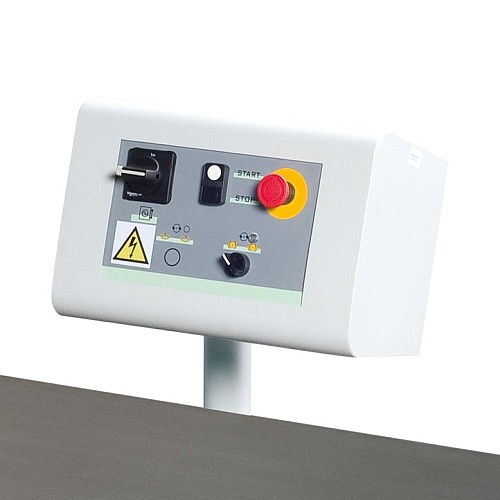

Top control panel
Knife stopper
Top control panel
Cylinder cover profile foldable

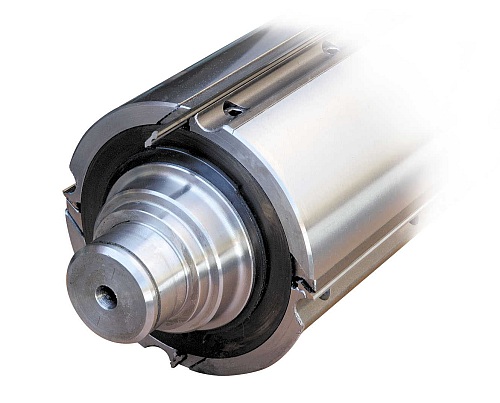

Four-legged planer roller with TERSA knives

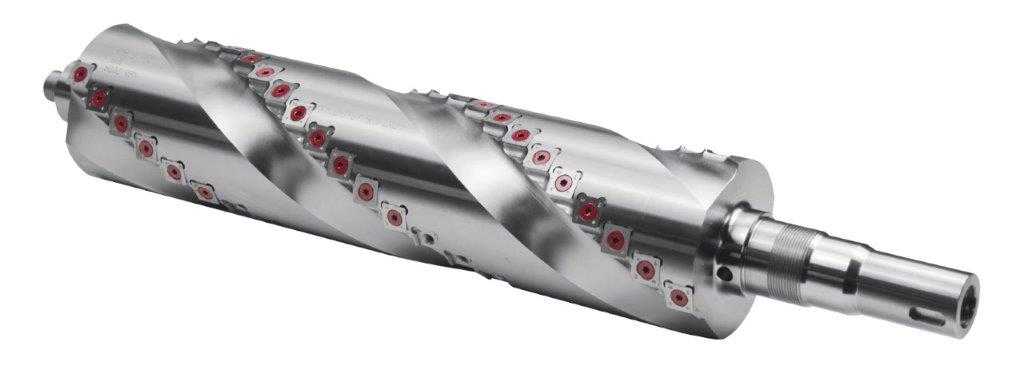

Spiral planer roller

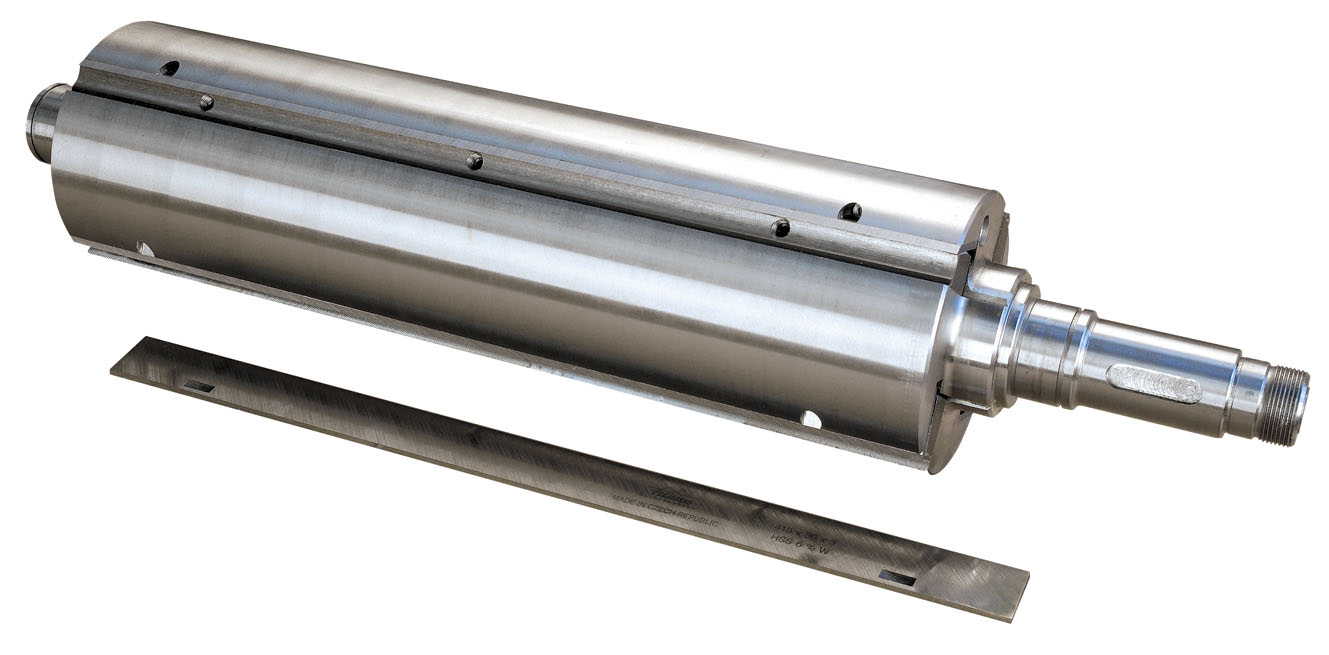

Four-legged planer roller

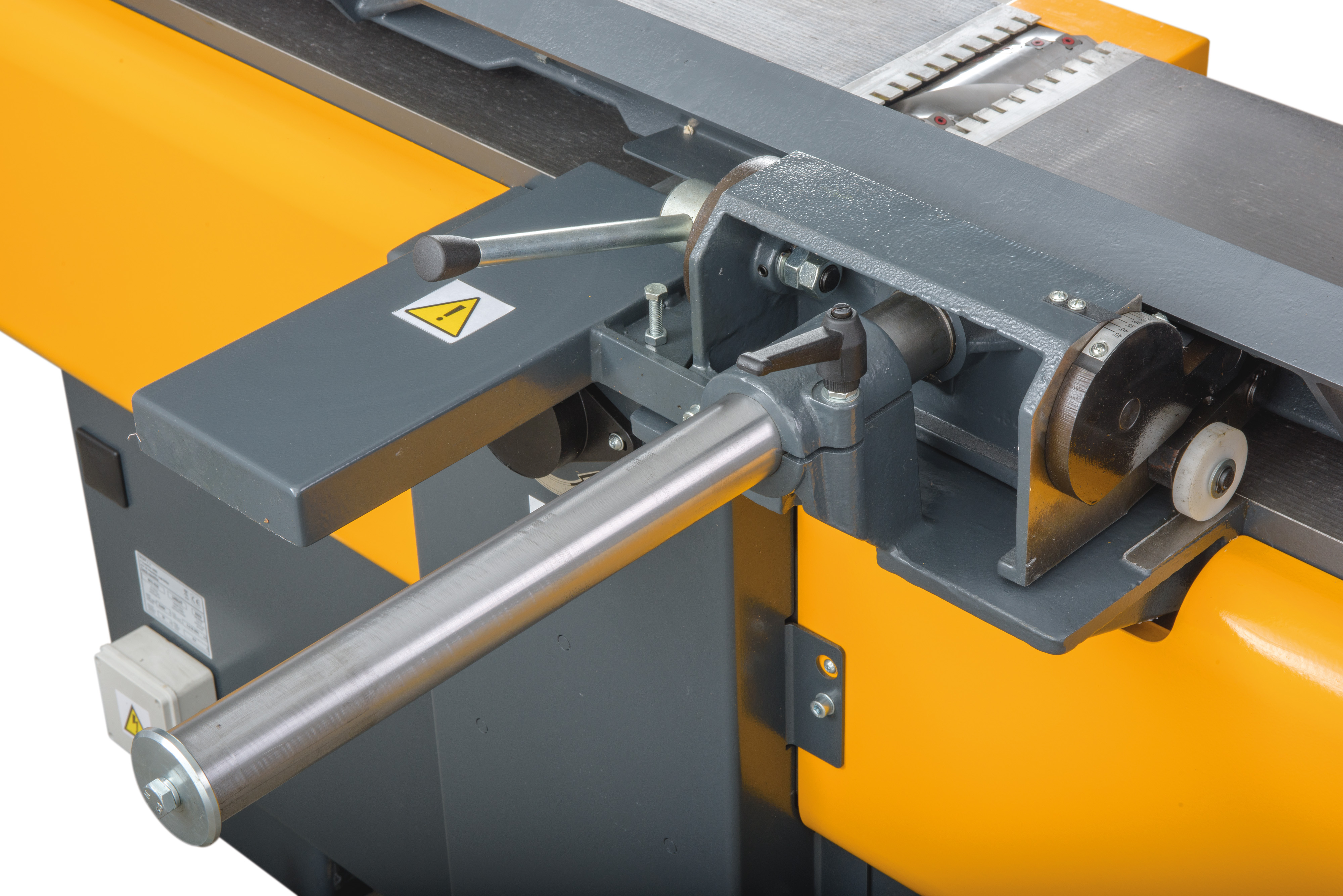

Setting the angle ruler
Setting the chips
Features and standard equipment
- the main advantage of the RFS410 and RFS510 comparison milling machines is the robust cast iron table
- one of the unforgettable advantages and strengths of the RFS series is the solid cast iron ruler, while competitors use an aluminium ruler
- the basic version of the machine is equipped with a folding knife roller cover from CPS, which allows efficient and safe operation of the machine
- the machine is equipped with a classic 4-foot roller. The knives are easy to change and set up and can be purchased in almost all specialist tool shops
- This machine belongs to the INDUSTRY industrial series. The machine can be safely operated in two or three shifts and is suitable for professional use
Equipment on request
- TERSA Monoblock knife roller
- spiral knife roller
- upper control panel
- electric motor 7,5 kW S6/40% with top panel only
- ruler for machining thin pieces
- analogue knifestop
