Planer RFS510
A new design solution which provides high precision and machine performance at low production costs.
Long cast iron tables and a four-knife cutterblock guarantee the quality of material processing.
The machine is equipped with a suction dust hood, cast iron fence with a special tilting mechanism.
Product code: 1486000
Technical parameters
| S6 engine performance 40% | 5,3 kW (7,5 kW) |
| Engine speed | 2,860/min (3,432/min [60Hz]) |
| Knife shaft diameter | 116 mm |
| Number of blades | 4 |
| Knife shaft speed | 5 000/min. |
| Max. levelling width | 500 mm |
| Max. levelling chip | 8 mm |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Length | 2 700 mm |
| Width | 1 300 mm |
| Max. machine height | 1 070 mm |
| Table dimensions | 2 700 x 410 mm |
| Table height | 890 mm |
| Suction diameter | 150 mm |
| Gross weight | 630 kg |
| Net weight | 620 kg |
| Voltage/frequency | 3x400V (3x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Noise level without LAeq technology | 78.4 dB(A) |
| Noise level with LpAeq technology | 86.9 dB(A) |
| Acoustic performance (without technology) | 86.8 dB(A) |
| Acoustic performance (with technology) | 92.2 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

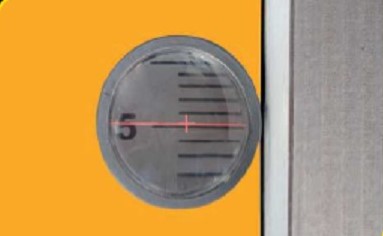

View splinter

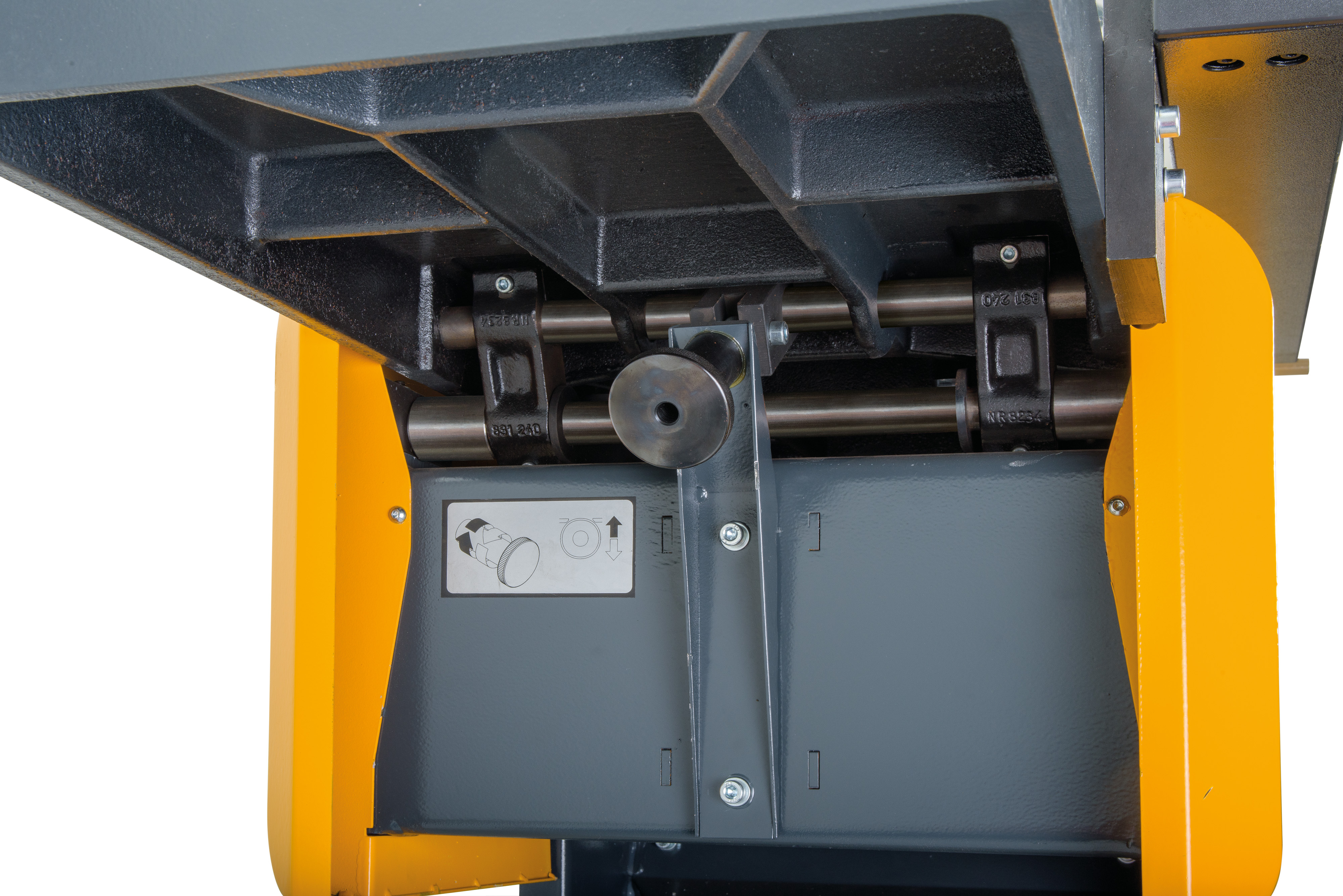

Table stowage (fine adjustment)

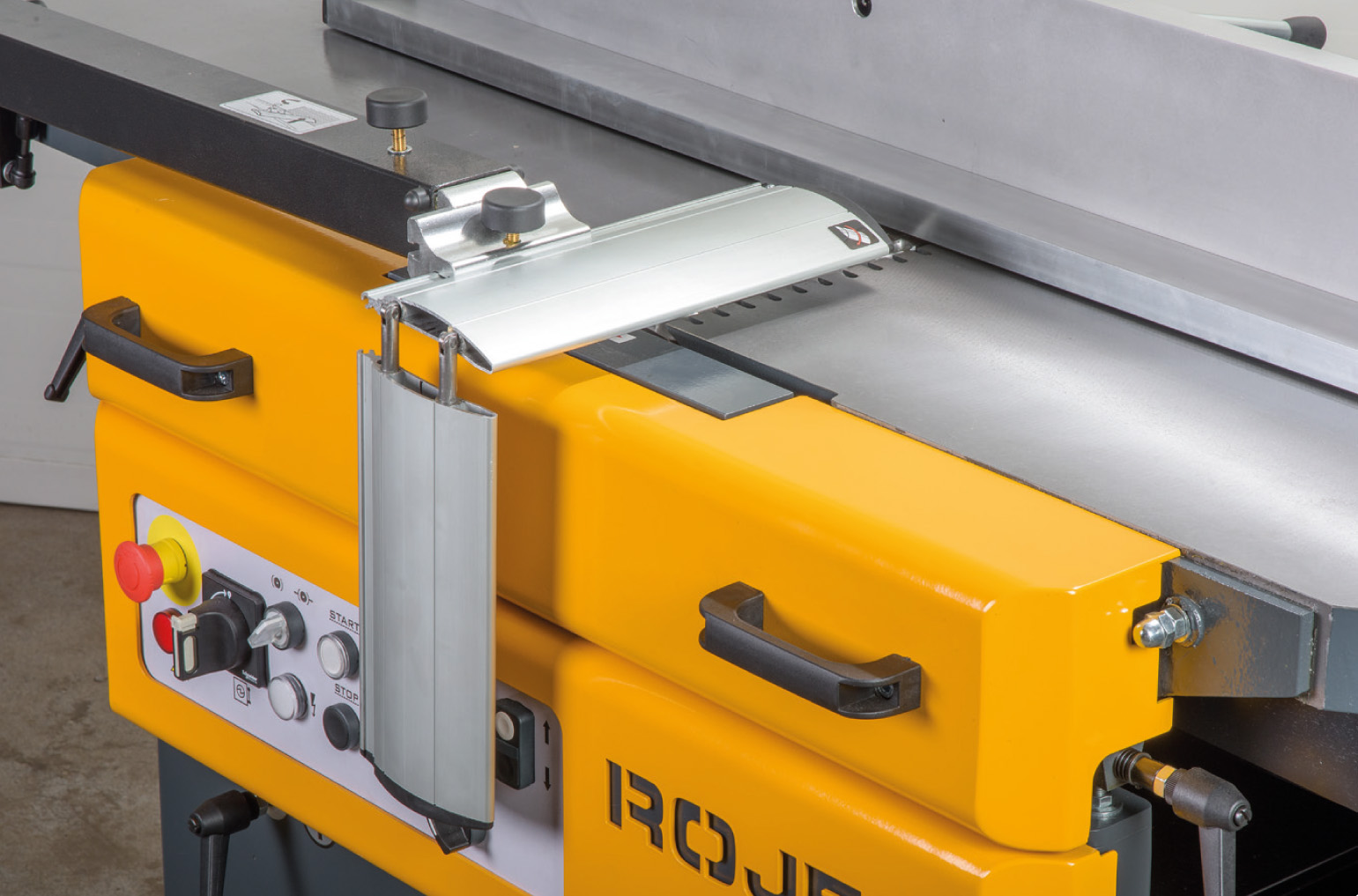

Cylinder cover profile foldable
Top control panel
Knife stopper

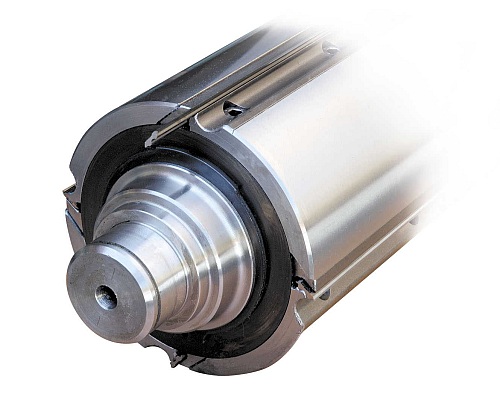

Four-legged planer roller with TERSA knives

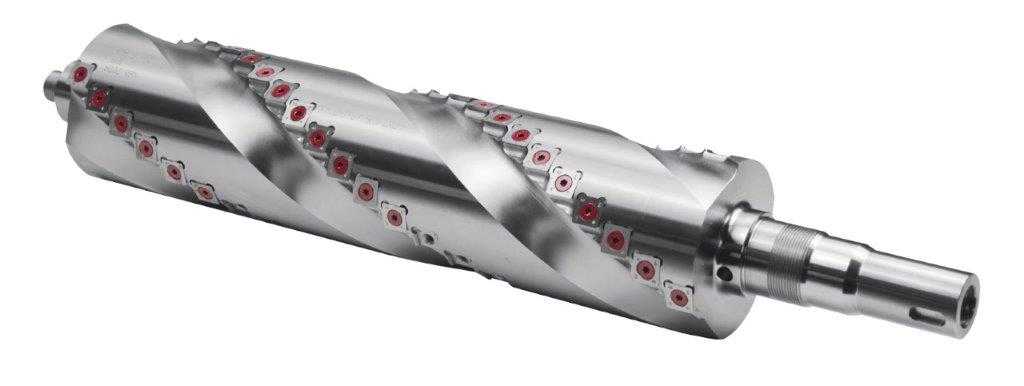

Spiral planer roller

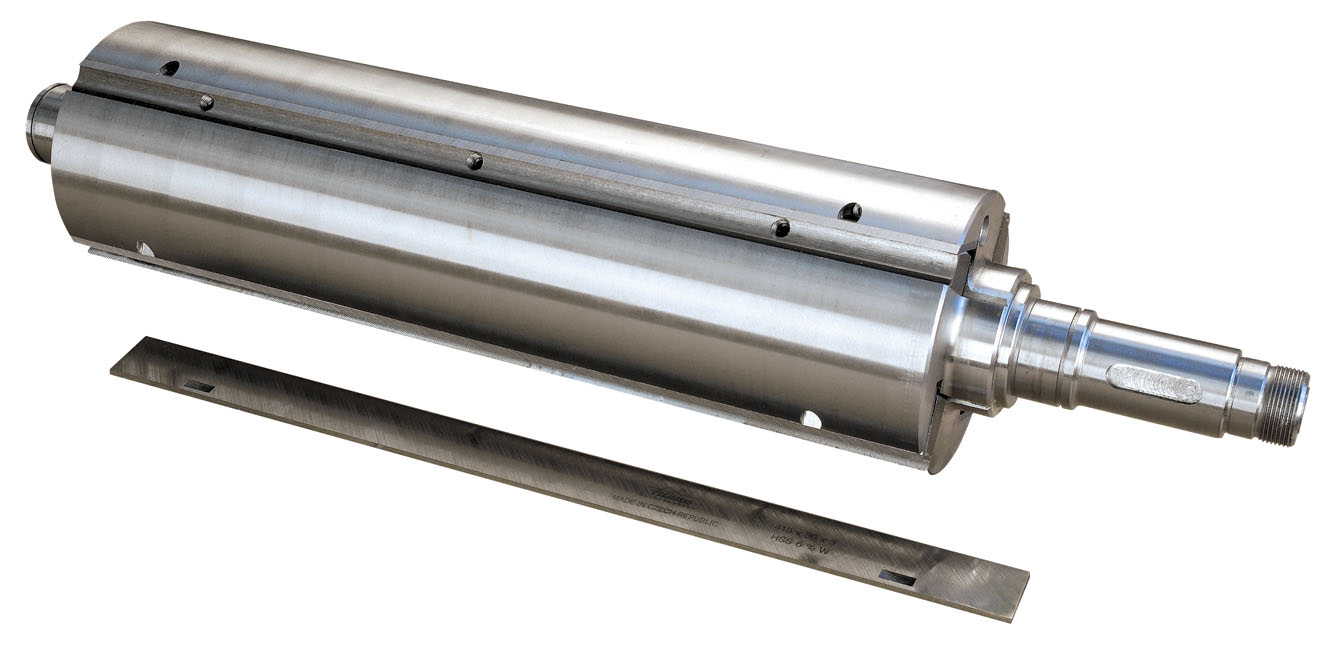

Four-legged planing roller

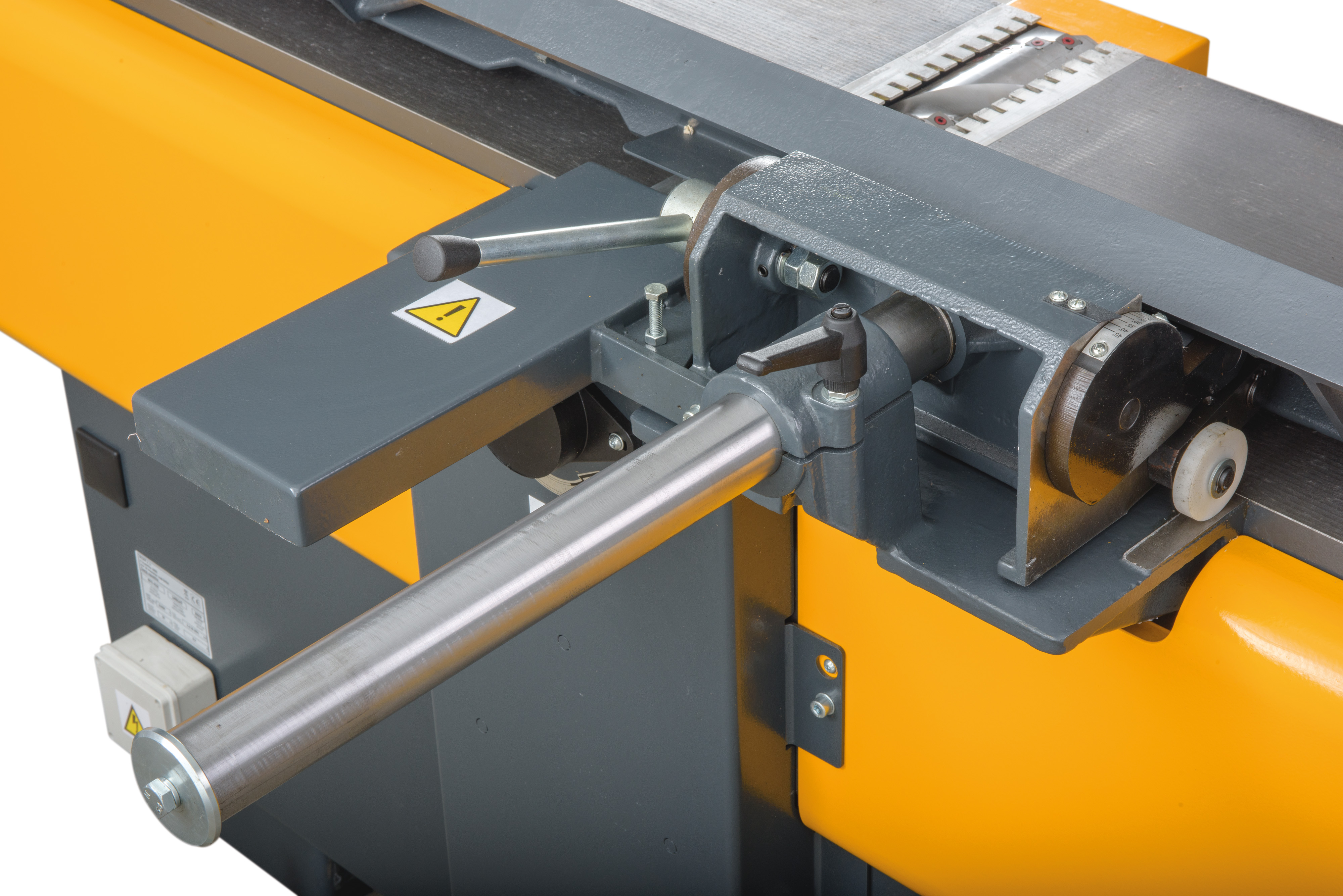

Setting the angle ruler

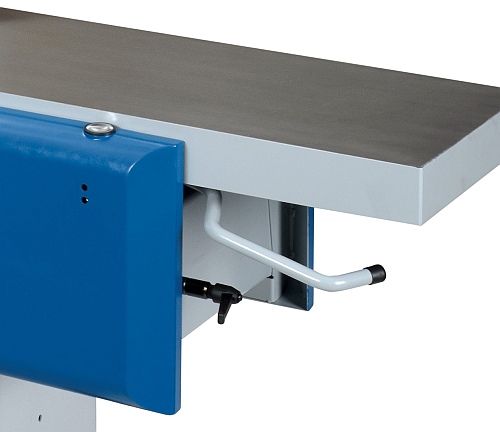

Setting the chips
Features and standard equipment
- the main advantage of the RFS410 and RFS510 comparison milling machines is the robust cast iron table
- one of the unforgettable advantages and strengths of the RFS series is the solid cast iron ruler, while competitors use an aluminium ruler
- the basic version of the machine is equipped with a folding knife roller cover from CPS, which allows efficient and safe operation of the machine
- the machine is equipped with a classic 4-foot roller. The knives are easy to change and set up and can be purchased in almost all specialist tool shops
- This machine belongs to the INDUSTRY industrial series. The machine can be safely operated in two or three shifts and is suitable for professional use
Equipment on request
- TERSA Monoblock knife roller
- spiral knife roller
- upper control panel
- electric motor 7,5 kW S6/40% with top panel only
- ruler for machining thin pieces
- analogue knife stop
