Panel saw PF400S
The design of the machine has undergone a number of technical innovations that increase the utility of the machine. The high quality workmanship makes this saw one of the best in its class. As standard it is equipped with a formatting table with a very precise and rigid bearing on hardened bars CV 360T, optional equipment allows the machine to be equipped with a formatting table of multi-chamber very rigid construction CV 400T, precise and rigid design with bearing on steel bars, table size 400 x 3200mm. The saw mechanics suspended in a robust cast iron body with a pre-cutting driven by a separate motor guarantee precision and reliability.
Product code: 1287001
Technical parameters
| S6 engine performance 40% | 7,5 (5,3 | 9,2) kW/3×400 V (2,2 kW/1×230 V) |
| Motor speed | 2,870/min (3,444/min [60Hz]) |
| Max. disc with pre-cut | Ø 400 mm |
| Spindle diameter | 30 mm (1″) |
| Saw speed | 4 450/min (3 500/5 000) |
| Max. cutting height | 130 mm (90 mm [45°]) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 1 300 (1 500) mm |
| Pre-cutting motor power | 0,75 kW (1 Kw) |
| Disc diameter | Ø 120 mm (100 mm) |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed | 8,530/min (10,236/min [60Hz]) |
| Length (at CV360 - 2,000 mm) | 2 545 mm |
| Length (at CV360 - 2 800 mm) | 2 845 mm |
| Length (at CV360 - 3 200 mm) | 3 355 mm |
| Width | 3 450 (3 900) mm |
| Table height | 892 mm |
| Max. machine height | 1 460 (1 700) mm |
| Table dimensions | 1 185 x 500 mm |
| Suction diameter | 100 + 100 mm |
| Gross weight | 690 kg |
| Net weight | 685 kg |
| Table dimensions | 2 000 (2 800| 3 200) x 360 mm |
| Support frame dimensions | 1 240 x 650 mm |
| Cutting length of the saw | 2 000 (2 800 | 3 200 ) mm |
| Voltage/frequency | 3×400 V (3×230 V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Acoustic pressure (without technology) | 81.8 dB(A) |
| Acoustic pressure (with technology) | 85.3 dB(A) |
| Acoustic power (without technology) | 98.6 dB(A) |
| Acoustic performance (with technology) | 102.1 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

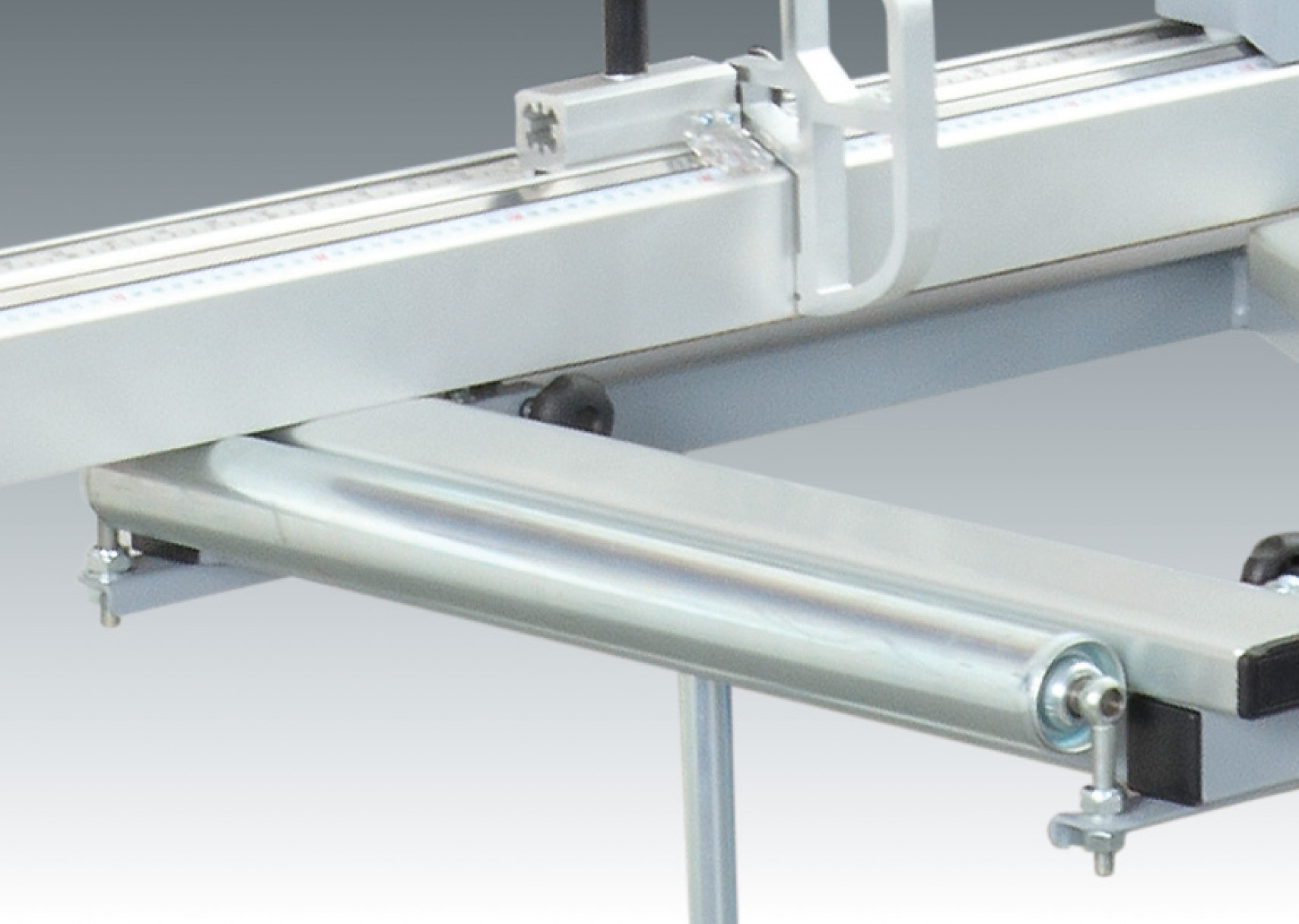

Outrigger roller

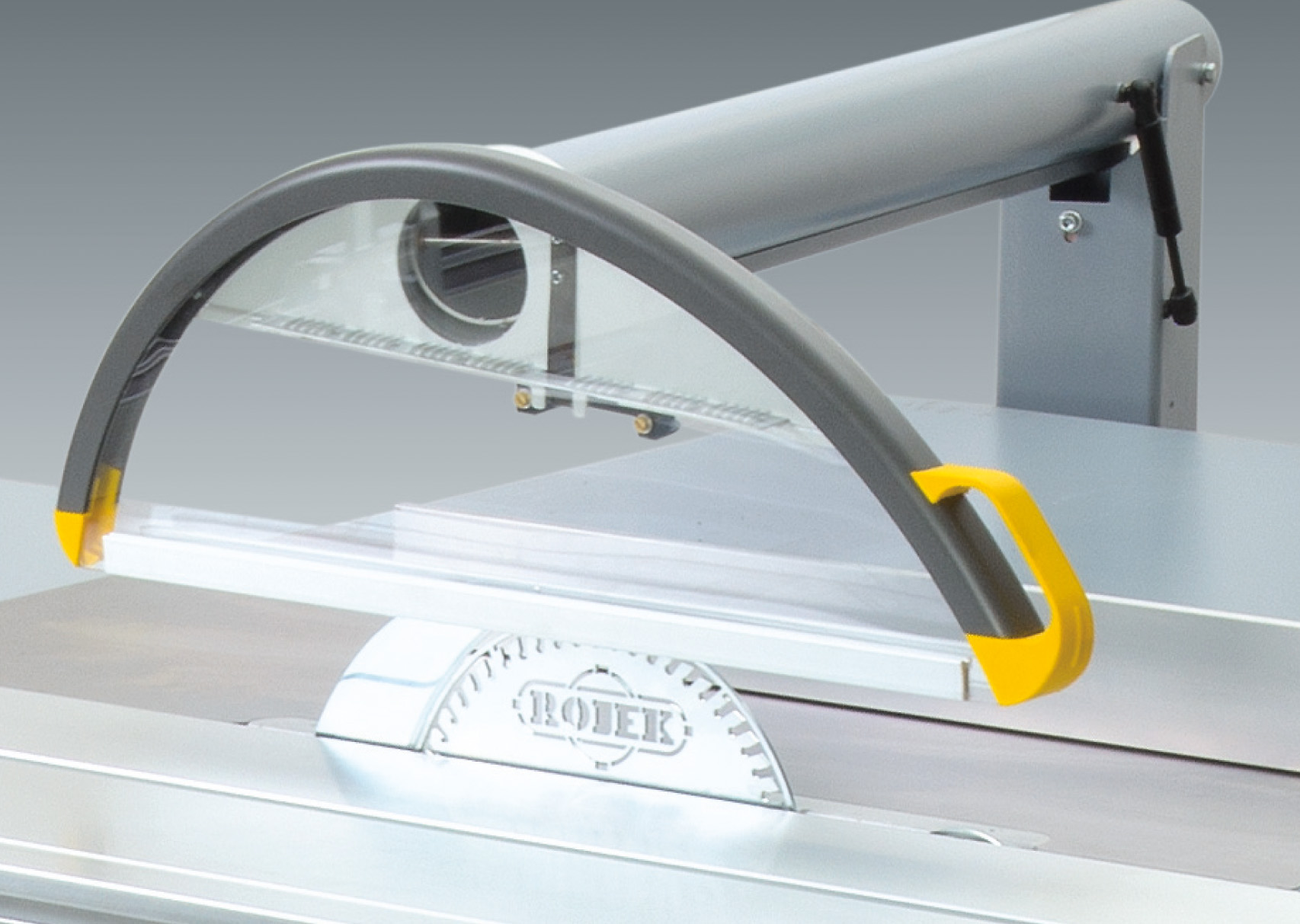

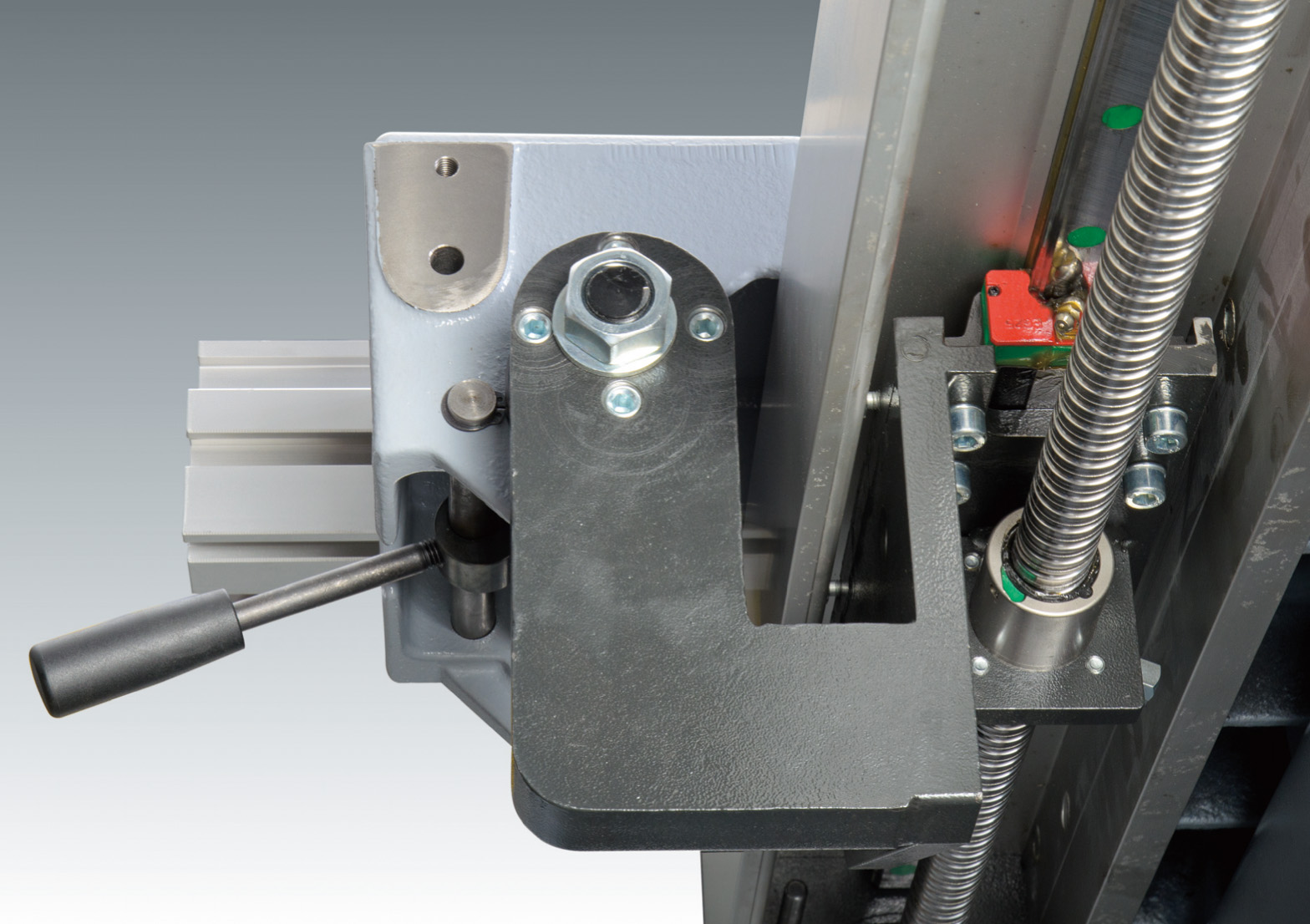

Upper suction (Parallelogram CPS)

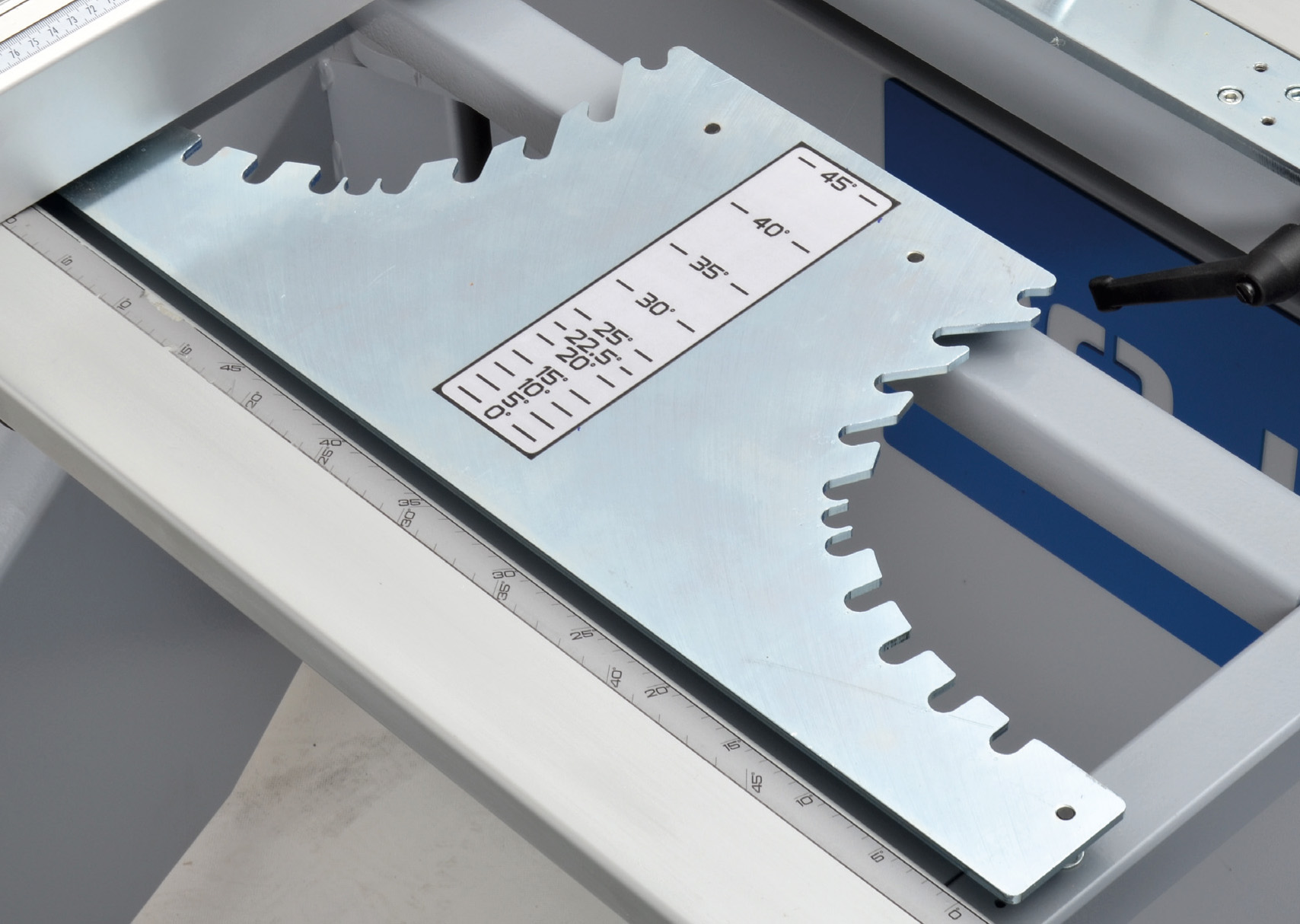

Precise angle adjustment of 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°

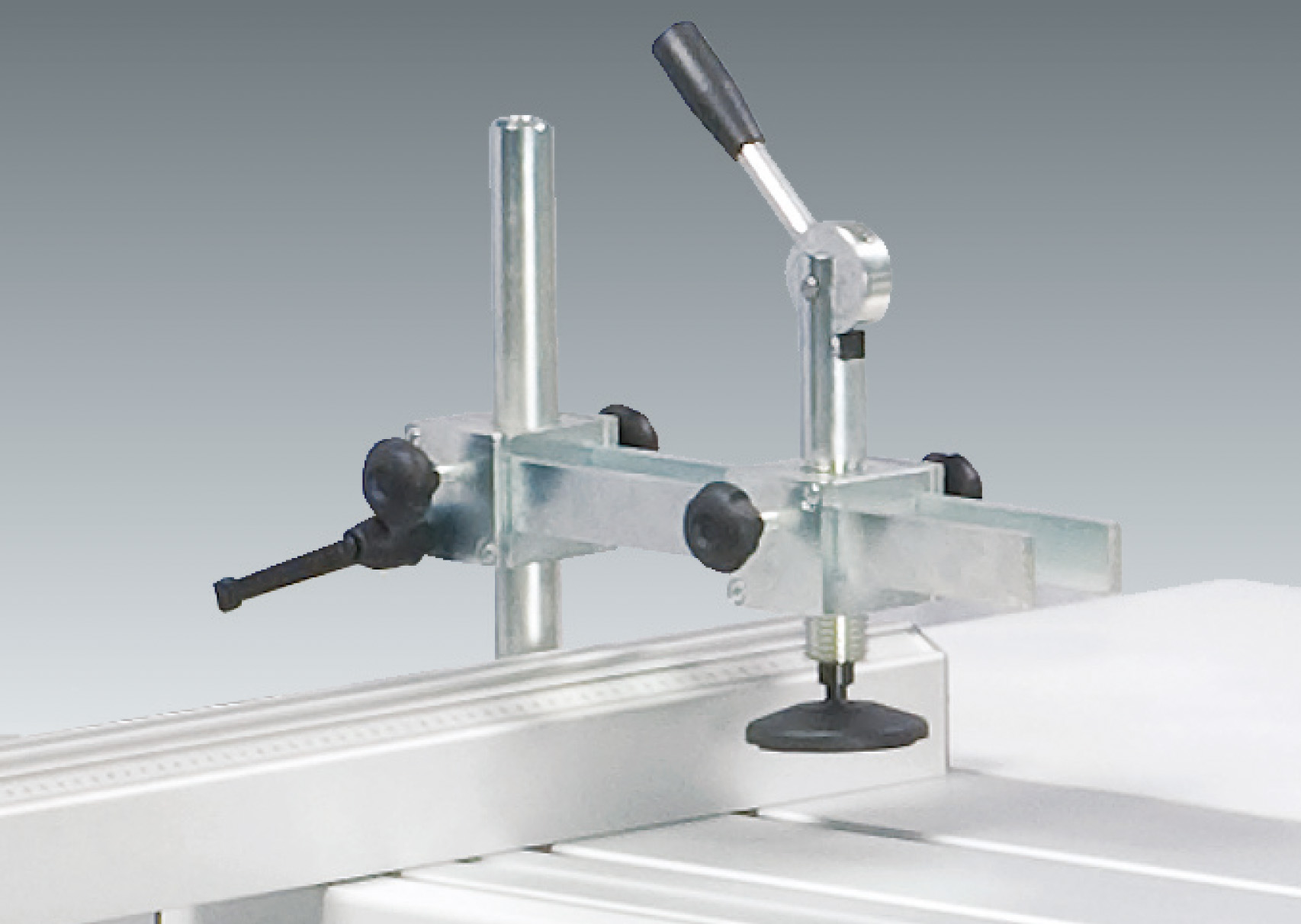

Eccentric woodpresser

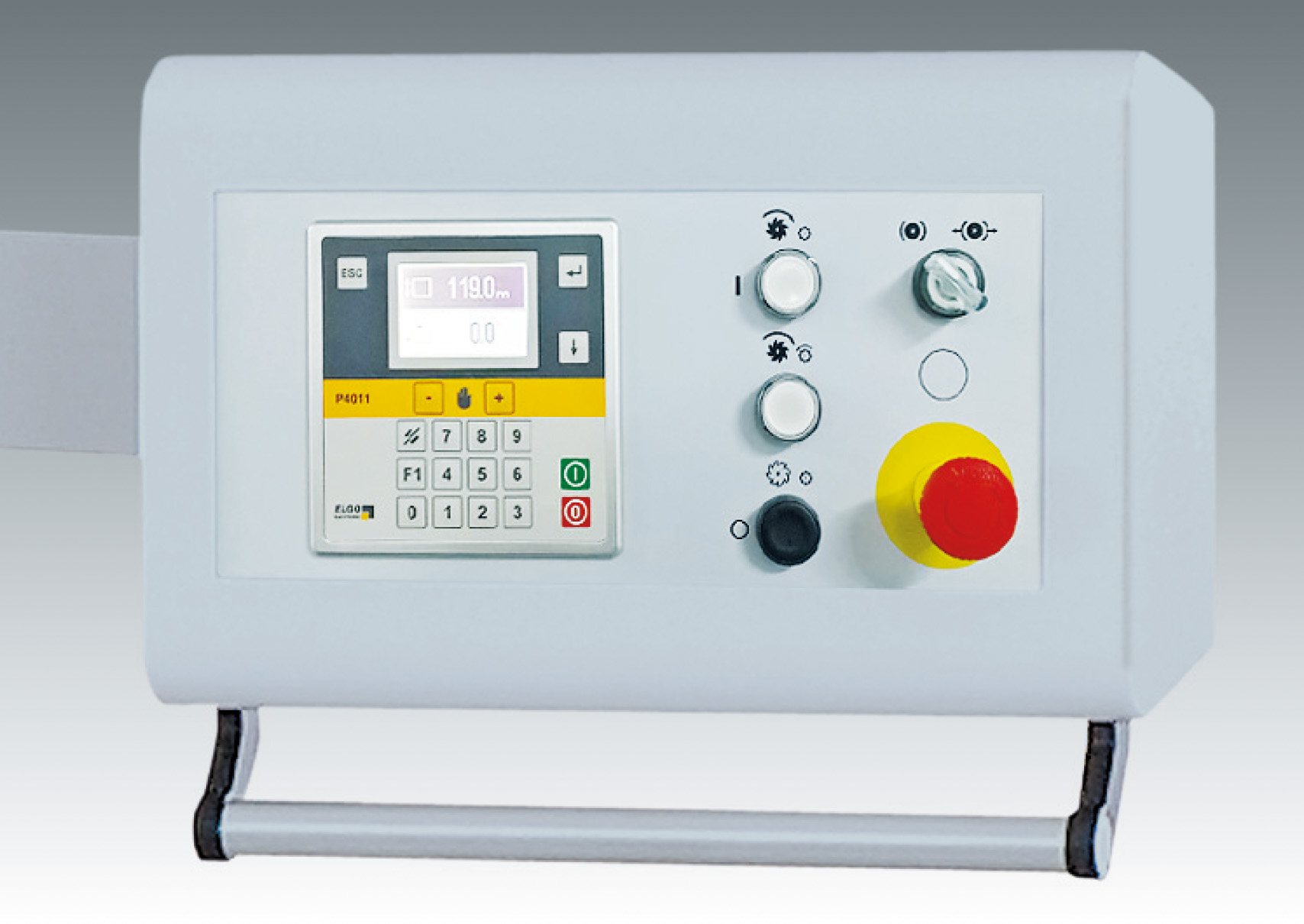

Upper control panel

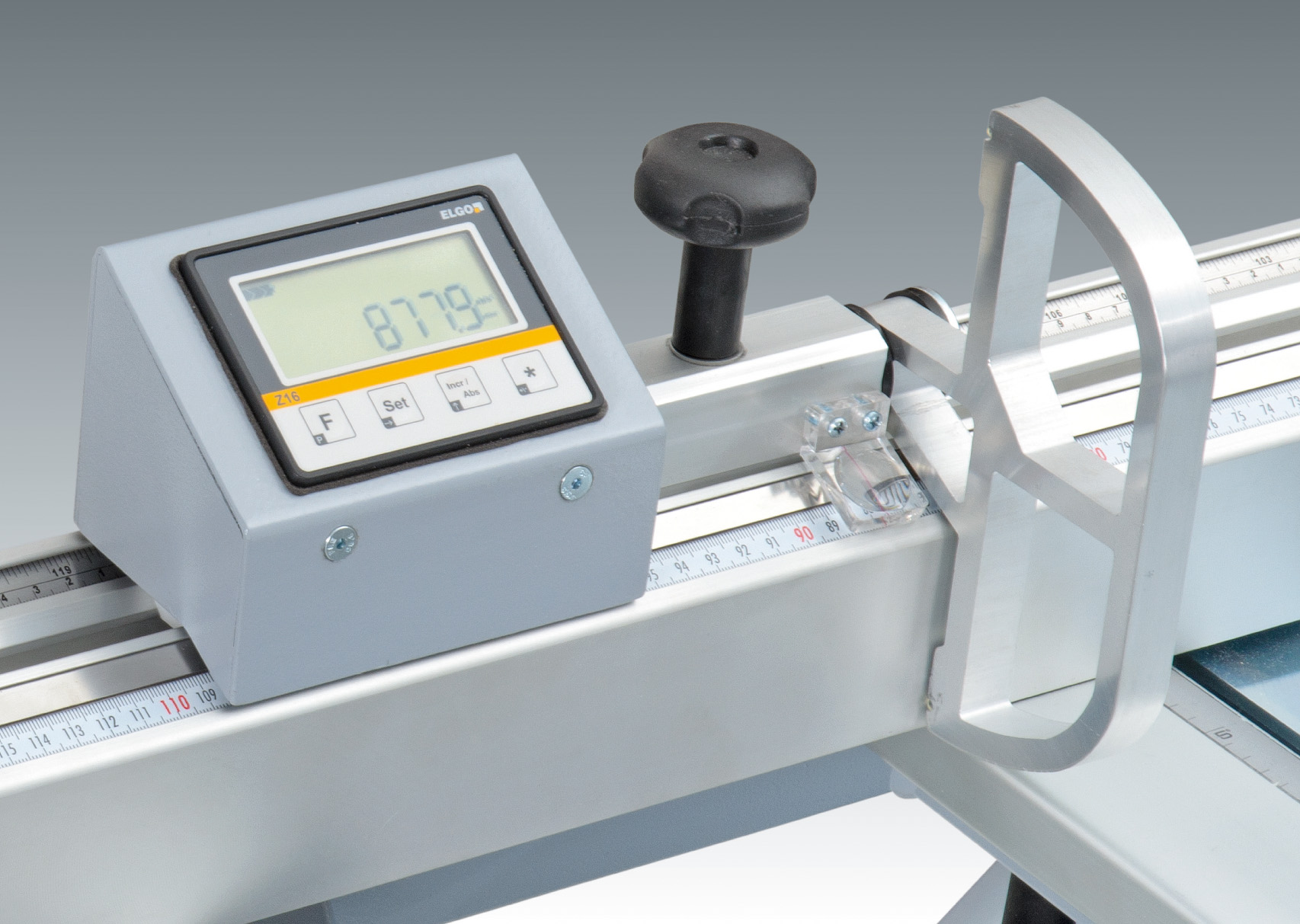

Stop with digital readout

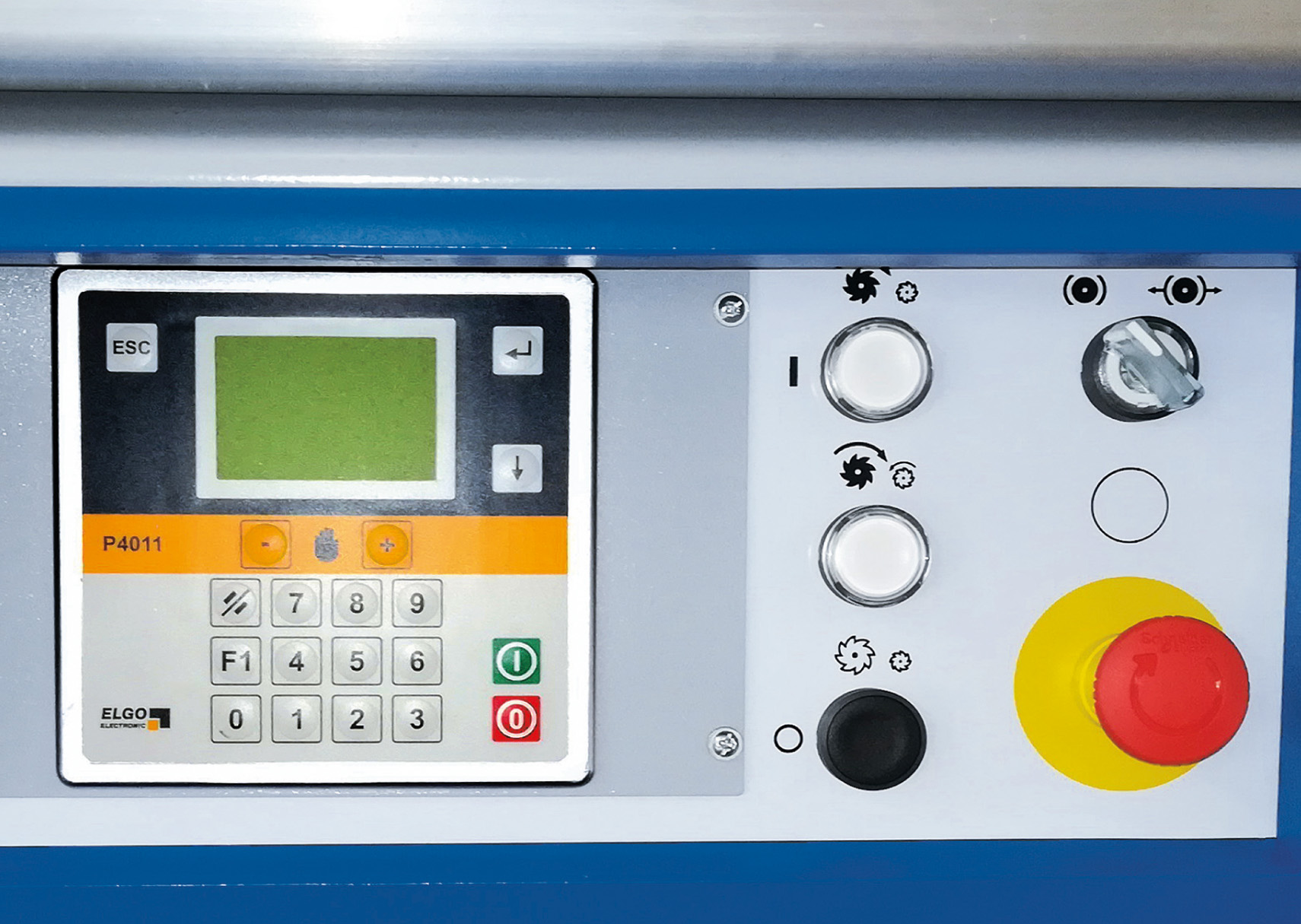

NC control - lower control panel
Sliding table extension

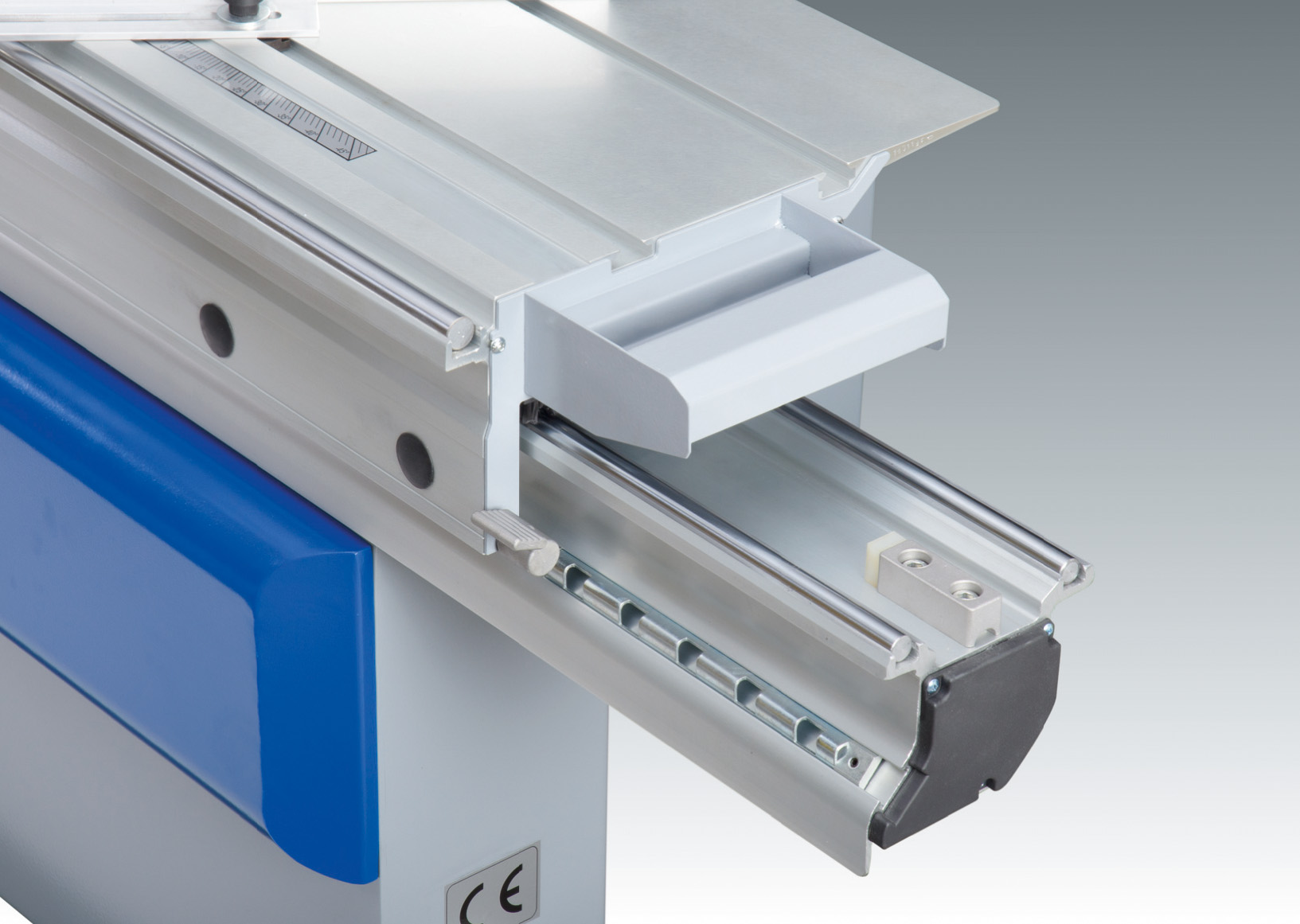

Installation of the CV400T sliding table on bars

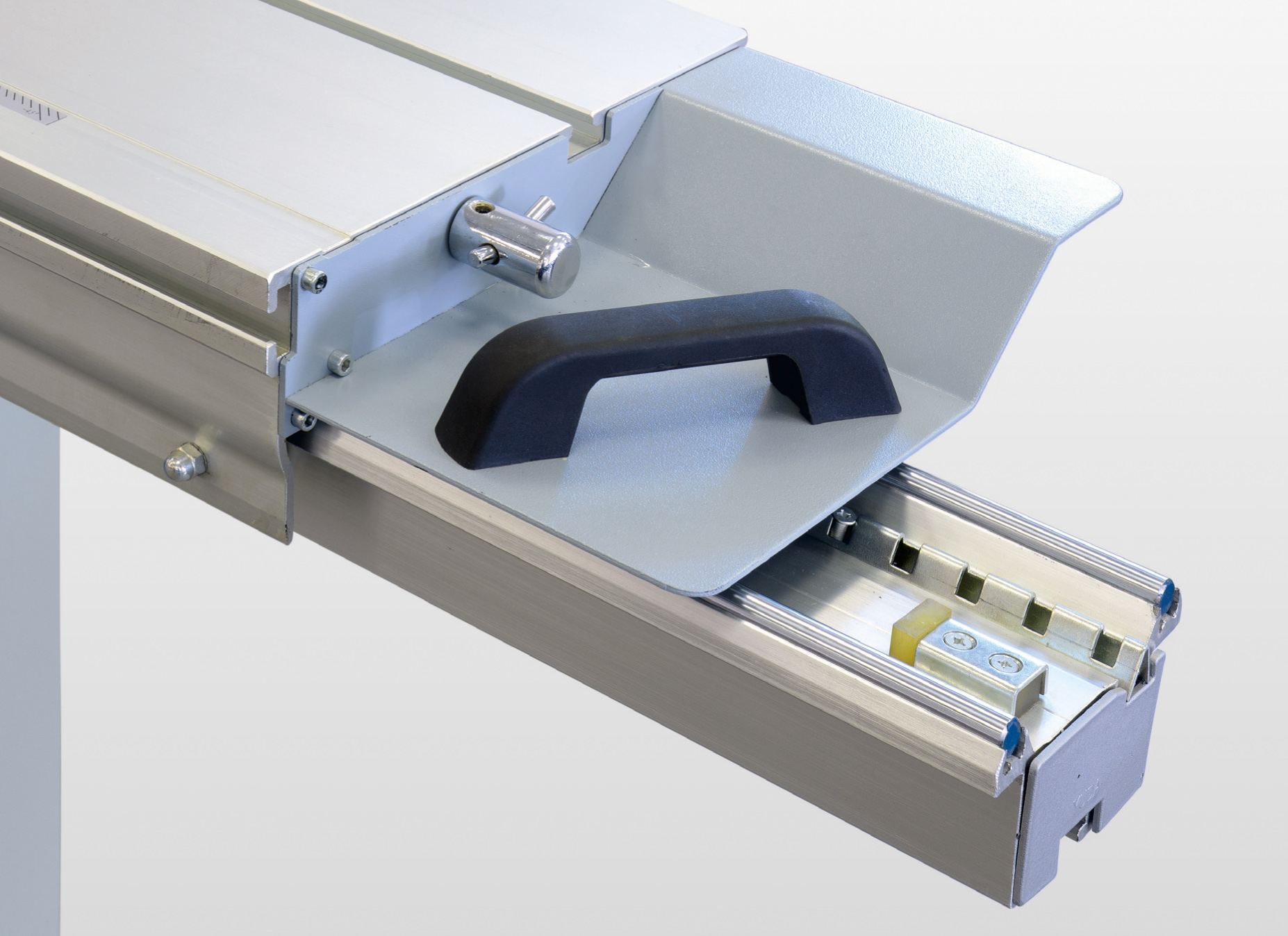

Installation of the CV360T sliding table on bars

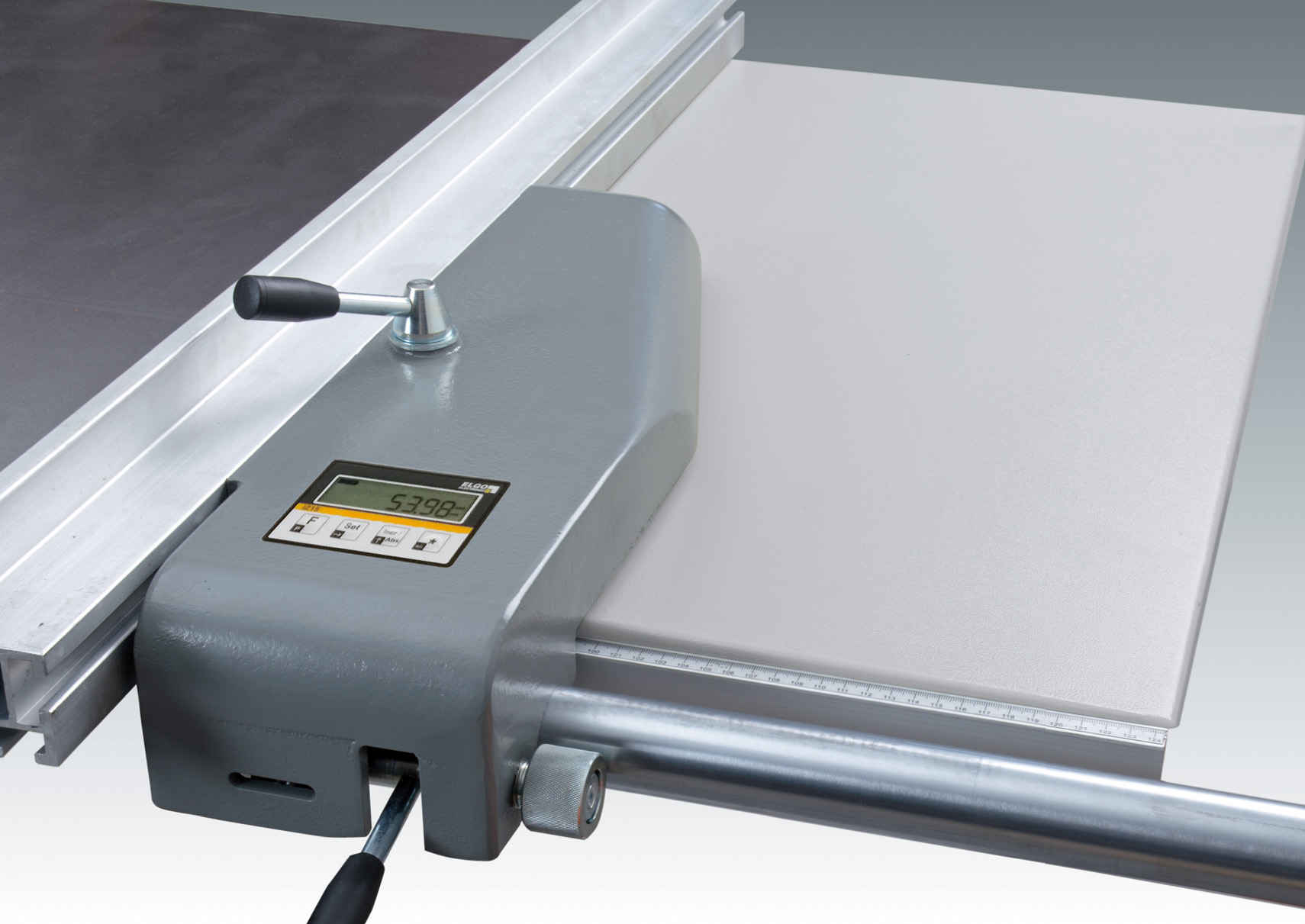

Rip fence with digital indication
Features and standard equipment
- formatting table handle
- Tilt wheel with angle indication
- CV clamp - self-clamping foot
- rear cast iron table extension
- top suction - parallelogram CPS
- CV formatting table 360T / 3.2 m on steel bars
- short angle ruler 800 mm with stop
- clamp for formatting table - single column eccentric
- cast-iron holder for longitudinal aluminium ruler with micro-slide
- Cutting width extension 1300 mm with extraction and connection
- frame with support arm and transverse ruler with tilted scale and two stops
Equipment on request
- CV 360T/ 2,8 m formatting trolley on hardened bars
- CV400T 3,2 m formatting trolley on hardened bars
- lowering the machine from the forming trolley - CV400T
- 9,2 kW/S6 motor
- upper control panel
- cutting width 1050 mm
- Cutting width 1500 mm
- 2 axis electric blade tilt and extend lower control panel
- ELGO electronic measuring ruler for cutting width
- ELGO electronic measuring cross ruler
