Panel saw PK320A
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this saw among the best in its class. It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version. The saw unit mounting in a robust cast iron body with a scoring unit, which is driven by a separate motor, guarantees accuracy, solidity, and reliability.
Product code: 1257002
Technical parameters
| S6 engine performance 40% | 5,3 kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,865/min (3,438/min [60Hz]) |
| Max. disc with pre-cut | Ø 315 mm |
| Spindle diameter | 30 mm (5/8″ | 1″) |
| Saw speed | 4 400/min. |
| Max. cutting height with pre-cut | 100 mm (70 mm [45°]) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 1 050 mm (800; 1 500 mm) |
| Scoring unit motor power | 0,75 kW |
| Disc diameter | Ø 120 mm (100 mm) |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed (driven by separate electric motor) | 8,530/min (10,230/min [60Hz]) |
| Length (at CV360 - 2,000 mm) | 2 155 mm |
| Length (at CV360 - 2 800 mm) | 2 760 mm |
| Length (at CV360 - 3 200 mm) | 3 360 mm |
| Table height | 890 mm |
| Max. machine height | 1 150 mm |
| Table dimensions | 955 x 400 mm |
| Suction diameter | 100 + 40 (60) mm |
| Gross weight | 520 kg |
| Net weight | 515 kg |
| Table dimensions | 2 000 (2 800 | 3 200) x 360 mm |
| Support frame dimensions | 1 240 x 650 mm |
| Cutting length of the saw | 2 000 (2 800 | 3 200) mm |
| Voltage/frequency | 3x400V (3x230V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Workplace noise (without technology) | 73.4 dB(A) |
| Workplace noise (with technology) | 92.9 dB(A) |
| Acoustic performance (without technology) | 84.3 dB(A) |
| Acoustic performance (with technology) | 101.6 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

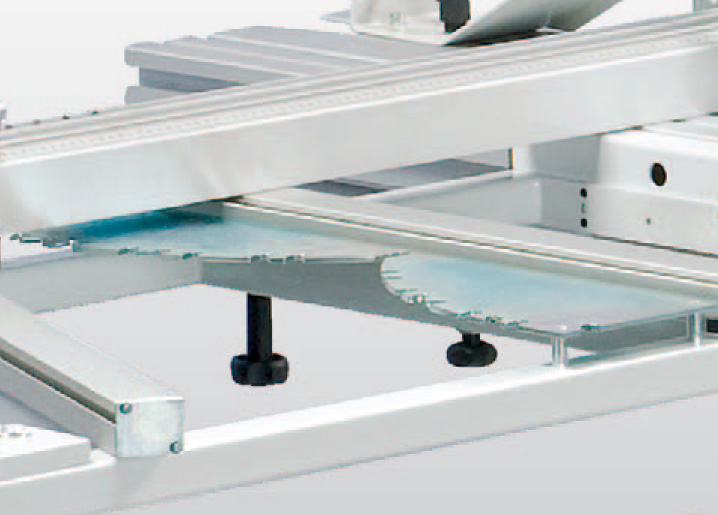

Sliding table extension
Installation of the sliding table on bars

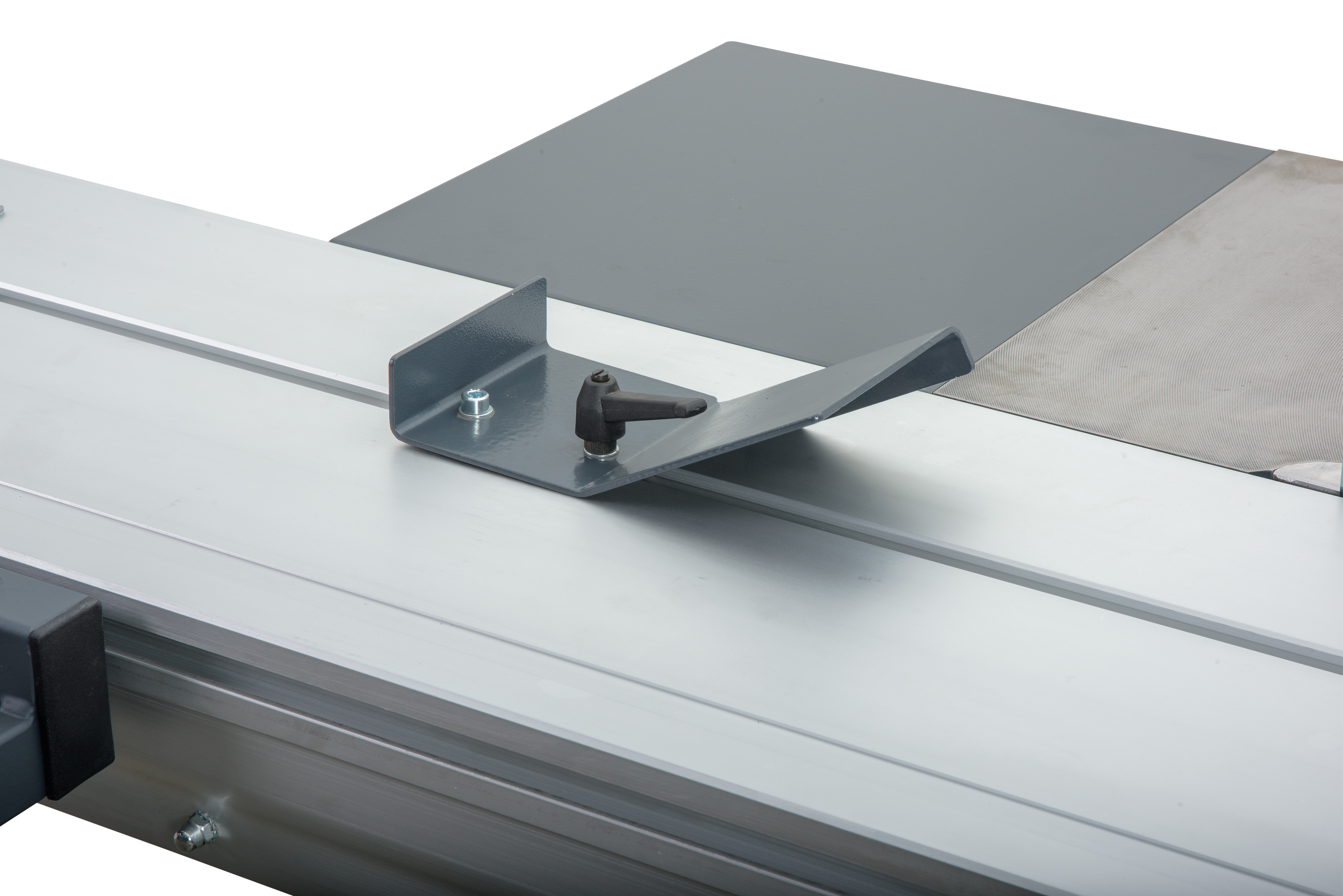

Ripping stop

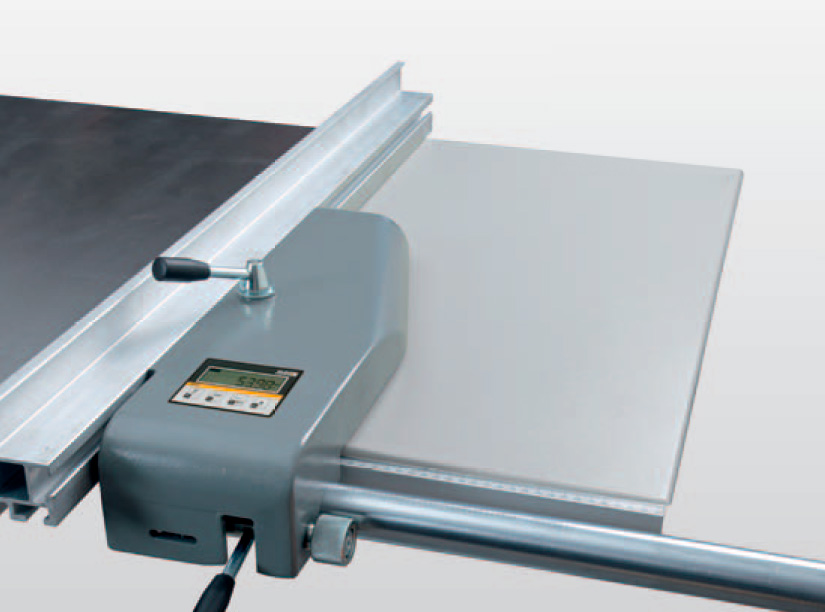

Rip fence with digital indication

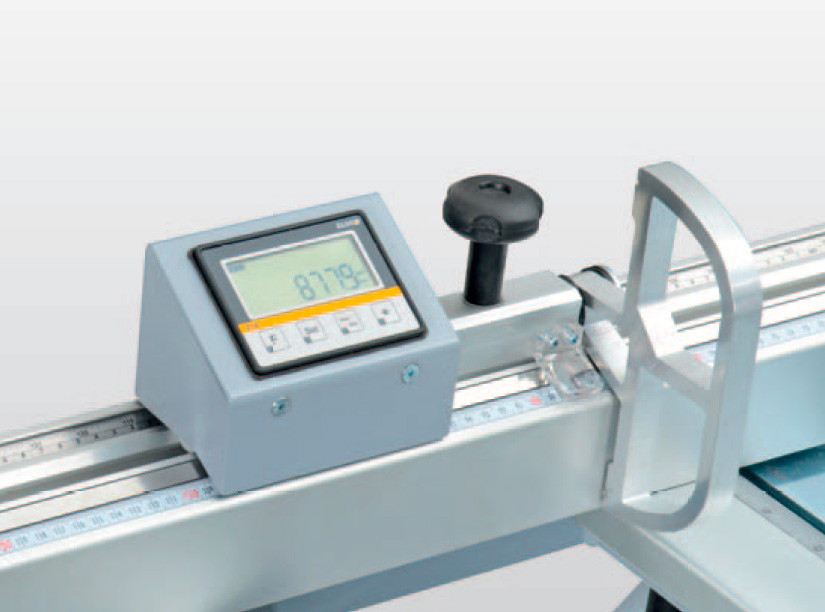

Stop with digital readout

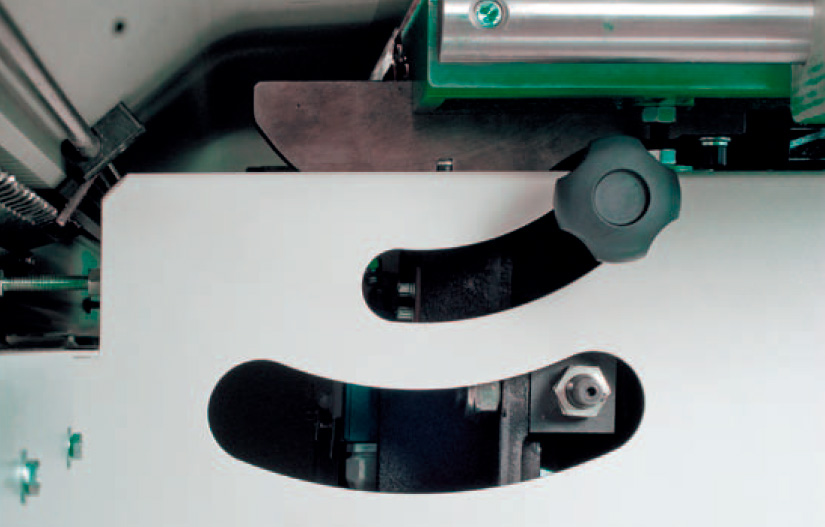

Scoring unit with external adjustment

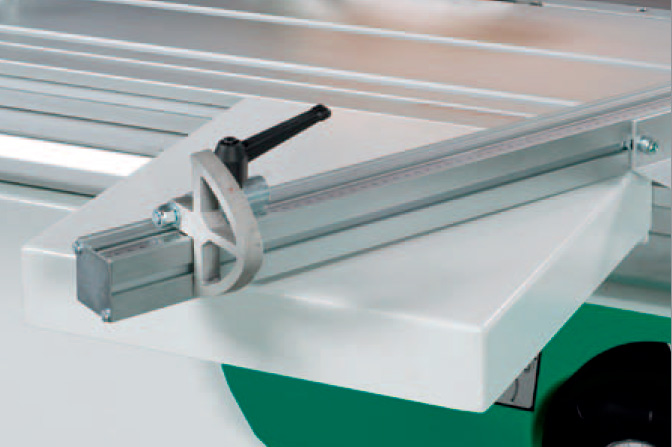

Tilting fence

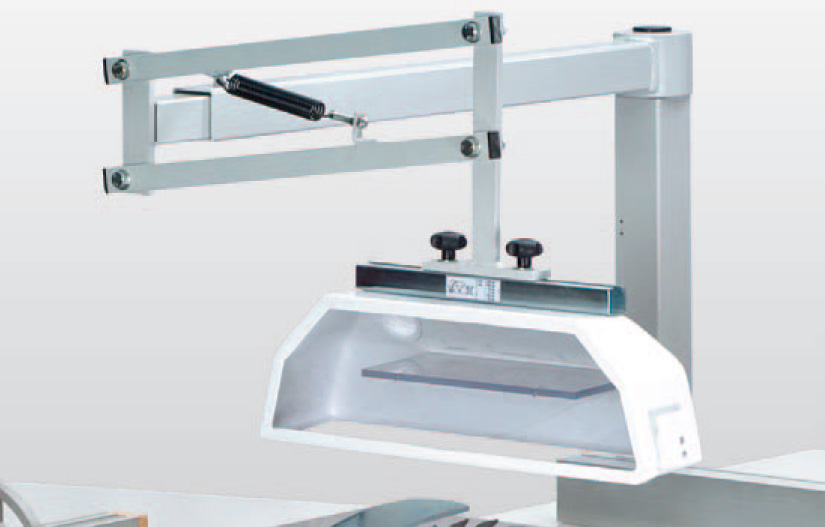

Upper suction (Parallelogram ROJEK)

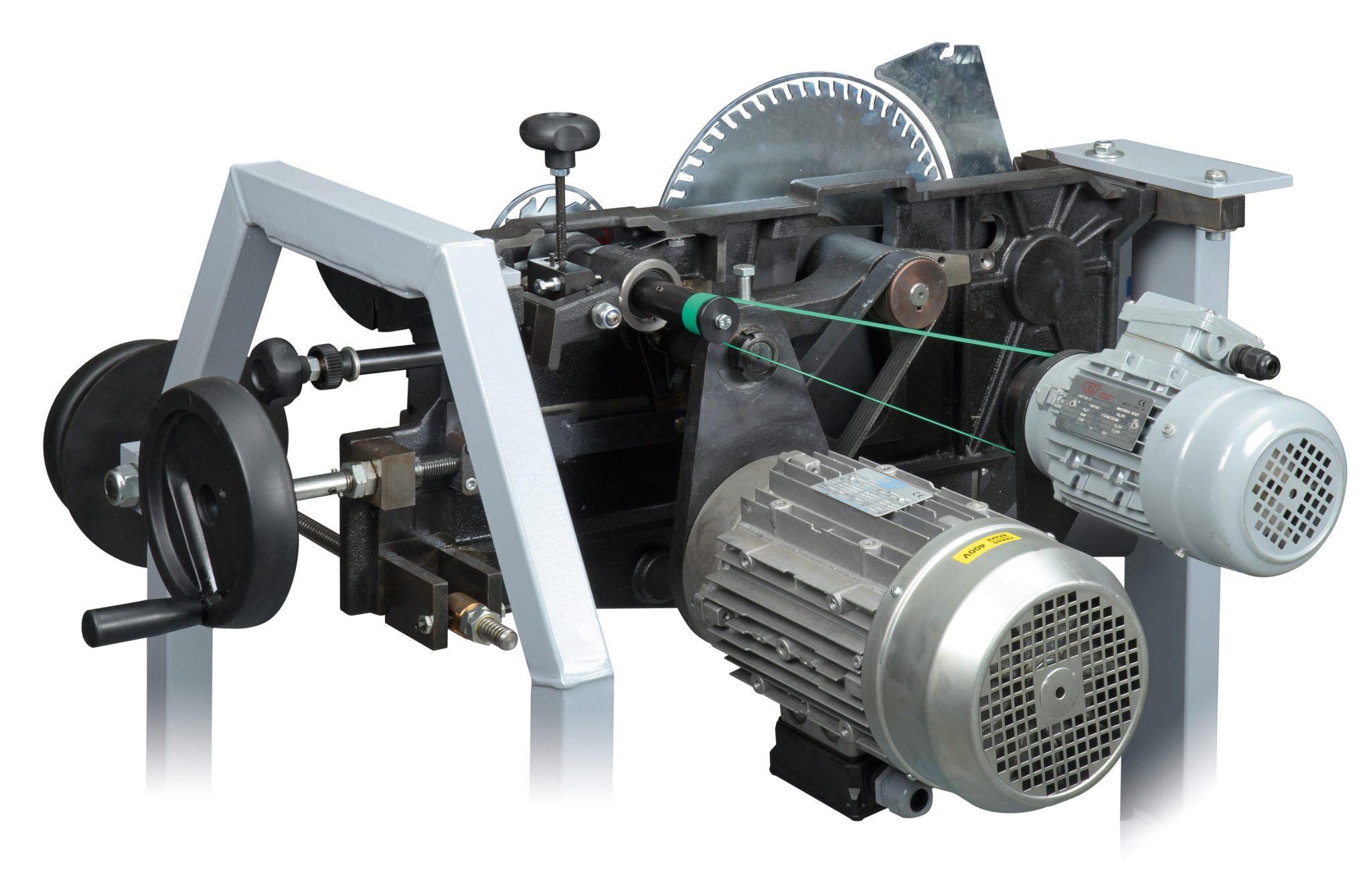

Saw mechanics

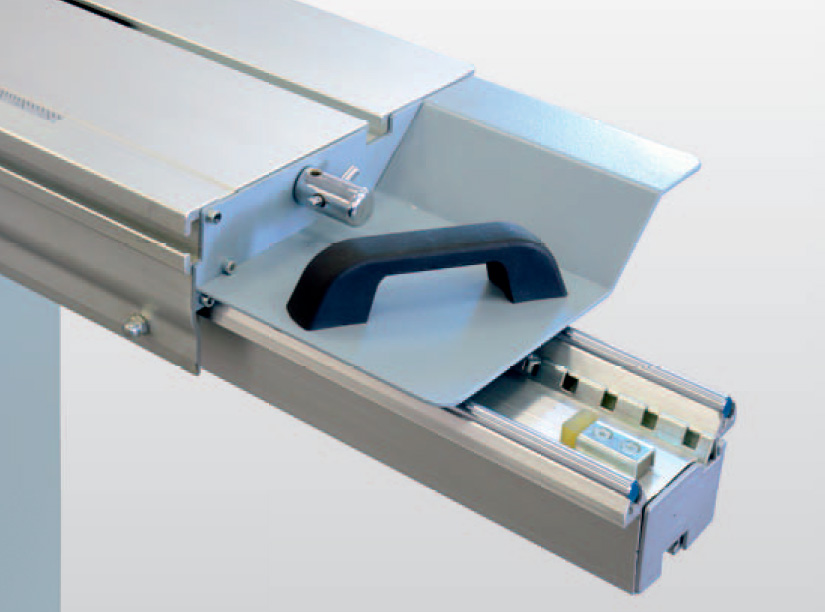

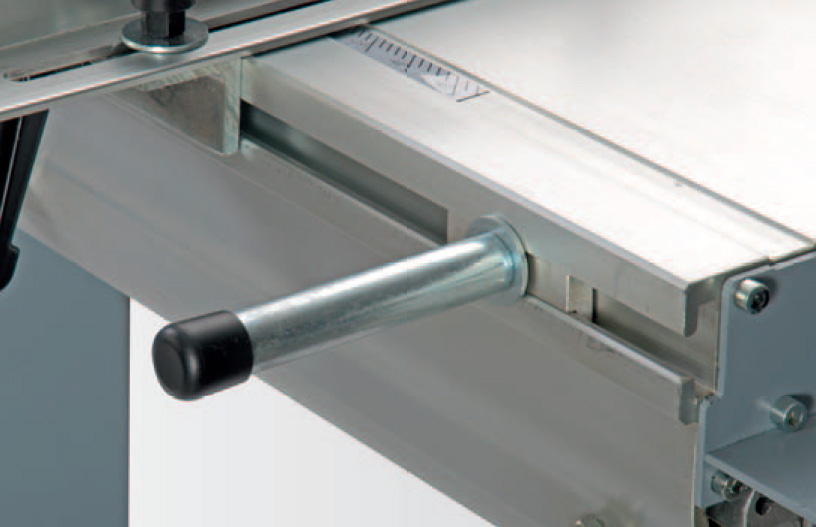

Push lever of sliding table

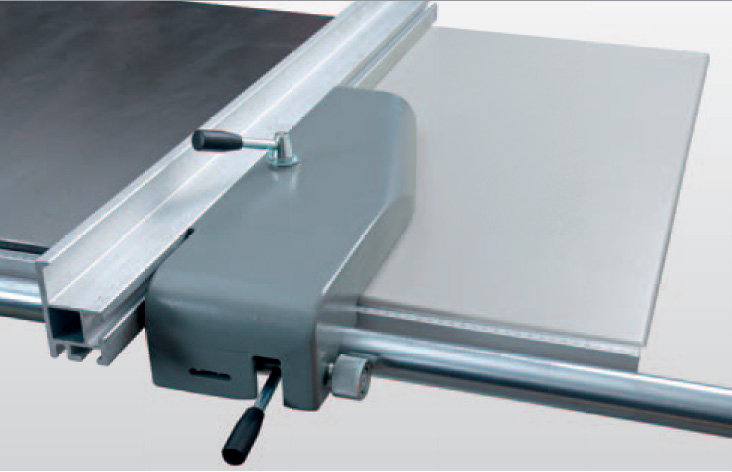

Rip fence with fine tuning
Precise angle adjustment 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°

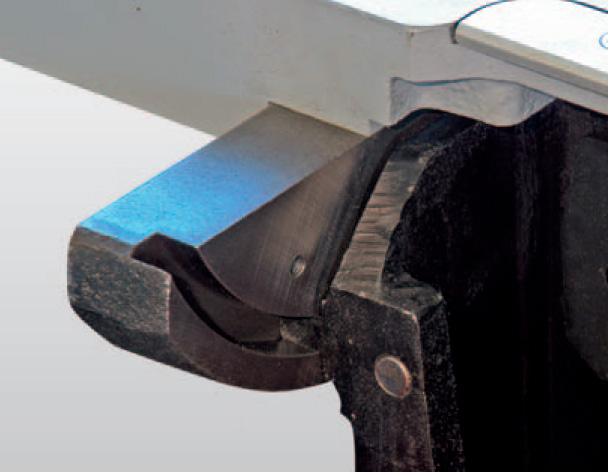

Massive mounting of saw mechanics
Supporting profile of the frame

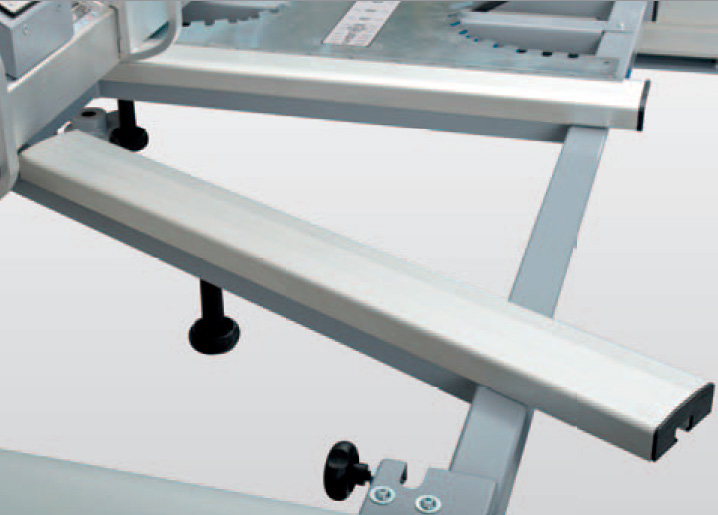

Outrigger roller
Sliding table extension
Features and standard equipment
- CV 360T formatting table 3.2 m (2.8 m, 2 m) on bars
- 5.3kW / S6 main motor

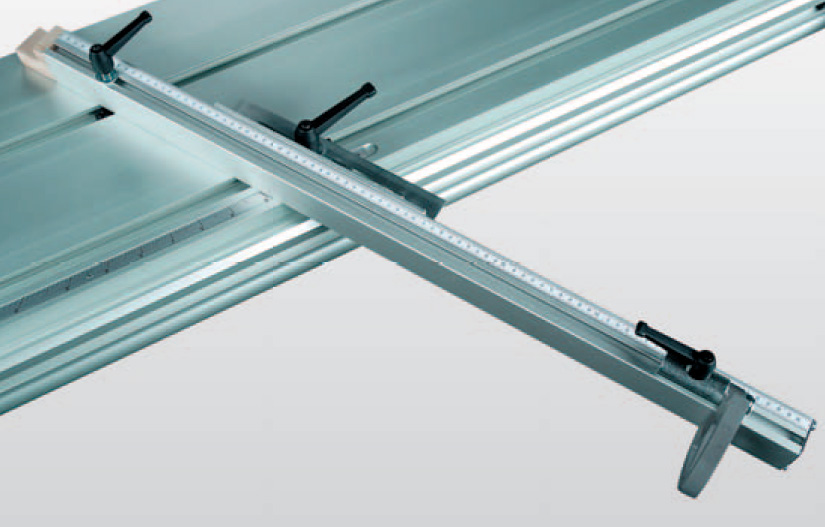

- support frame 1240 x 650 mm with support arm and transverse ruler with inclined scale and two stops
- tilt wheel with angle indication
- cast iron table extension at the rear
- short angle ruler 800 mm with stop
- clamp for formatting table - single column eccentric
- cutting width 1050 mm with extraction and connection
- cast-iron holder for longitudinal aluminium ruler with microslide
Equipment on request
- CV 360T/ 2,8 m formatting trolley on hardened bars
- CV 360T/ 2 m formatting trolley on hardened bars
- Cutting width 800 mm
- Cutting width 1500 mm
- ELGO electronic measuring ruler cutting width
- ELGO electronic measuring cross ruler
- upper extraction parallelogram ROJEK, per blade 350 mm
- DADO version (possibility of attaching a grooving cutter)
