Disc Sander CB400/1
It is designed for sanding wood, aluminium alloys and all types of plastics. The tilting table allows easy access to the dics when changing the sanding cloth. The cast iron table is equipped with a tilting mechanism with fine tuning and an angle scale. The equipment also includes a tilting fence on the table, a brake and an electric tool.
Product code: 6519401520032
Technical parameters
| Engine power | 1,1 kW |
| Grinding wheel speed | 915/min. |
| Wheel diameter | 400 mm |
| Number of discs | 1 pcs |
| Table tilt | -45° ÷ 45° |
| Length | 570 mm |
| Width | 460 mm |
| Height | 530 mm |
| Table height | 290 mm |
| Table dimensions | 460×200 mm |
| Weight | 43 kg |
| Voltage/frequency | 3x400V / 50 Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | + |
| Workplace noise (with technology) | 78.3 dB(A) |
| Acoustic performance (without technology) | + |
| Acoustic performance (with technology) | + |
Warranty conditions
- 12 months
You will definitely appreciate this product

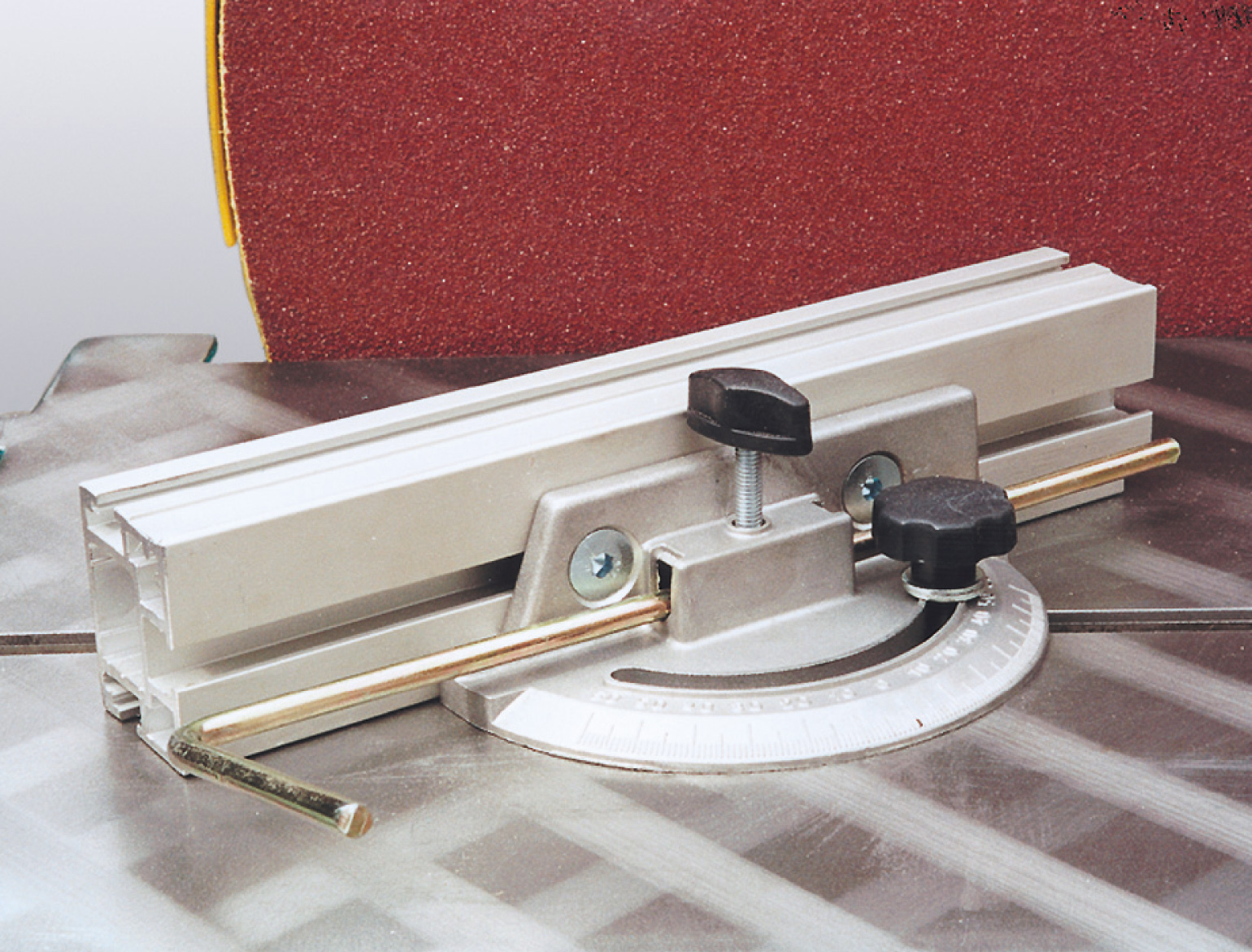

Angle ruler

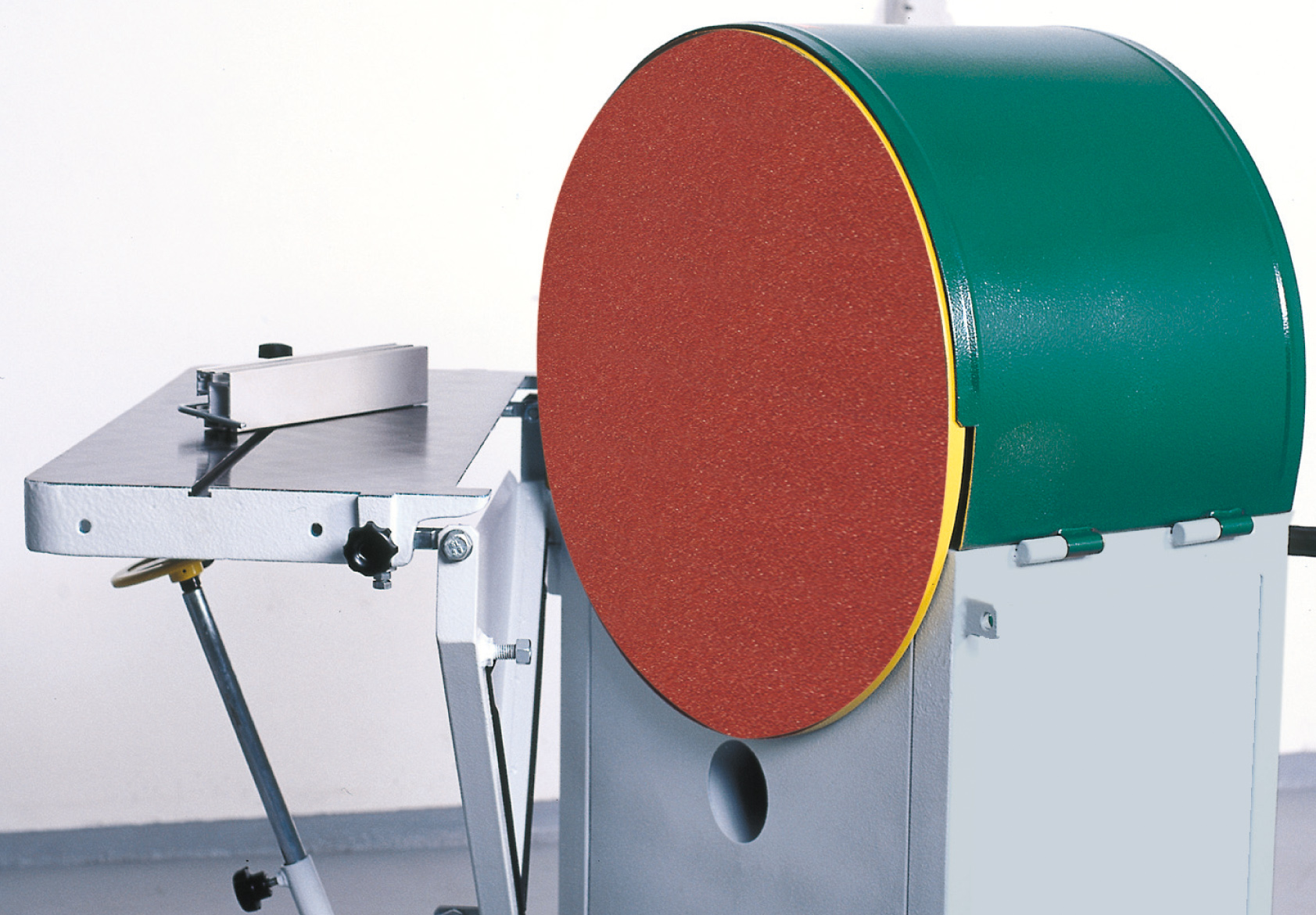

Tipping the table

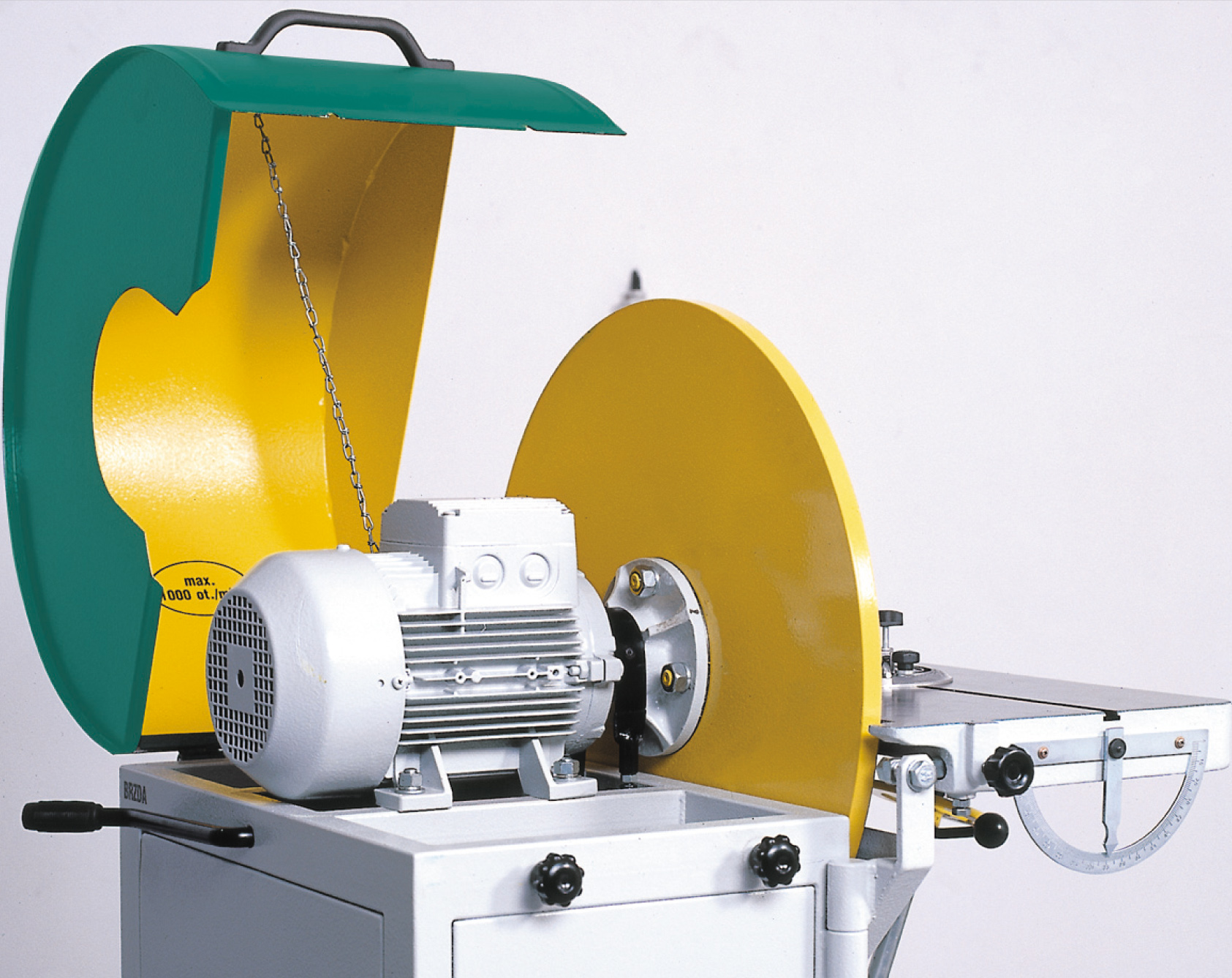

Quick disc change with self-locking brake

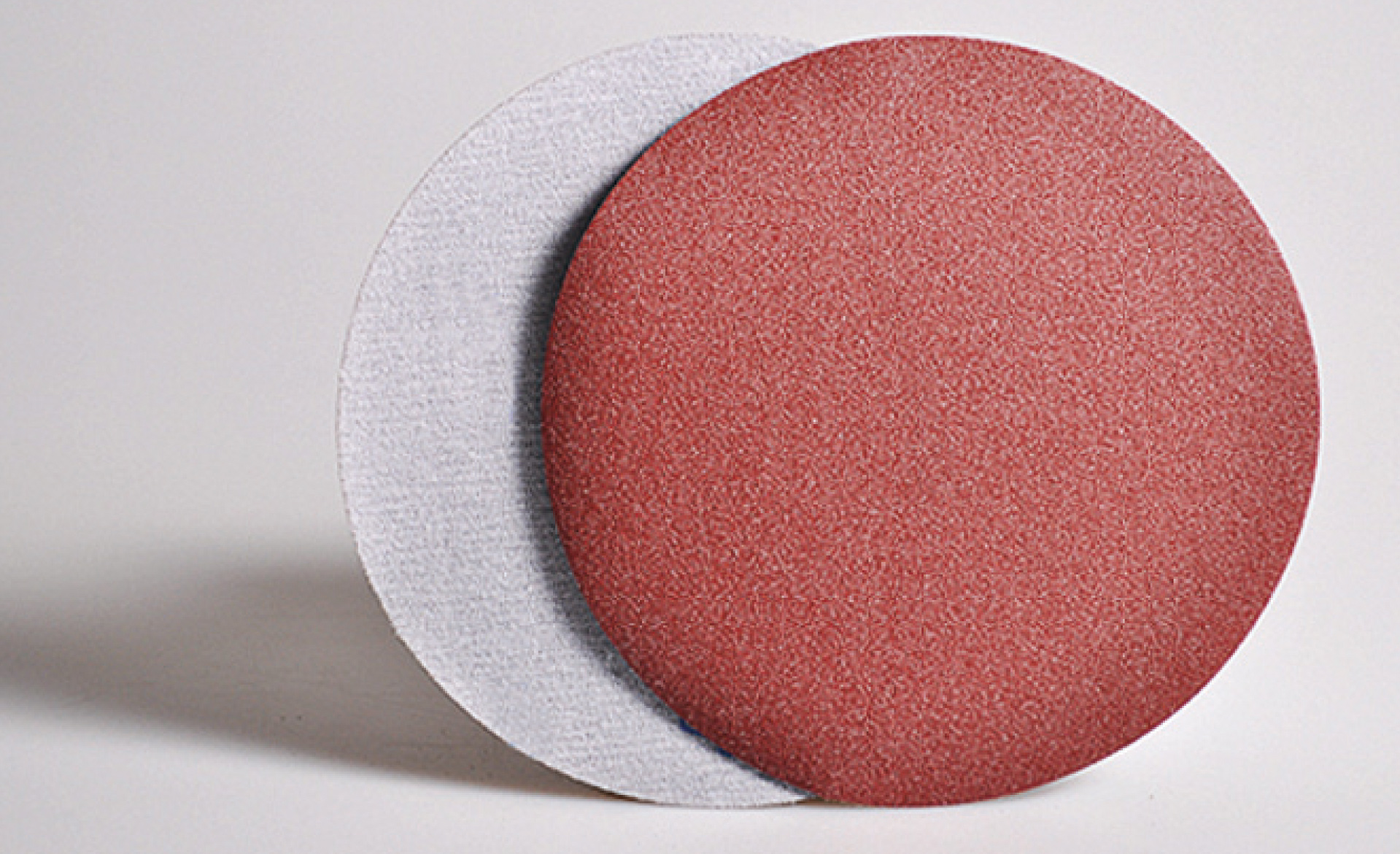

Sandpaper with Velcro

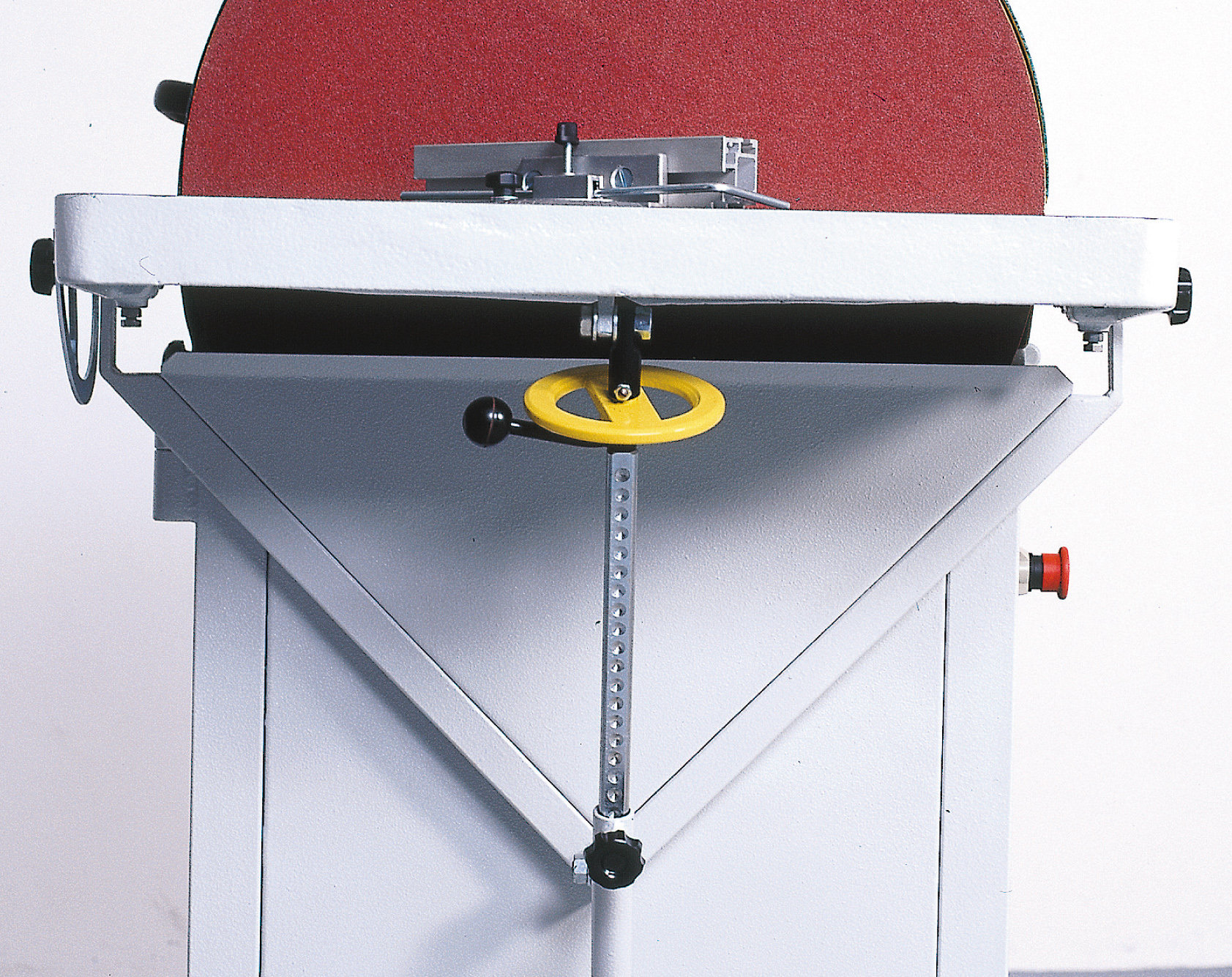

Rough and fine table repositioning
Features and standard equipment
- ease of use
- the machine is on a pallet or in slatting
Equipment on request
- sandpaper with Velcro
