Spindle moulder FS550
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this spindle moulder among the best in its class. A massive cast-iron spindle mounted on a cast-iron table creates a sufficiently solid unit to ensure exceptionally high-quality conditions for milling. The design of the machine allows the use of cutters with a diameter of up to 350 mm, which are used in the production of doors or euro windows. The speed is adjusted mechanically after opening the lower cover and releasing the tension mechanism..
Product code: 1355000
Technical parameters
| S6 engine performance 40% | 7,5 kW (9,2 kW) |
| Engine speed | 2,900/min (3,480/min [60Hz]) |
| Spindle diameter | 40 mm (30 | 50 | 32 | 35 mm) |
| Spindle speed | 3,000; 4,500; 6,000; 8,000; 10,000/min. |
| Max. spindle stroke | 200 mm |
| Spindle length | 233 mm (193 | 263 | 193 | 193 | 193 mm) |
| Length of spindle clamping section | 180 mm (140 | 220 | 140 | 140 mm) |
| Max. table hole diameter | 330 mm |
| Max. tool diameter under the table | 320 mm |
| Max./min. tool diameter for profiling | 250 / 80 mm |
| Max./min. tool diameter for tenoning | 350 / 80 mm |
| Length | 2 510 mm |
| Length with trolley guide | 3 270 mm |
| Width | 1 020 mm |
| Width with trolley | 2 035 mm |
| Table height | 900 mm |
| Max. machine height | 1 320 mm |
| Table dimensions | 1 200 x 780 mm |
| Dimensions of front table extension | 658 x 450 mm |
| Dimensions of the tenoning table | 1 050 x 330 mm |
| Height of tenoning table | 947 mm |
| Rotation of the tenoning table | +60° ÷ -90° |
| Travel of the tenoning table | 1 470 mm |
| Suction diameter | 120 mm |
| Dimensions with packaging | 1 020 x 2 510 x 1 320 mm |
| Gross weight | 930 kg |
| Net weight | 925 kg |
| Voltage/frequency | 3x400V (3x230V) / 50(60)Hz |
| Line protection | 25 A |
| Acoustic pressure (without technology) | 81.5 dB(A) |
| Acoustic pressure (with technology) | 91.4 dB(A) |
| Acoustic power (without technology) | 89.5 dB(A) |
| Acoustic performance (with technology) | 98.7 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

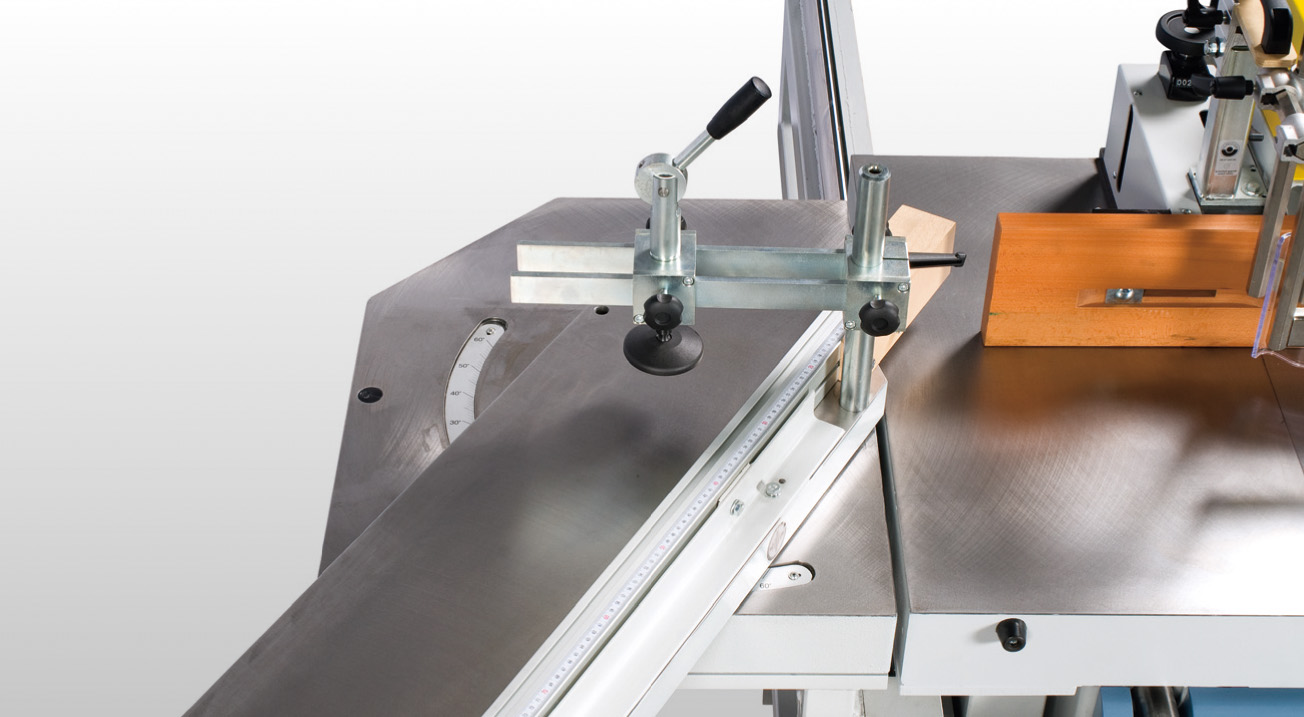

Turning trolley
Stop for tapping

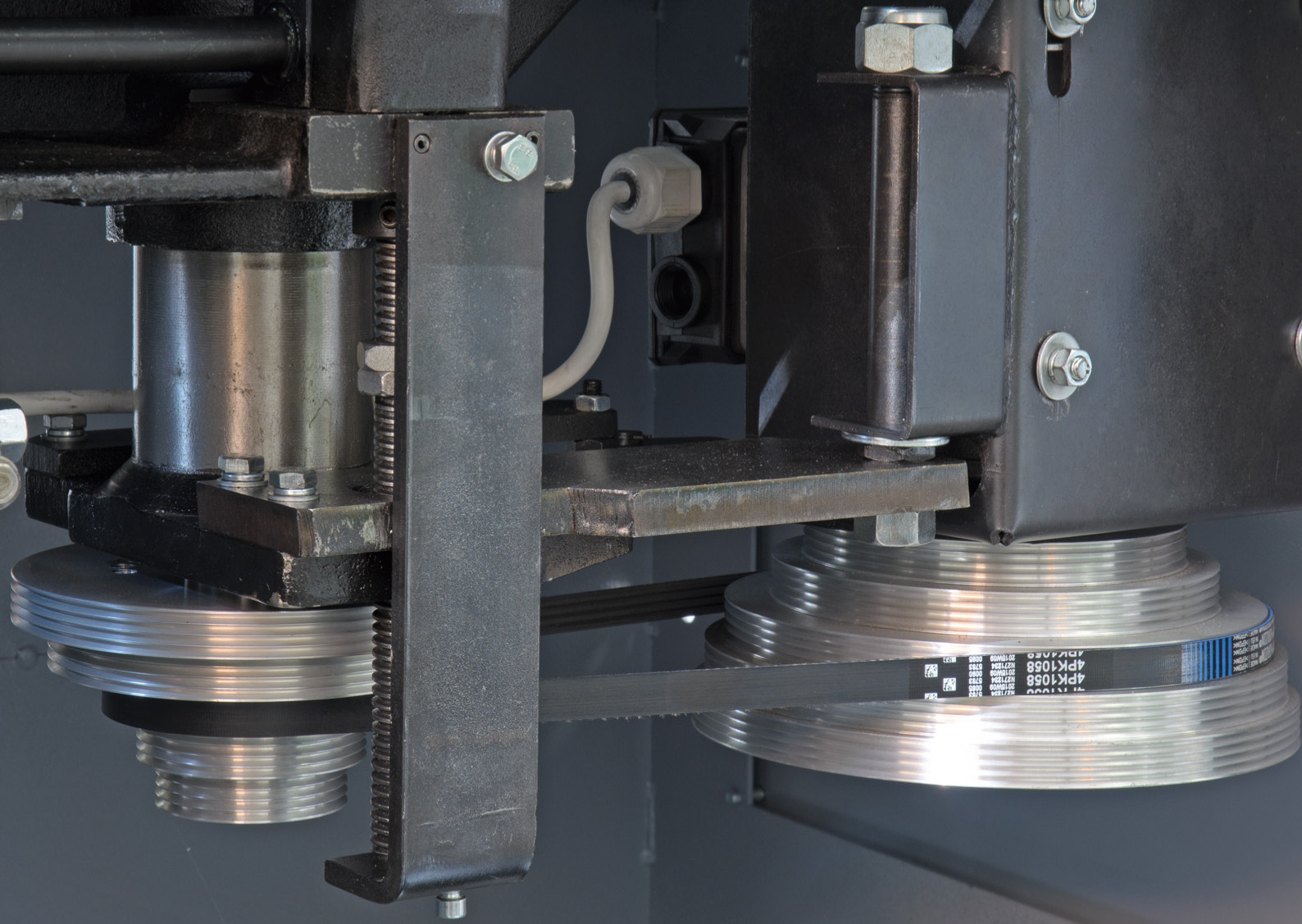

Complete mechanics part
Control panel - electromotive stroke

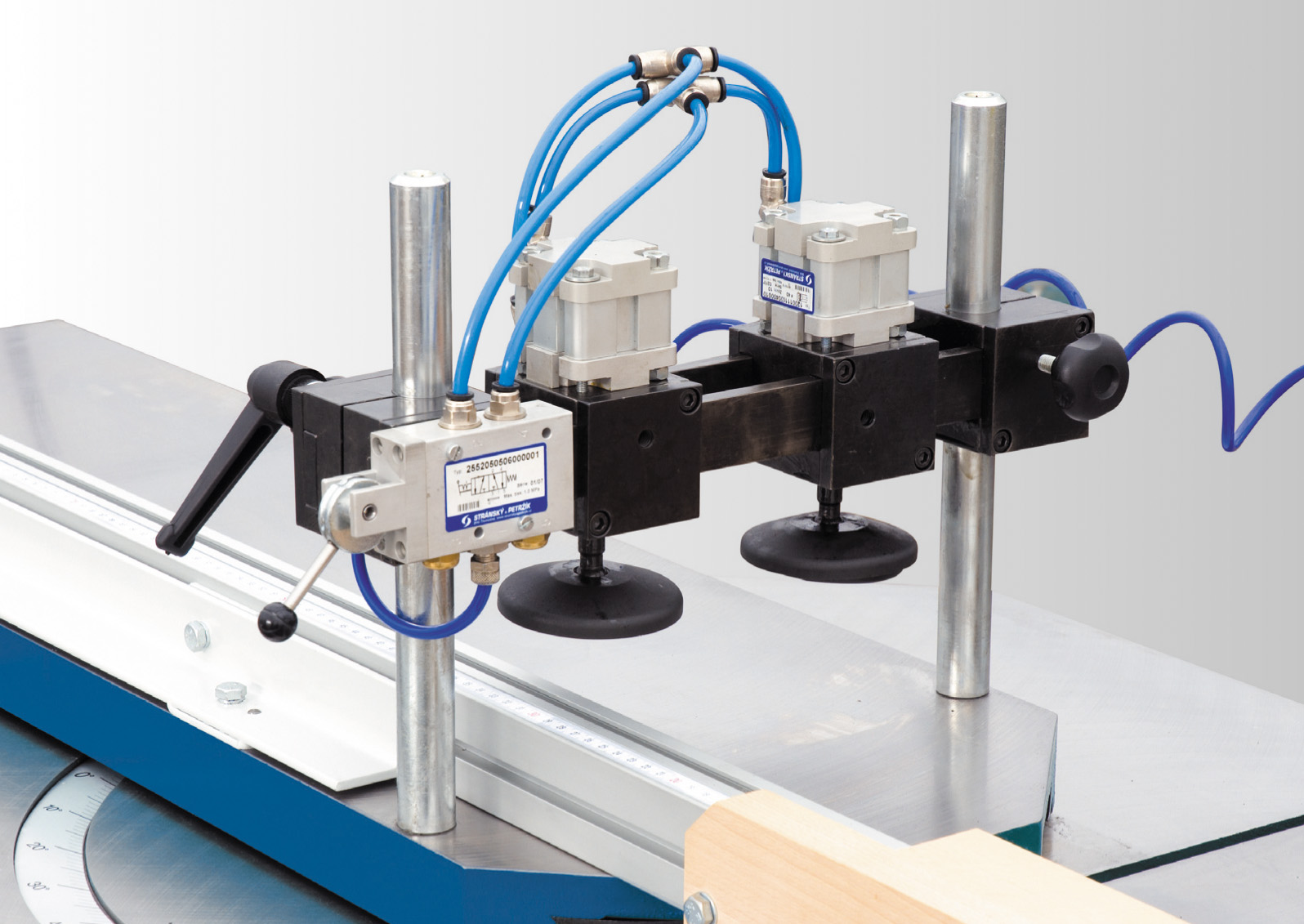

Pneumatic pressure

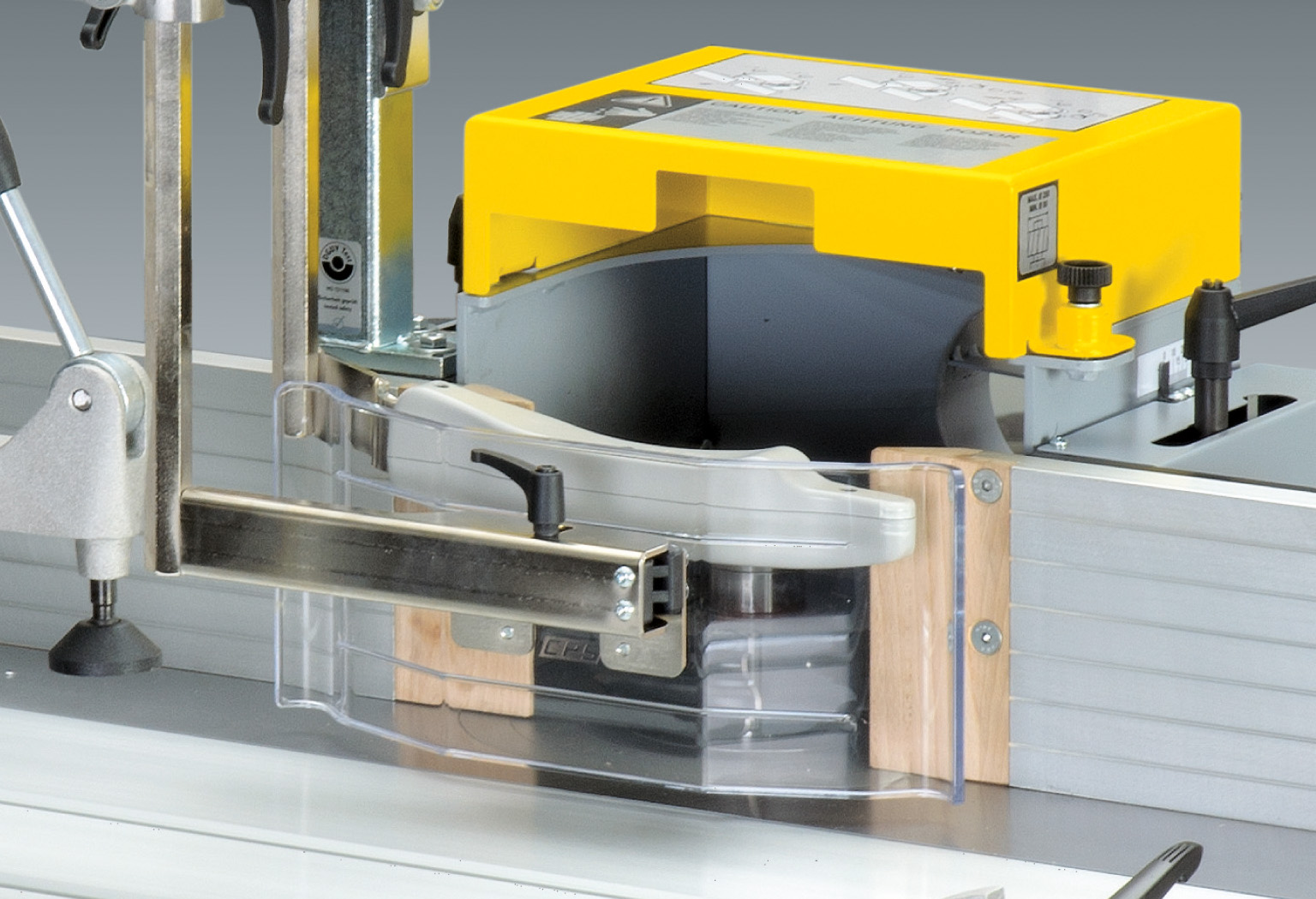

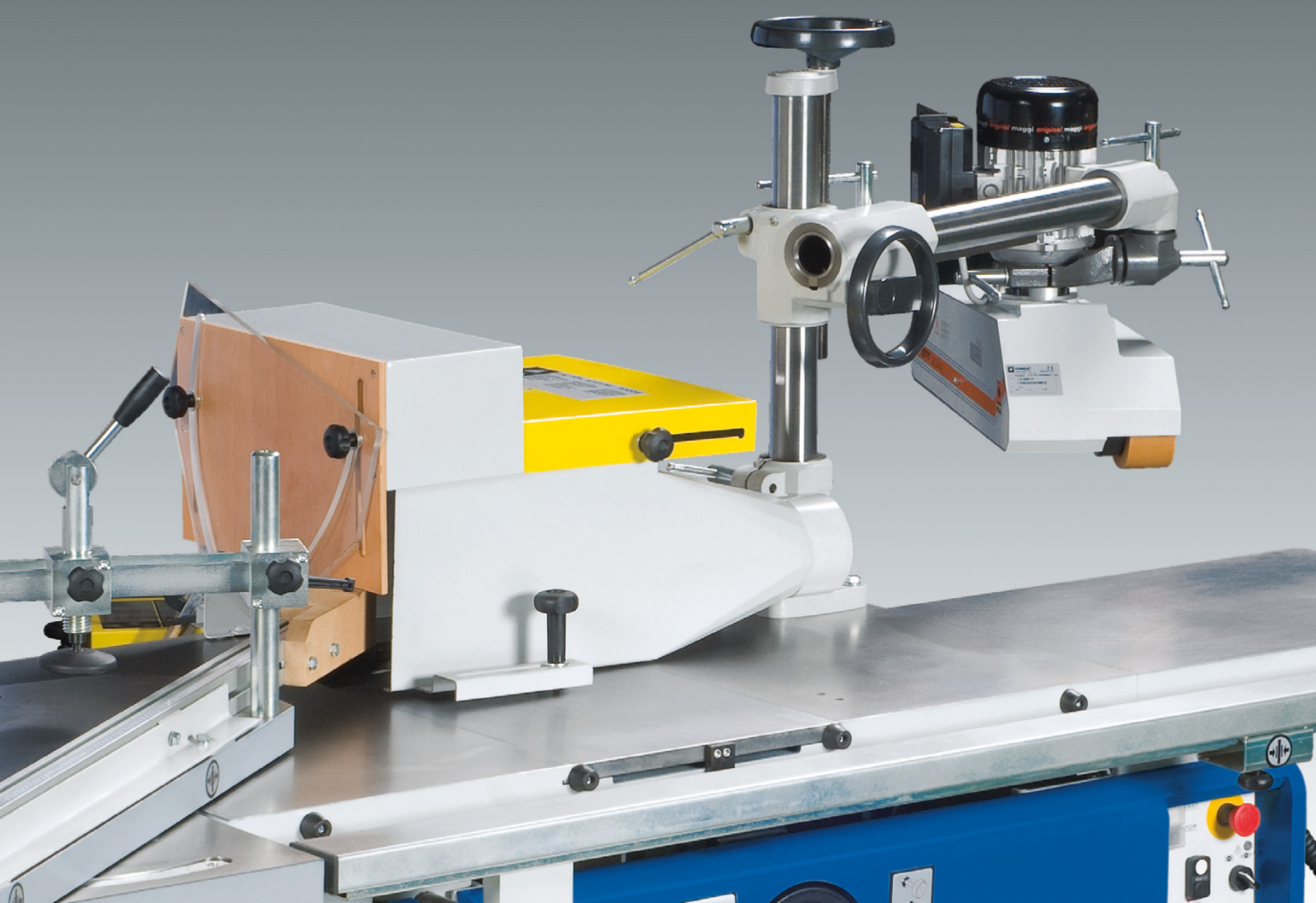

Capping cover

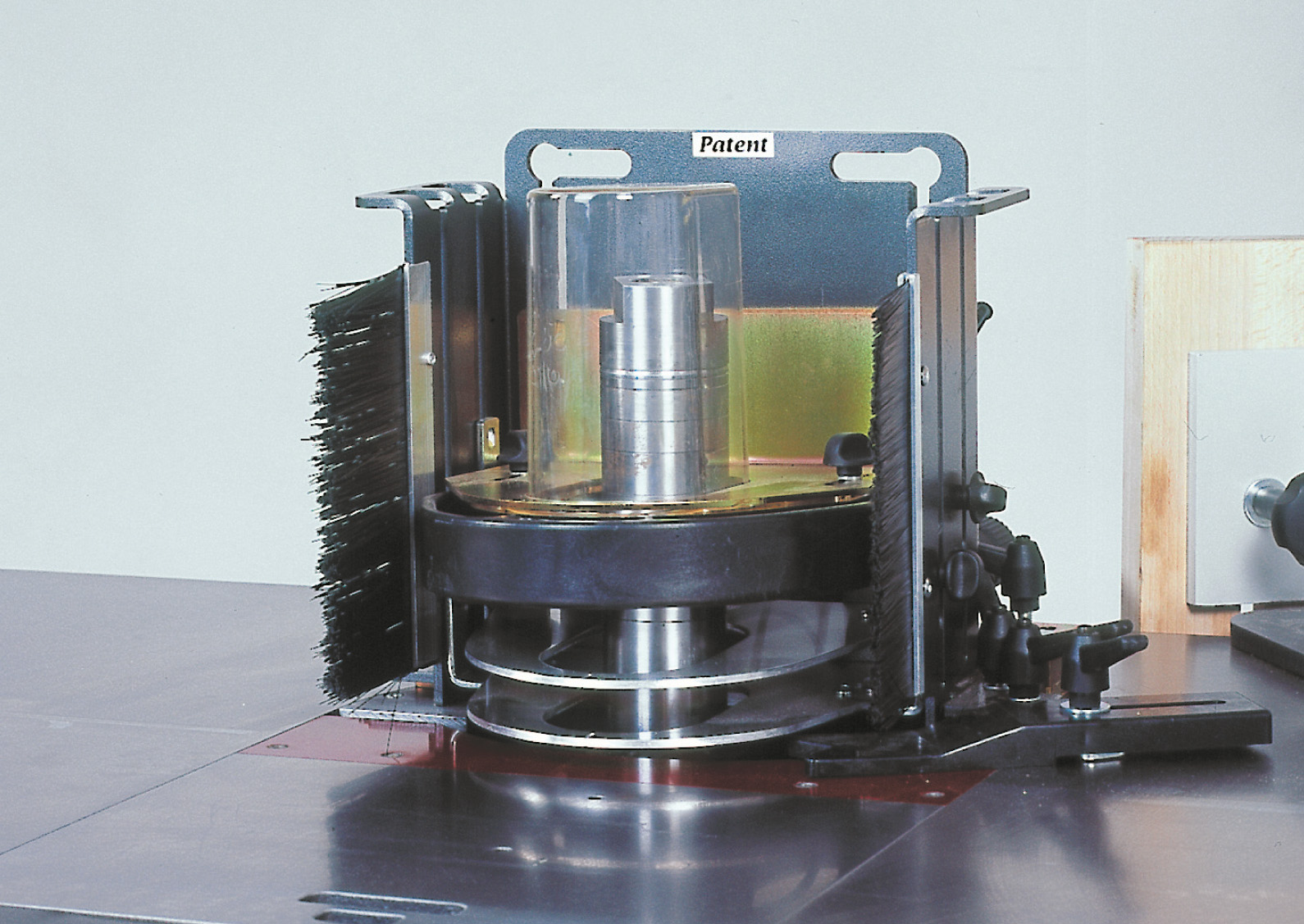

Profiling cover for shape milling

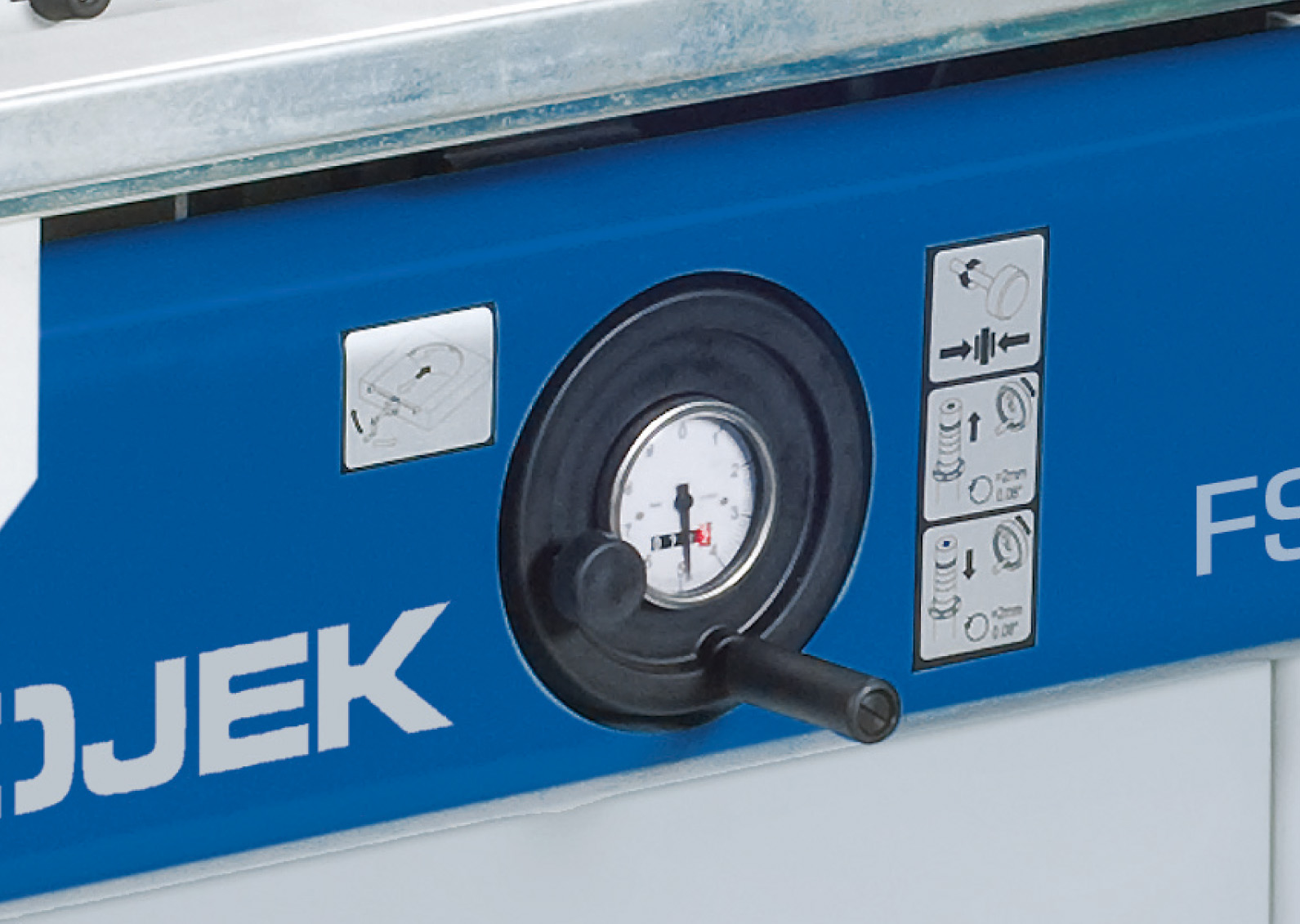

Spindle stroke

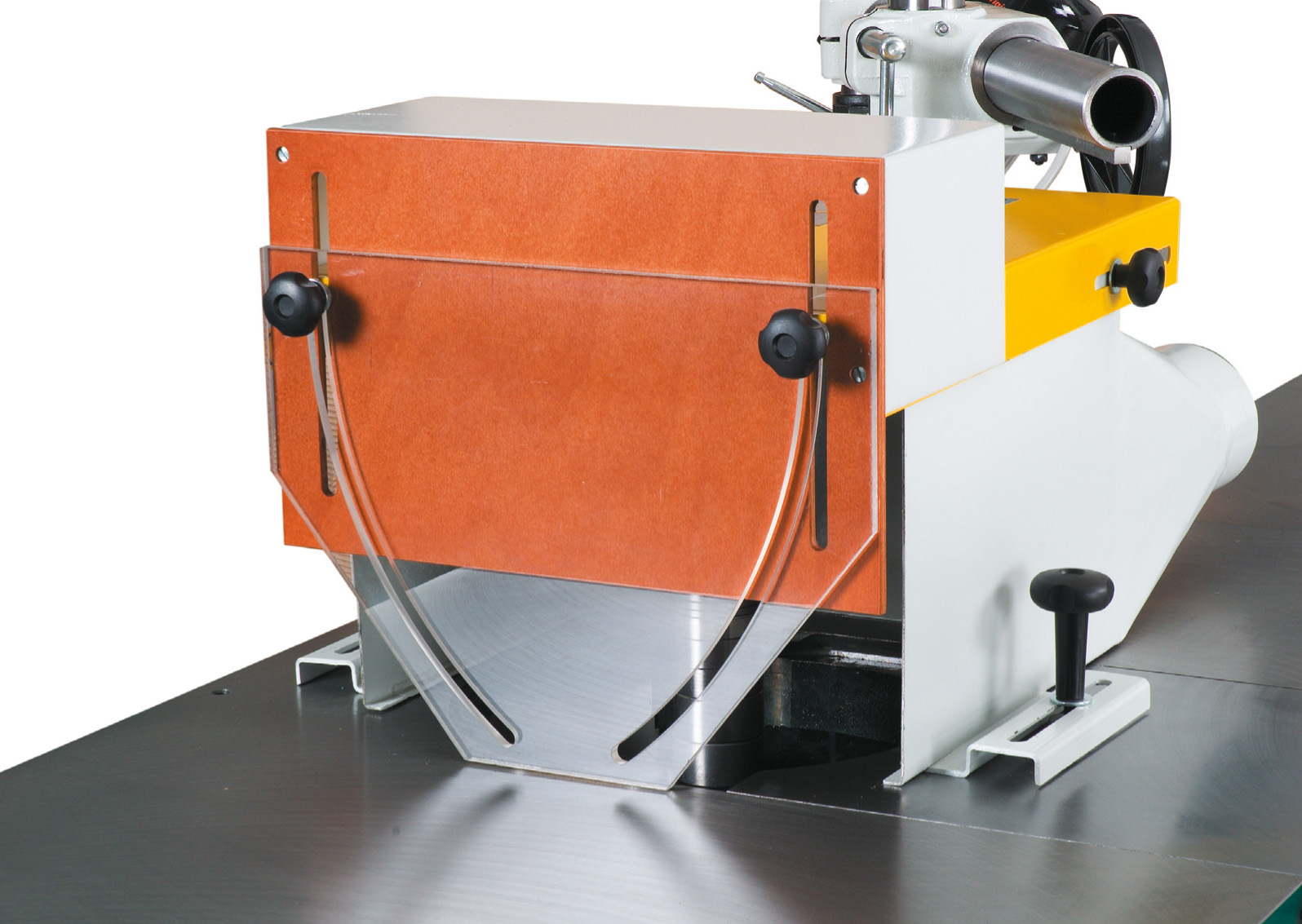

Capping cover
Features and standard equipment
- cast iron table
- ability to work with large diameter cutters
- swivel tenoning carriage with wide adjustment
- 2,500 mm total length when extending the table on both sides
- cast iron pull-out table for quick tool changes.
- The perfect solution for profiling and tenoning
- basic equipment includes a tilt wheel with angle indication, MORI support cover with wooden rulers
Equipment on request
- revolver stop for tapping
- spindle diameter 50 mm
- motor 9,2 kW/S6
- upper control panel
- motorised spindle lift is only possible on the version with top control
- CV 6 tenoning carriage + single column eccentric chuck with screw + tenoning cover
- two-column clamp version for CV 6, eccentric clamping foot with screw 1pc
- single-sided table extension with extension rail and roller on the right side
- double-sided table extension with extension bar and roller on the right side
- extension roller on the left
