Pyrolytic boiler ROJEK PK BIO 25

Pyrolytic boiler ROJEK PK BIO 25 for manual loading is designed to burn dry wood 530 mm long. The advantage of the boiler is a large combustion chamber of 130 litres and thus a long burn-out time. Another advantage of the boiler is the upper loading of the combustion chamber and easy cleaning of the heat exchanger by means of a control lever. The boiler is controlled by ST 86 zPID electronics and an exhaust fan is located at the rear of the boiler. This modern, environmentally friendly boiler complies with emission class 5 for fuel wood according to the Norm EN 303-5 and meets the conditions of EKODESIGN. Due to its high efficiency, it has low wood consumption. We recommend this boiler to customers who love working with wood.

Product code: 1023252

Pyrolytic boiler ROJEK PK BIO 25
Fotografie jsou pouze ilustrativní

Technical parameters

Nominal power - wood25 kW
Efficiency - wood89 %
Boiler width including control lever / without control lever916 / 784 mm
Boiler depth923 mm
Boiler height1186 mm
Chimney height574 mm
Chimney diameter (diameter of the boiler extension)160 (159) mm
Flue gas temperature in nominal power - wood148 °C
Electrical input (230V/50Hz)60 W
Volume of the loading (combustion) chamber130 l
Water volume of the boiler98 l
Water inlet height388 mm
Installation depth1262 mm
Diameter of water inlet and outletG 2"
Boiler class according to EN 303-5 - wood5
Energy efficiency class - woodA+
Seasonal energy efficiency - wood78,5 %
Boiler emissions according to Commission Regulation (EU) No 2015/1189EKODESIGN
Max. diameter / length of wood250 / 530 mm
Boiler weight505 kg
Max. water overpressure2 bar
Minimum operating temperature63 °C
Prescribed chimney draft - wood17 Pa
Optimum volume of the storage tank1400 l
Wood consumption at rated output6,3 kg/h.

Description of the boiler

Pyrolytic boiler ROJEK PK BIO 25 for manual feeding is designed to burn firewood - piece wood 530 mm long, fuel moisture up to 20%, heating value 14 - 18 MJ/kg. The boiler is certified according to Norm EN 303-5 for fuel wood in emission Class 5. The main advantage of ROJEK PK boilers is the upper loading of the combustion chamber, which allows to fully use the chamber volume, both for wood and for smaller size fuels. Thanks to the large loading chamber, the burn-out time is long (up to 10 hours). The boilers are controlled by an electronic control unit that controls the combustion in the boiler and the exhaust fan. Cleaning the heat exchanger is also very easy with the help of a control lever and a cleaning bottom door that is accessible from both outside sides. The boiler body is welded from quality steel. All surfaces in contact with the flue gases are made of sheet metal of thickness. 5 mm. The other surfaces are made of 4 mm thick sheet metal. The weight of the boiler, which is 505 kg, will convince you of the honestly made boiler weldment. For trouble-free operation of the boiler, connection with a storage tank is necessary. The boilers of this series are designed for economical and environmentally friendly heating.

Advantages of pyrolytic boilers ROJEK PK BIO 25:

- Upper loading - very easy and quick - by opening the upper loading door

- Smokeless loading in the boiler room - Exhaust fan

- Long burn-out time - large combustion chamber volume (130 l)

- Fuel selection - wood or brown coal

- Max. wood length 530 mm

- Easy cleaning of the tubular exchanger with the help of a cleaning lever and cleaning door

- Cooling loop is included in the boiler - overheating protection

- The boilers are controlled by an electronic control unit which controls: the exhaust fan, boiler water temperature - starting the pump and switching off the fan, UT water temperature control, manual or automatic mode (several different variants of automatic mode), burn-out time, manual operation during flooding, adjustable fan speed, flue gas sensor, boiler and controller protection, audible alarm.

- Quick start of the boilers is ensured by a larger area of the boiler body and heat exchanger, which are evenly filled with water, which gives the assumption of a longer service life of the boiler body

- High efficiency up to 89%

- Ecological combustion - the boilers comply with Class 5 to the Norm EN 303 - 5 and EKODESIGN

- 3 years warranty on the boiler body, extended warranty of 5 years when connected with a storage tank

- Connection of the accumulation tank is necessary for efficient boiler operation.

The controller is equipped with zPID program.

In addition to the standard sensors, the controller is also equipped with a flue gas sensor. The control of this type consists in controlling the flue gas temperature and boiler water temperature. Based on these values, the control changes the fan speed to maintain the set boiler water temperature. The flue gas sensor of the control unit saves up to 13% of fuel and the outlet water temperature is very stable, which prolongs the life of the boiler. The boiler can be supplemented with a master control (EU-i-1, EU-i-2 PLUS, EU-i-3 PLUS), which is from the same manufacturer as the electronics on the boiler.

ROJEK PK series manual feed boilers are recommended to be operated with ROJEK accumulation tanks with properly selected accumulation water volume, where it is recommended to consider 40 - 80 l of accumulation water per 1 kW of installed power. The minimum recommended storage tank volume for the ROJEK PK BIO 25 boiler is 1000 l.

You will definitely appreciate this product

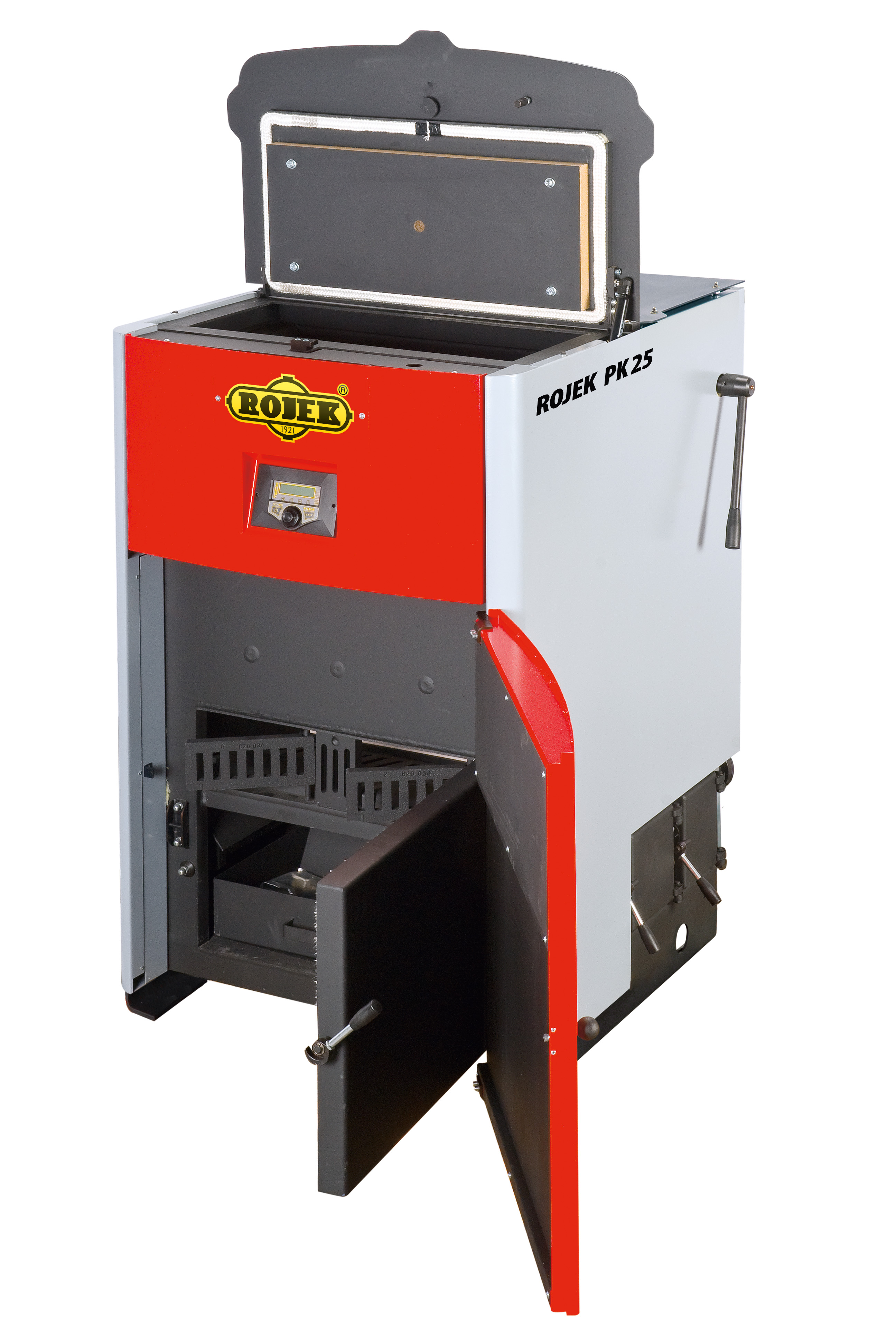

Boiler front side

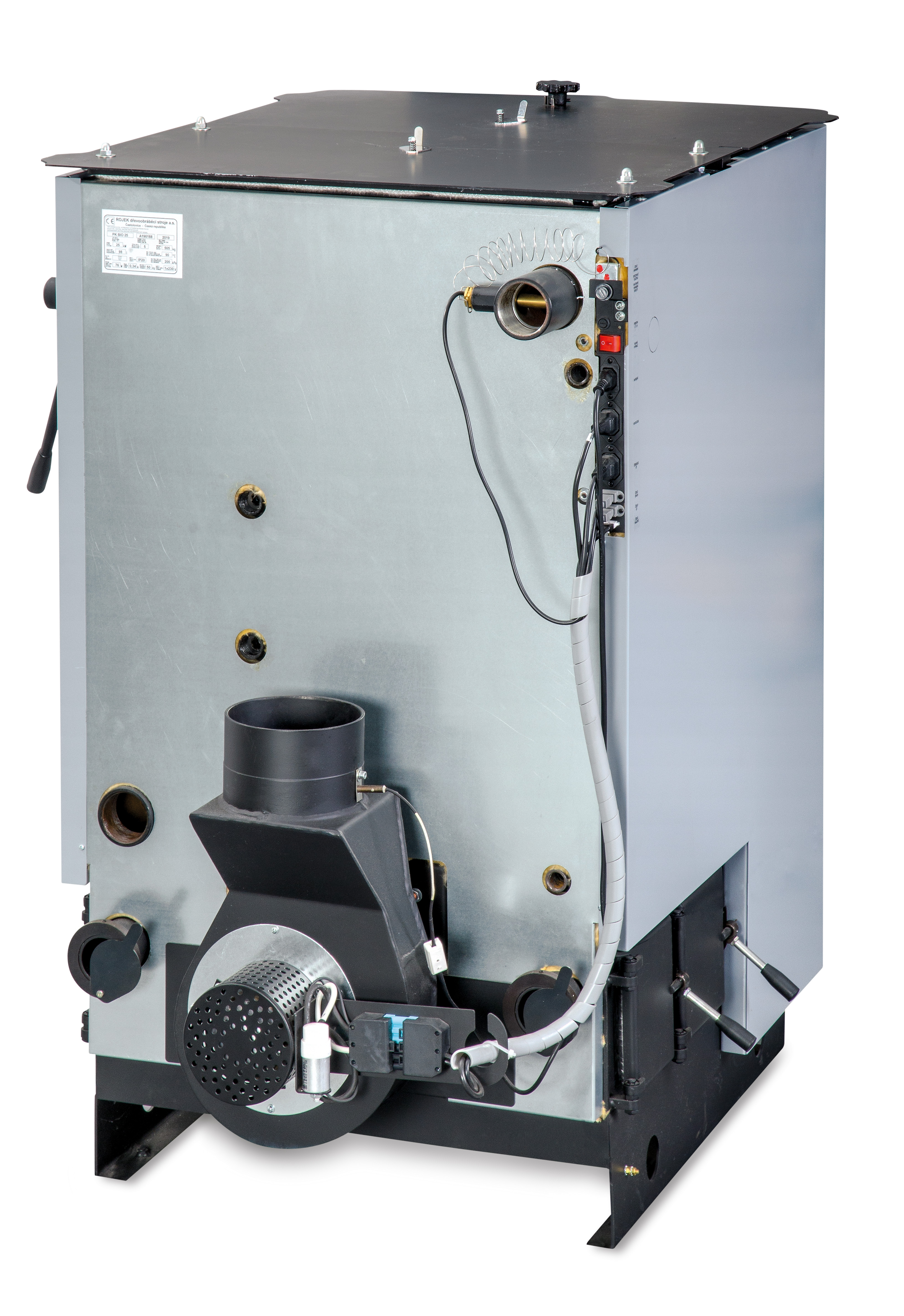

Boiler back side

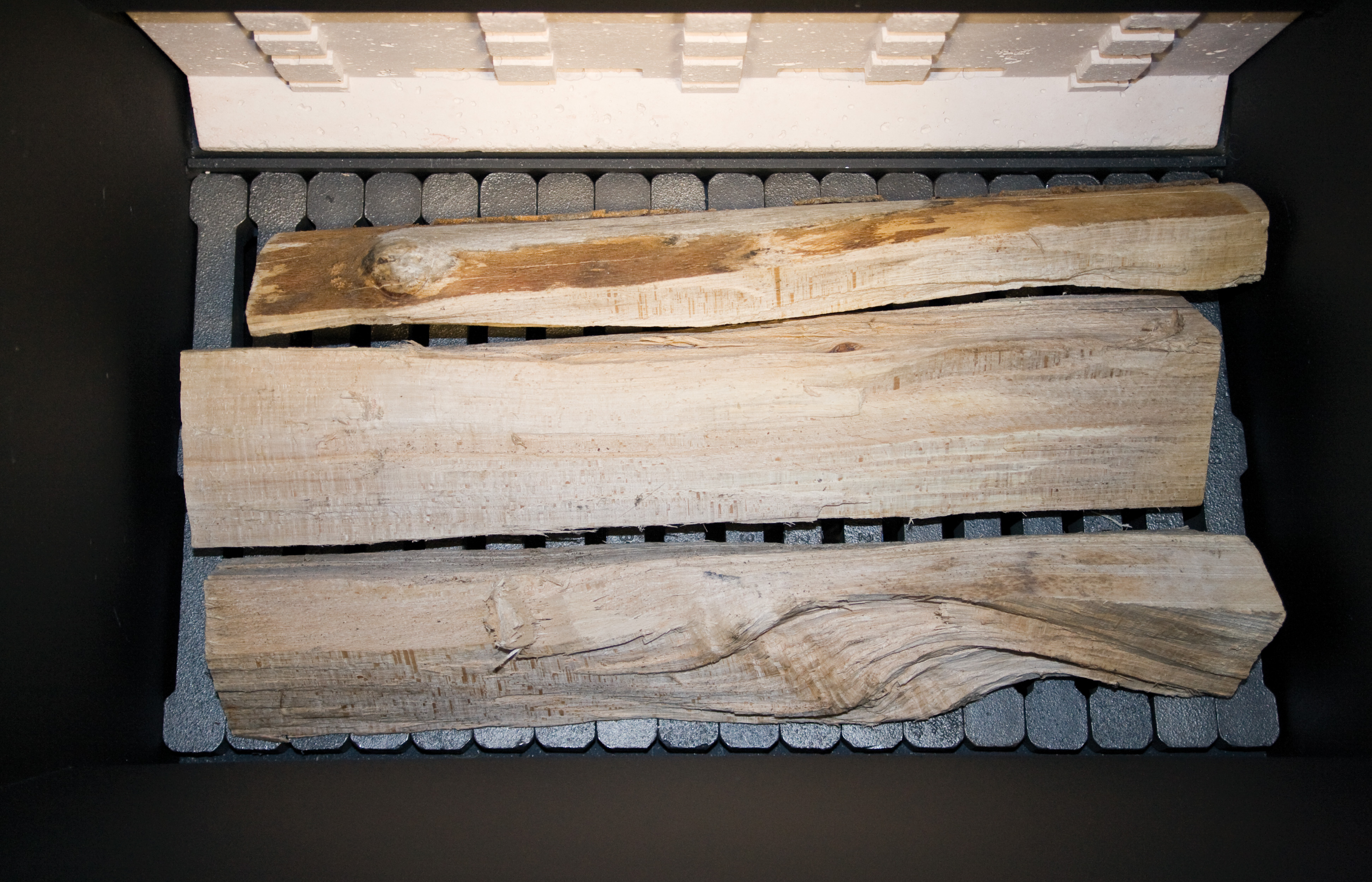

Loading chamber

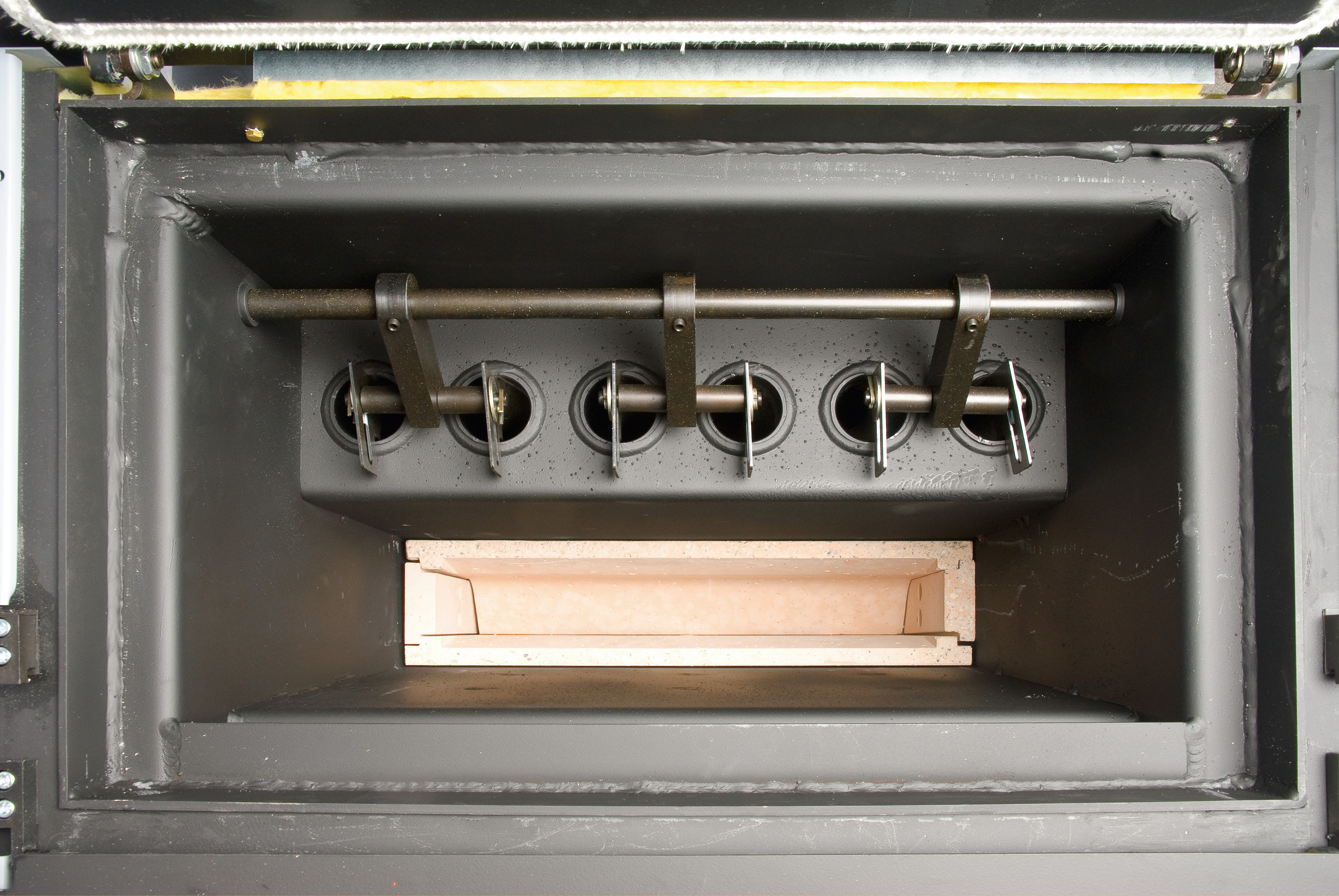

Exchanger with cleaning

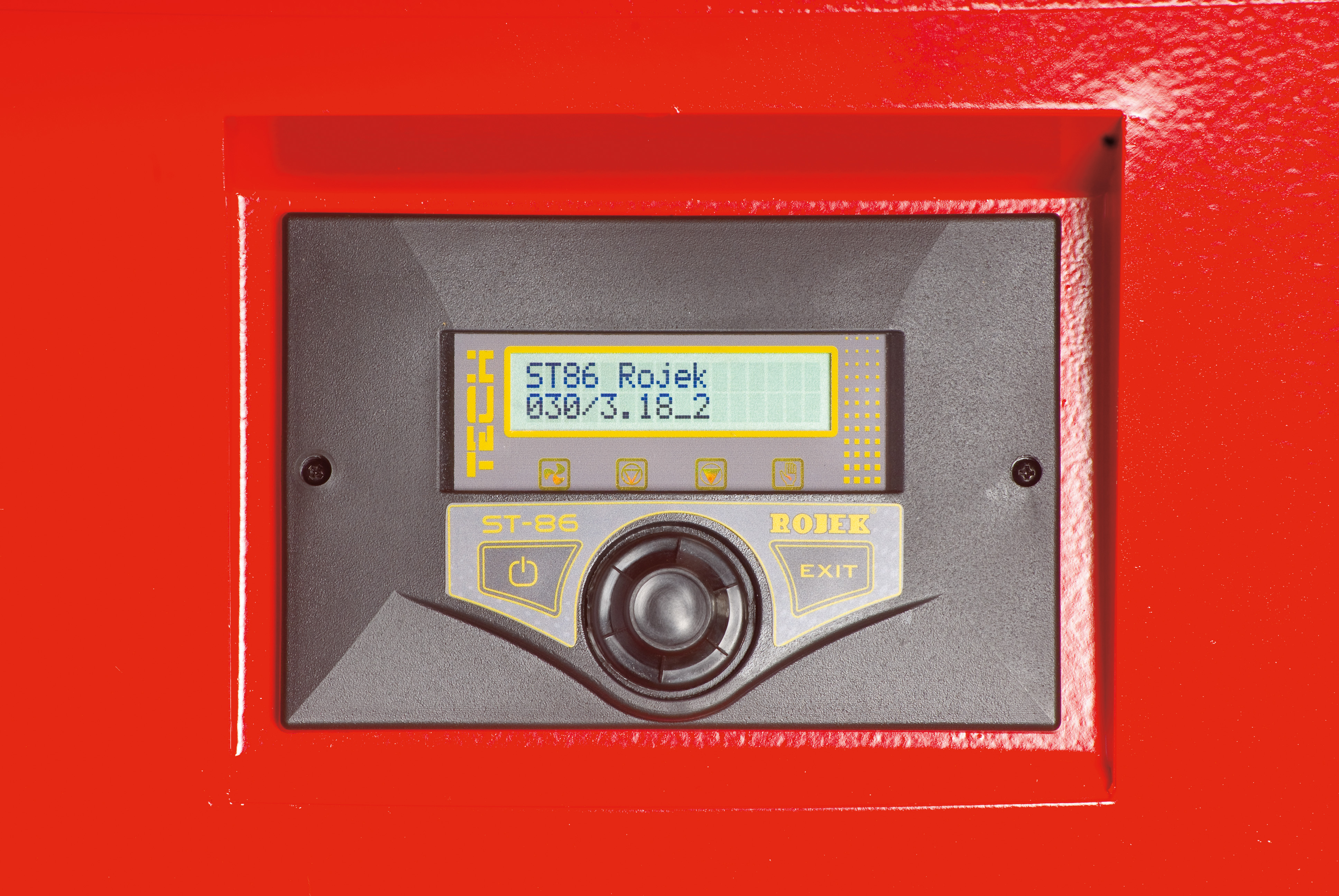

Control unit

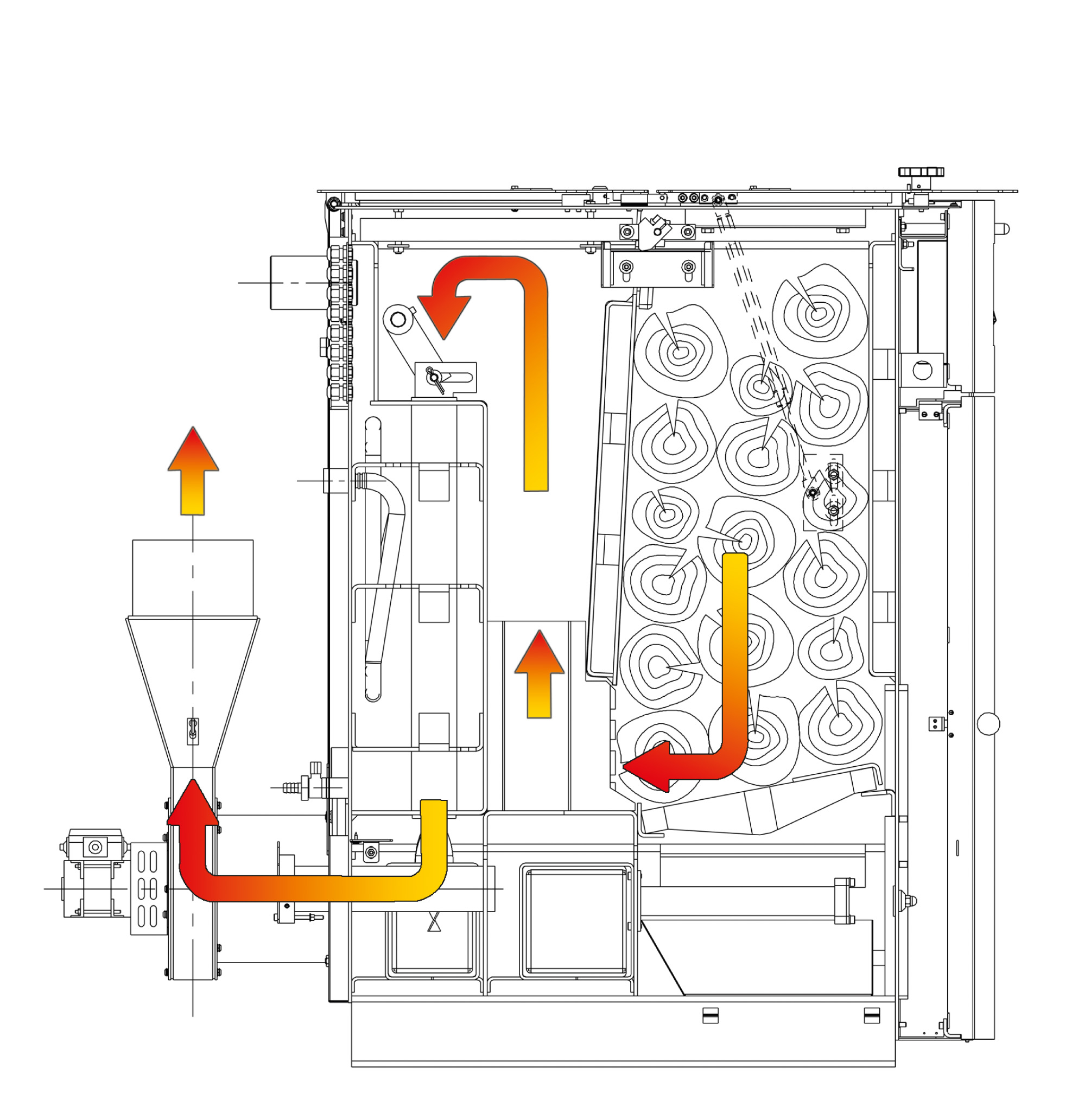

Combustion chamber PK and PK BIO
