Thicknesser MP415
Professional thicknessing machine is designed for mass production. The construction of the machine is very solid, so it can resist high loads in industrial operations. There are 4 knives in the cutterblock.
Product code: 1427001
Technical parameters
| Engine power | 4,4 kW (2,2 kW) |
| Engine speed | 2,860/min (3,432/min [60Hz]) |
| Power of the feed motor | 0.35/0.45 kW |
| Knife shaft diameter | 95 mm |
| Diameter of feed rollers | 40 mm |
| Number of knives | 4 |
| Knife shaft speed | 4 200/min. |
| Max. thicknessing width | 400 mm |
| Max. thicknessing height | 230 mm |
| Max. chip thickness | 5 mm |
| Thickening feed speed | 5/10 m/min.50Hz |
| Length | 950 mm |
| Width | 780 mm |
| Height | 1 050 mm |
| Dimensions of the milling machine table | 750 x 408 mm |
| Suction diameter | 120 (100) mm |
| Dimensions with packaging | 975 x 810 x 1 060 mm |
| Gross weight | 310 kg |
| Net weight | 290 kg |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | 81.5 dB(A) |
| Workplace noise (with technology) | 91.4 dB(A) |
| Acoustic performance (without technology) | 89.5 dB(A) |
| Acoustic performance (with technology) | 98.7 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product
Splinter

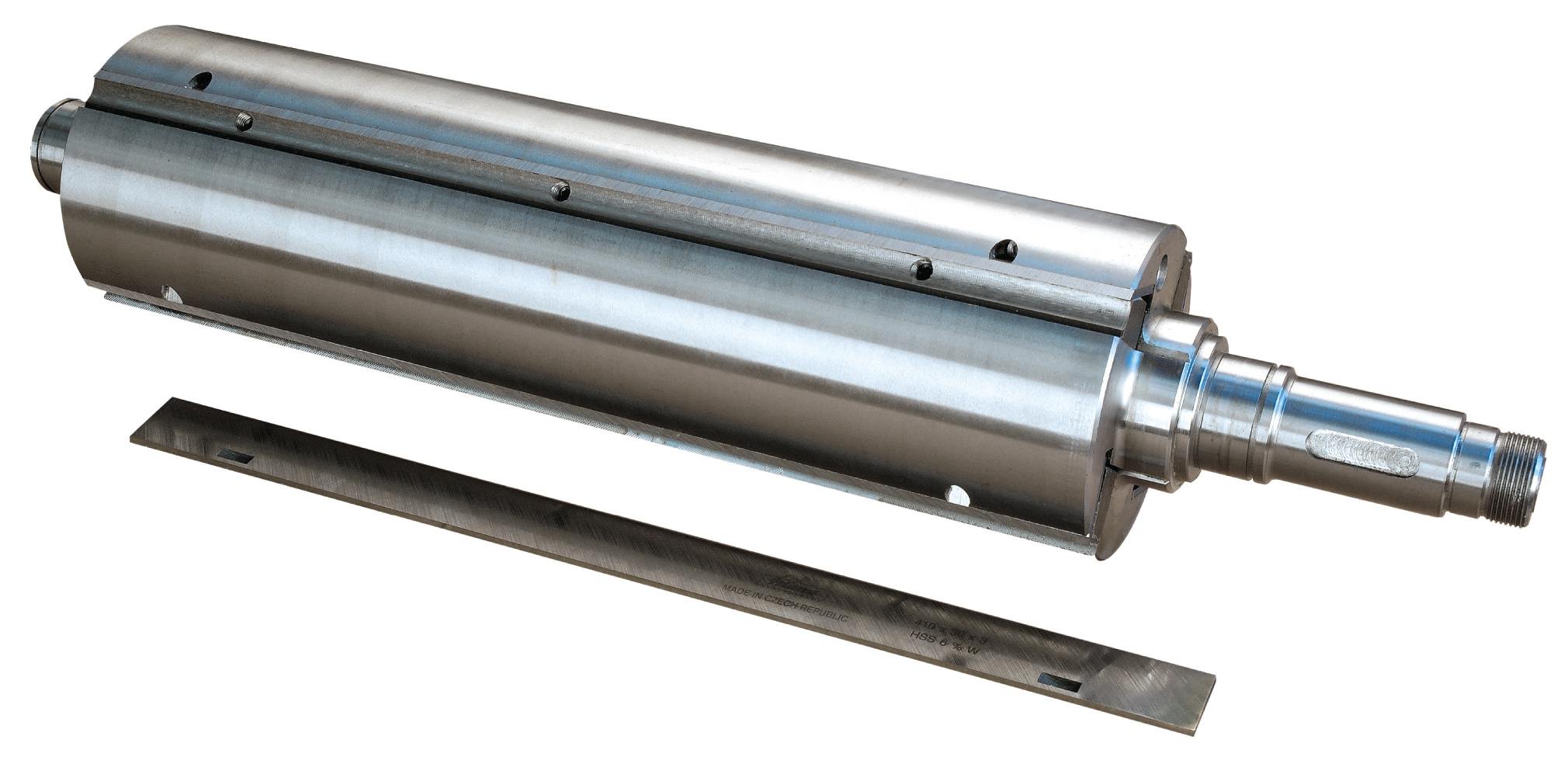

Four-legged planing roller ROJEK
Stretching table lift with scale
Rollers in the stretching table
Stretch table deflashing rollers

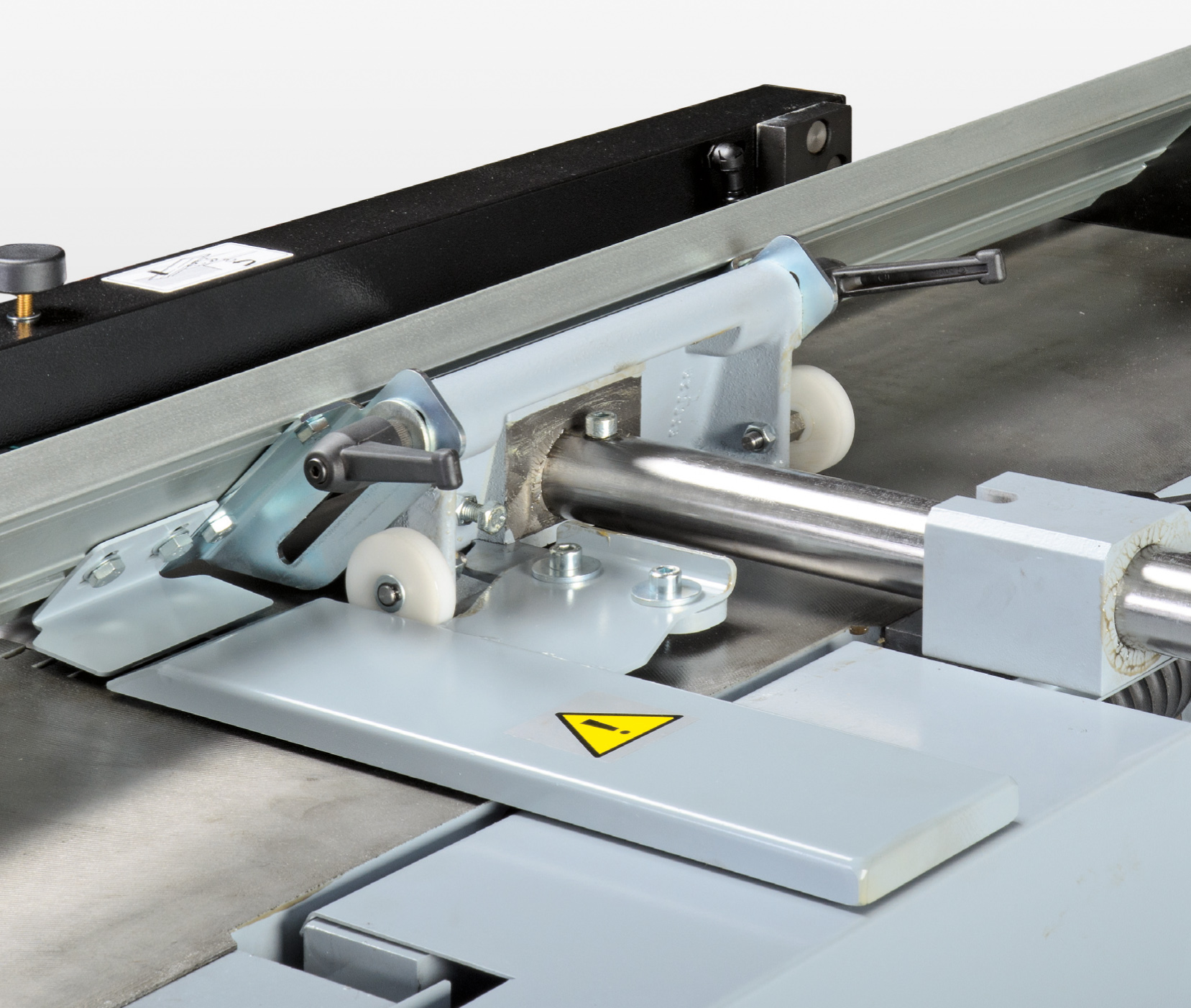

Angle ruler 90°- 45°
Three-legged planing roller with TERSA knives
Spiral roller with feed rollers

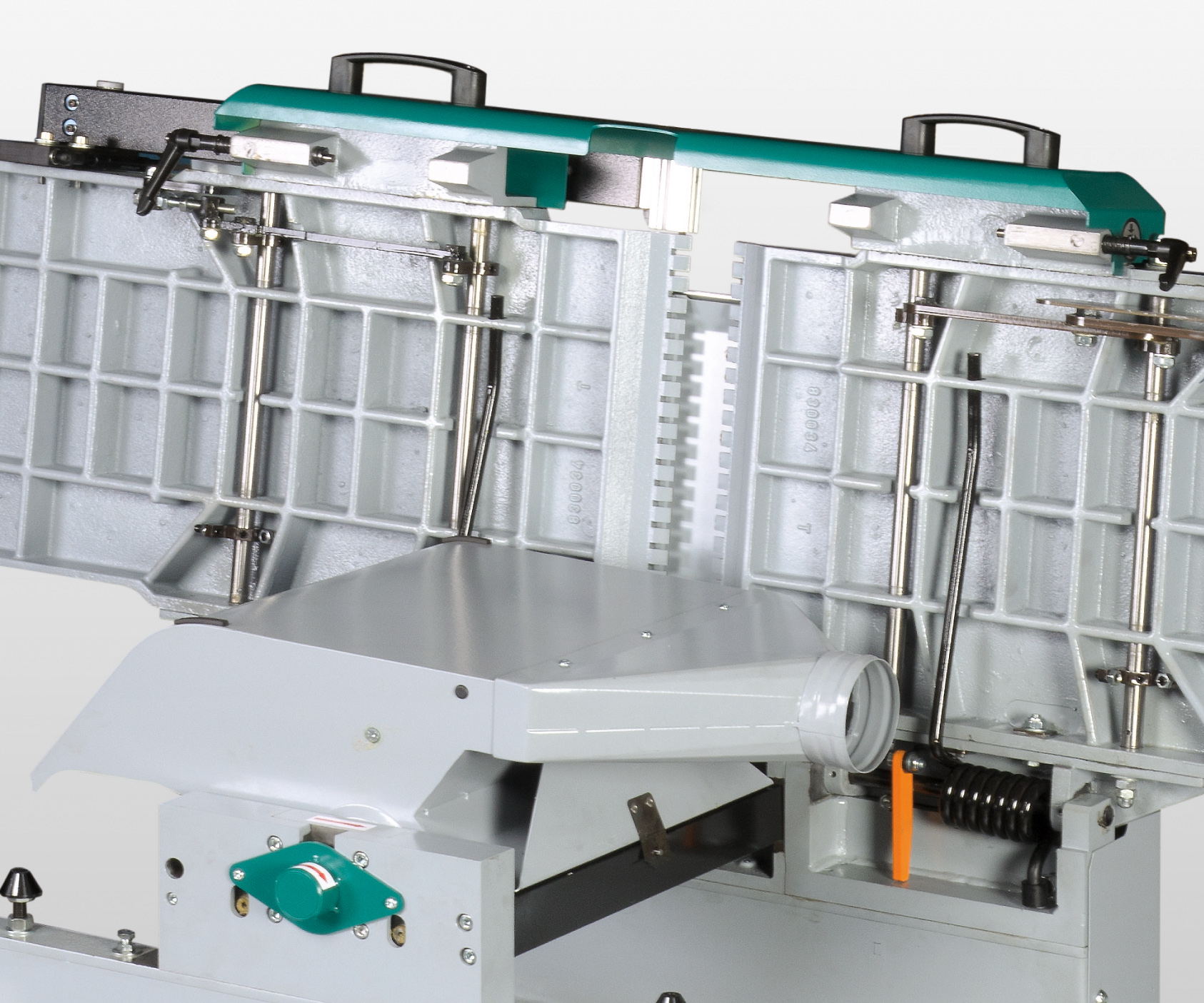

Folding comparison tables
Features and standard equipment
- the machine has already in the basic version a two-speed feed motor, which allows to work in two speeds / 5,5 / 10 m.min./
- the basic version of this machine has a more powerful main motor of 4.4 kW
- the MP415 thicknesser is very easy to operate
- ROJEK woodworking and thicknessing milling machines use standard flat blades
- the machine is equipped with a classic 4-legged cylinder
- the blades are easy to change and set up
- can be purchased in almost all specialist tool shops
- the machine belongs to the EURO 9 model series
- suitable for small and medium-sized woodworking industries and joinery workshops
Equipment on request
- TERSA Monoblock knife roller
- spiral knife roller
- rollers in the machine table
- rollers in front of and behind the machine table
- electric motor 2,2 kW 1×230 V
