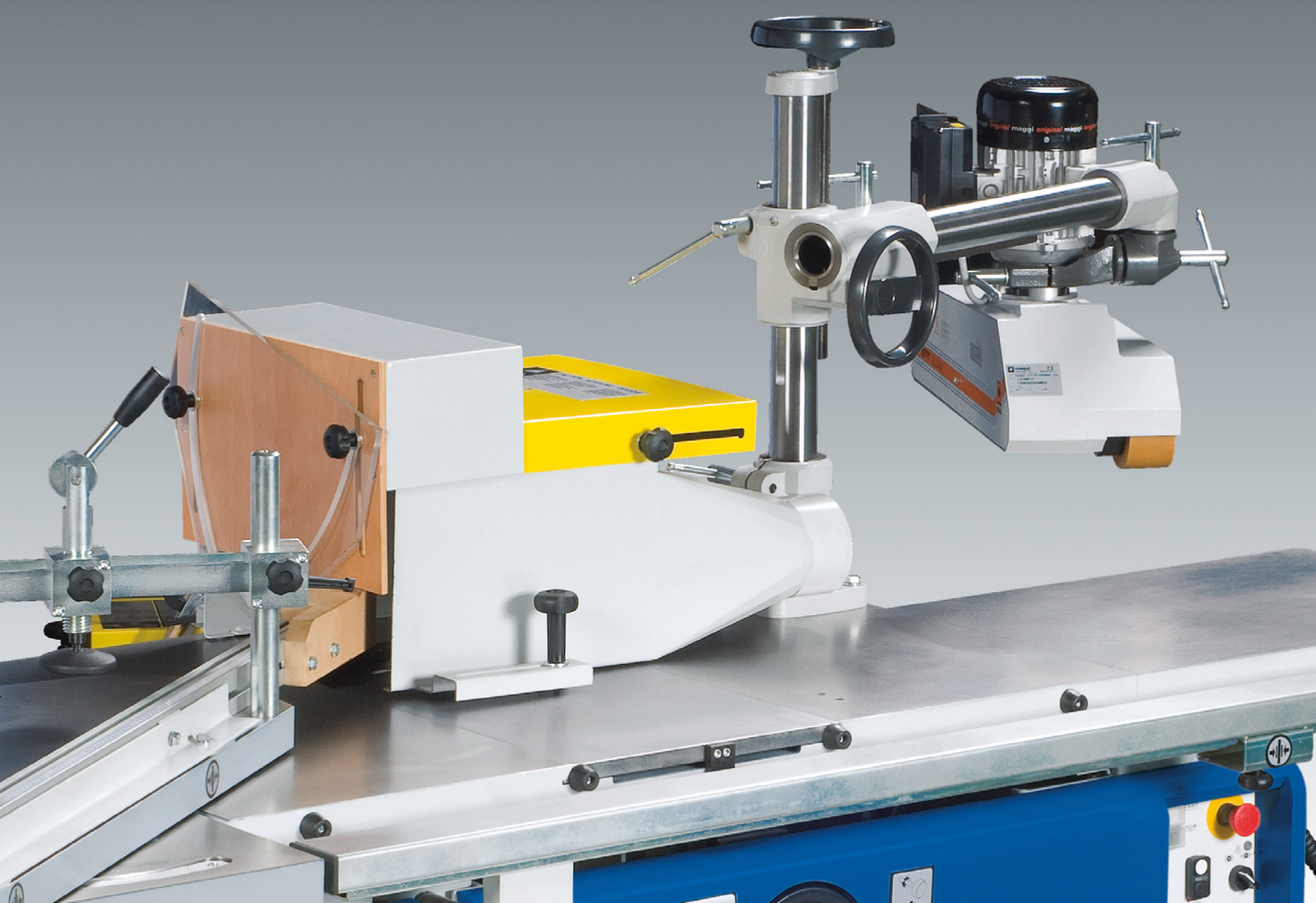

Spindle moulder FSN550A
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this spindle moulder among the best in its class. It is especially popular among smaller and middle-sized producers. It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version.
The spindle mounting in a robust tilting cast iron body guarantees accuracy, solidity, and reliability.
Product code: 1356001
Technical parameters
| S6 engine performance 40% | 5,3 kW (7,5 kW) |
| Engine speed | 2 900/ min. |
| Spindle diameter | 30 (32 |35 | 40 | 50 ) mm |
| Spindle speed | 3 500; 6 000; 8 000; 10 000 (12 500)/ min. |
| Spindle tilt | -5° ÷ +45° |
| Max. spindle stroke | 142 mm |
| Length of spindle clamping section | 140 mm (180 | 220) |
| Max. table hole diameter | 260 mm |
| Max. tool diameter under the table | 250 mm |
| Max./min. tool diameter for profiling | 250 / 80 mm |
| Max./min. tool diameter for tenoning | 275 / 80 mm |
| Length (at CV360 - 1 200 mm) | 1 360 mm |
| Length (at CV360 - 2 000 mm) | 2 160 mm |
| Width | 1 050 mm |
| Width with support frame | 2 220 mm |
| Table height | 900 mm |
| Max. machine height | 1 320 mm |
| Table dimensions | 1 000 x 520 mm |
| Suction diameter | 120 / 80 mm |
| Gross weight | 410 kg |
| Net weight | 405 kg |
| Table dimensions | 360 x 1 200 (2 000) mm |
| Travel length | 1 500 (2 300) mm |
| Support frame dimensions | 870 x 630 mm |
| Voltage/frequency | 3x400V (3x230V) / 50(60)Hz |
| Line protection | 25 A |
| Acoustic pressure (without technology) | dB(A) |
| Acoustic pressure (with technology) | dB(A) |
| Acoustic power (without technology) | dB(A) |
| Acoustic power (with technology) | dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

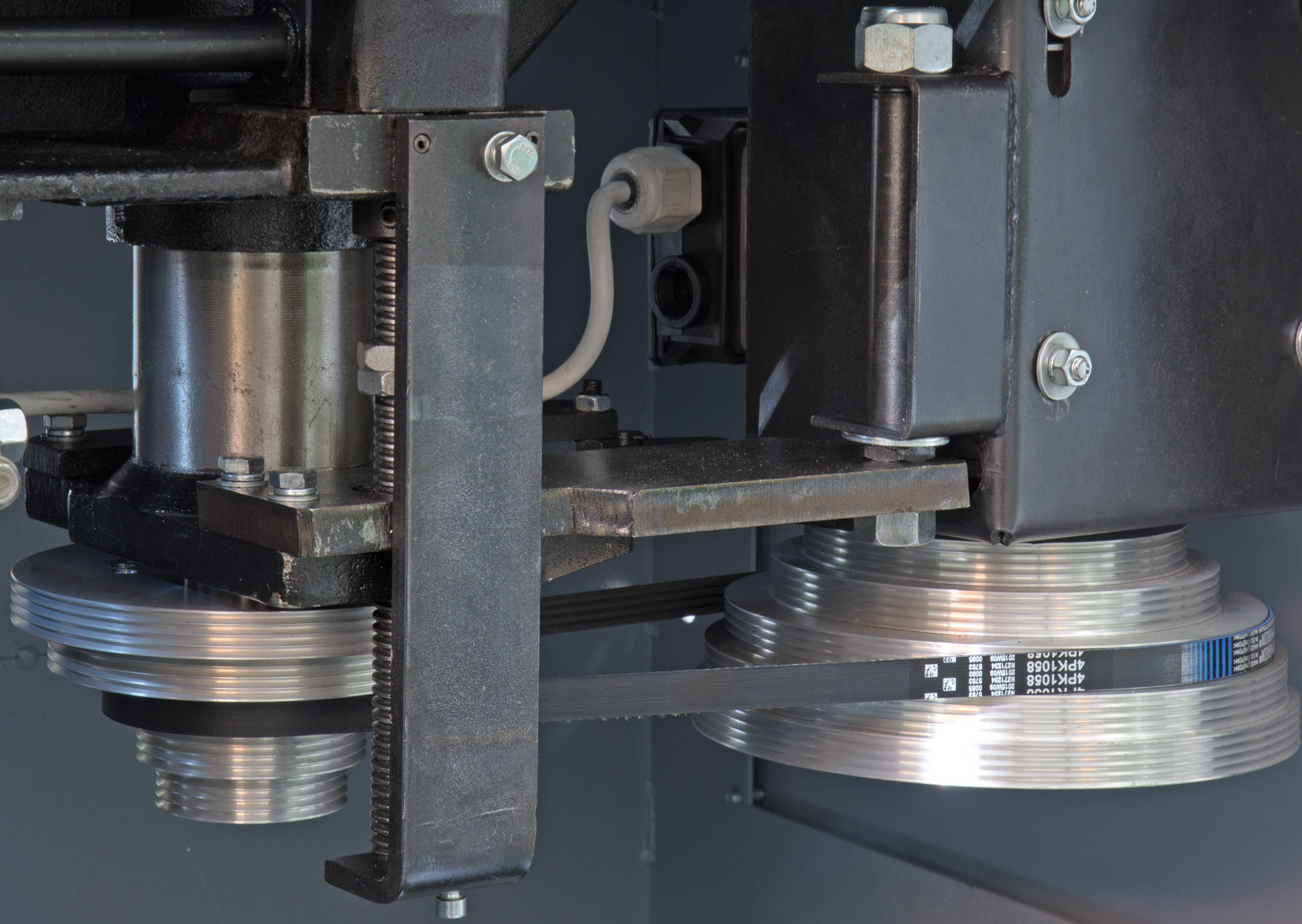

Complete mechanics part
Control panel - electromotive stroke

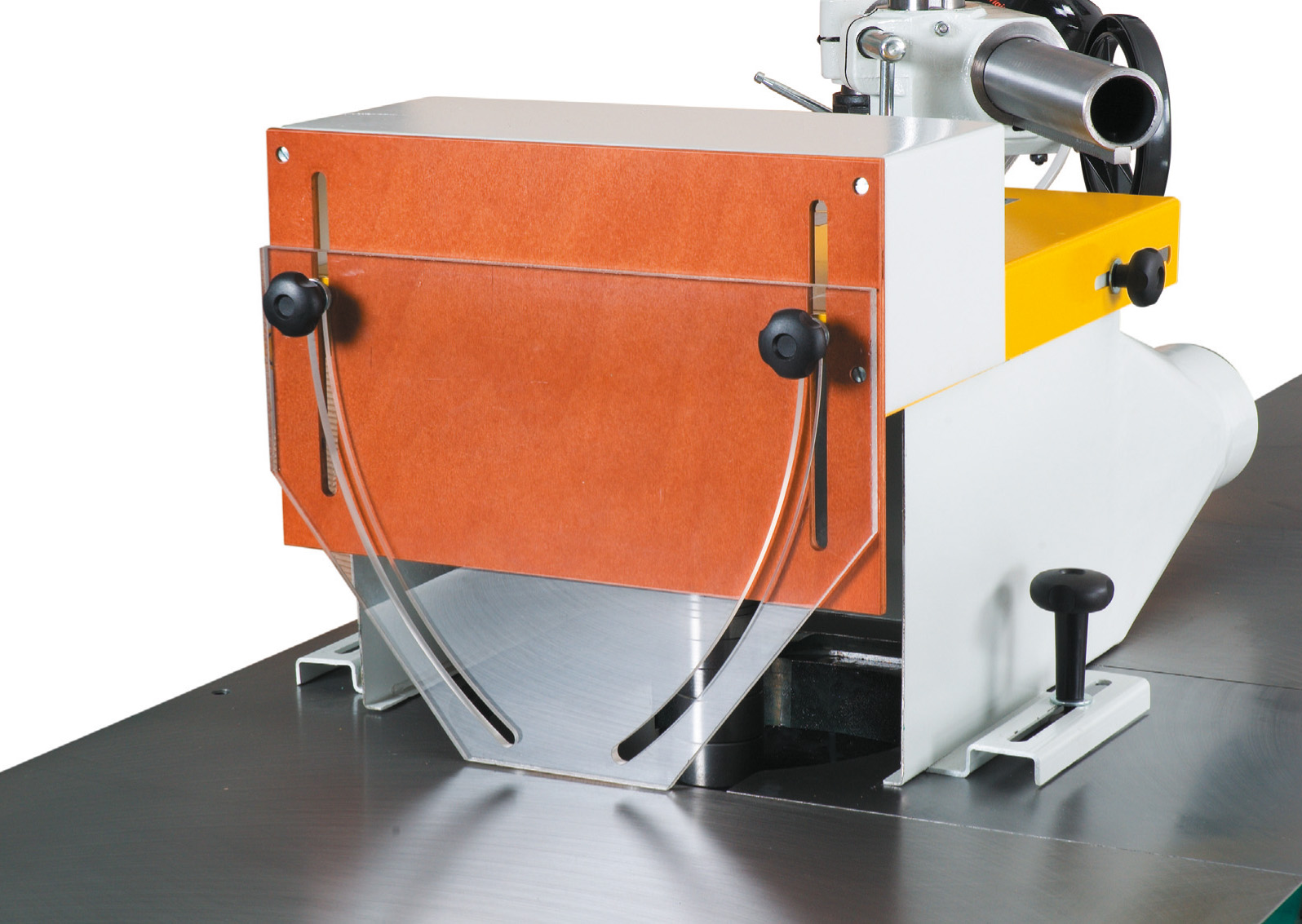

Capping cover

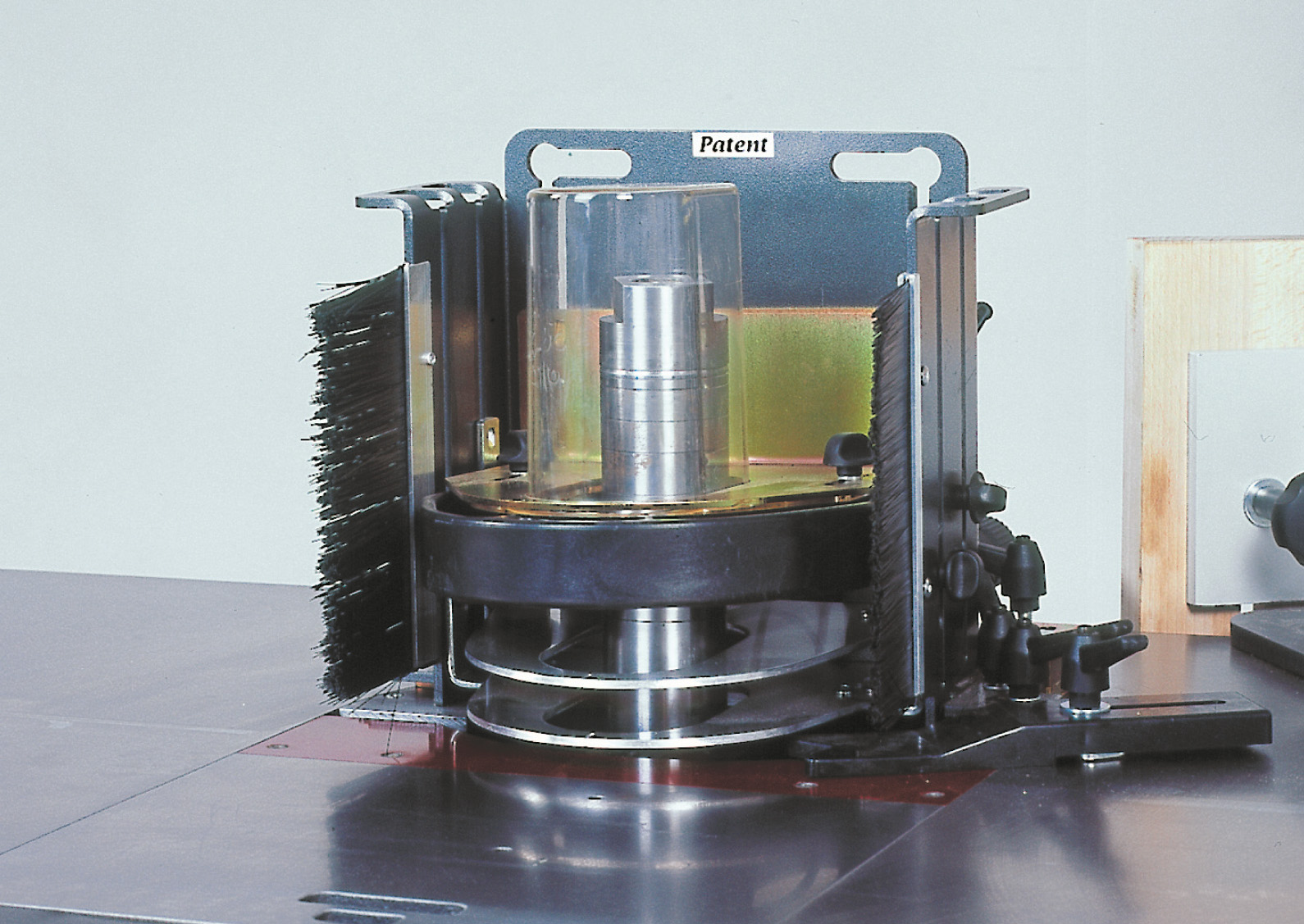

Profiling cover for shape milling

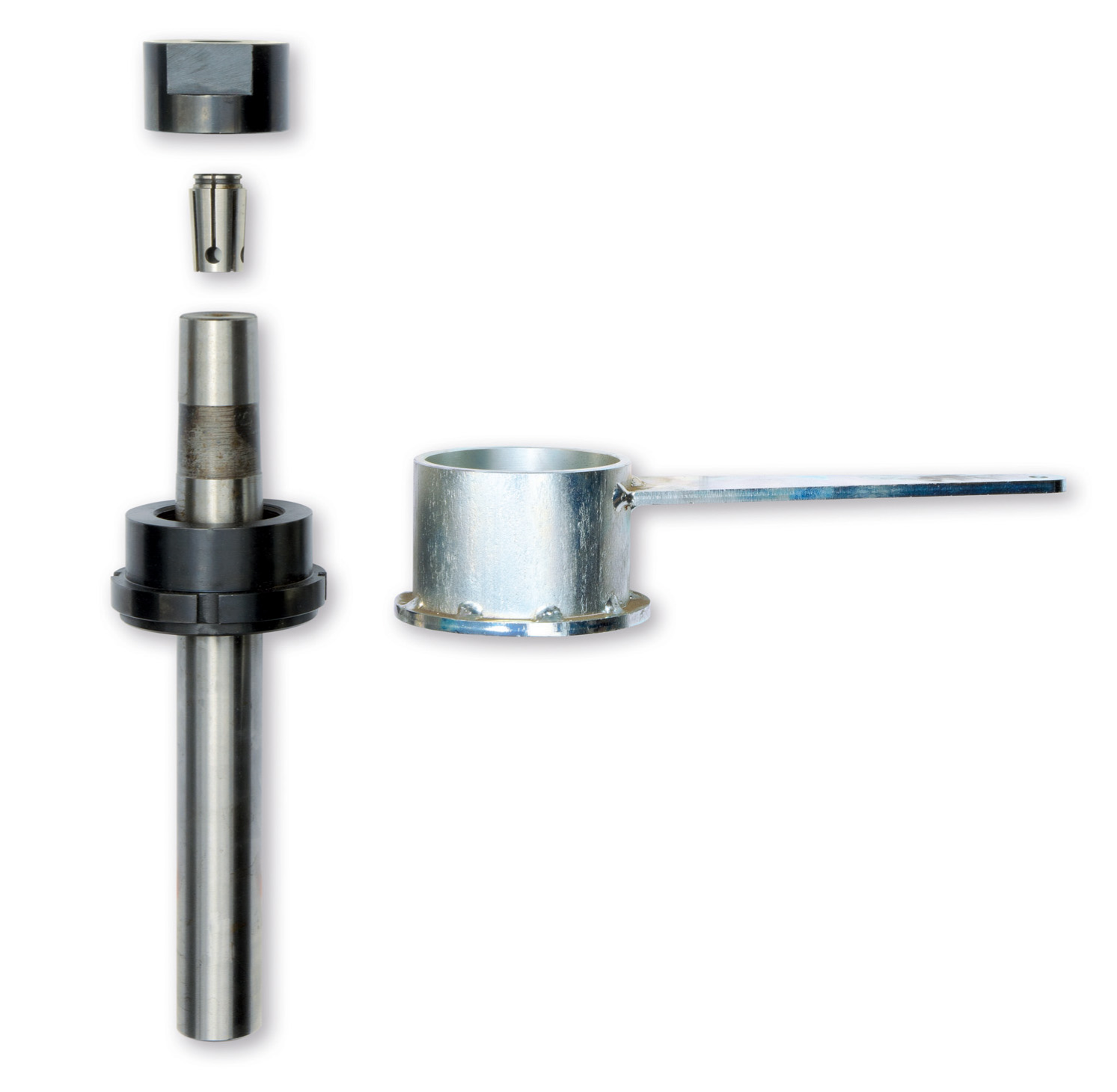

Replacement spindle (with clamp)

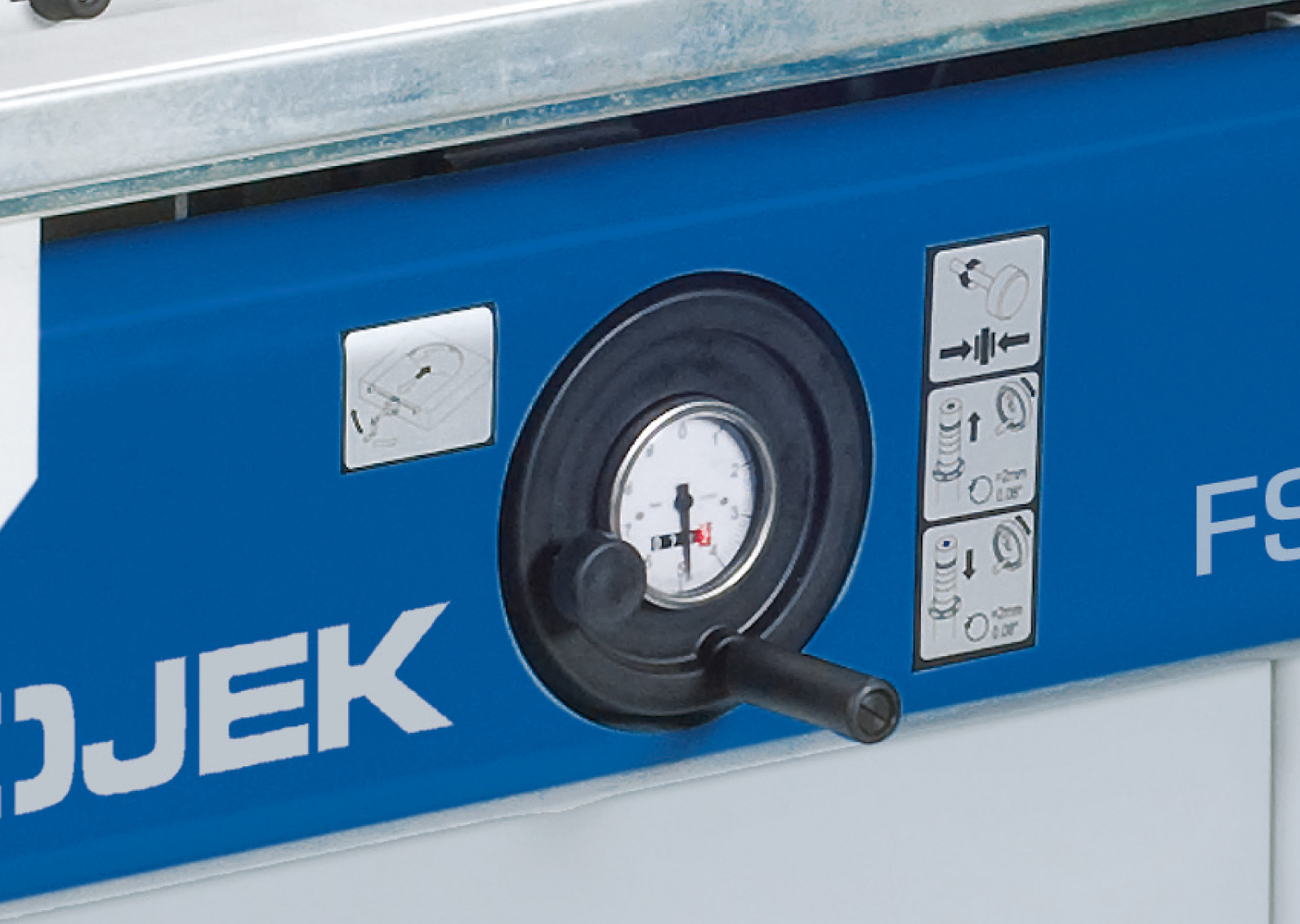

Spindle stroke

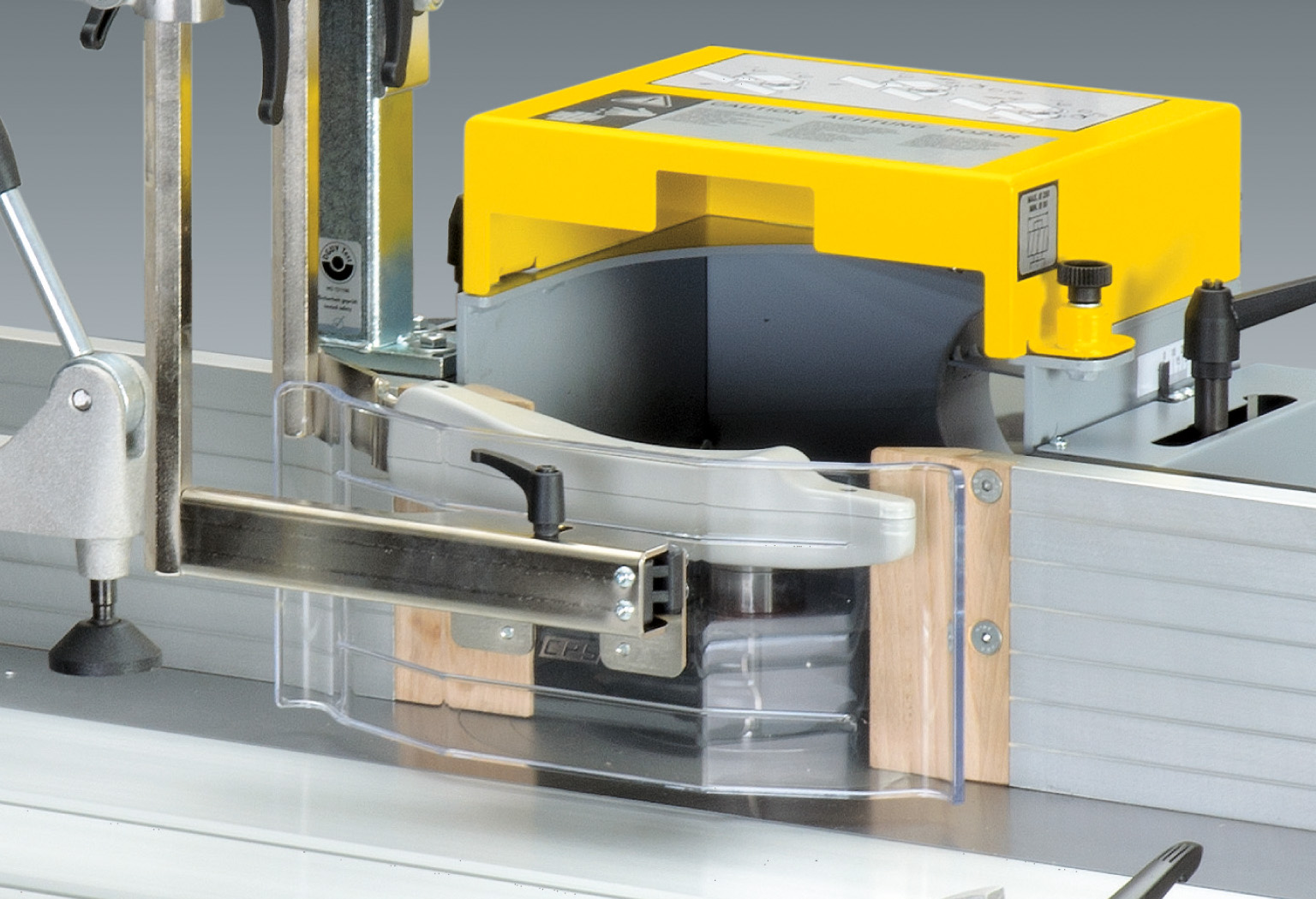

Capping cover

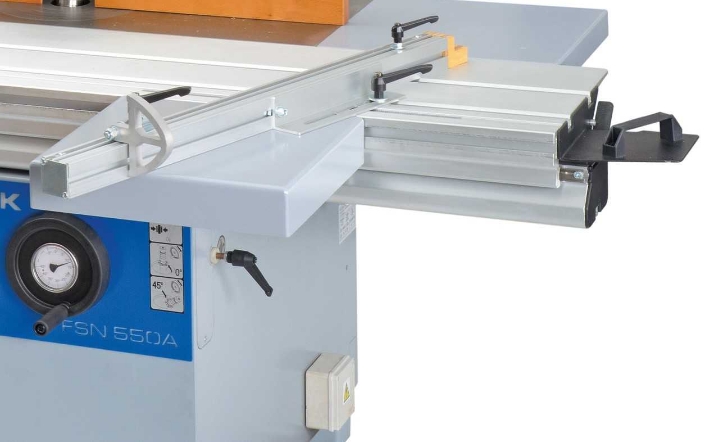

Support frame and ruler

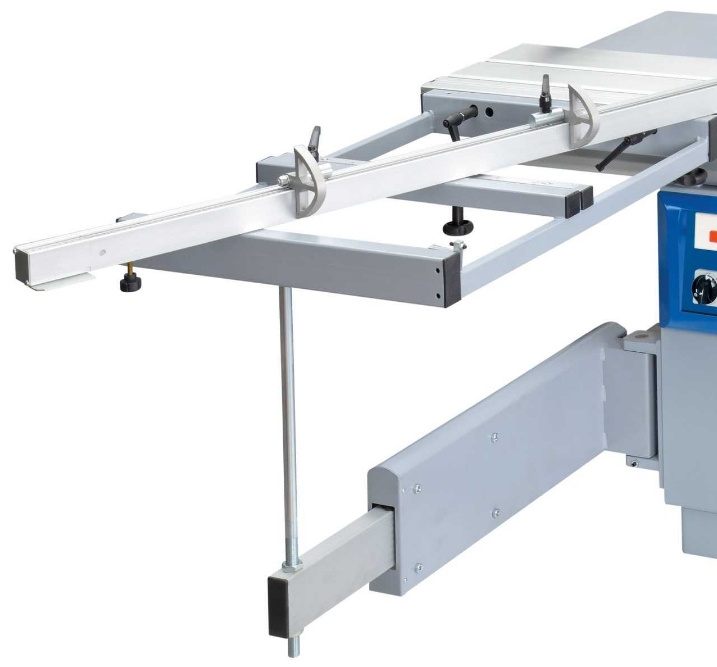

Sliding table extension
Features and standard equipment
- CV 360T/ 1.2 m (2 ft) formatting table on hardened rods
- 5.3 kW / S6 main motor
- tilt wheel with angle indication
- MORI support cover and wooden rulers
- 900 mm short angle ruler with stop
- formatting table clamp - single column eccentric
Equipment on request
- CV 360T/ 2 m formatting trolley on hardened rods
- extension of the sliding table with a support frame 870 x 630 mm
- side extensions left and right
- motor 7,5 kW/S6
- electronic speed indication (only with 7,5 kW/S6 engine)
- motorised spindle stroke with LCD display
- replaceable spindle including mandrel diameter 30 mm, clamping height 130 mm
- spindle speed 3,500 - 6,000 - 8,000 - 12,500 rpm
