Planer / Thicknesser SP410
The design of the machine has comfortable guidance of the workpiece on solid cast iron tables with high robustness and precision.A significant design change compared to the previous model is especially the comfortable parallel tilting of the tables on massive hinges. Two torque springs facilitate the manipulation of the tables. The machine is equipped with a spiral cutter system MBM. It is not possible to purchase a mortiser for this machine.
Product code: 1187001
Technical parameters
| S6 spindle motor power 40% | 5,3kW/3x400V (2,2 kW/1x230V) |
| Motor speed | 2,840/min (3,410/min [60Hz]) |
| Power of feed motor | 0.35/0.45 kW |
| Knife shaft diameter | 95 mm |
| Diameter of feed rollers | 40 mm |
| Number of knives | 4 |
| Angle of inclination of the tilting ruler | 0° ÷ 45° |
| Speed of knife shaft | 4 200/min. |
| Max. levelling width | 410 mm |
| Max. thicknessing width | 400 mm |
| Max. thicknessing height | 230 mm |
| Max. chip thickness | 5 mm |
| Max. levelling chip | 4 mm |
| Thickening feed speed | 5.5/10 m/min. (7.5/15 m/min.) |
| Length | 2 020 mm |
| Width | 750 mm |
| Table height | 890 mm |
| Max. machine height | 1 080 mm |
| Dimensions of the levelling milling machine table | 2 020 x 420 mm |
| Dimensions of the thicknessing milling machine table | 750 x 408 mm |
| Suction diameter | 100 mm |
| Dimensions with packaging | 2 100 x 810 x 1 100 mm |
| Gross weight | 410 kg |
| Net weight | 380 kg |
| Voltage/frequency | 3x400V (3x230V | 1x230V) / 50(60)Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | 89.5 dB(A) |
| Workplace noise (with technology) | 91.6 dB(A) |
| Acoustic performance (without technology) | 95.9 dB(A) |
| Acoustic performance (with technology) | 98.2 db(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product
CPS cylinder cover

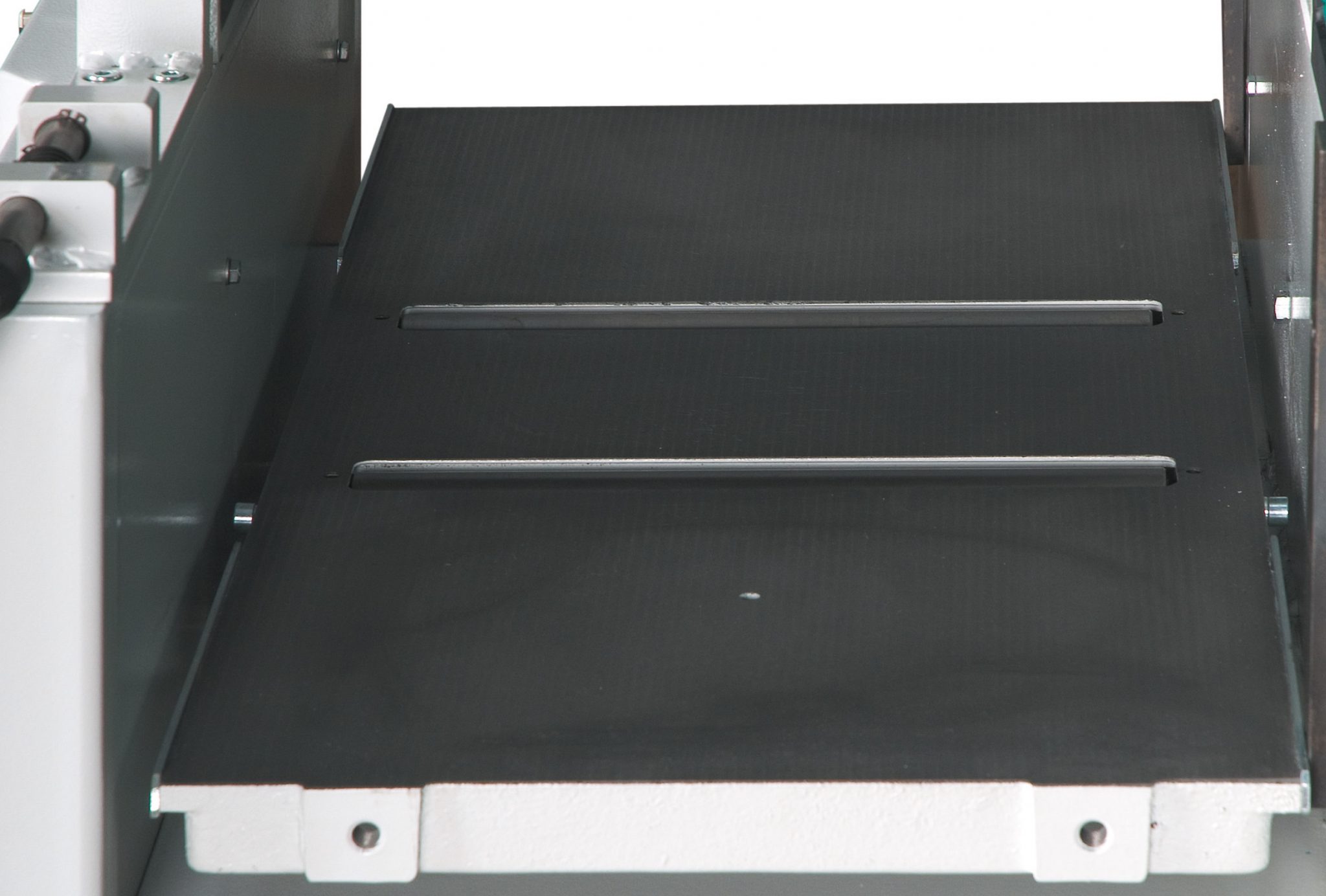

Rollers in the stretching table
Spiral roller with feed rollers

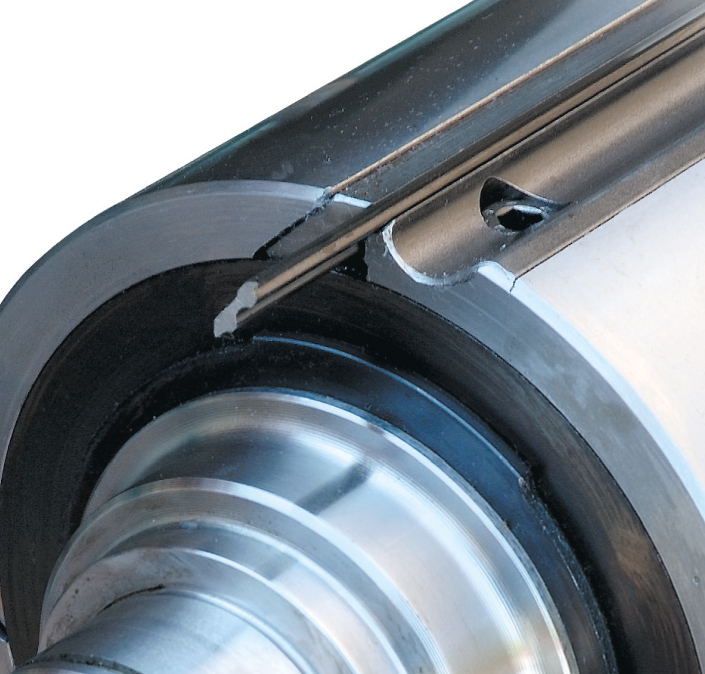

Three-legged planing roller with TERSA knives
Angle ruler 90°- 45°<
Stretching table relief roller

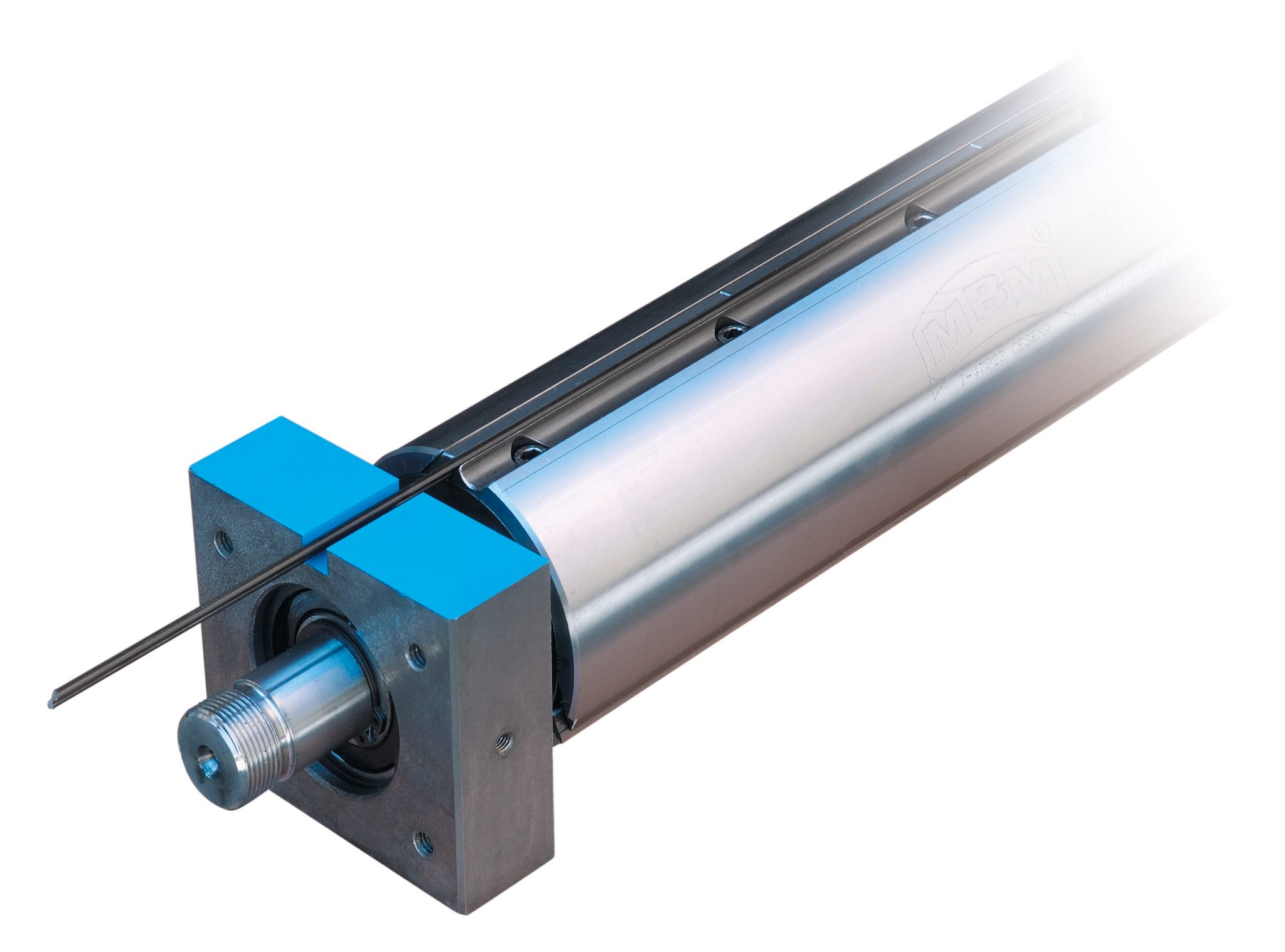

Three-legged planer roller with TERSA knives
Stretching table lift with indicator
SP410 Industry 9
Features and standard equipment
- parallel hinged tables
- two-speed stretch feed 5,5 - 10 m/min.
- dial indicator for the position of the lower stretching table
- CPS cylinder cover with folding cover
- additional rollers of the stretching table
- 4-legged planer roller ROJEK system with brake
Equipment on request
- two-speed feed motor 7 and 15 m/min.
- 3-legged planing roller (for knives without groove)
- 3-legged planing roller TERSA system
- planer roller system MBM SPIRAL
- additional rollers for levelling table
- table rollers of the stretching table
- Knife stop with deflection gauge
