Panel saw PF350
The design of this machine went through a lot of technical innovations which increased the useful featurettes of the machine. Quality processing ranks this saw among the best in its class. It is equipped with a sliding table with very precise and solid mounting on steel round bars CV 360T in basic version. optional equipment enables the machine to fit a sliding table of solid construction CV 400T on steel bars, table size 400 x 3200mm. The saw unit mounting in a robust cast iron body with a scoring unit, which is driven by a separate motor, guarantees accuracy, solidity, and reliability.
Product code: 1277001
Technical parameters
| S6 engine performance 40% | 5,3 (7,5) kW/3×400 V (2,2 kW/1×230 V) |
| Motor speed | 2,870/min (3,444/min [60Hz]) |
| Max. disc with pre-cut | Ø 350 (400) mm |
| Spindle diameter | 30 mm (1″) |
| Saw speed | 4 450/min (3 500/5 000) |
| Max. cutting height | 120 (83 [45°]), (138 (96 [45°])) |
| Tilting of blades | 0° ÷ 45° |
| Max. cutting width | 1 300 mm (1 500 mm) |
| Scoring unit motor power | 0,75 kW (1 Kw) |
| Disc diameter | Ø 120 mm (100 mm) |
| Spindle diameter | Ø 20 mm (3/4″) |
| Speed | 8,530/min (10,236/min [60Hz]) |
| Length (at CV360 - 2000 mm) | 2 545 mm |
| Length (at CV360 - 2 800 mm) | 2 845 mm |
| Length (at CV360 - 3 200 mm) | 3 355 mm |
| Width | 3 450 mm (3 900 mm) |
| Table height | 892 mm |
| Max. machine height | 1 460 (1 700) mm |
| Table dimensions | 1 185 x 500 mm |
| Suction diameter | 100 + 100 mm |
| Gross weight | 680 kg |
| Net weight | 675 kg |
| Table dimensions | 2 000 (2 800 | 3 200) x 360 mm |
| Support frame dimensions | 1 240 x 650 mm |
| Cutting length of the saw | 2 000 (2 800 | 3 200 ) mm |
| Voltage/frequency | 3 x 400 V (3 x 230 V) / 50(60)Hz |
| Line protection | 16 A (25 A) |
| Acoustic pressure (without technology) | 81.8 dB(A) |
| Acoustic pressure (with technology) | 85.3 dB(A) |
| Acoustic power (without technology) | 98.6 dB(A) |
| Acoustic performance (with technology) | 102.1 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product

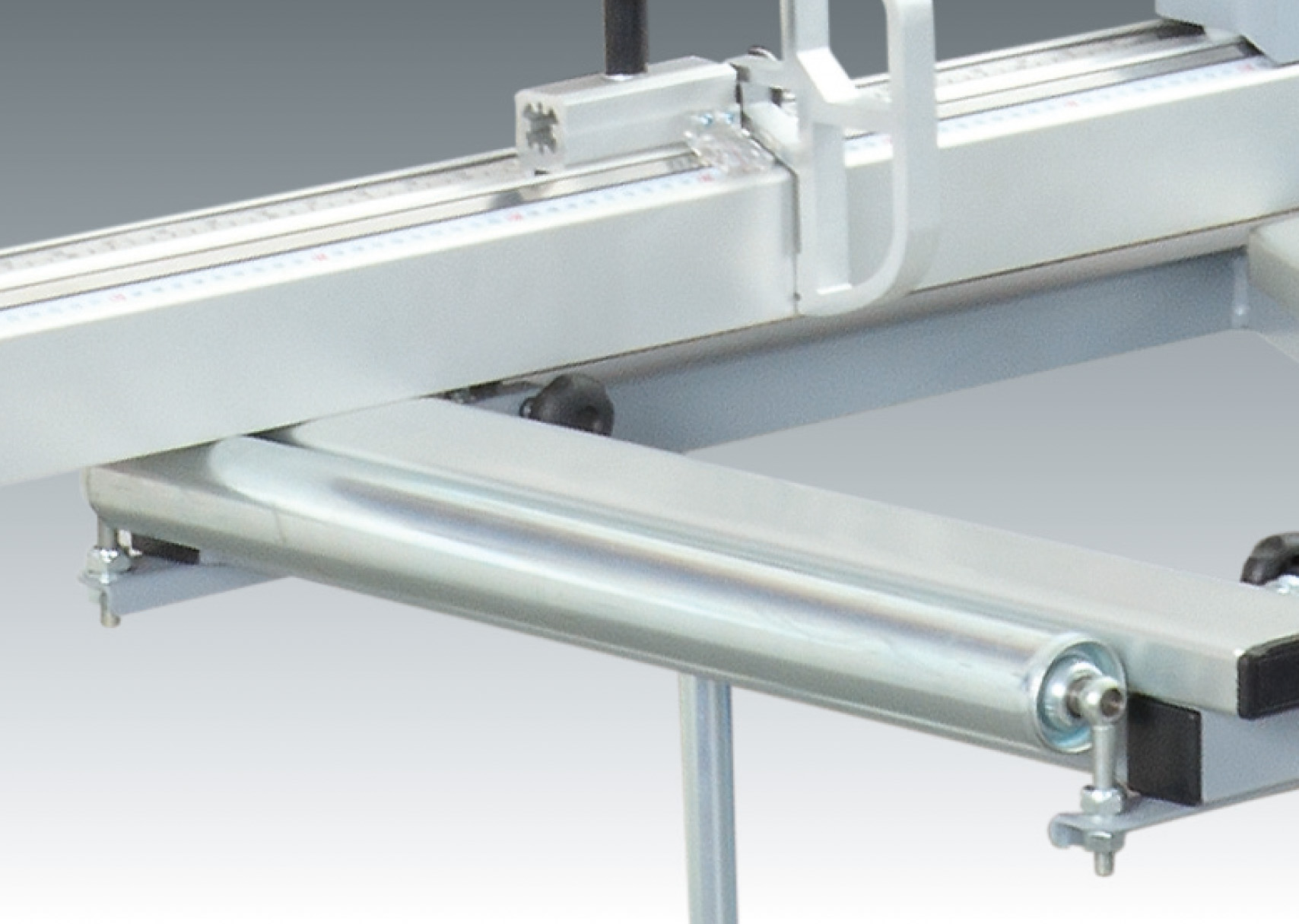

Outrigger roller

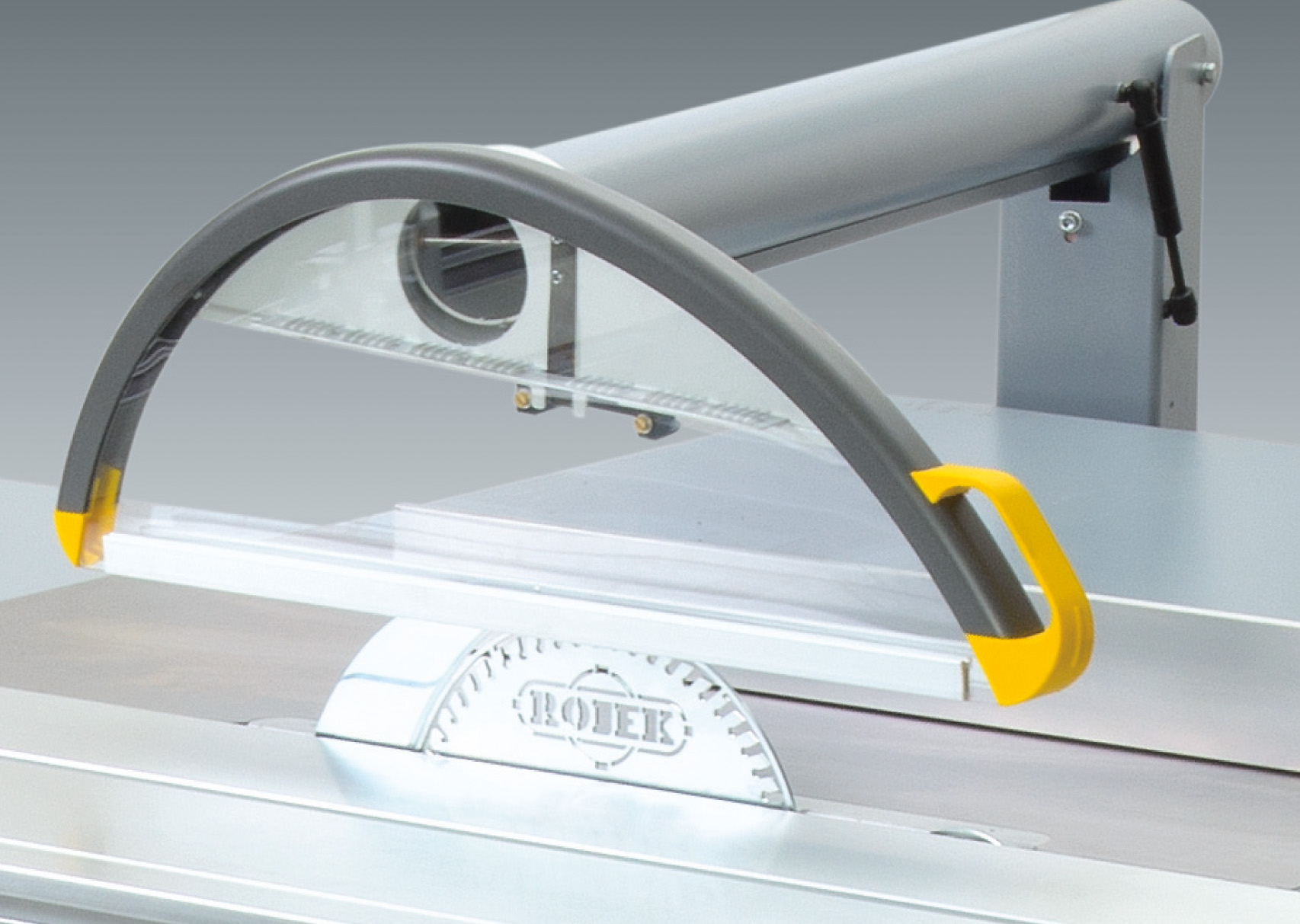

Upper suction (Parallelogram CPS)

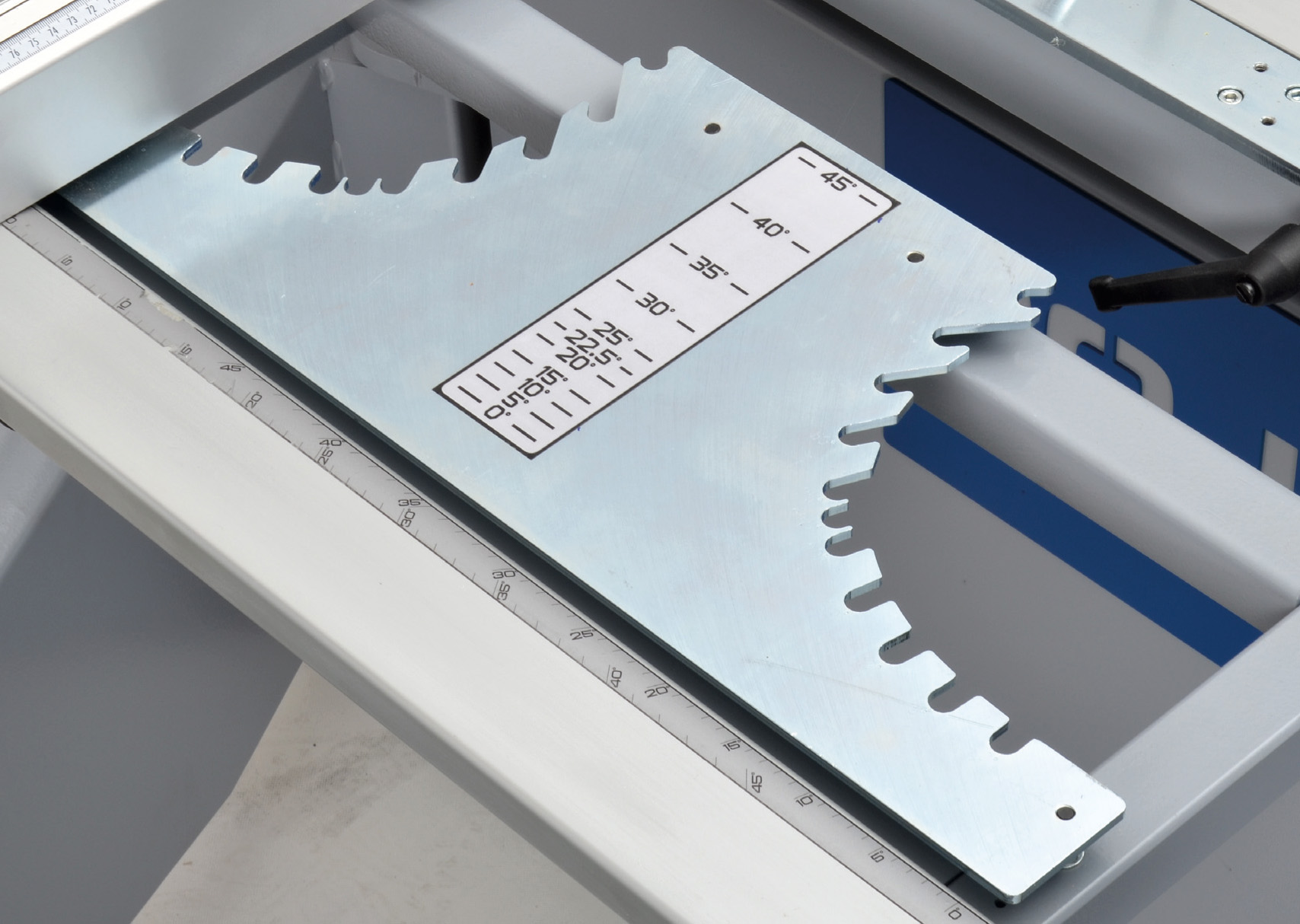

Precise angle adjustment 5°; 10°; 15°; 20°; 22.5°; 30°; 40°; 45°
Eccentric woodpresser

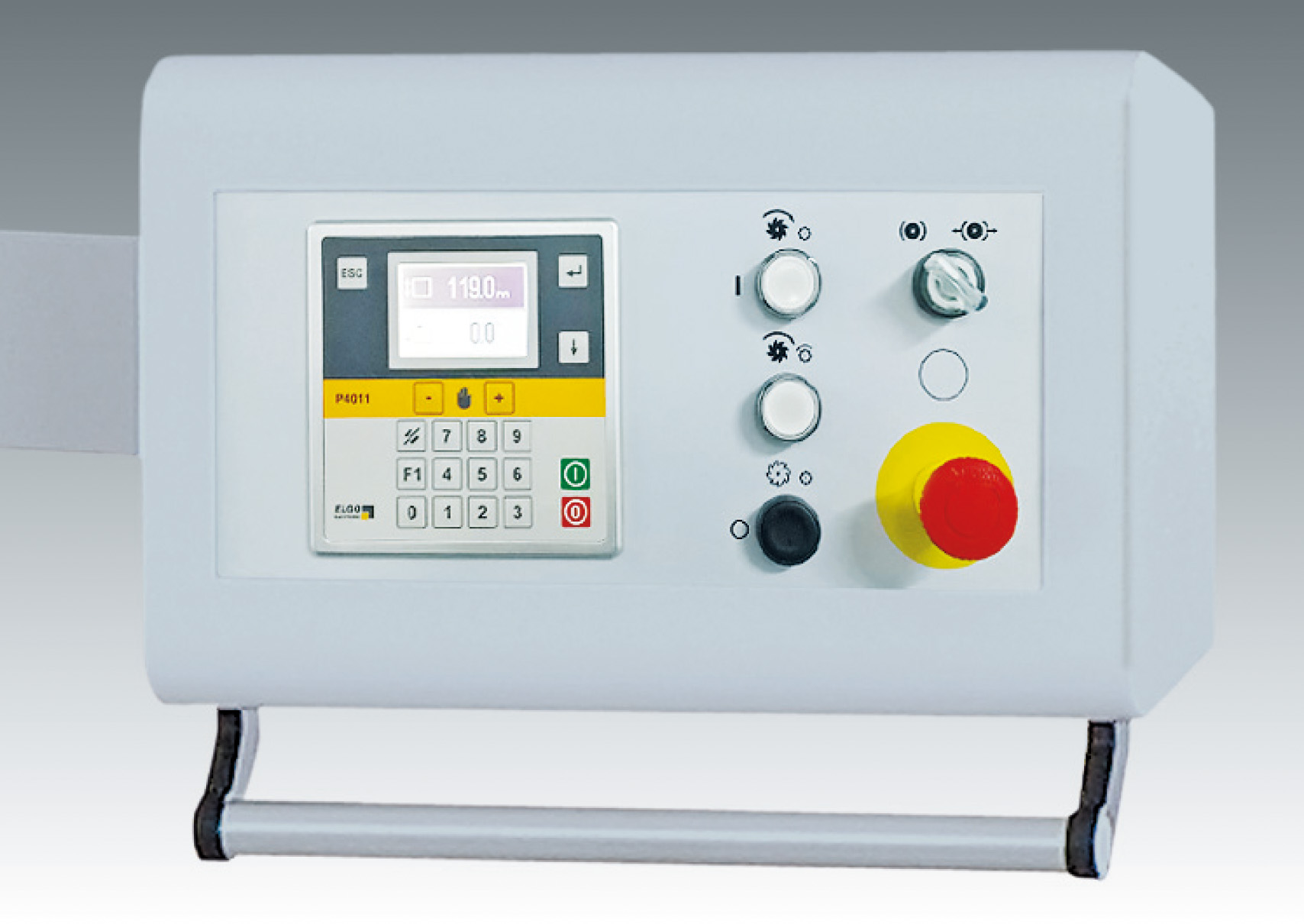

Upper control panel

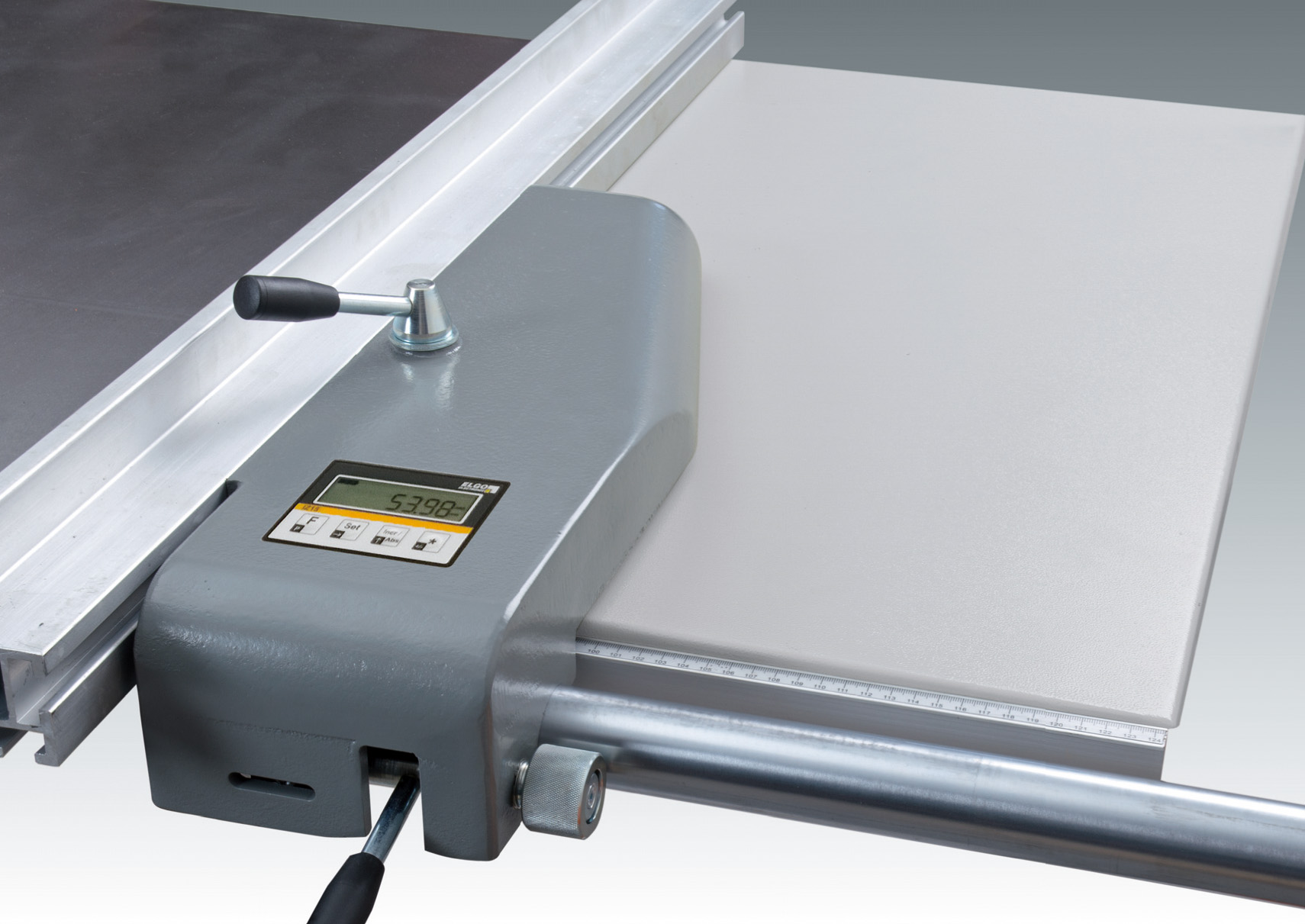

Stop with digital readout

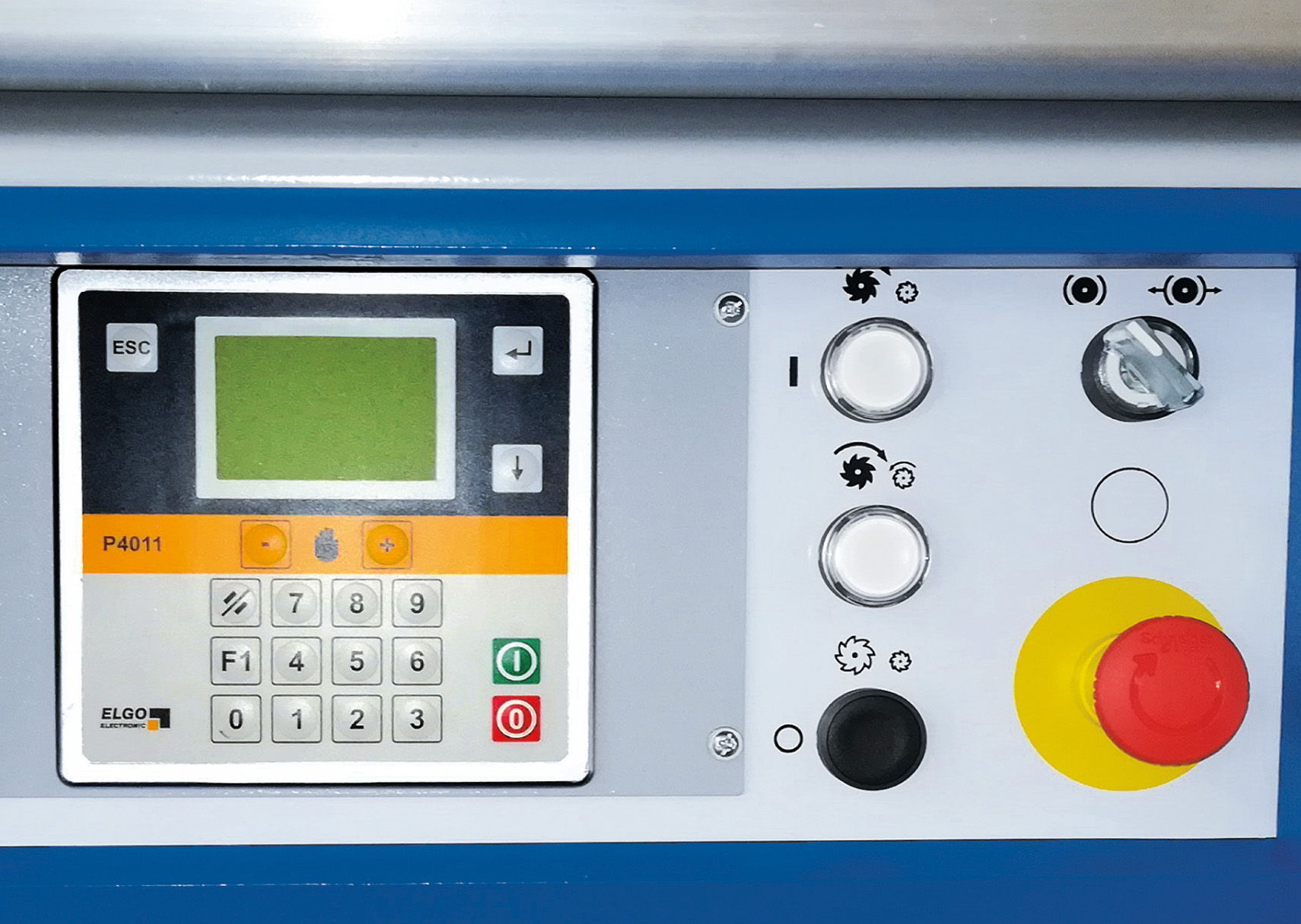

NC control - lower control panel

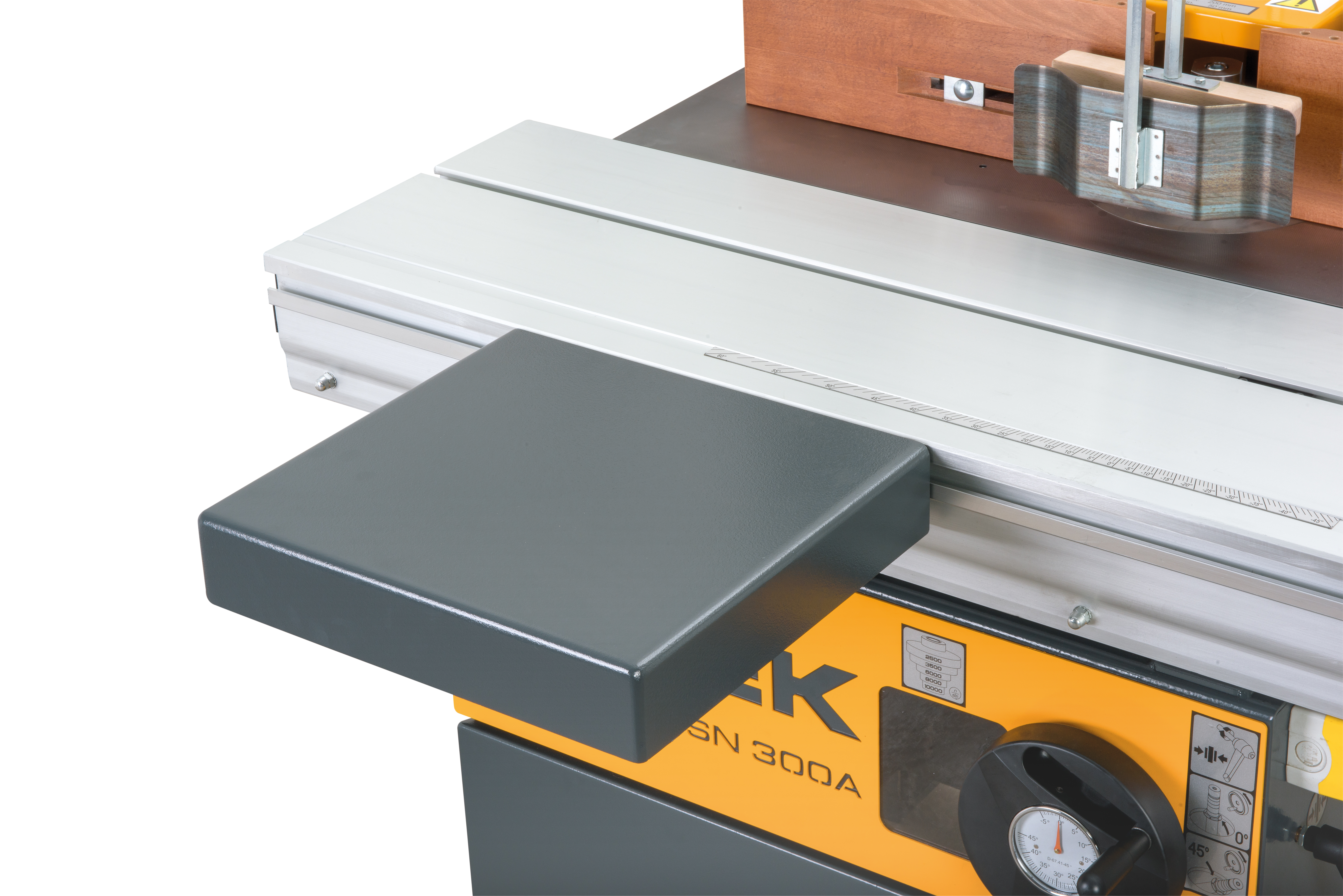

Sliding table extension

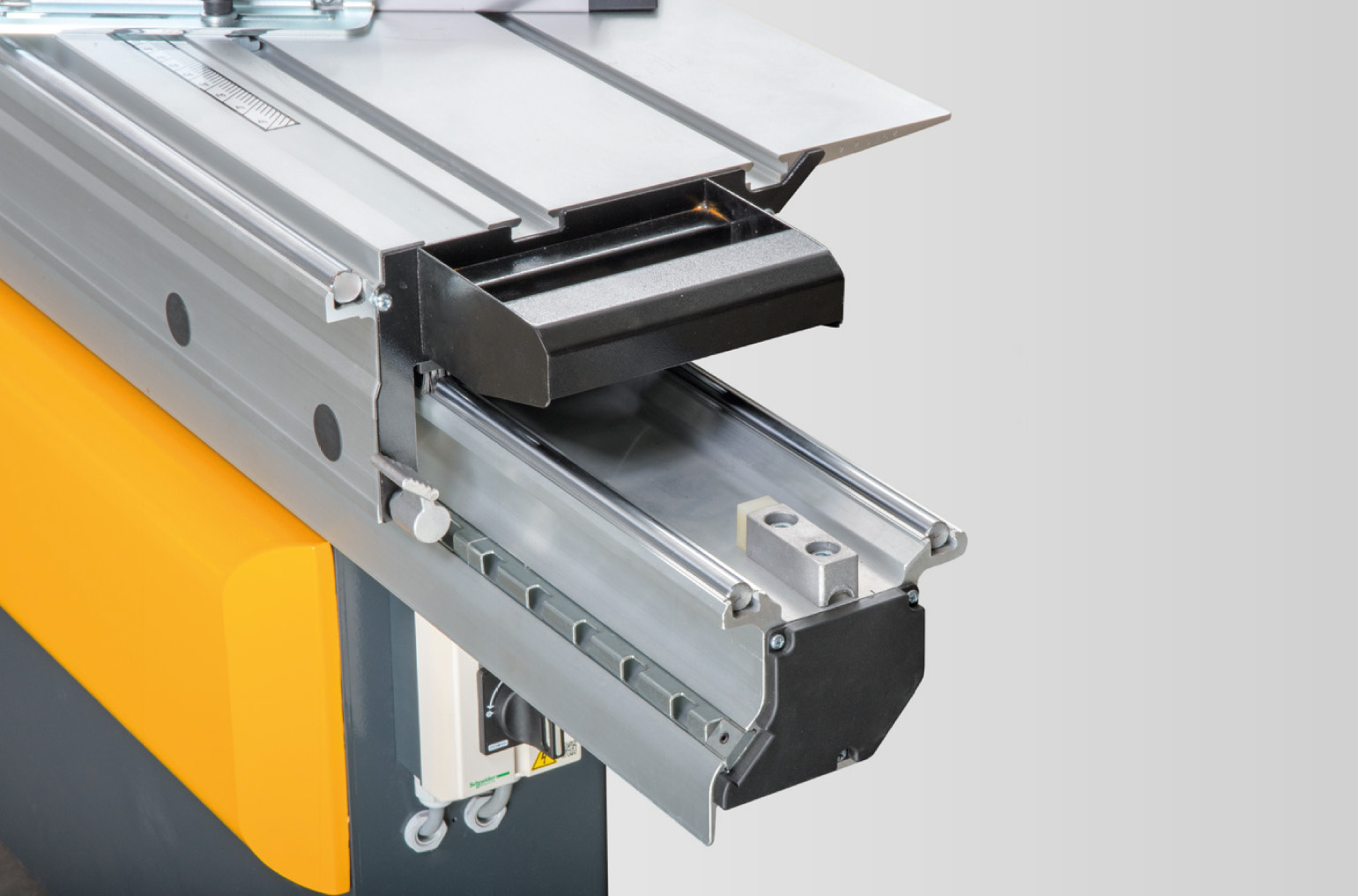

Instalattion of sliding table CV400T on bars

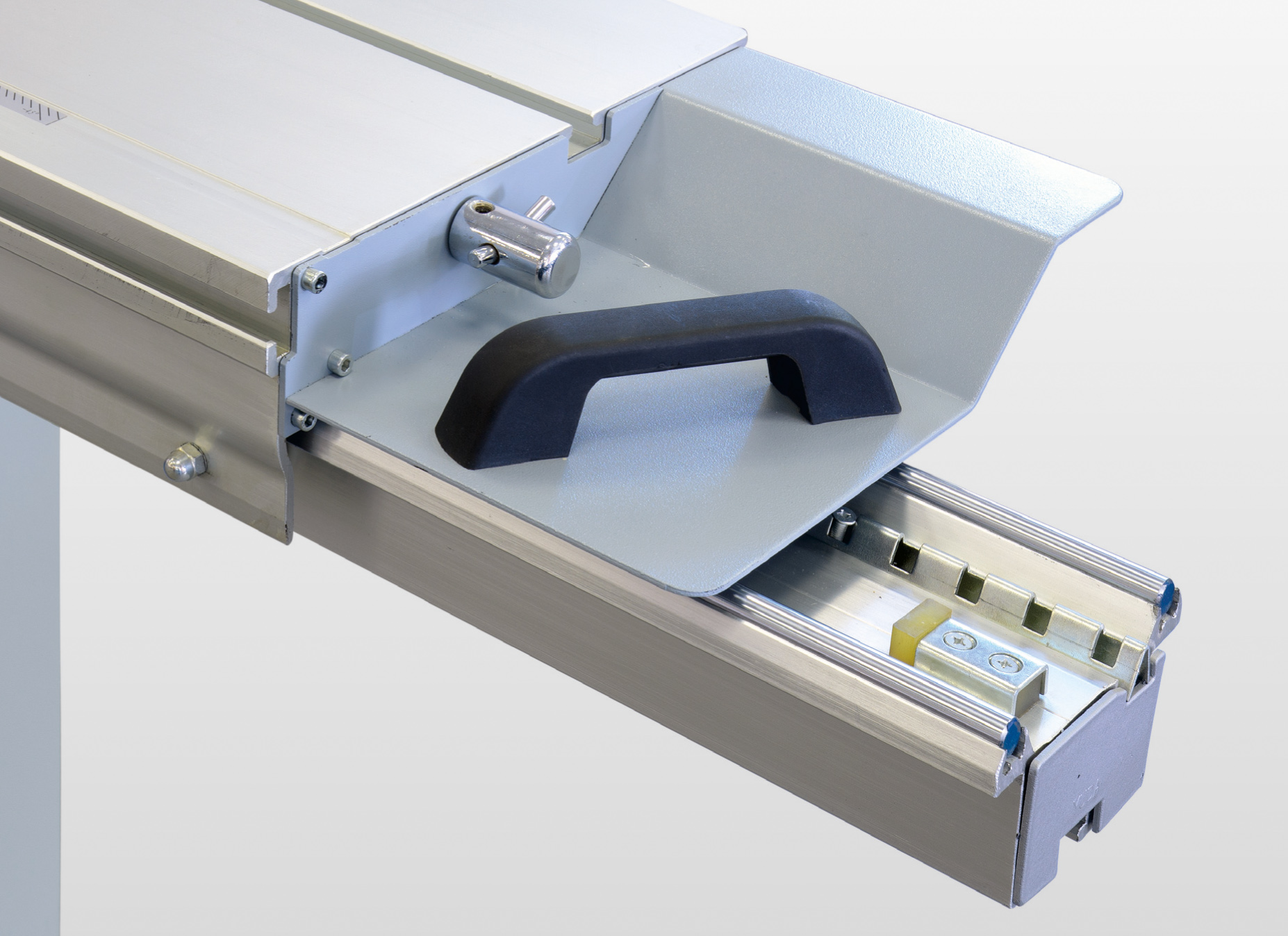

Instalattion of sliding table CV360T on bars

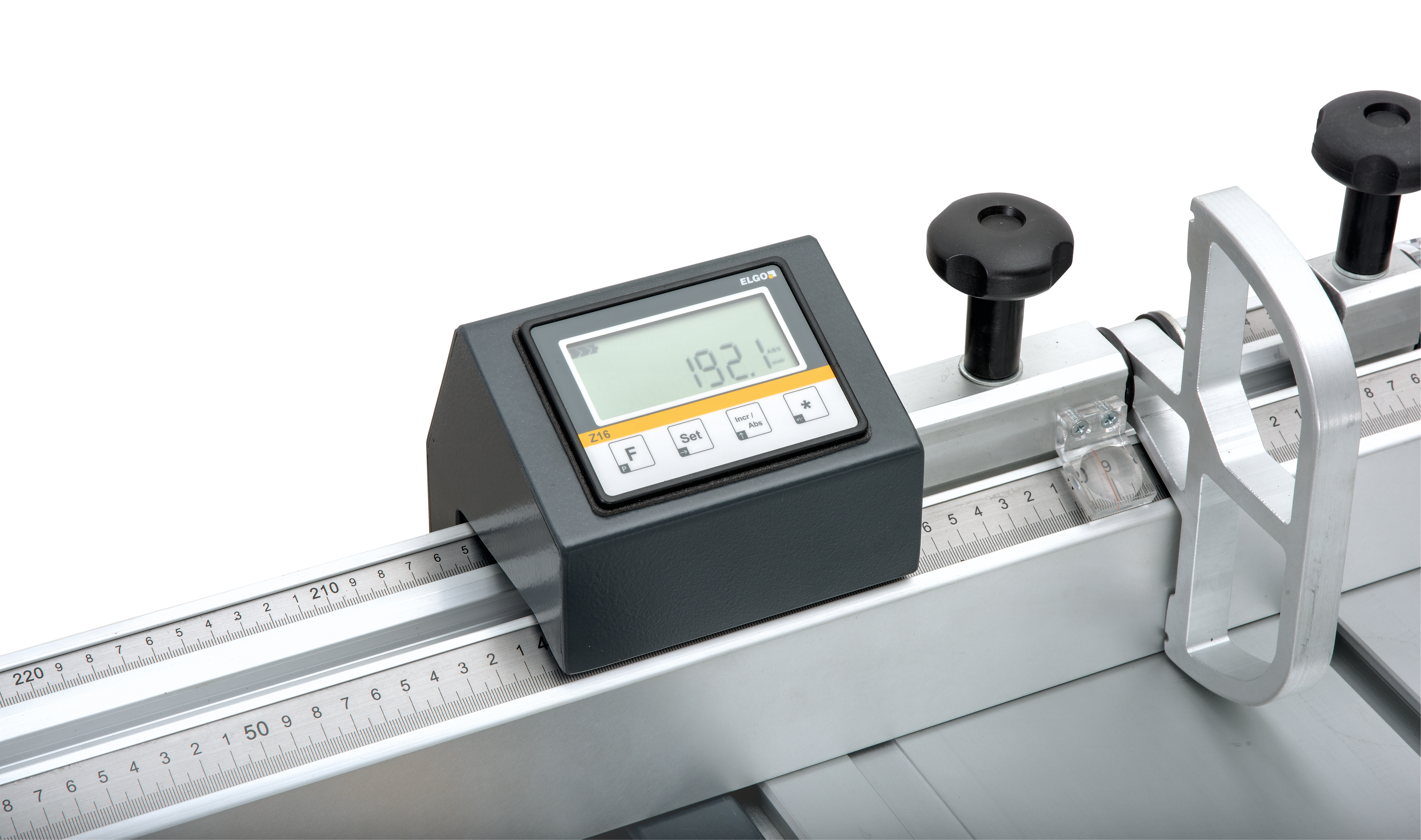

Rip fence with digital indication
Features and standard equipment
- CV 360T formatting table 3.2 m (2.8 ft) long on bars
- 5.3kW / S6 main motor
- support frame 1240 x 650 mm with support arm and cross ruler with tilted scale and two stops
- formatting table handle
- CV clamp - self-clamping foot
- Tilt wheel with angle indication
- cast iron table extension at the rear
- short angle ruler 800 mm with stop
- formatting table clamp - single-column eccentric
- upper extraction - parallelogram CPS
- Cutting width 1300 (1050) mm
- cast iron longitudinal aluminium ruler holder with micro-slide
Equipment on request
- CV 360T/ 2,8 m formatting trolley on hardened bars
- CV400T 3,2 m formatting trolley on hardened bars
- lowering the machine from the forming trolley - CV400T
- 7,5 kW/S6 motor
- upper control panel
- cutting width 1050 mm
- Cutting width 1500 mm
- 2 axis electric blade tilt and extend lower control panel
- ELGO electronic measuring ruler for cutting width
- ELGO electronic measuring cross ruler
