Disc sander CB600/2
It is designed for sanding wood, aluminium alloys and all types of plastics. The tilting table allows easy access to the disc when changing the sanding cloth. The cast iron table is equipped with a tilting mechanism with fine tuning and an angle scale. The equipment also includes a tilting fence on the table, a brake and an electric tool.
Product code: 6519401520020
Technical parameters
| Engine power | 2,2 kW |
| Grinding wheel speed | 940/min. |
| Wheel diameter | 600 mm |
| Number of discs | 2 pcs |
| Table tilt | -45° ÷ 45° |
| Length | 1 100 mm |
| Width | 700 mm |
| Height | 1 285 mm |
| Table height | 900 mm |
| Table dimensions | 700 x 300 mm |
| Suction diameter | 100 mm |
| Weight | 180 kg |
| Voltage/frequency | 3x400V / 50 Hz |
| Line protection | 16 A |
| Workplace noise (without technology) | + |
| Workplace noise (with technology) | 78.3 dB(A) |
| Acoustic performance (without technology) | + |
| Acoustic performance (with technology) | + |
Warranty conditions
- 12 months
You will definitely appreciate this product

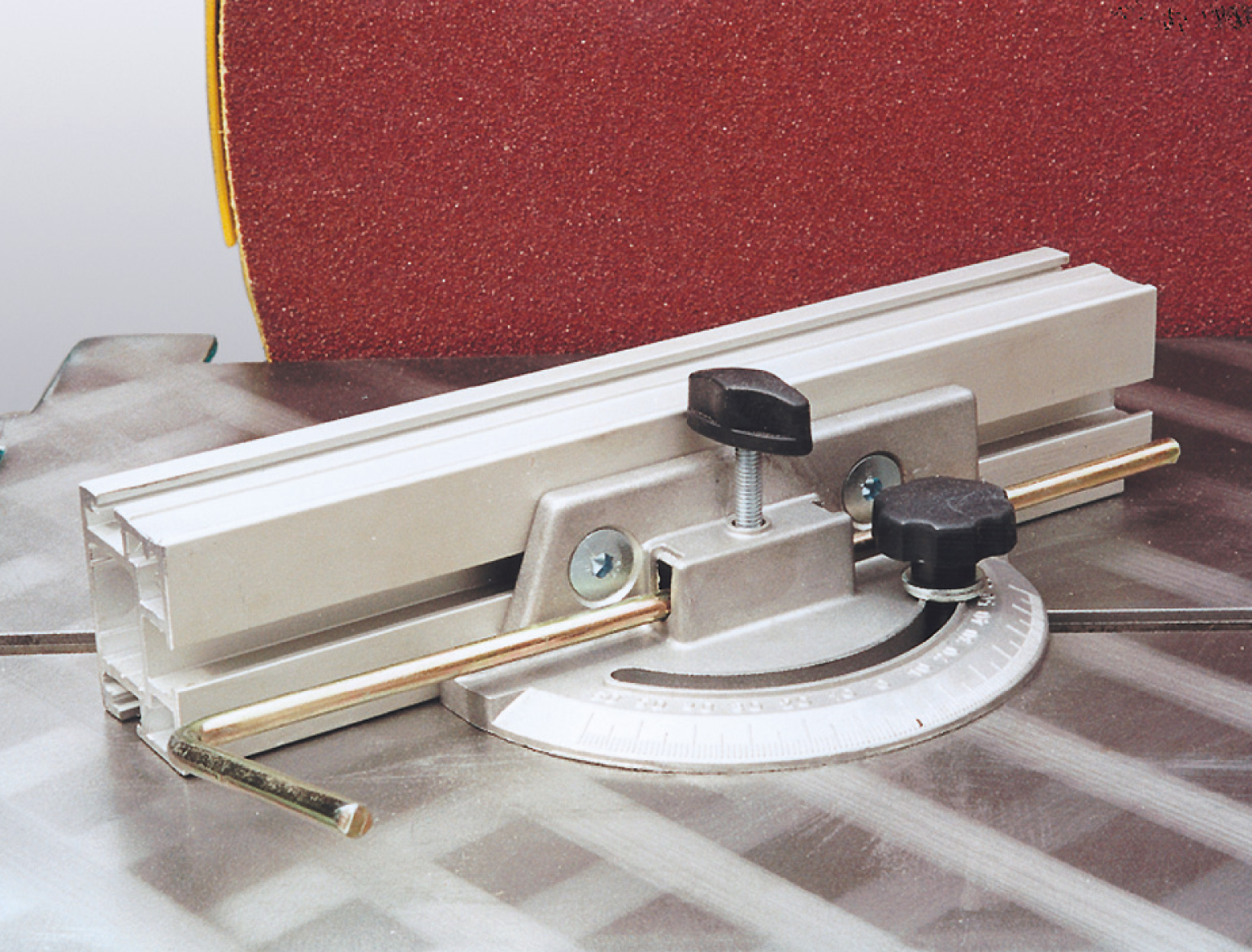

Angle ruler

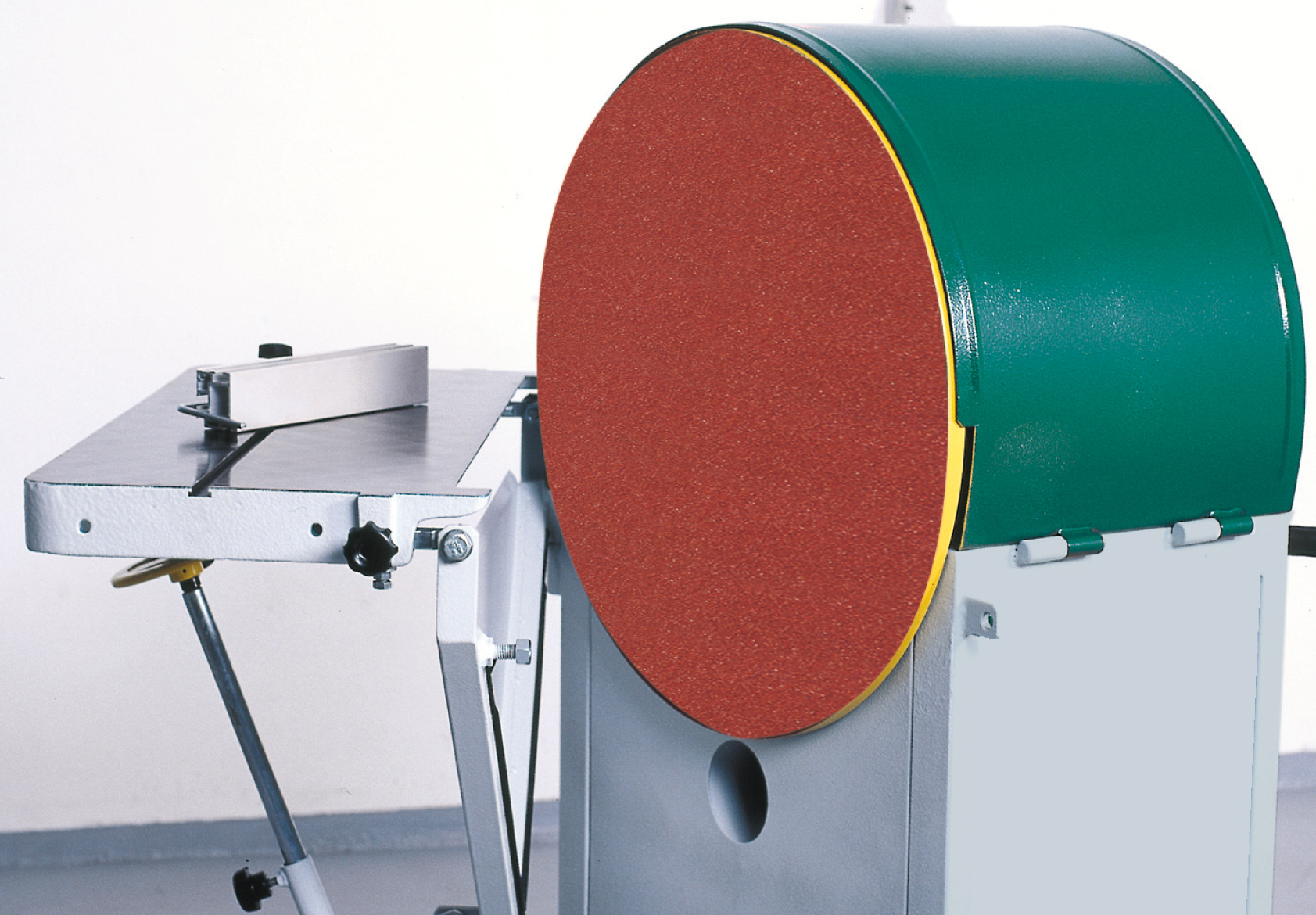

Tipping the table

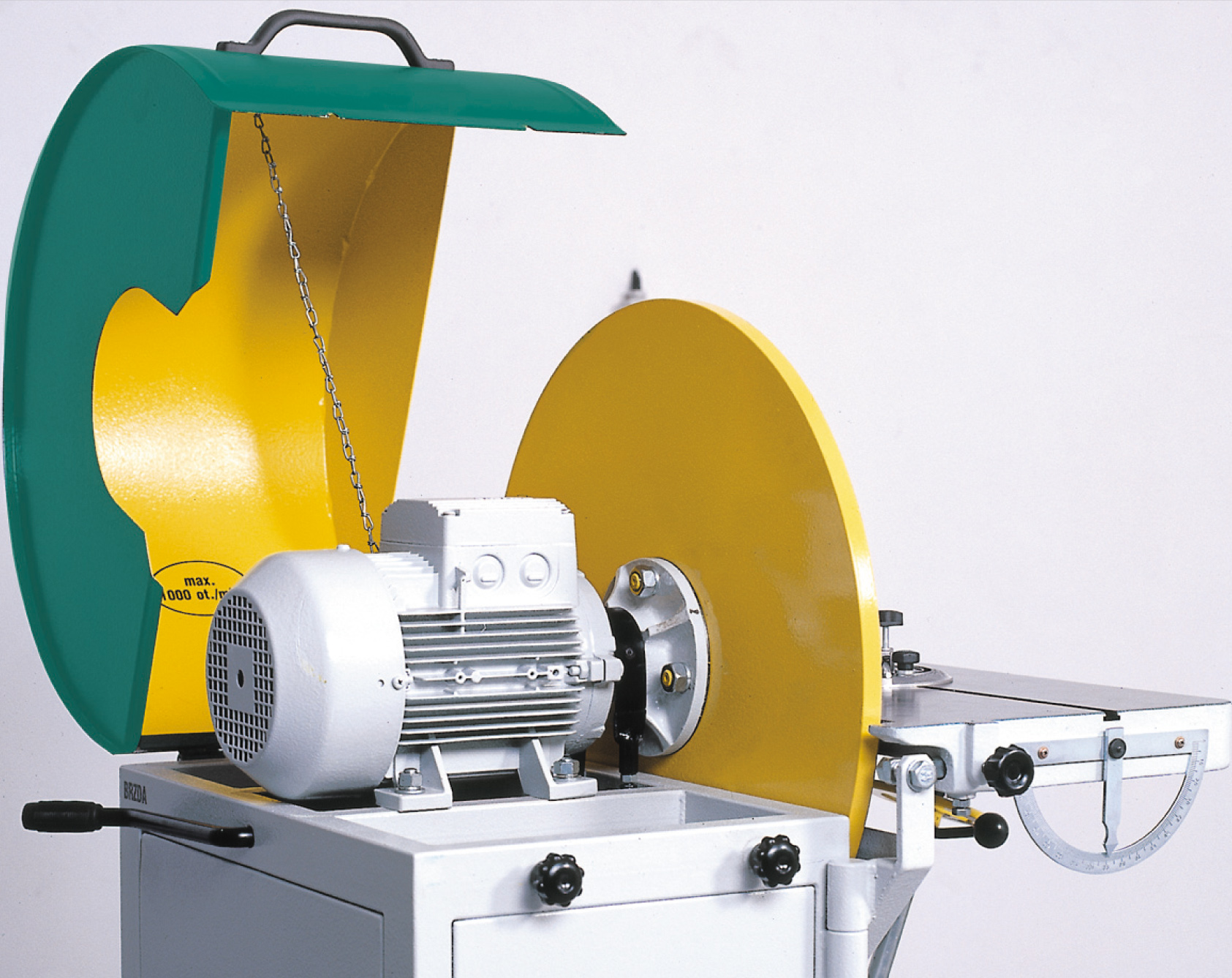

Quick disc change with self-locking brake

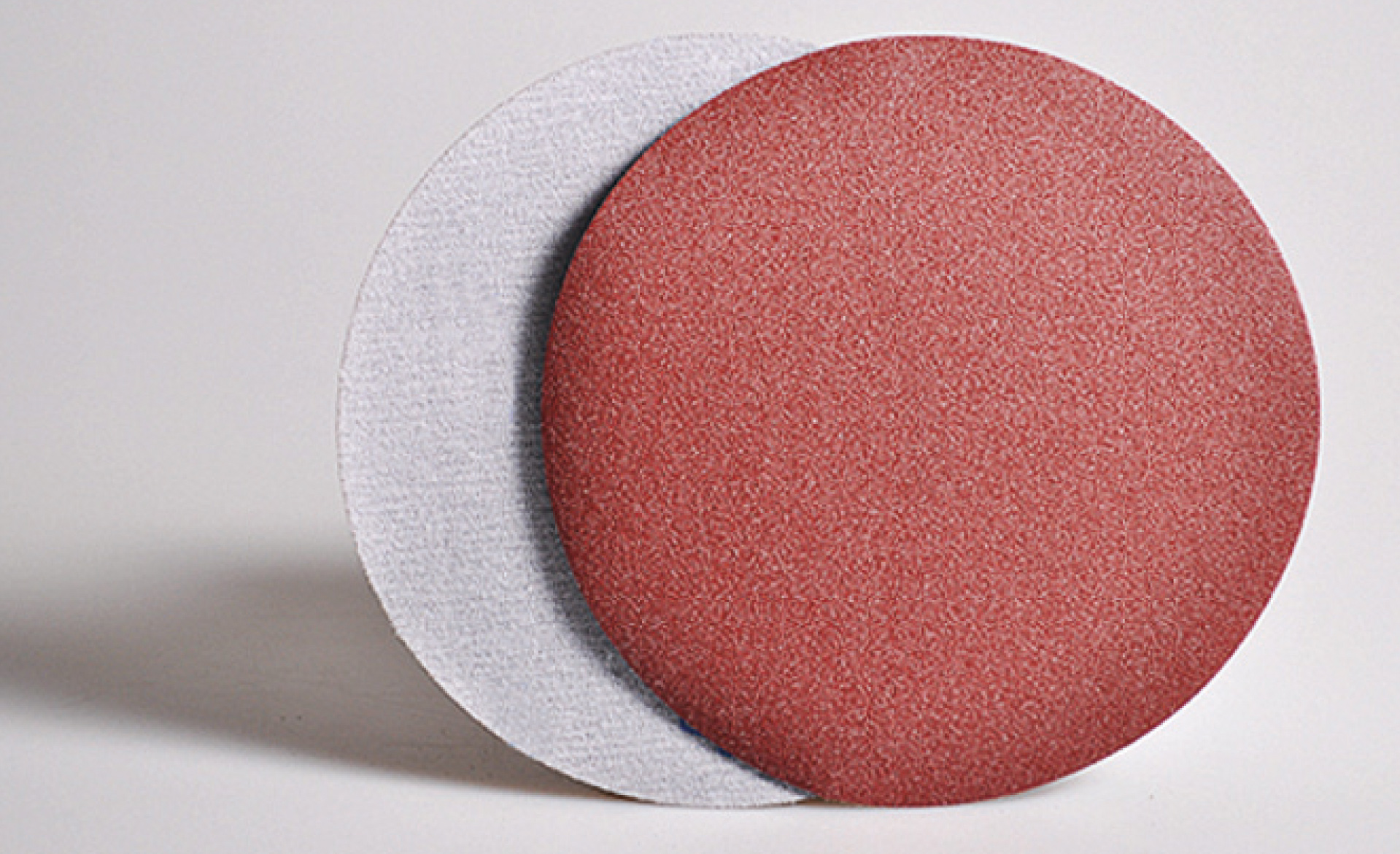

Sandpaper with Velcro

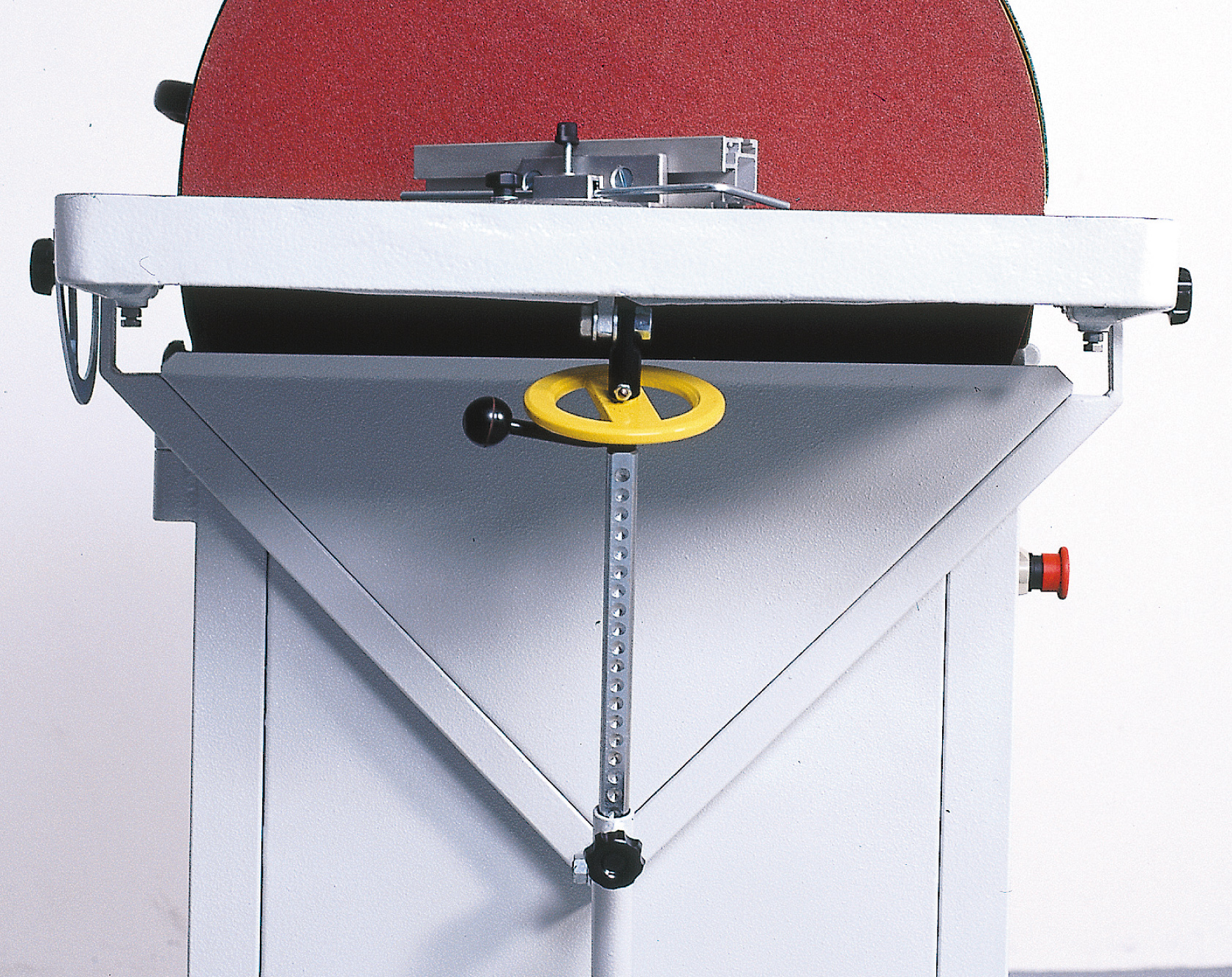

Rough and fine table repositioning
Features and standard equipment
- ease of use
- the machine is on a pallet or in slatting
Equipment on request
- sandpaper with Velcro
Downloads
 Katalog
(CB-E9.pdf)
|
Download |
