Thicknesser RFT630
The professional thicknessing machine is designed for mass and series production. The machine design is very robust to resist high demands in industrial operations.
Product code: 1463000
Technical parameters
| Knife shaft diameter | 120 mm |
| Number of knives | 4 |
| Knife shaft speed | 5 500/min. |
| Max. thicknessing width | 630 mm |
| Max. thicknessing height | 300 mm |
| Max. chip thickness | 8 mm |
| Thickening feed speed | 5 ÷ 20 m/min. |
| S6 motor power 40% | 7,5 kW (9,2 kW) |
| Feed motor power | 0,55 kW |
| Lifting motor power | 0,25 kW |
| Length | 1 200 mm |
| Width | 1 170 mm |
| Height | 1 290 mm |
| Dimensions of the thickness milling machine table | 1 050 x 630 mm |
| Gross weight | 890 kg |
| Net weight | 870 kg |
| Voltage/frequency | 3x400V / 50(60)Hz |
| Workplace noise (without technology) | 88.3 dB(A) |
| Workplace noise (with technology) | 95.6 dB(A) |
Warranty conditions
- 12 months
You will definitely appreciate this product
Two defrost rollers
Input and output feed rollers
Four-legged planing roller ROJEK

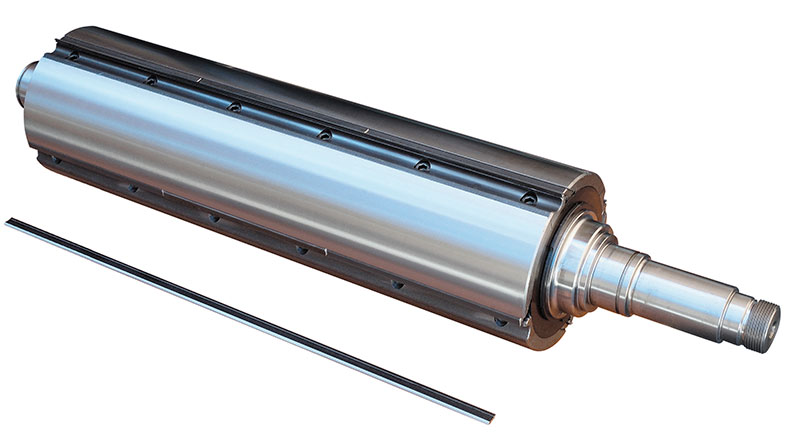

Spiral planer roller

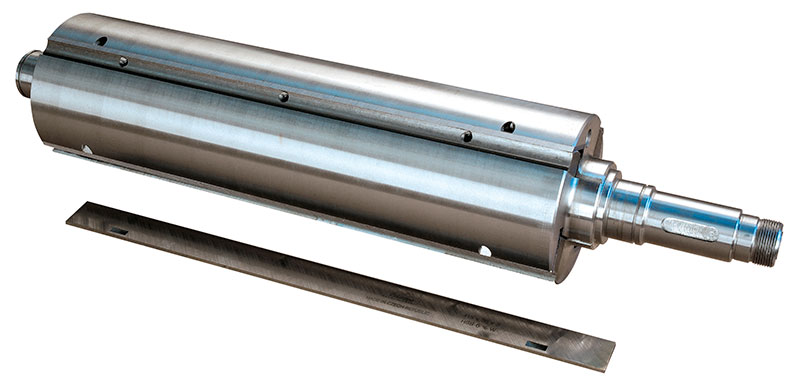

Four-legged planer roller with TERSA knives
Control panel + programmer
Four-point table fixation - lifting on four screws
Features and standard equipment
- the machine has already in the basic version a continuous feed with a programmer, which allows to work in the range of 5-20 m/min.
- The basic version of this machine has a powerful 7.5 kW S6/40% main motor
- the RFT 630 is very easy to operate
- ROJEK woodworking and thicknessing milling machines use standard flat blades
- the machine is equipped with a classic 4-foot roller
- the blades are easy to change and set up and can be purchased in almost all specialist tool shops
- this machine belongs to the INDUSTRY 9 model series and is suitable for medium and heavy woodworking industries
Equipment on request
- engine 9,2 kW/S6
- planing cylinder system MBM SPIRAL
- split infeed roller
- rubberised infeed roller
- polyurethane infeed roller
- Output feed rollers rubberised
- knife stop with deflection gauge
